Rated current :
1AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/1minuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper alloyContact Plating :
gold platingInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/Bag (Standard)Delivery time :
7-10 daysEnvironmental protection :

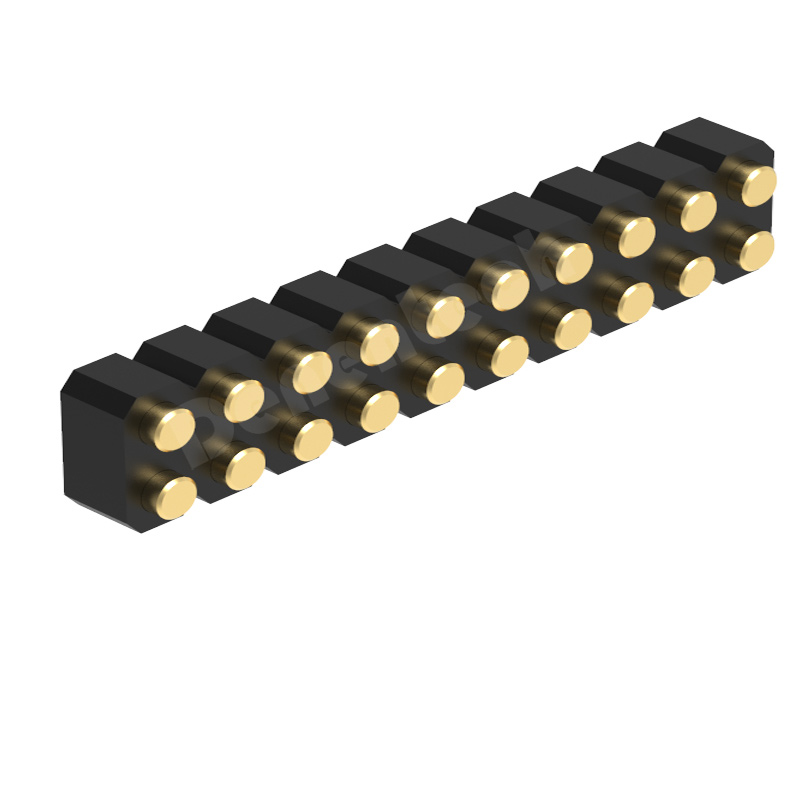

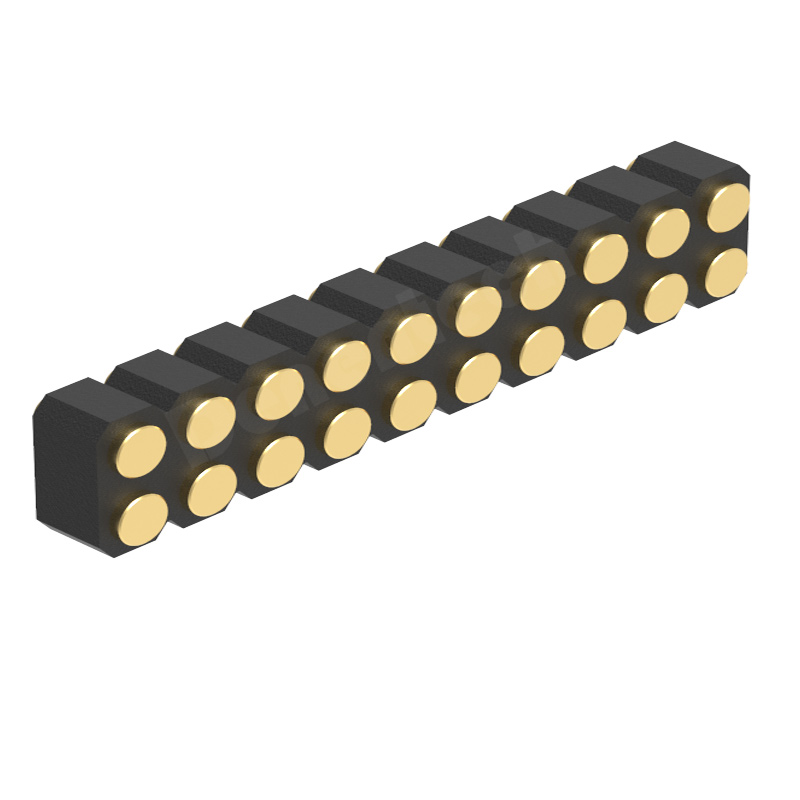

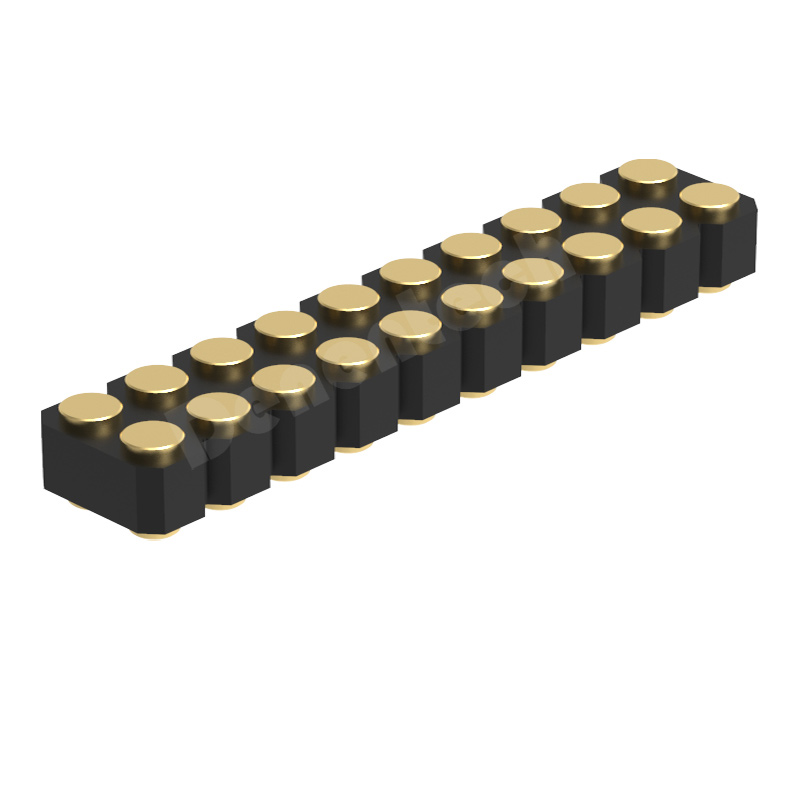

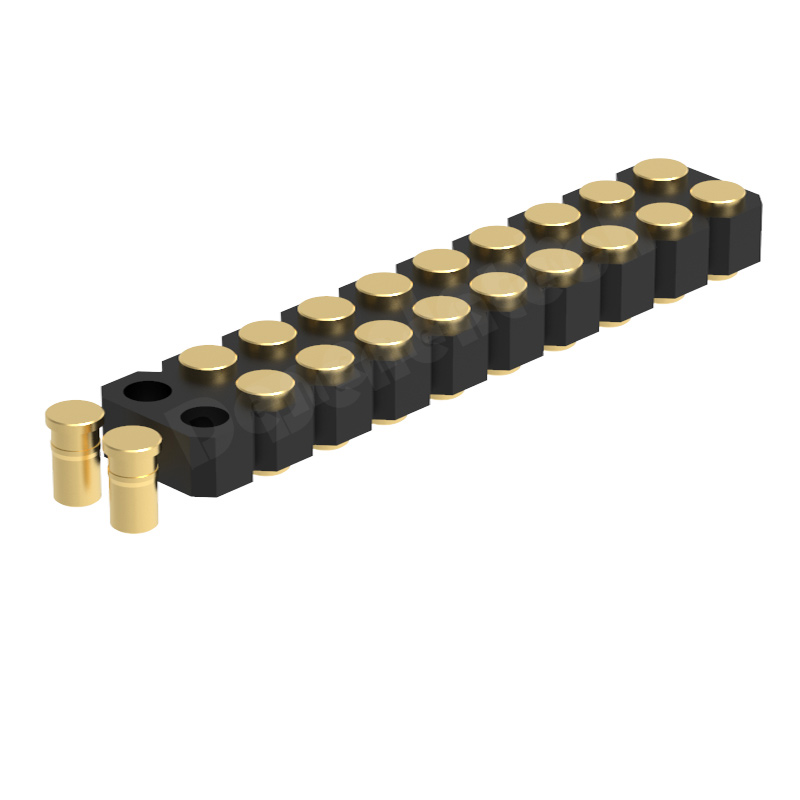

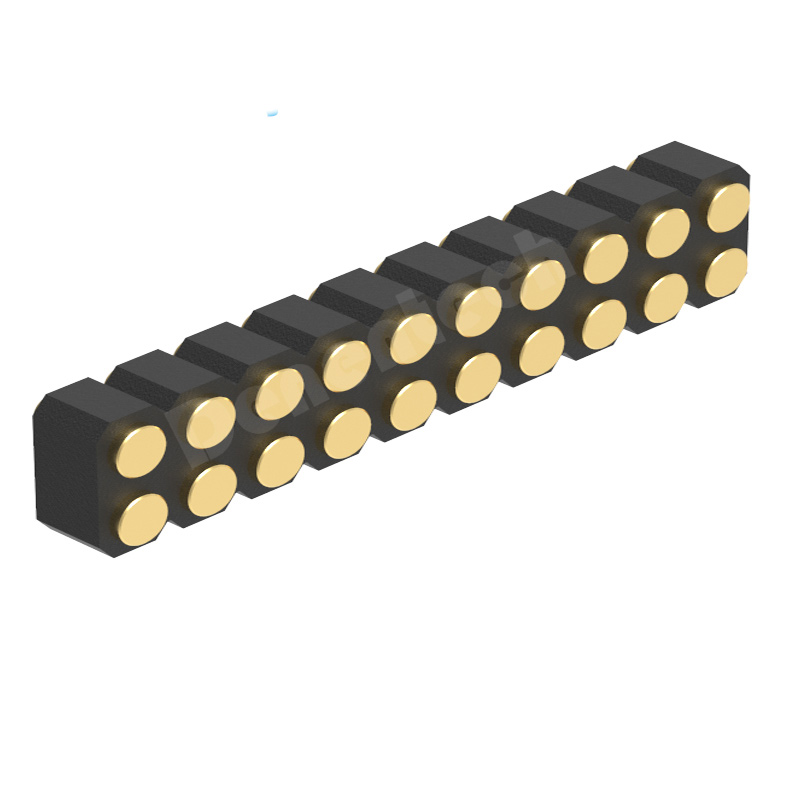

ROHSThe Denentech 2.54mm female pogo pin connector is composed of pin and plastic. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.
The diverse structural design of the 2.54mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.
Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.
Denentech 2.54MM pogo pin H1.27MM dual row male right angle spring test probe pogo pin connector with peg
Denentech 2.54MM pogo pin H2.5MM dual row male straight SMT spring loaded test probe pogo pin connector
Denentech 2.54MM pogo pin H2.5MM dual row male straight 6 pin pogo waterproof smt pogo pins charger connector
Denentech 2.54MM pogo pin H4.0MM solder dual row male spring loaded pogo pin pogo pin charger connector
Denentech customized 1.27MM H2.0MM dual row straight SMT concave female pogo pin
Denentech 2.0mm pitch H1.27 single row male right angle SMT pogo pin connector with peg
Denentech 2.54MM pogo pin H4.0MM triple row male straight SMT pogo pin test probe connector
Denentech Factory hot selling 3.0mm pitch H4.0 dual row female straight DIP concave pogo pin connector
