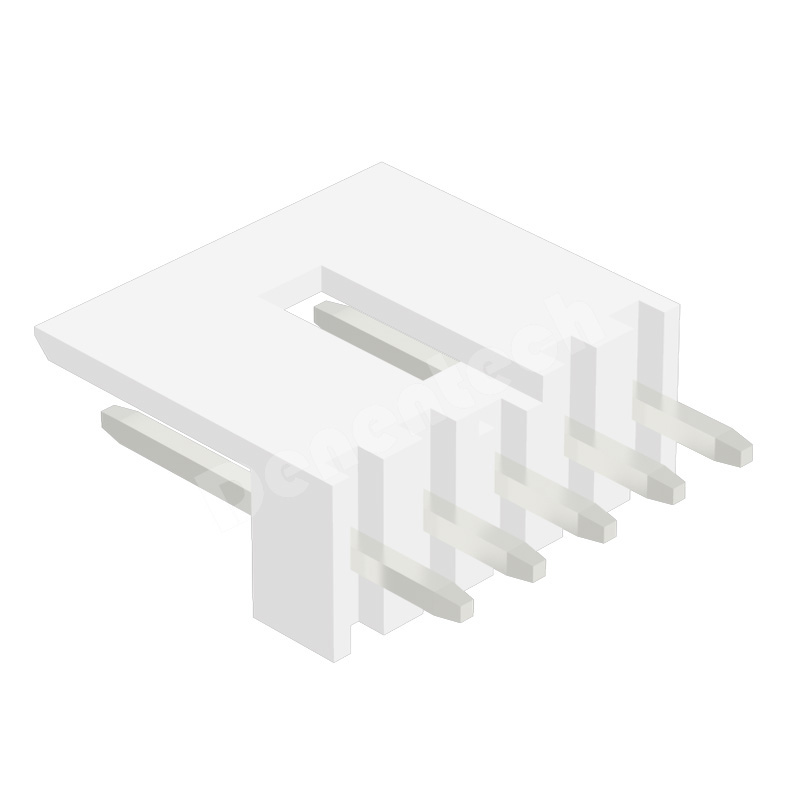

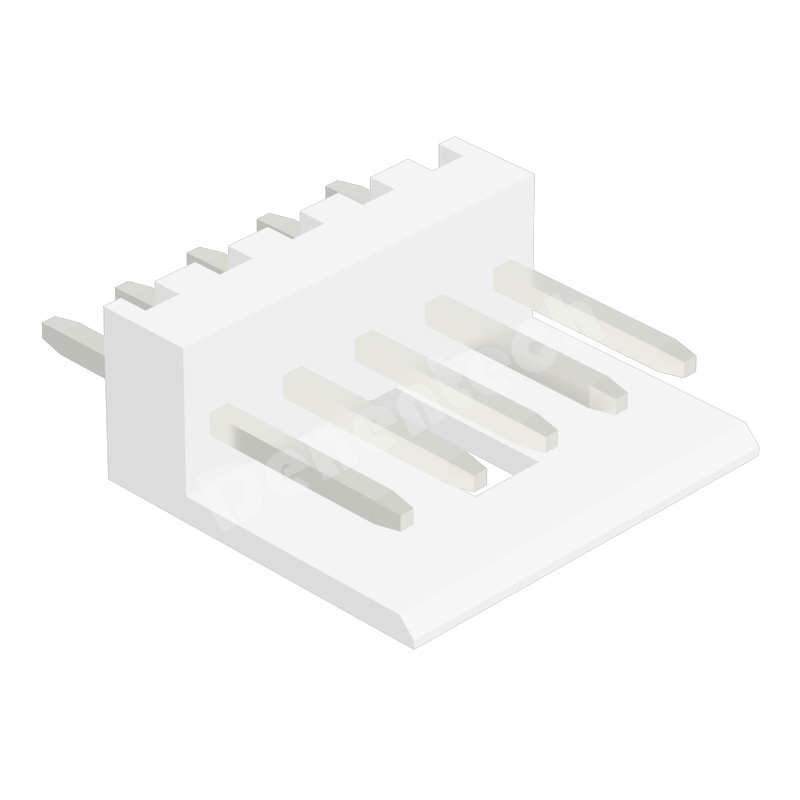

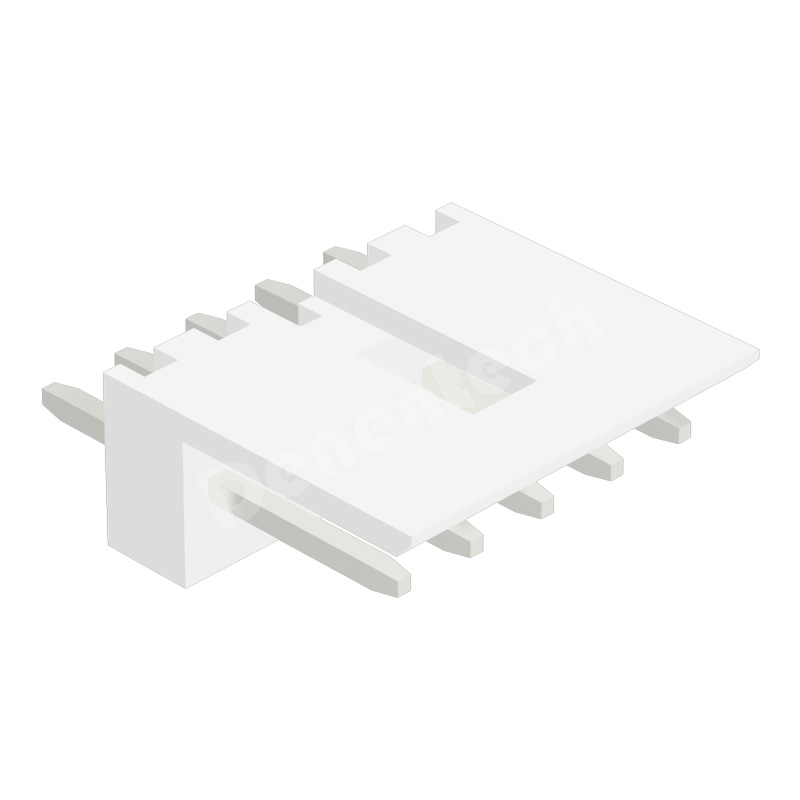

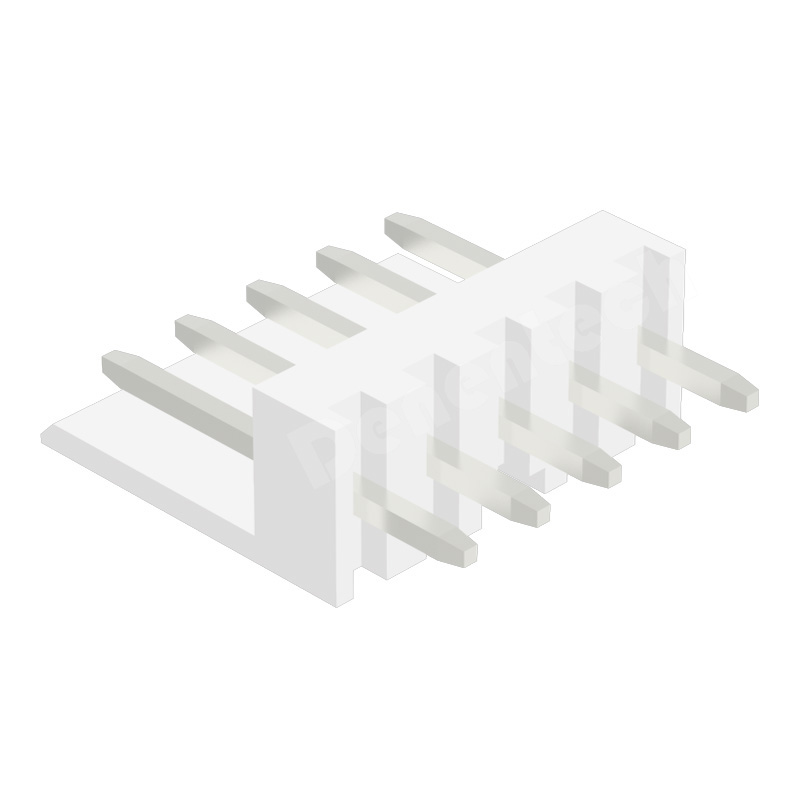

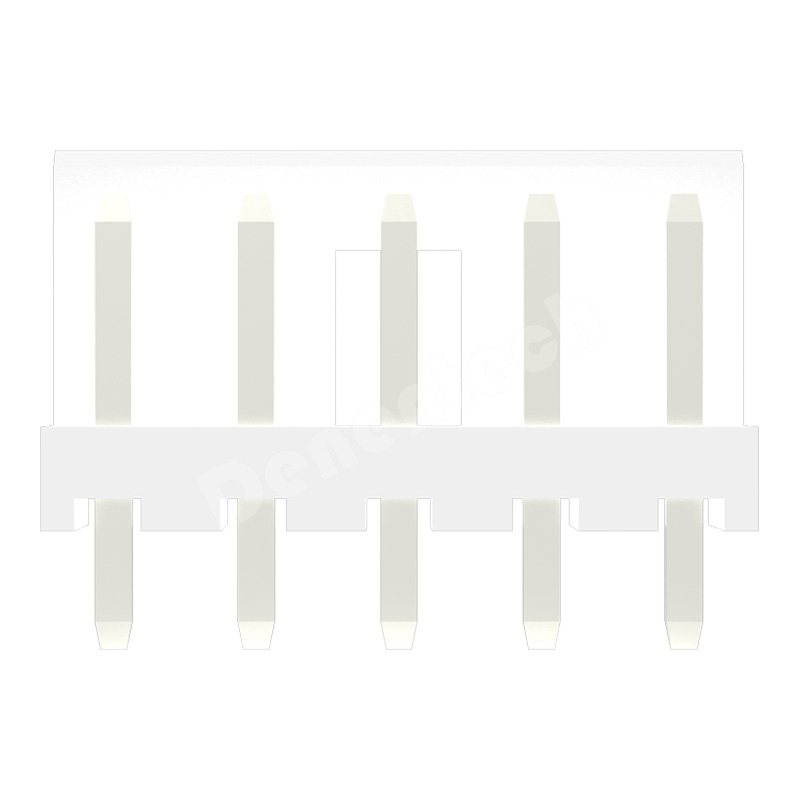

Denentech 4P right straight DIP 2.54MM wafer housing connectors Denentech 4P right straight DIP 2.54MM wafer housing connectors Denentech 4P right straight DIP 2.54MM wafer housing connectors Denentech 4P right straight DIP 2.54MM wafer housing connectors Denentech 4P right straight DIP 2.54MM wafer housing connectors
Denentech 4P right straight DIP 2.54MM wafer housing connectors
Denentech 4P right straight DIP 2.54MM wafer housing connectors
Denentech 4P right straight DIP 2.54MM wafer housing connectors
Denentech 4P right straight DIP 2.54MM wafer housing connectors
Denentech 4P right straight DIP 2.54MM wafer housing connectors

Denentech 4P right straight DIP 2.54MM wafer housing connectors

Product Code : W25M-XXSST32SNXX Product Info :

Production status: in mass production

If you want to know more about this product, please contact us.

Product Properties

Rated current :

3.0 AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Tin-Plate

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

PE Bag/Blister Tray/Tape&Reel

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request

PIN HEADER FEMALE HEADER MACHED PIN HEADER MACHED FEMALE HEADER BOX HEADER EJECTOR HEADER POGO PIN SERVO CONNECTOR DIN41612 HEADER WAFER HEADER D-SUB CONNECTOR MAGNETIC POGO PIN CABLE INDUSTRIAL CONTROL CABLE D-SUB CABLE HIGH SPEED CABLE SERVO CABLE

Product documentation
post

drawing

Click on the file to apply for downloading, and we will send it to you by email. Please pay attention to your email.
