Rated current :
3AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
Gold Or Nickel-PlatedInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag/Blister Tray (standard)Delivery time :
7-10 daysEnvironmental protection :
ROHS
The Danentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.
The surface of the Denentech 2.54mm pin header is treated with multiple layers of electroplating to ensure that the 2.54mm pin header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 2.54mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

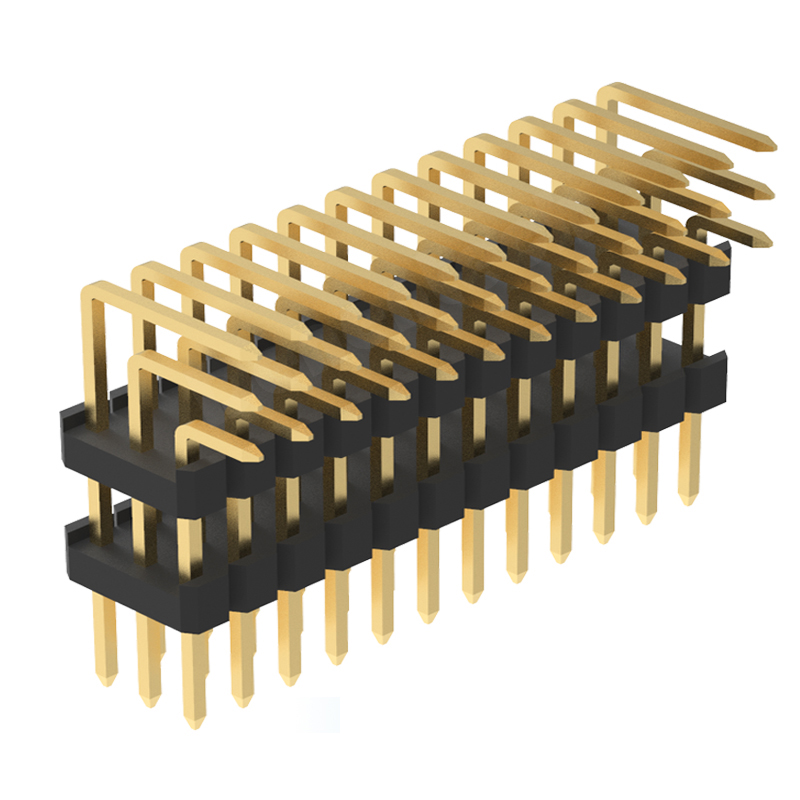

Denentech 2.54mm pin header triple row dual plastic board space right angle pin header 90 degree

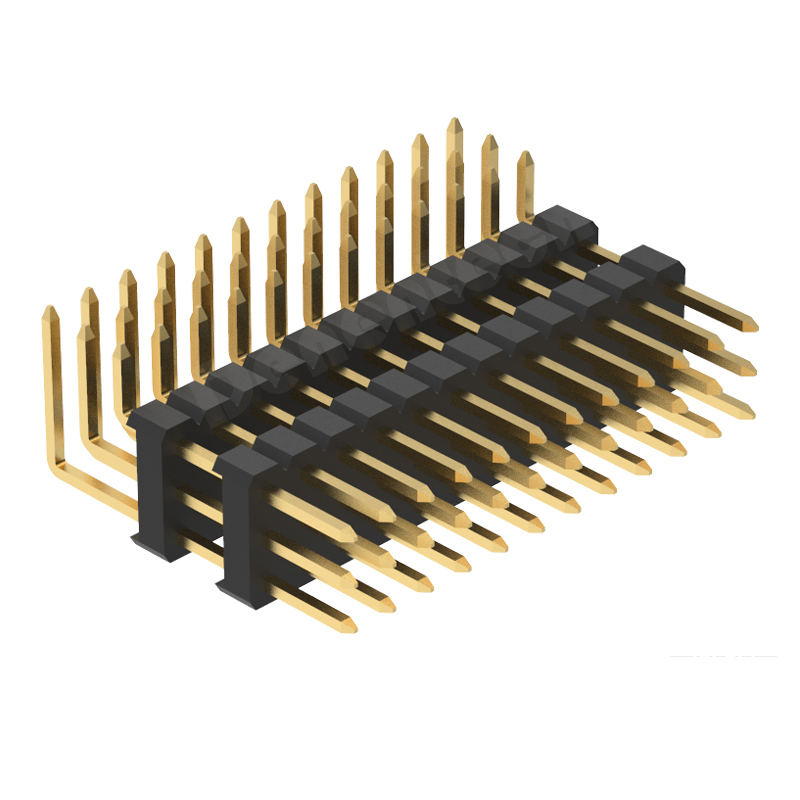

Denentech 2.54mm pin header dual row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°

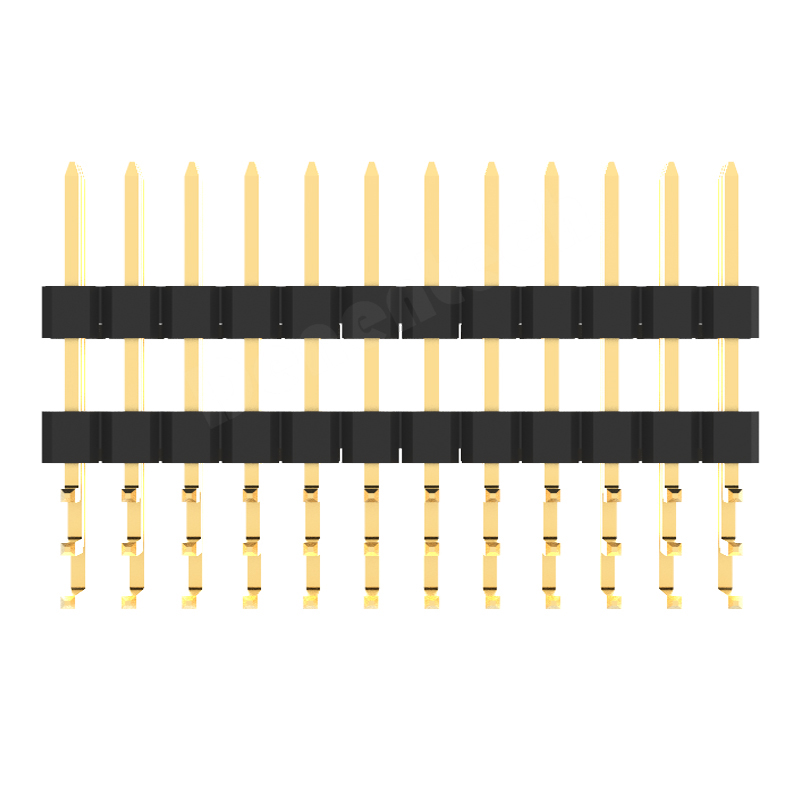

Denentech 2.54mm pin header triple row straight 2.54mm pin header connector 2.54 male header round pin.

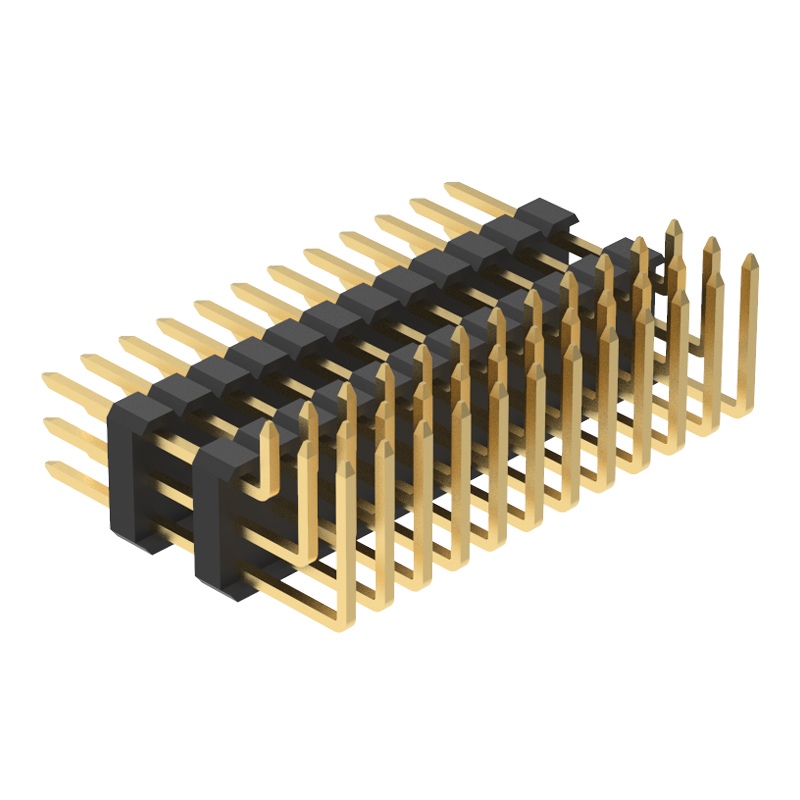

Denentech 2.54mm pin header triple row right angle 90-degree bent pin arrangement with gold-plated feet
2.54mm pin header triple row dual plastic straight 2.54 mm pin header connector 2.54mm pin header, three rows and three plastics, 180 degrees.

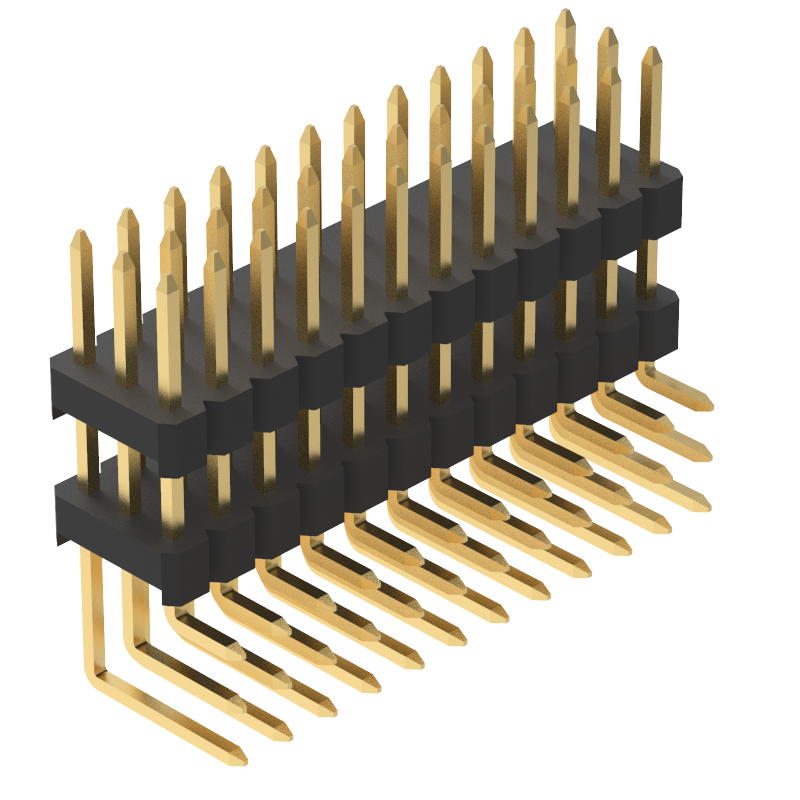

Denentech 2.54mm pin header triple row dual plastic right angle 2.54 mm pin header connector
