Rated current :
2.0AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
Gold Or Nickel-PlatedInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag/Blister Tray (standard)Delivery time :
7-10 daysEnvironmental protection :

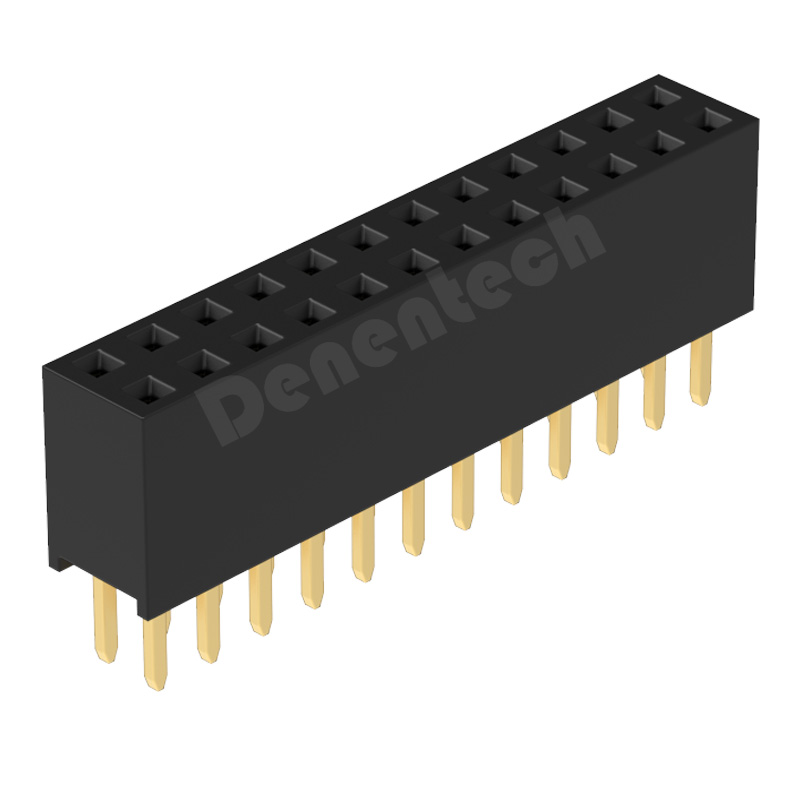

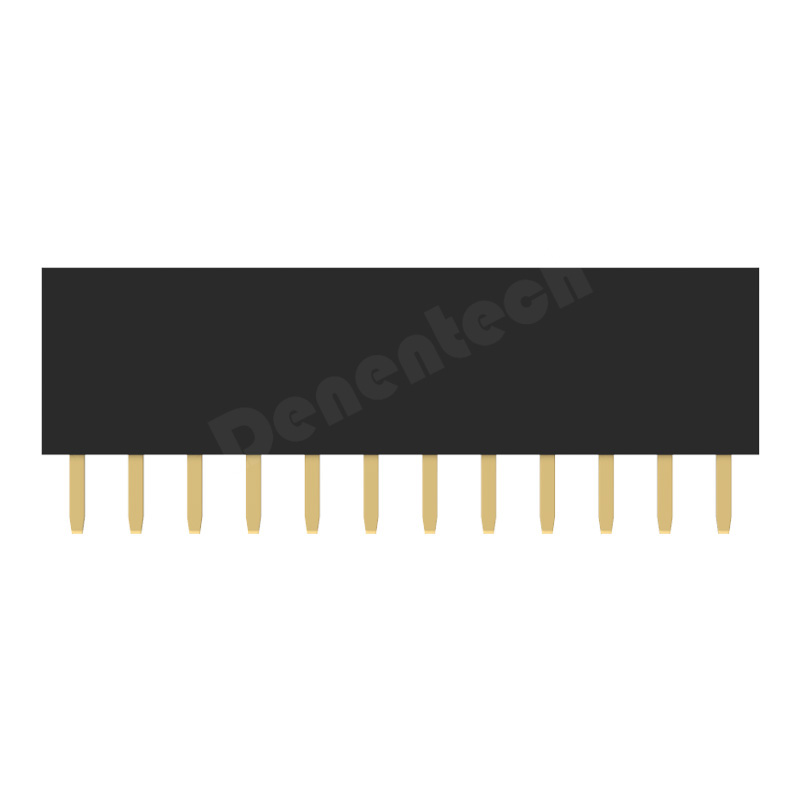

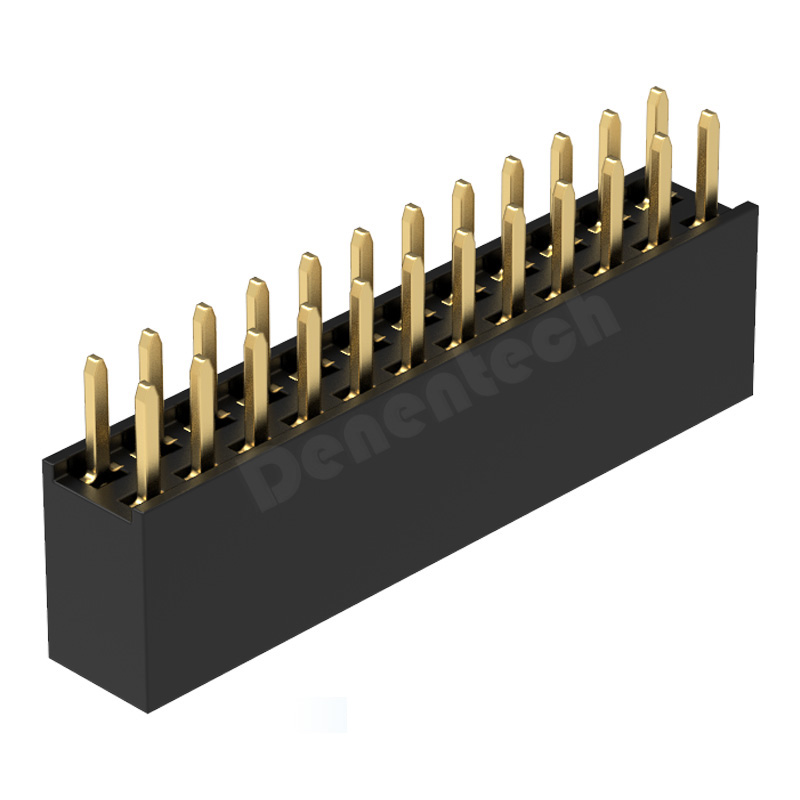

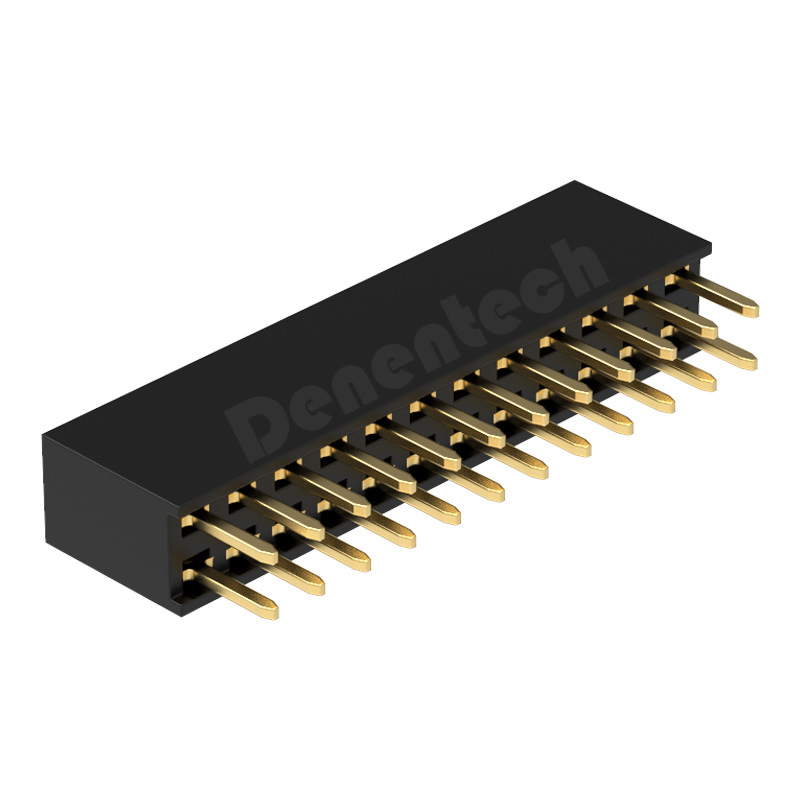

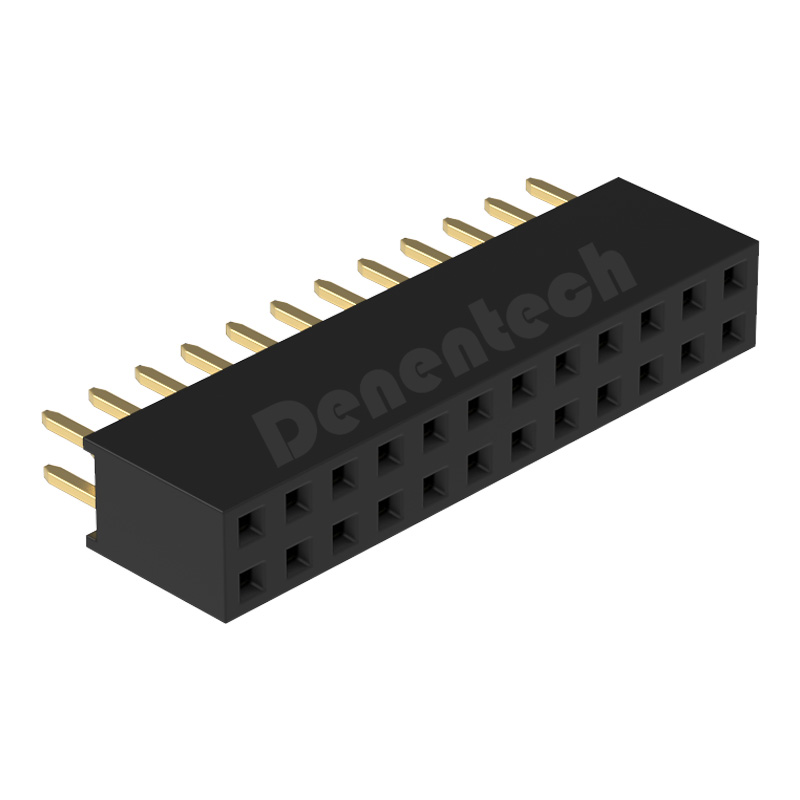

ROHSThe Denentech 2.00mm female connector uses high-quality brass and high-temperature plastic according to international standards, ensuring faster signal current transmission speed and lower signal loss rate, thereby improving the stability and reliability of the connection.
The surface of the Denentech 2.00mm female header is treated with multiple layers of electroplating to ensure that the 2.00mm female header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 2.00mm pitch female header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality female header connectors.
Denentech 2.0mm pin header dual row straight round female pin header
Denentech Gold Plating 2.00mm pitch dual row right angle DIP pin header connector
Denentech 2.0mm dual row male straight SMT pin header connector with peg
Denentech 2.0mm pin header dual row right angle SMD 2mm male pin header conector with peg
Denentech 、factory custom 2.0mm female header H6.35MM dual row straight
Denentech professional factory 2.00MM female header H6.35MM dual row right angle
Denentech high quality 2.00MM H6.35MM dual row straight SMT female header
Denentech factory custom 2.00MM female header H6.35MM dual row straight splint+plastic
