Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight
Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight
Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight
Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight
Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight
Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight

Denentech good quality factory directly 2.00MM female header H4.3MM dual row straight

Product Code : F443-XXDG0STXXX Product Info :

Production status: in mass production

If you want to know more about this product, please contact us.

Product Properties

Rated current :

2.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS

Product Specification

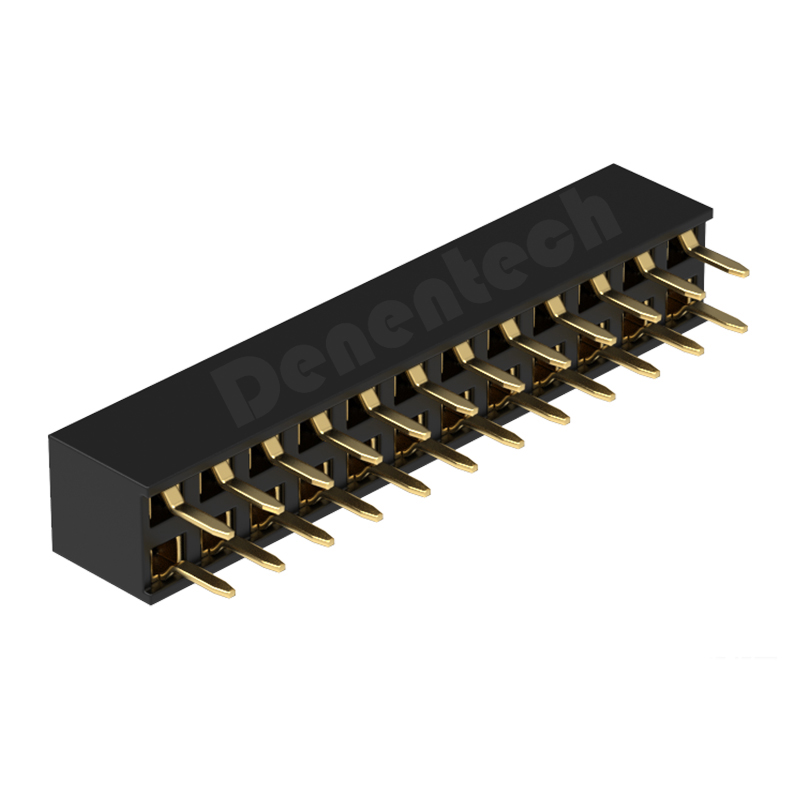

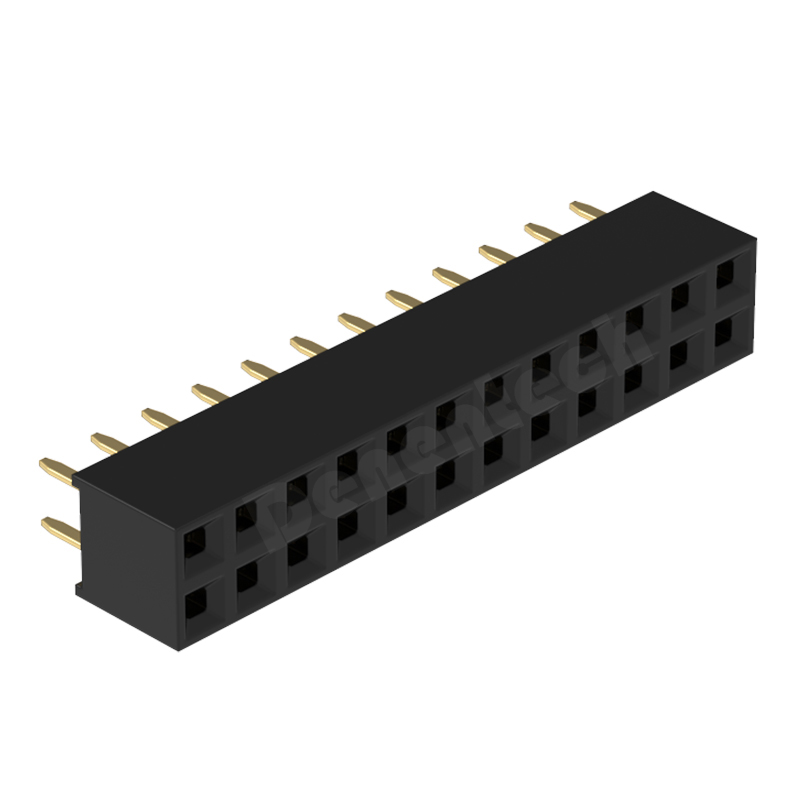

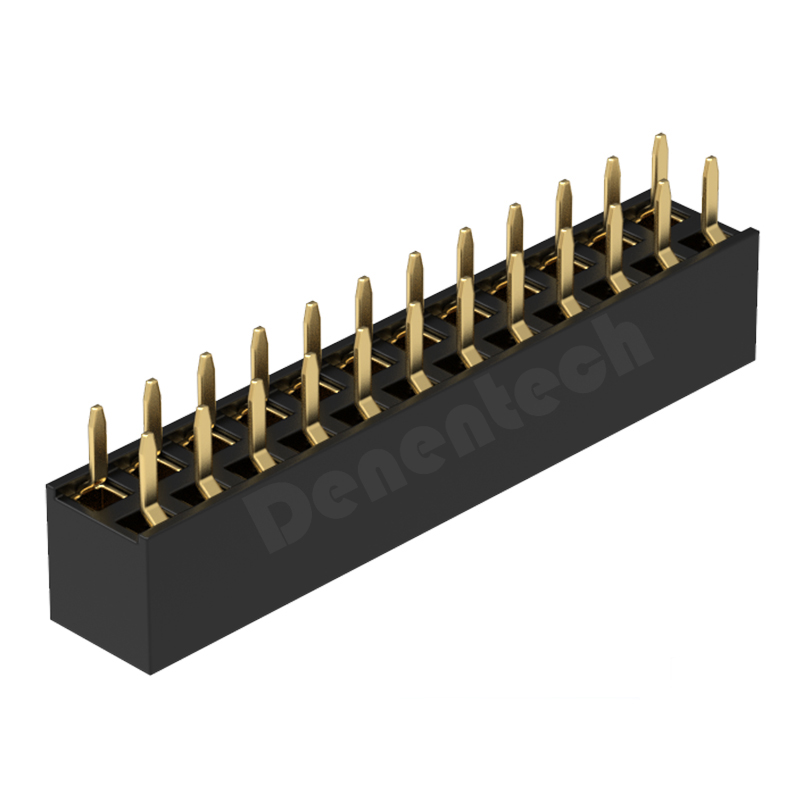

Product name : 2.00MM female header H4.3MM dual row straight
Pitch 2.0mm
Plastic height H4.3mm
Pin length 3.2mm
Row number dual row
Pin number 4-80pin
Connection type Straight SMT
Rated current 2A
Pin material Brass
Surface treatment gold flash
Plastic materials PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.
Product features high temperature resistance/flame retardant
Application consumer electronics, automotive electronics, industrial automation, communication electronics, etc
