Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector

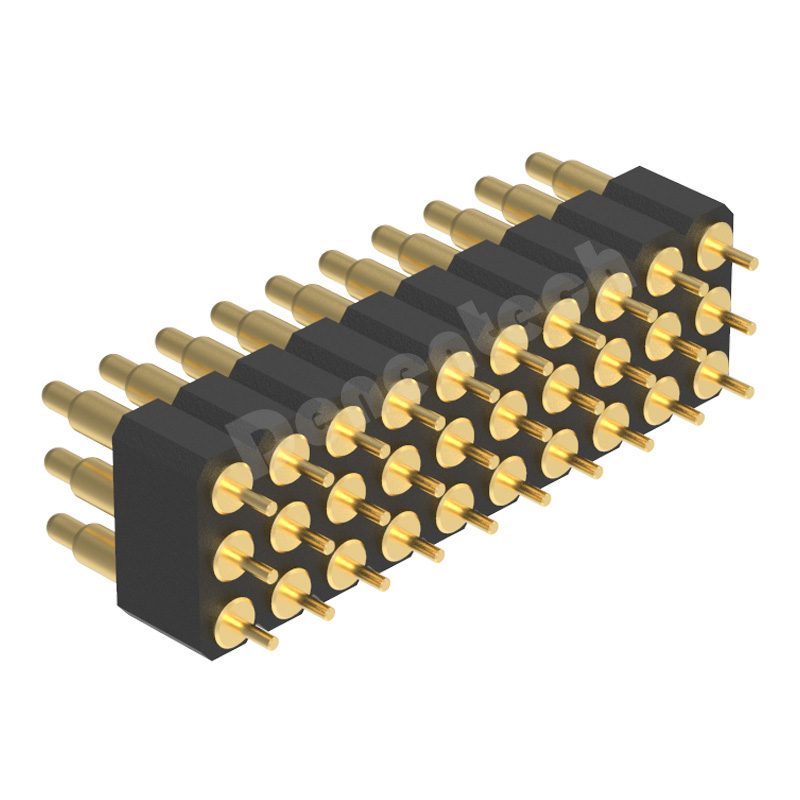

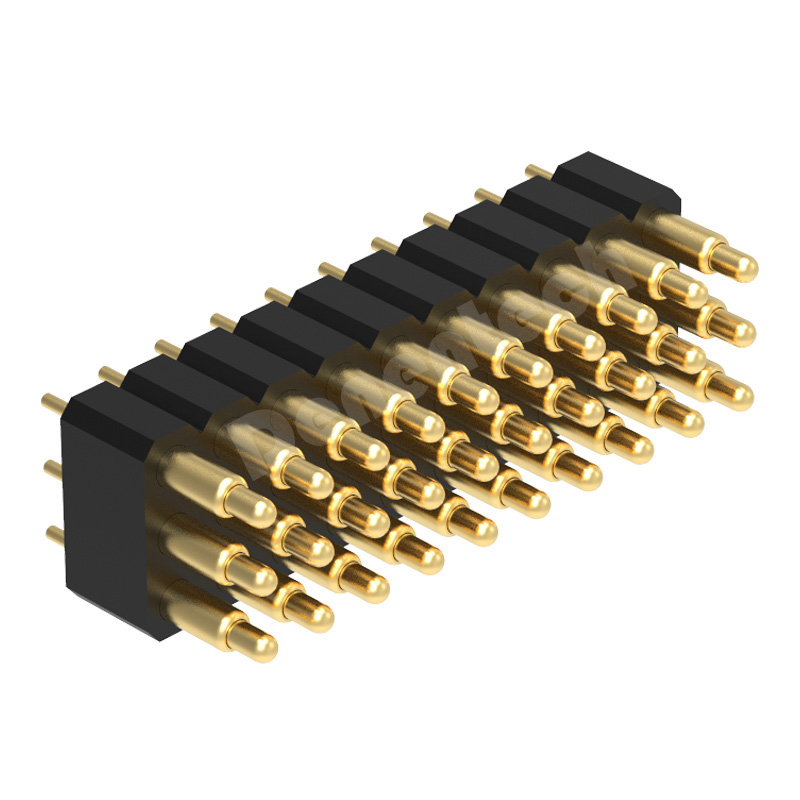

Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector
Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector
Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector
Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector
Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector

Denentech 2.54M pogo pin H4.0MM triple row male straight DIP spring test probe pogo pin charger connector

Product Code : VPM3-XXT41XXXXXX Product Info :

Production status: in mass production

If you want to know more about this product, please contact us.

Product Properties

Rated current :

1.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS

Product Specification

Product name 2.54mm pogopin
Pitch 2.54mm
Plastic height H4.0mm
Row number triple row
Rated current 3A
Pin number 9-240pin
Connection type Straight DIP
Pin material Brass
Surface treatment Au 1-3u"
Plastic materials PPS, PA6T, LCP, etc.
Board height 4.3mm(length can be customized)
Elasticity life more than 10000 times
Product features high temperature resistance/flame retardant
Application smart wearables, mobile communications, digital cameras, automobiles, and medical devices, etc.
Online Inquiry Sample Request

PIN HEADER FEMALE HEADER MACHED PIN HEADER MACHED FEMALE HEADER BOX HEADER EJECTOR HEADER POGO PIN SERVO CONNECTOR DIN41612 HEADER WAFER HEADER D-SUB CONNECTOR MAGNETIC POGO PIN CABLE INDUSTRIAL CONTROL CABLE D-SUB CABLE HIGH SPEED CABLE SERVO CABLE

Product documentation
post

drawing

Click on the file to apply for downloading, and we will send it to you by email. Please pay attention to your email.
