Rated current :
3.0AMPContact Resistance :
10mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
GoldInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag (standard)Delivery time :
7-10 daysEnvironmental protection :

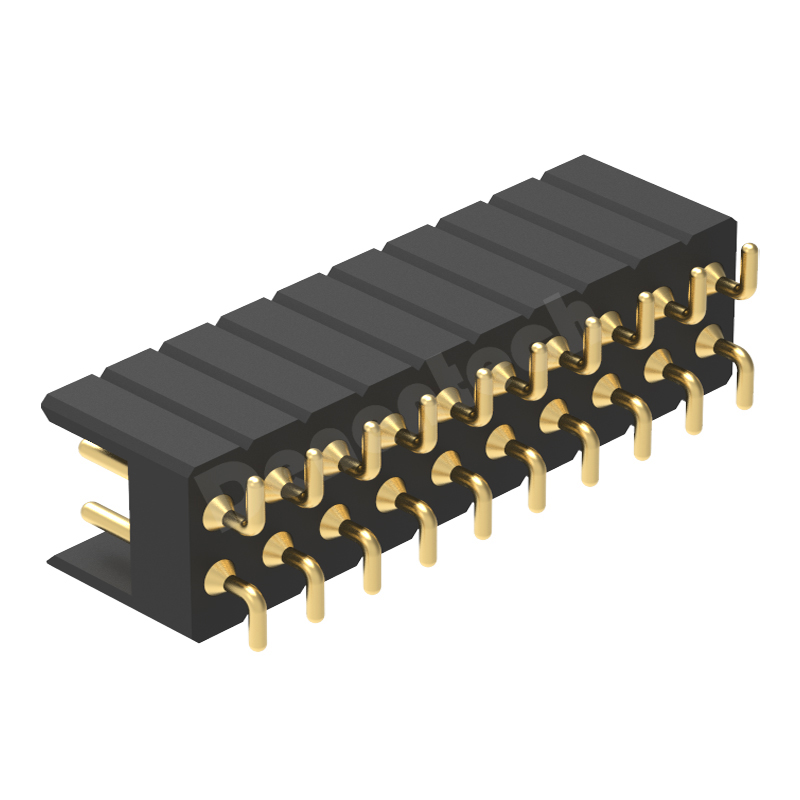

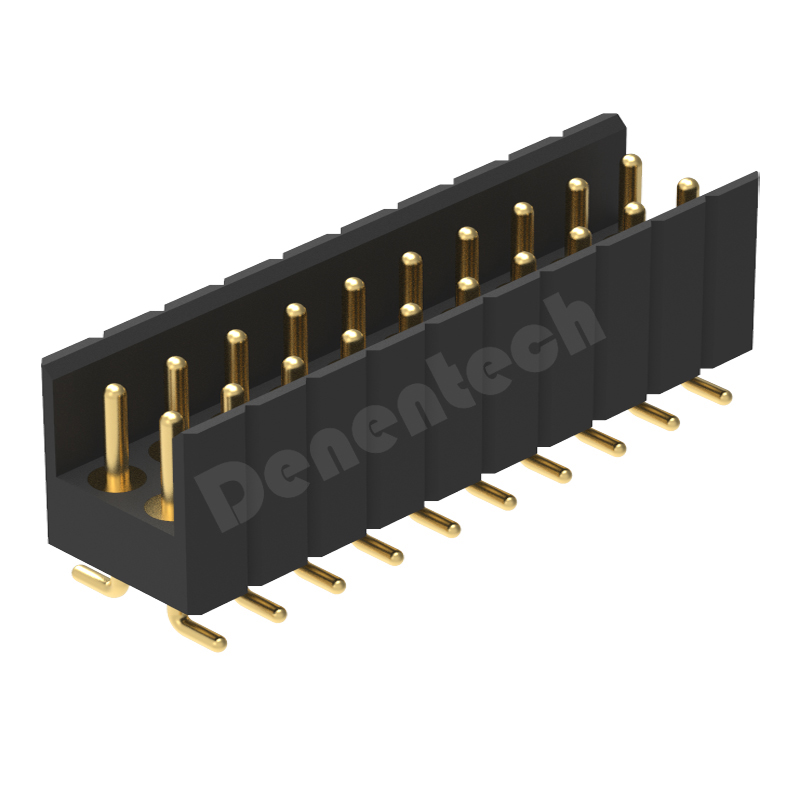

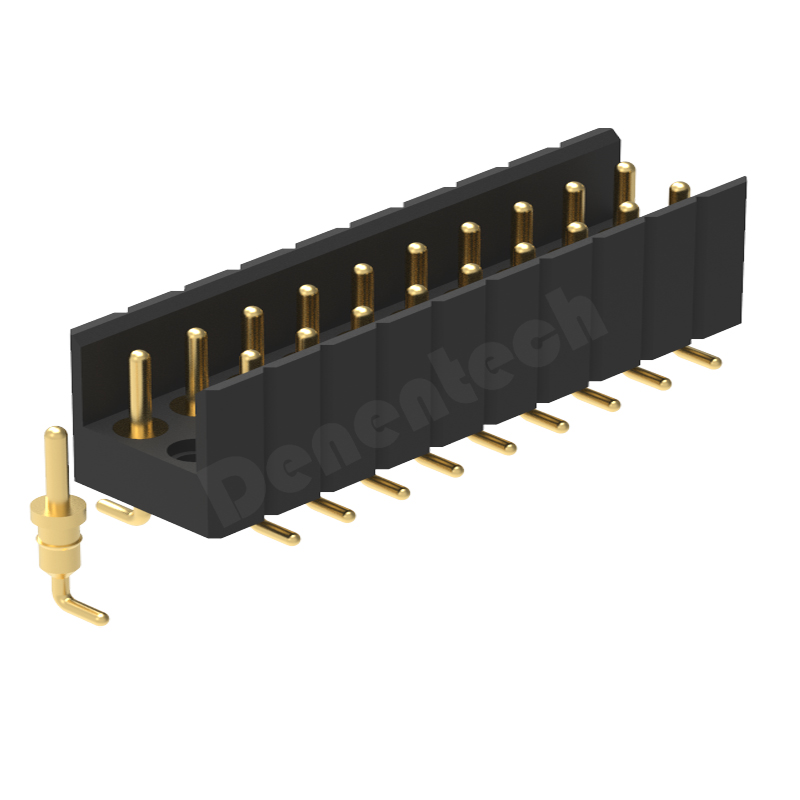

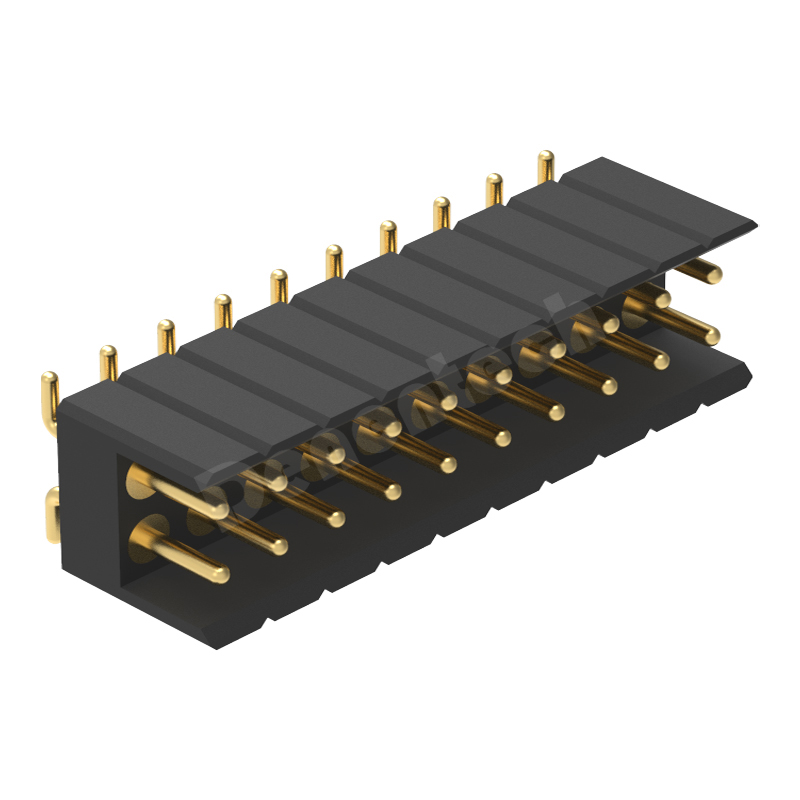

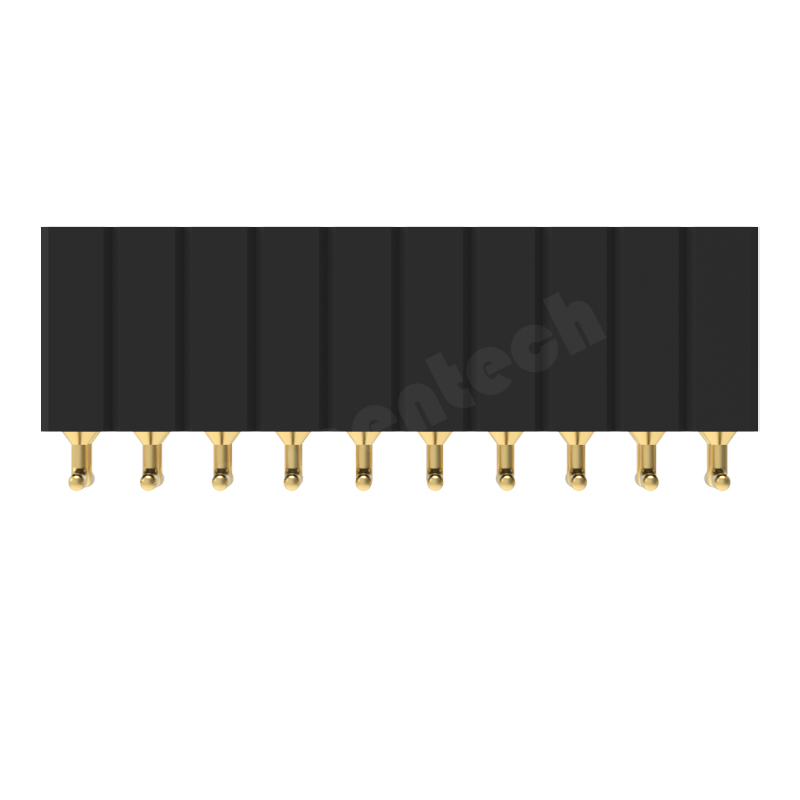

ROHSThe machined pin male connectors of Denentech are made of high-quality brass that complies with international standards. They have high hardness, are not prone to deformation, enable faster transmission of signal currents, and have a lower signal loss rate.
The surface of the 2.54mm Machined Pin Male Connector has undergone multi-layer electroplating treatment to ensure that the product passes the strict verification of ROHS and the 24-hour salt spray test.
Denentech adopts fully automated production for the 2.54mm Machined Pin Male Connector. With an automatic inspection program, random inspections by quality inspectors, and advanced testing equipment, the excellent quality of the products is ensured!
