Rated current :
1AMPContact Resistance :
50mΩ MaxWithstand Voltage :
500VAC/1minuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper alloyContact Plating :
gold platingInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Bag (Standard)Delivery time :
7-10 daysEnvironmental protection :

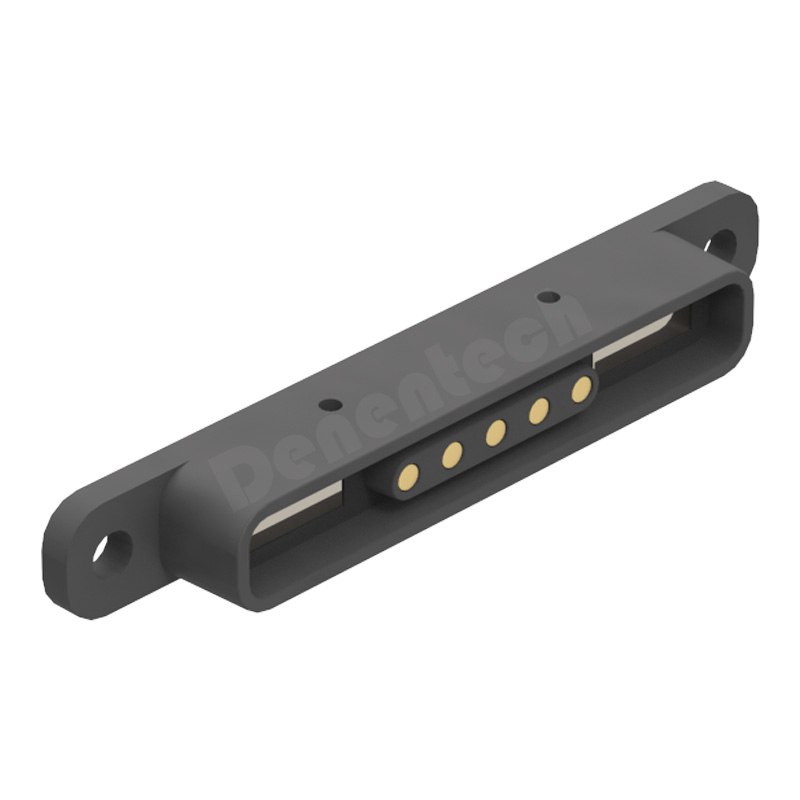

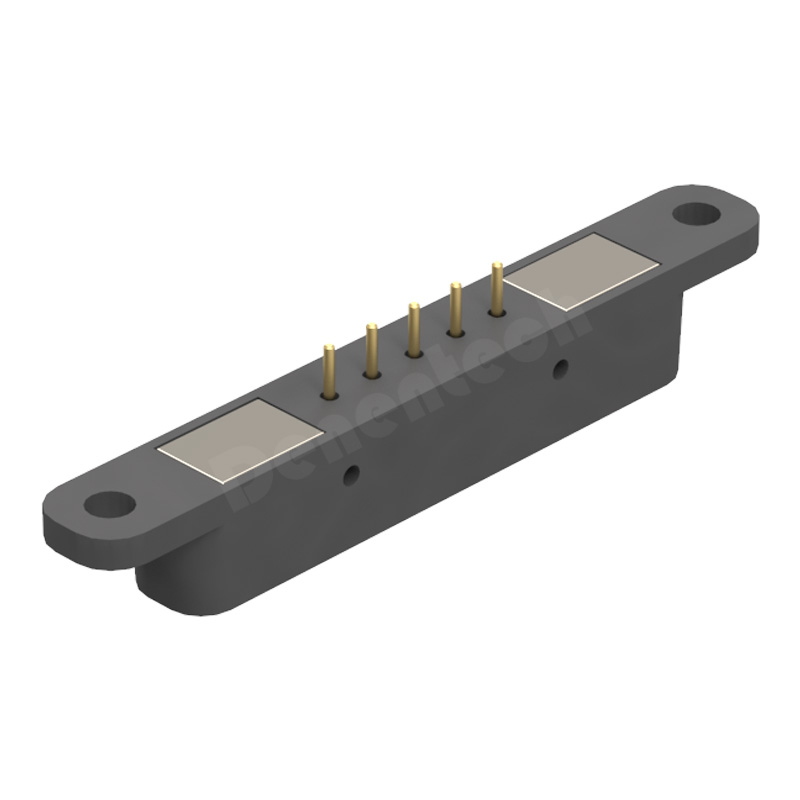

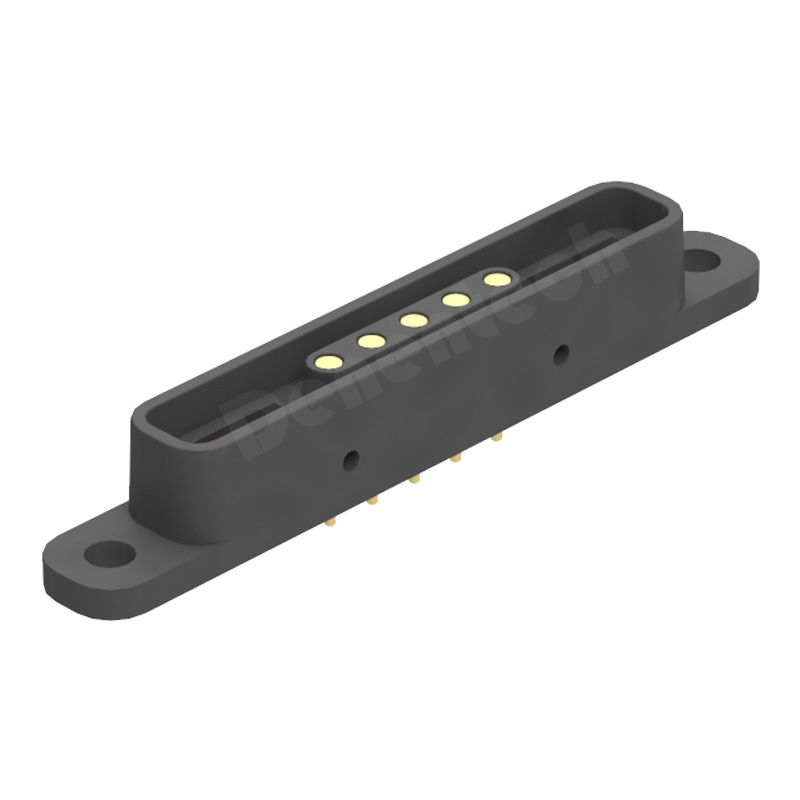

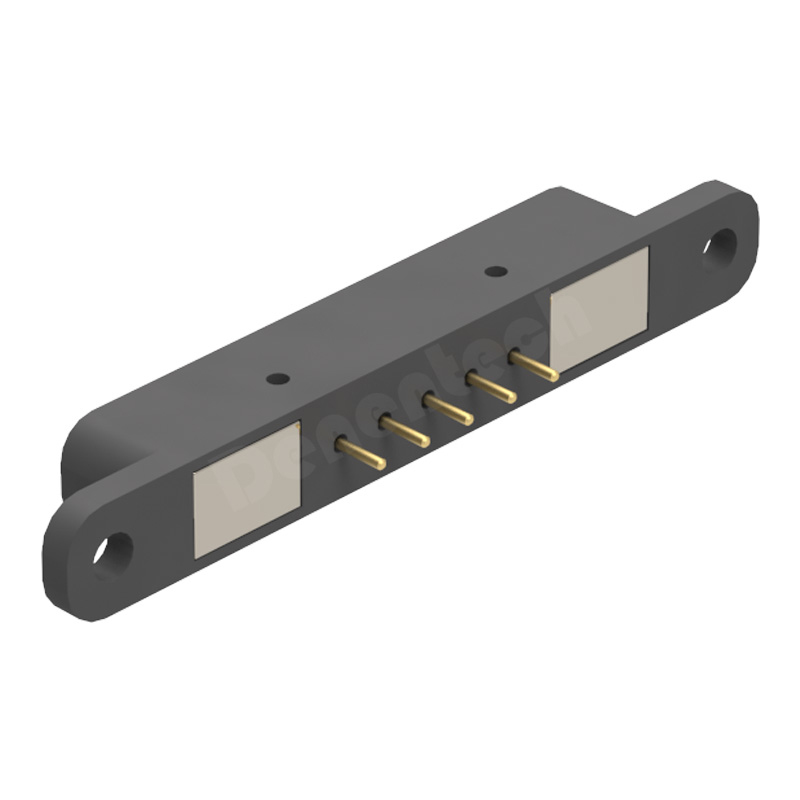

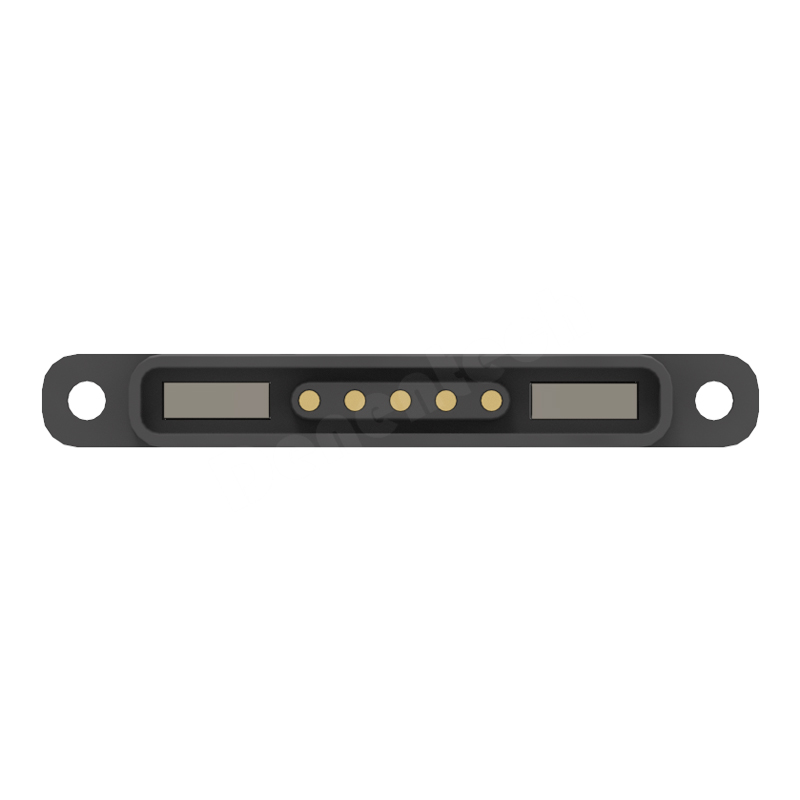

ROHSThe Denentech rectangular magnetic pogo pin connector is composed of pogo pins, magnets and plastics. It adopts high-quality brass, heat-resistant plastics and strong magnets to enable simultaneous charging and data transmission.
The rectangular magnetic pogo pin features various external structural designs and super-strong magnetic automatic adsorption. It has changed the traditional connector methods, enhanced the user experience, and ensured a stable and reliable connection between the male and female connectors.
The Denentech rectangular magnetic pogo pin connector supports high customization to meet specific performance requirements such as stroke, height and electrical properties.Moreover, its unlimited molding design can create many different shapes and styles for specific applications, enabling.It to be widely used in various fields of multiple industries.
