Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors

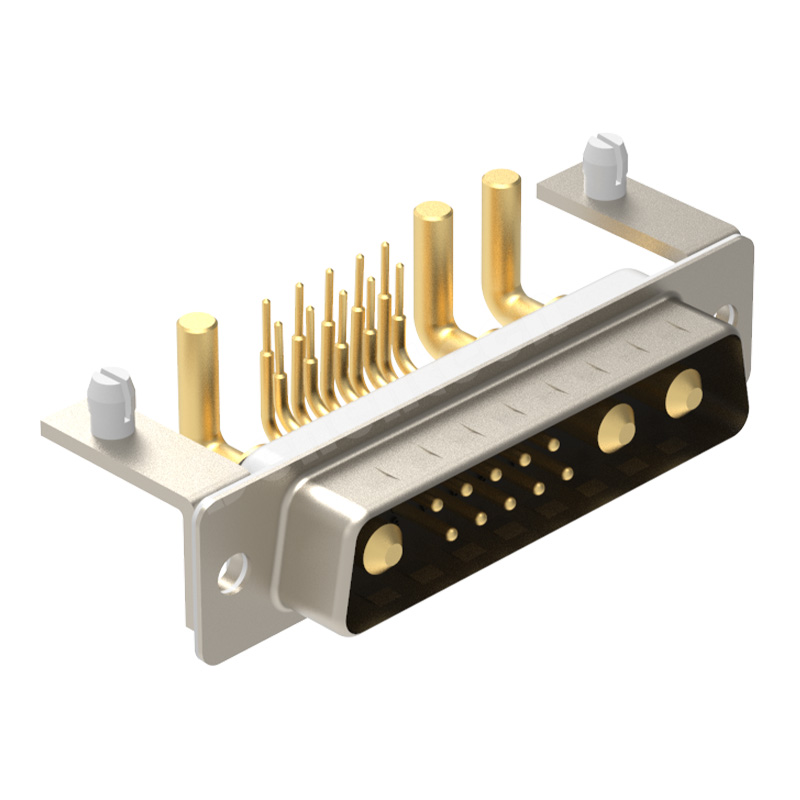

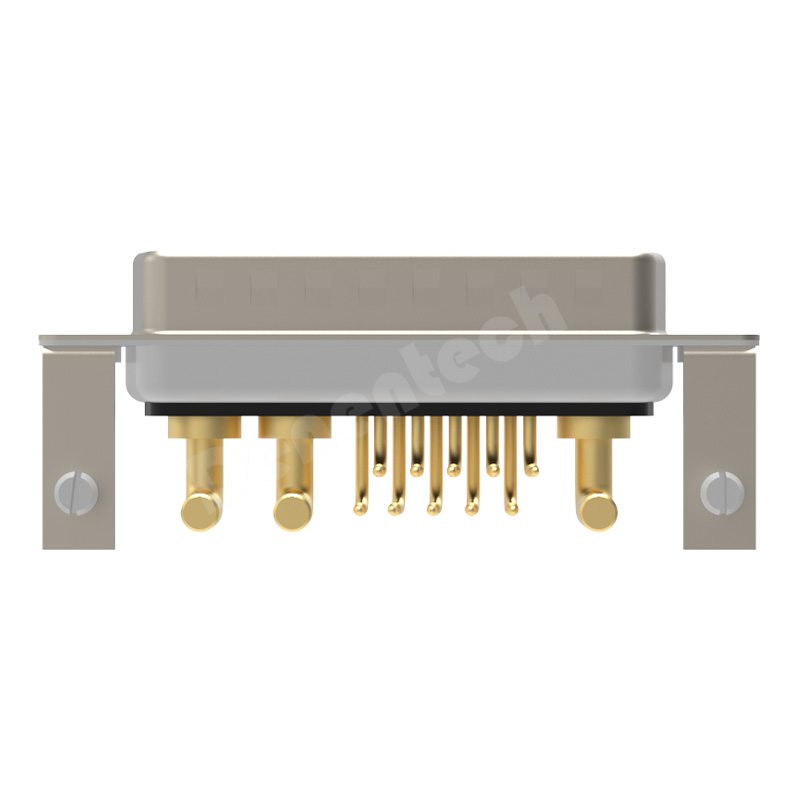

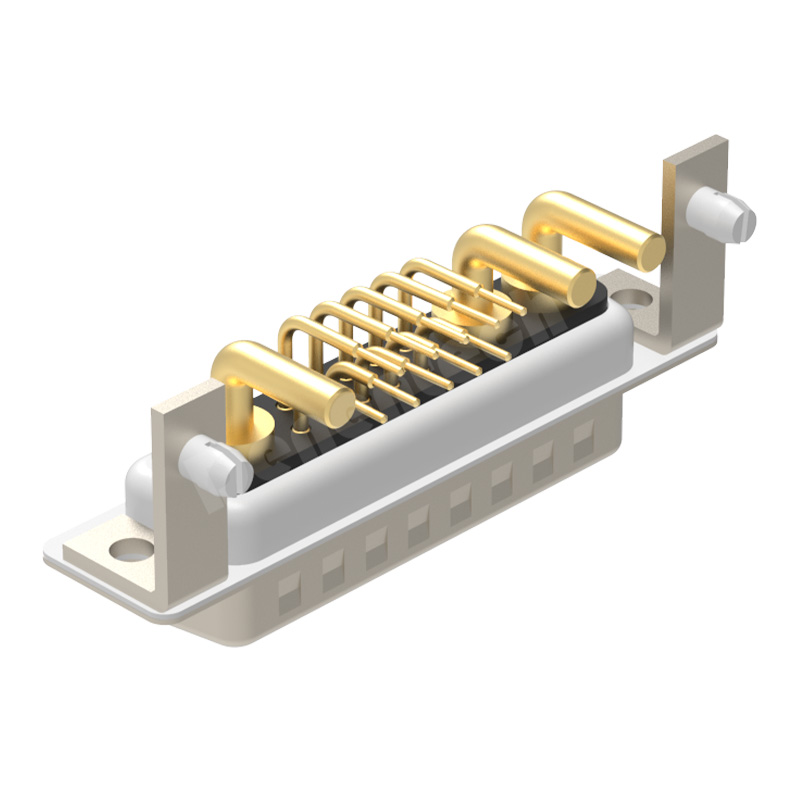

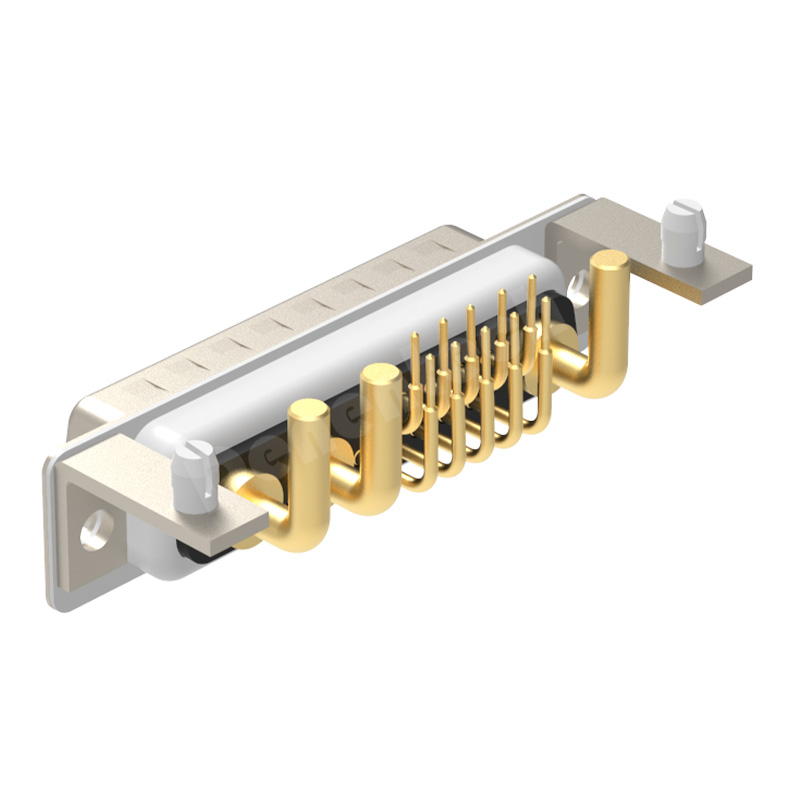

Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors
Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors
Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors
Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors
Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors

Denentech 13W3 high power DB connector male right angle DIP with bracket custom power connectors d-sub connectors

Product Code : D711-13G0111XX Product Info :

Production status: in mass production

If you want to know more about this product, please contact us.

Product Properties

Rated current :

10/20/30/40 AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request

PIN HEADER FEMALE HEADER MACHED PIN HEADER MACHED FEMALE HEADER BOX HEADER EJECTOR HEADER POGO PIN SERVO CONNECTOR DIN41612 HEADER WAFER HEADER D-SUB CONNECTOR MAGNETIC POGO PIN CABLE INDUSTRIAL CONTROL CABLE D-SUB CABLE HIGH SPEED CABLE SERVO CABLE

Product documentation
post

drawing

Click on the file to apply for downloading, and we will send it to you by email. Please pay attention to your email.
