Rated current :
3AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/1MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
GoldInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag (standard)Delivery time :
7-10daysEnvironmental protection :

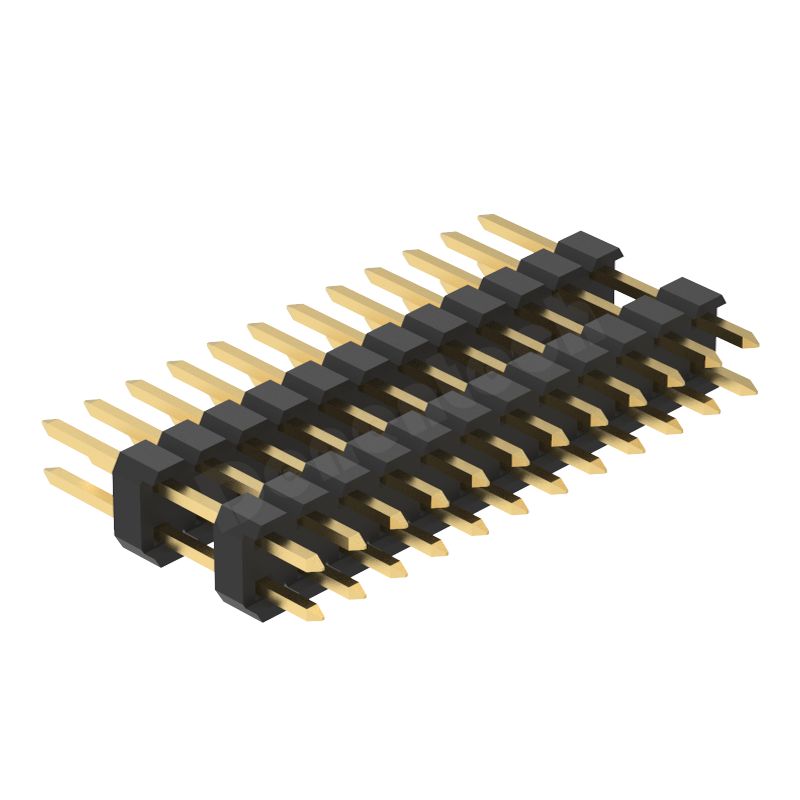

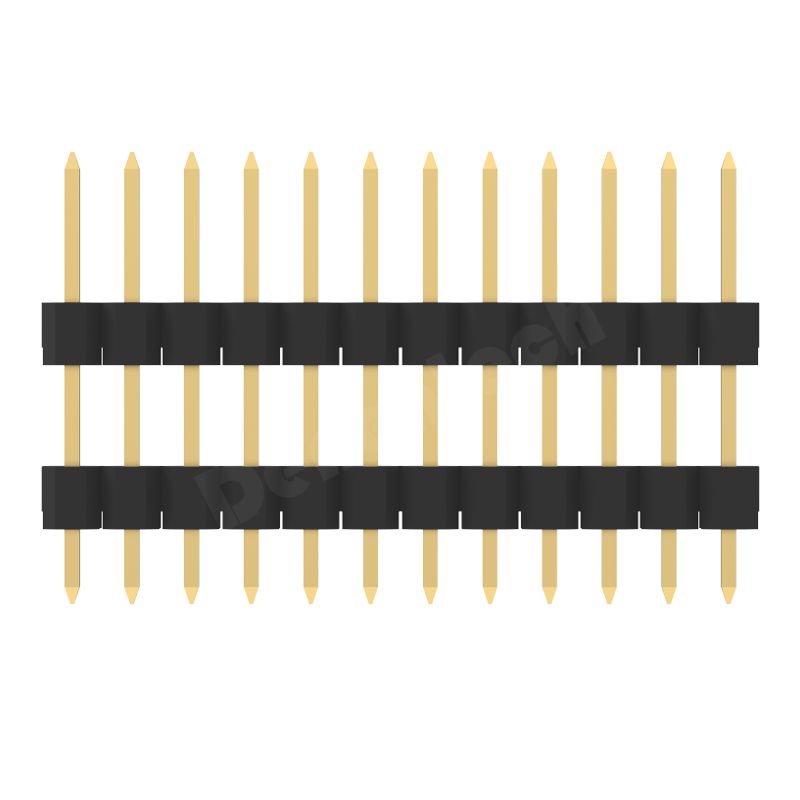

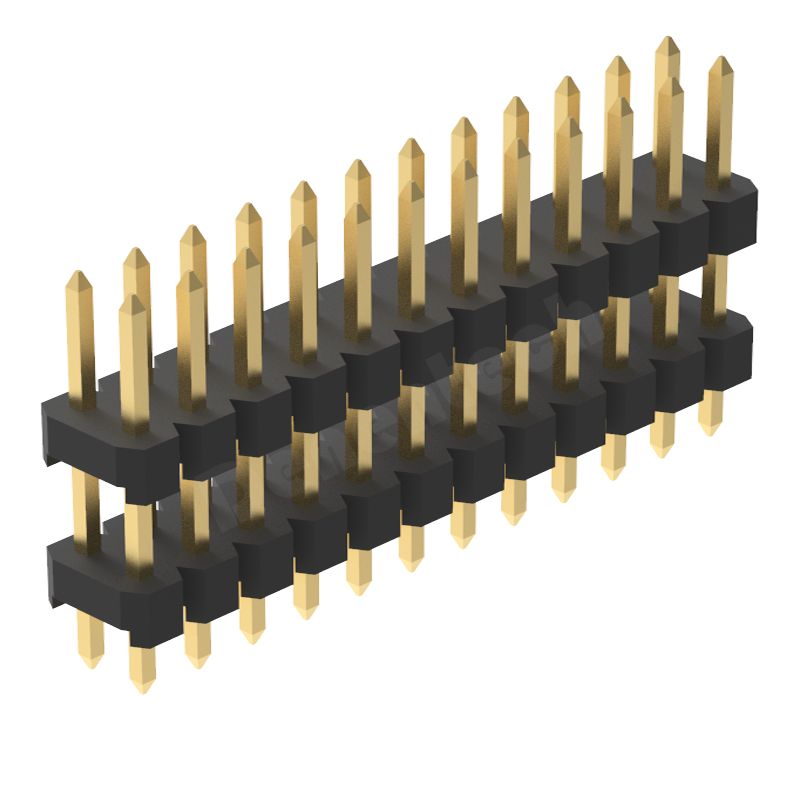

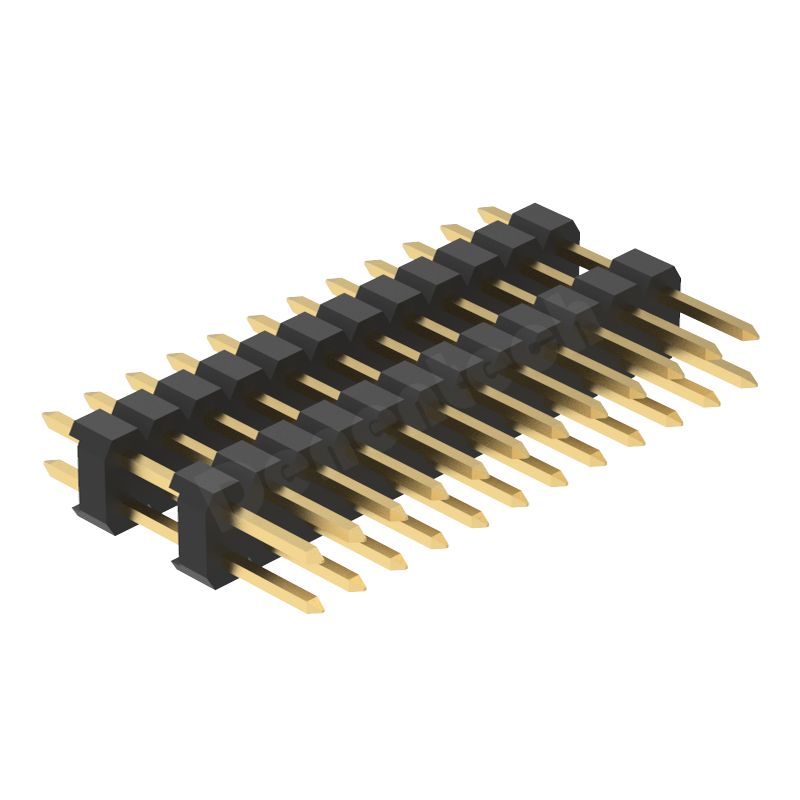

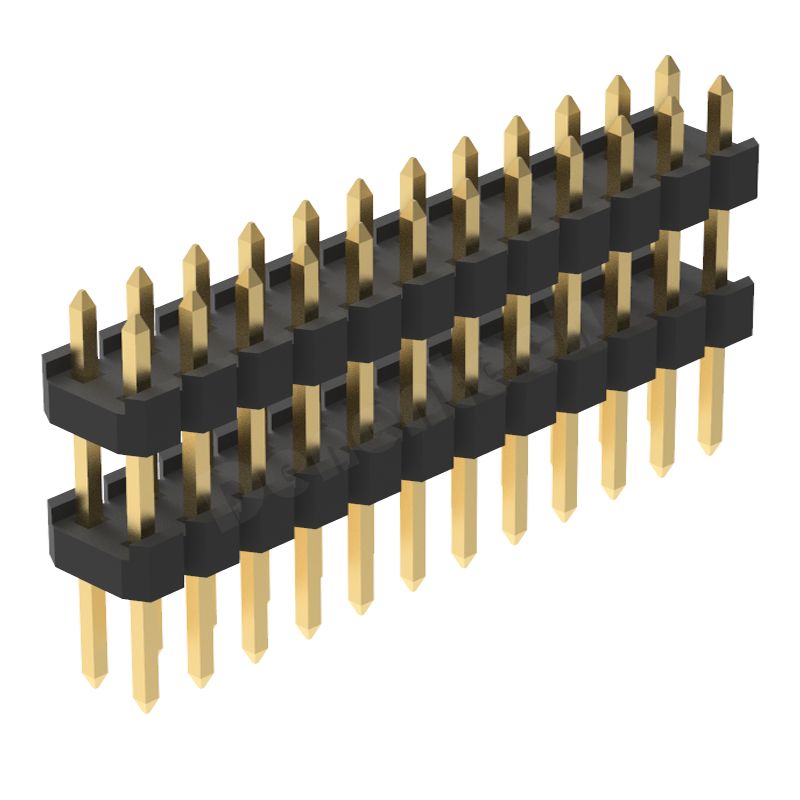

ROHSThe Denentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.
The surface of the Denentech 2.54mm pin header is treated with multiple layers of electroplating to ensure that the 2.54mm pin header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 2.54mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!
Denentech low price 2.54MM female header H8.5MM dual row straight DIP female header 12pin
Denentech top quality 2.54MM female header H8.5MM dual row straight female connector female header pins
Denentech best quality 2.54MM female header H8.5MM dual row right angle SMT female header connector
Denentech factory custom 2.54MM female header H8.5MM dual row straight+plastic heighten female header 2.54
Denentech good quality 2.54MM H8.5mm dual row straight SMT female header 2.54
Denentech Gold Plating 2.54mm pitch dual row Straight DIP pin header connector
Denentech Gold Plating 2.54mm pitch dual row right angle DIP pin header connector
Denentech 2.54mm dual row male straight SMT pin header connector with peg
Denentech 2.54mm male pin header dual row double plastic right angle SMT pin header connector with peg
2.54mm pin header dual row dual plastic board space right angle pin header 90 degree connector
