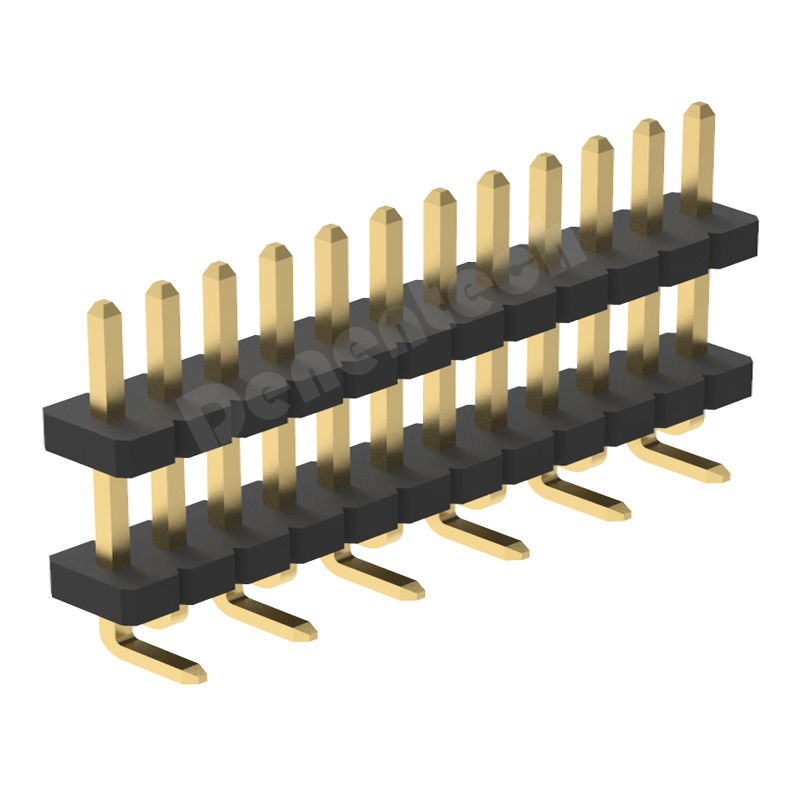

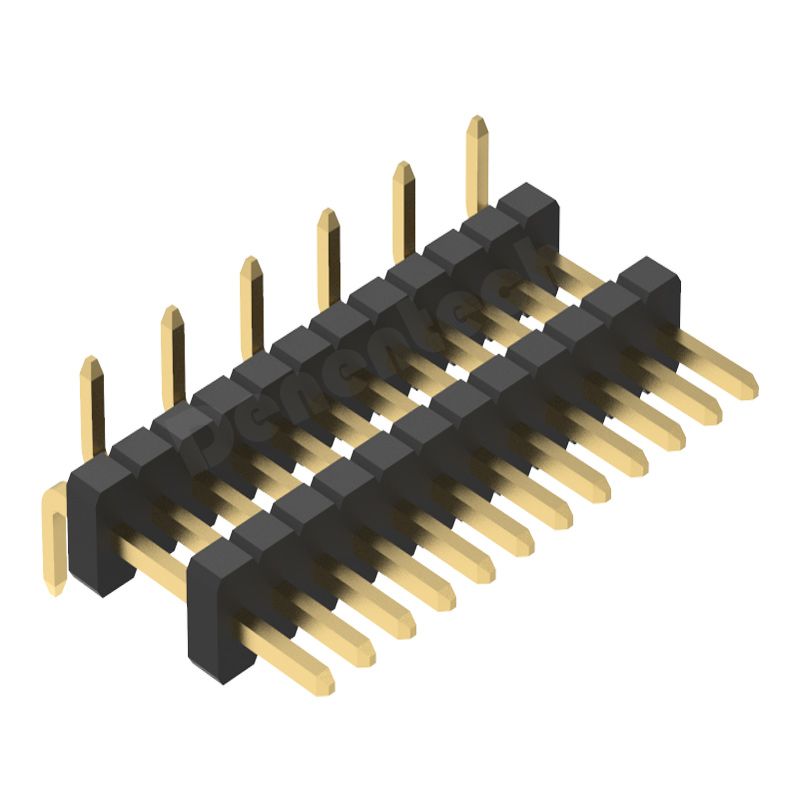

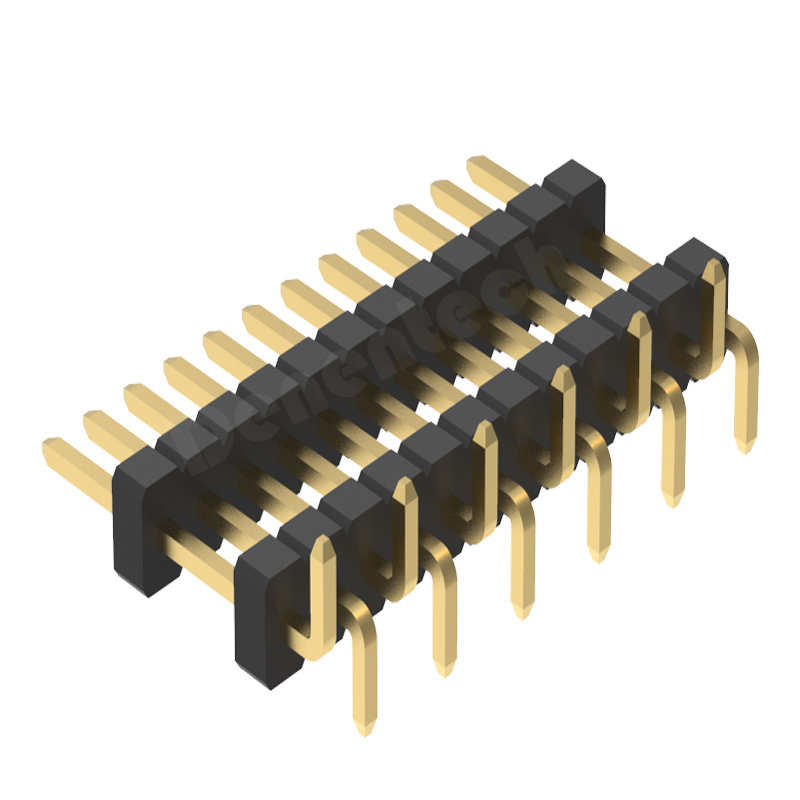

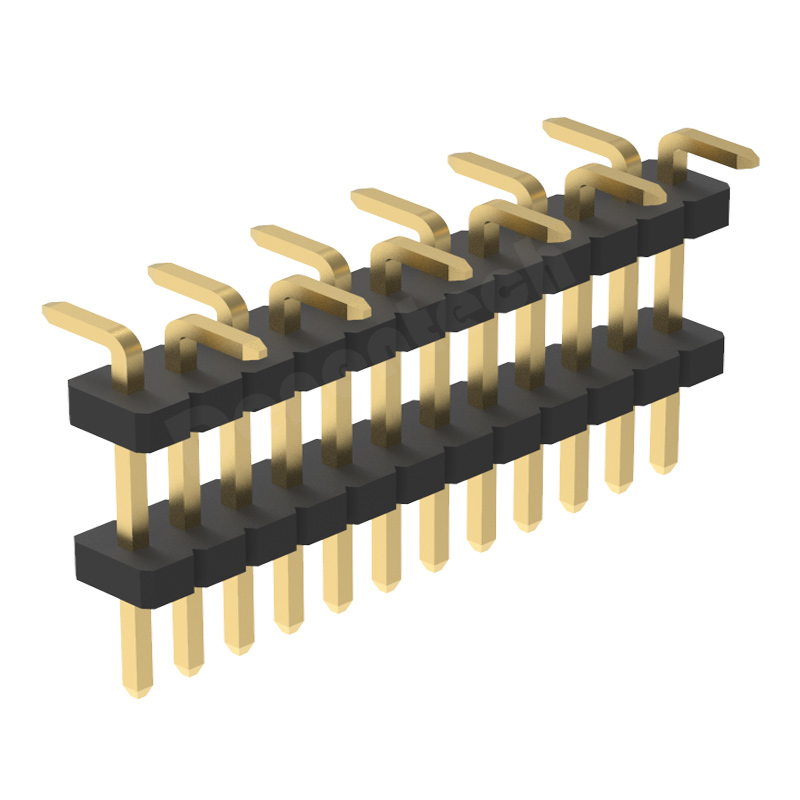

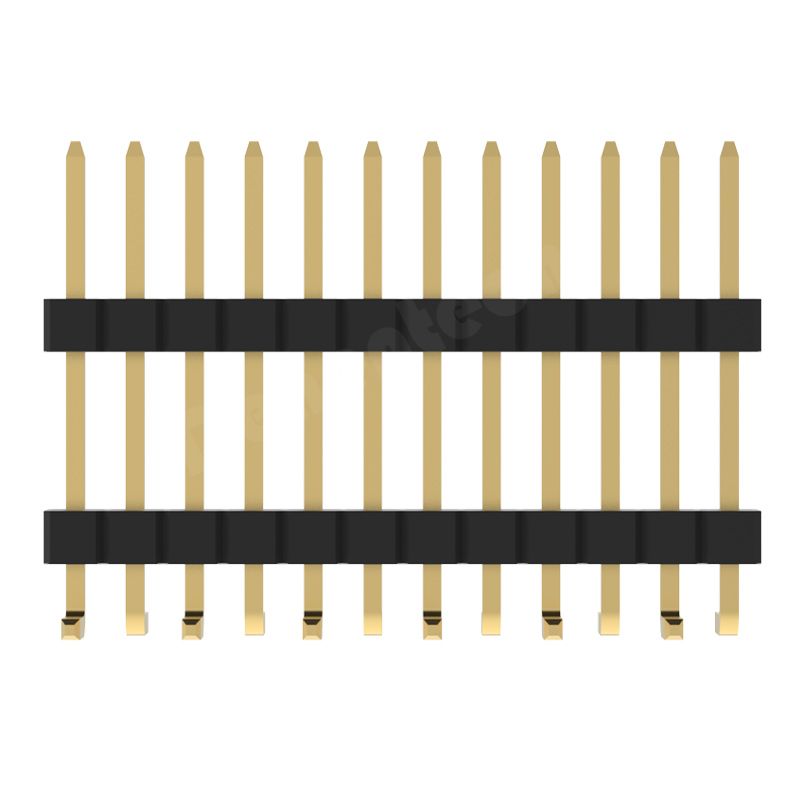

Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type
Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type
Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type
Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type
Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type
Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type

Denentech 1.27mm pin header single row dual plastic straight SMT with peg pin header 1.27mm male header connector, smt type

Serial Code : Product Code : P3XX-XXST02SMXXX

Rated current :

0.75AMP

Contact Resistance :

20mΩ Max

Withstand Voltage  :

Operation Tempererature

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material  :

Copper Alloy

Contact Plating :

Gold

Insulating material  :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

管装/袋装/盒装（标准）

Delivery time :

7-10days

Environmental protection :

ROHS
Online Inquiry Sample Request
产品详细信息
Product DetailsFeaturesDrawingRelated videosKnowledgeRelated ProductsContact us
Product Details

pin header uses high quality raw materials

The Danentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

pin header uses high quality raw materials
Pin Header electroplating process

Pin Header electroplating process

The surface of the Denentech 1.27mm pin header is treated with multiple layers of electroplating to ensure that the 1.27mm pin header passes strict ROHS verification and 24H salt spray testing.

Denentech Pin Header automated production

Denentech adopts fully automated production of 1.27mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

Denentech Pin Header automated production
Features
pitch

1.27mm

pin spec

0.40*0.40mm

Plastic height

H2.0mm

H1.0mm

H1.5mm

H4.0mm

Rated current

3A

Row number

single row

connection type

Straight SMT

Pin number

1-40Pin

Pin material

brass

Surface treatment

gold flash

1µ",3µ",5µ",10µ",15µ",30µ

Plastic materials

PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.

Pin length

6.0mm、6.2mm、10.0mm、12.5mm (pin length can be customized)

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc

Product features

high temperature resistance/flame retardant

Product name

1.27mm pin header single row dual plastic straight SMT with peg pin header
