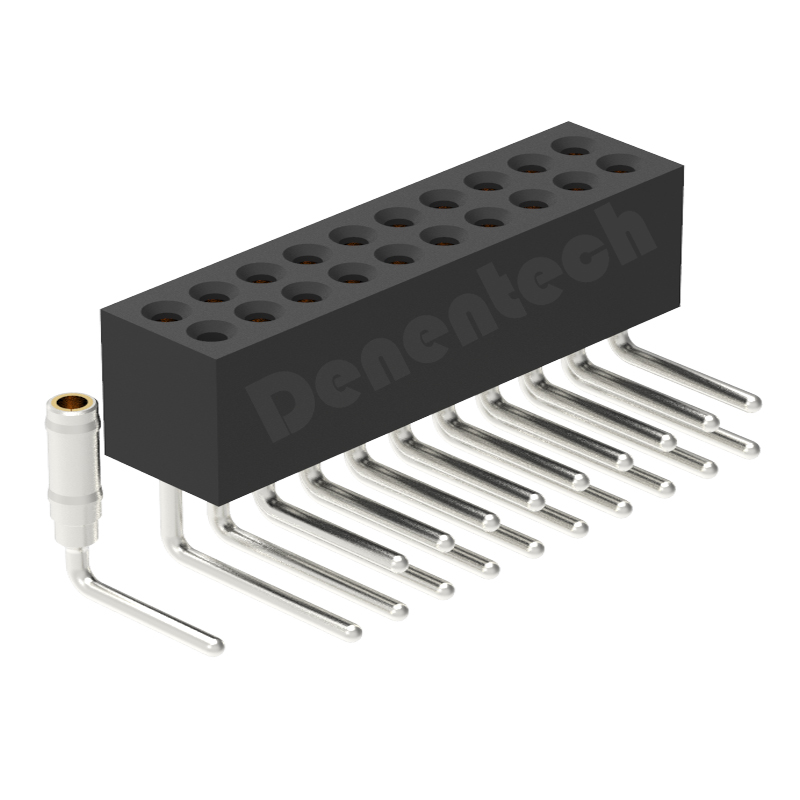

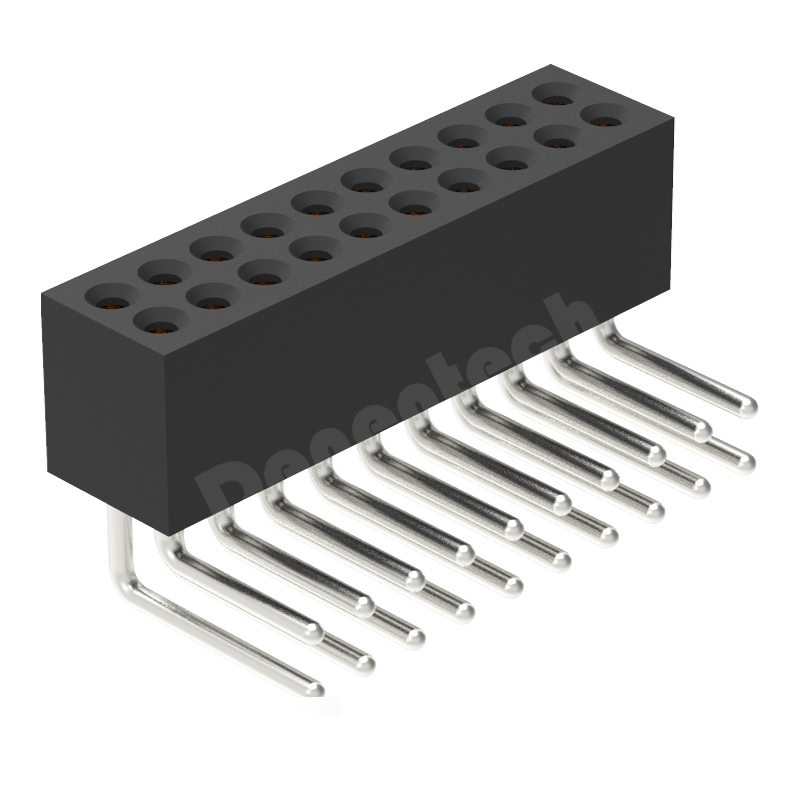

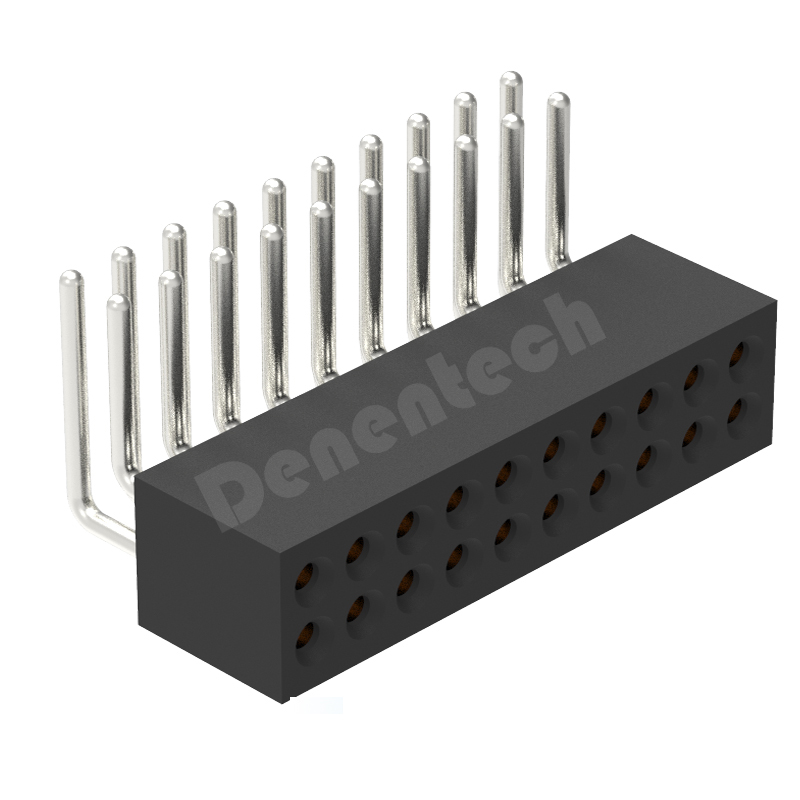

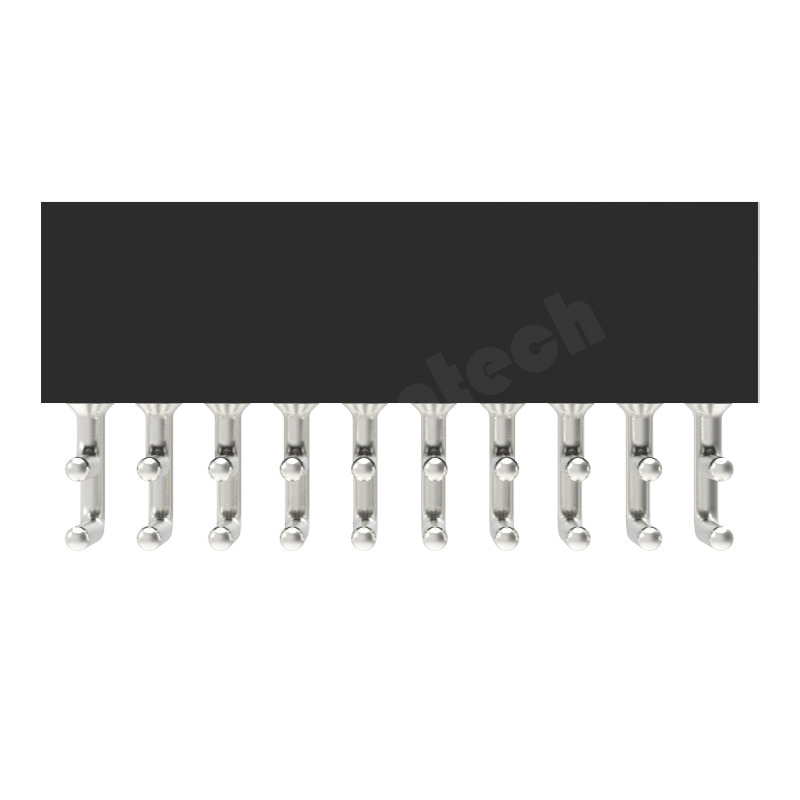

Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header
Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header
Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header
Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header
Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header
Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header

Denentech professional factory 1.27MM machined female header H3.80xW3.25 dual row right angle female stacking header

Serial Code : Product Code : MF32-XXT038RA7XX

Rated current :

1.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request
Product detailsFeaturesDrawingAccessory productsRelated productsKnowledgeRelated videosContact us
Product details

Denentech Machined Pin Female Header Connector Uses High Quality Raw Materials

Denentech connectors are made of high-quality copper materials that meet international standards. They have high hardness, are not easily deformed, enable faster transmission speeds of signal currents, have a lower signal loss rate, and offer a more secure connection.

Denentech Machined Pin Female Header Connector Uses High Quality Raw Materials
Electroplating Process

Electroplating Process

The machined pin female header connectors of Denentech are electroplated with gold on the inner claws and tin on the surface, etc., ensuring the stability and reliability of the connection.

High Quality Machined Pin Feale Header Connector

Denentech dip machined pin female connectors adopt fully automated production and special structural design. They also undergo precision machining and surface treatment, enjoying a wider range of applications and a longer service life.

High Quality Machined Pin Feale Header Connector
Features
Product name

1.27MM machined female header H3.80xW3.25 dual row right angle DIP

Pitch

1.27mm

Plastic height

4.1mm

Rated current

1A

Row number

dual row

Connection type

Right Angle DIP

Pin number

4-80pin

Pin material

Beryllium copper+brass

Coating

gold inside and tin outside, all gold

Plastic material

PPS

PIN needle length

straight-in customization

Product features

high temperature resistance/flame retardancy

Application fields

consumer electronics, automotive electronics, industrial automation. Chemistry, communication electronics, etc.
