Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector

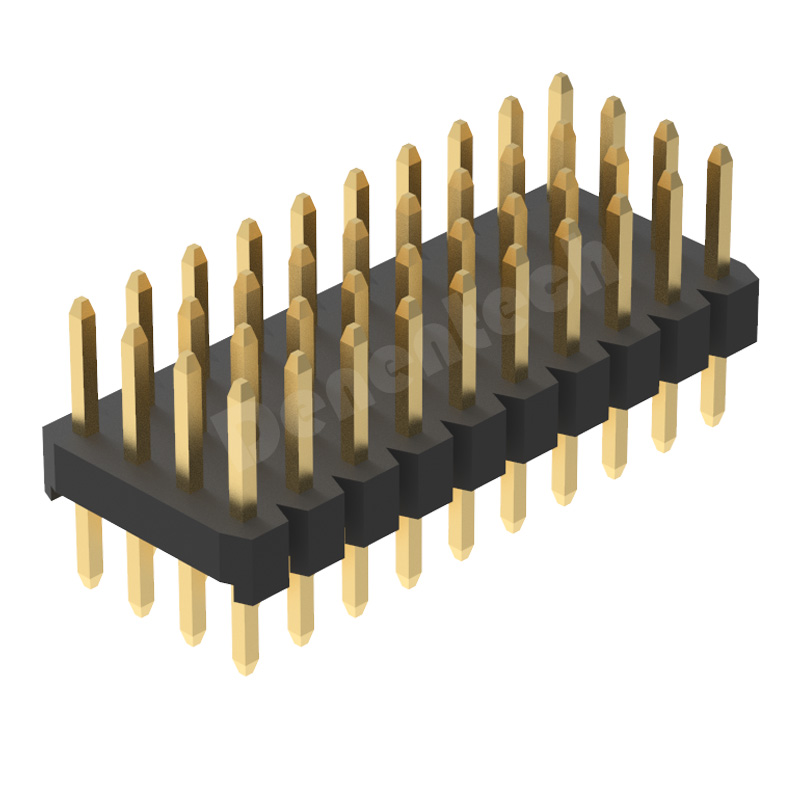

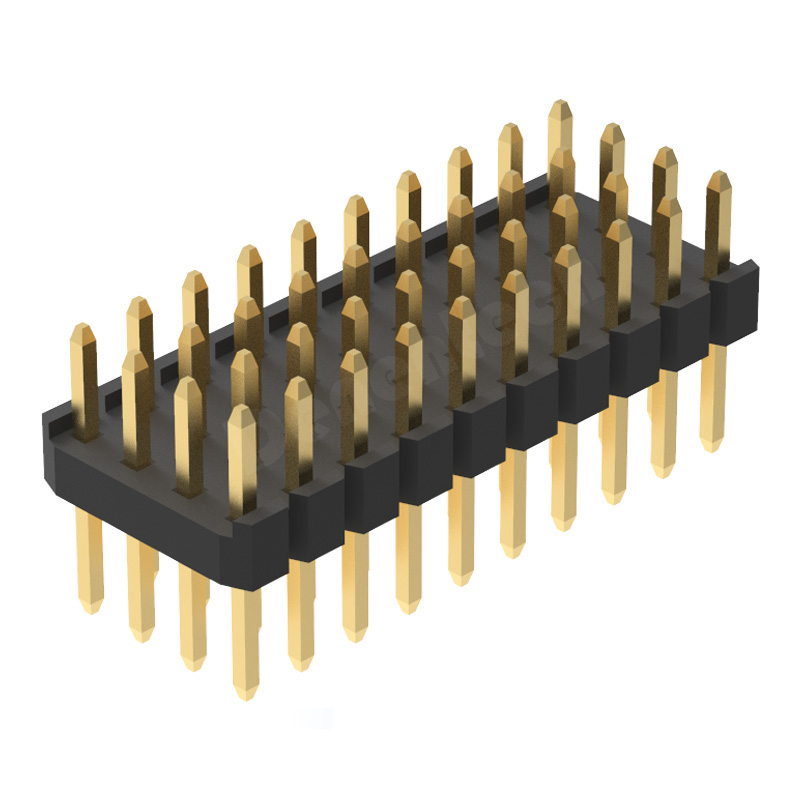

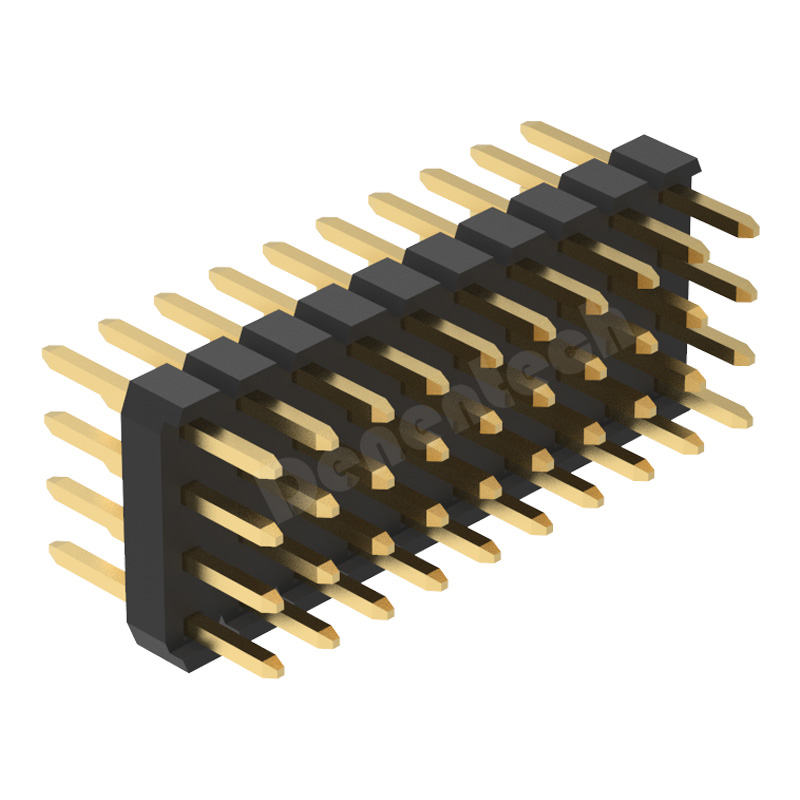

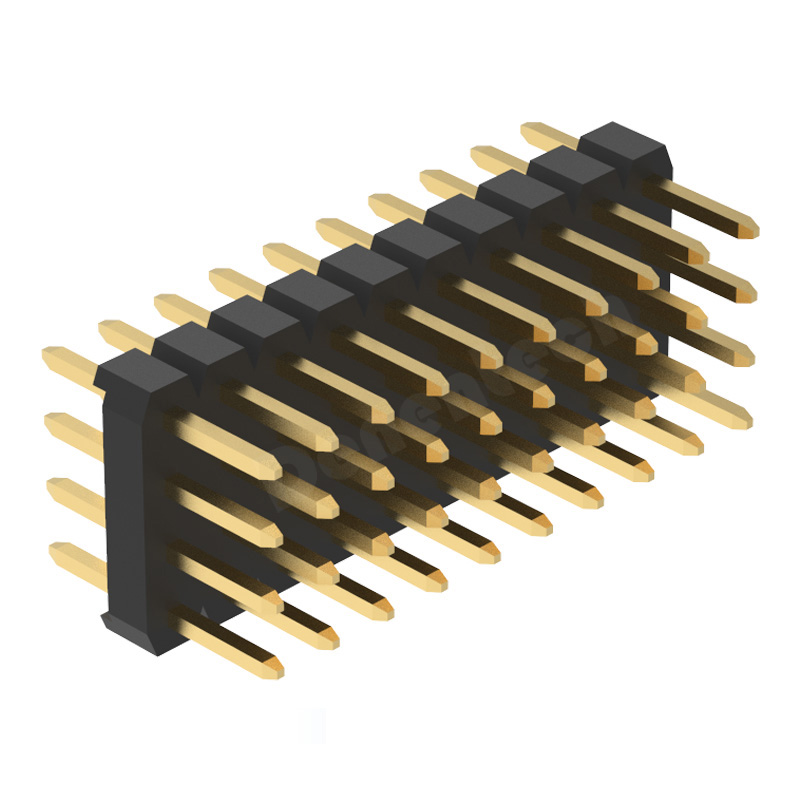

Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector
Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector
Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector
Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector
Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector

Denentech 2.0mm pin header quad row straight 4x40 p 2.00mm pitch pin header connector

Serial Code : DN-PH2004ST Product Code : P420-XXQG01STXXX

Rated current :

3AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request
Product DetailsFeaturesDrawingRelated ProductsKnowledgeRelated videosContact us
Product Details

Pin Header Uses High Quality Raw Materials

The Danentech quad row pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

Pin Header Uses High Quality Raw Materials
Pin Header Electroplating Process

Pin Header Electroplating Process

The surface of the Denentech 2.00mm male pin header is treated with multiple layers of electroplating to ensure that the 2.00mm pin header passes strict ROHS verification and 24H salt spray testing.

Denentech Pin Header Automated Production

Denentech adopts fully automated production of 2.00mm pitch pin header connector, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

Denentech Pin Header Automated Production
Features
Product name

2.0mm quad row straight pin header connector

pitch

2.00mm

pin spec

0.50*0.50mm

Plastic height

H2.0mm

Rated current

2A

Row number

quad row

connection type

Right Angle DIP

Pin number

4-160pin

Pin material

brass

Surface treatment

gold flash

Plastic materials

PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.

Pin length

Standard:8.70mm (length can be customized)

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc

Product features

high temperature resistance/flame retardant
