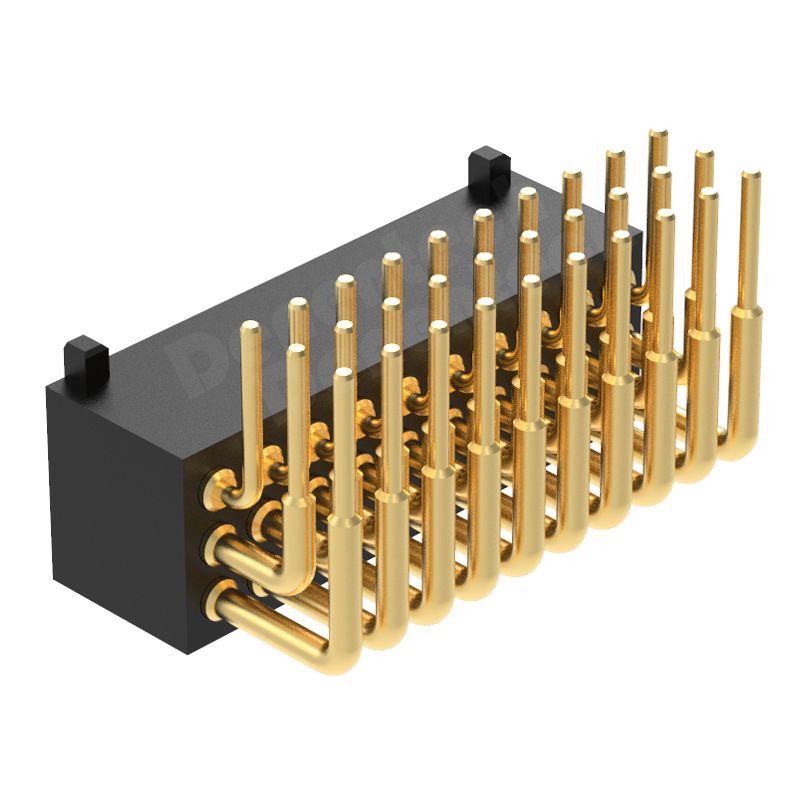

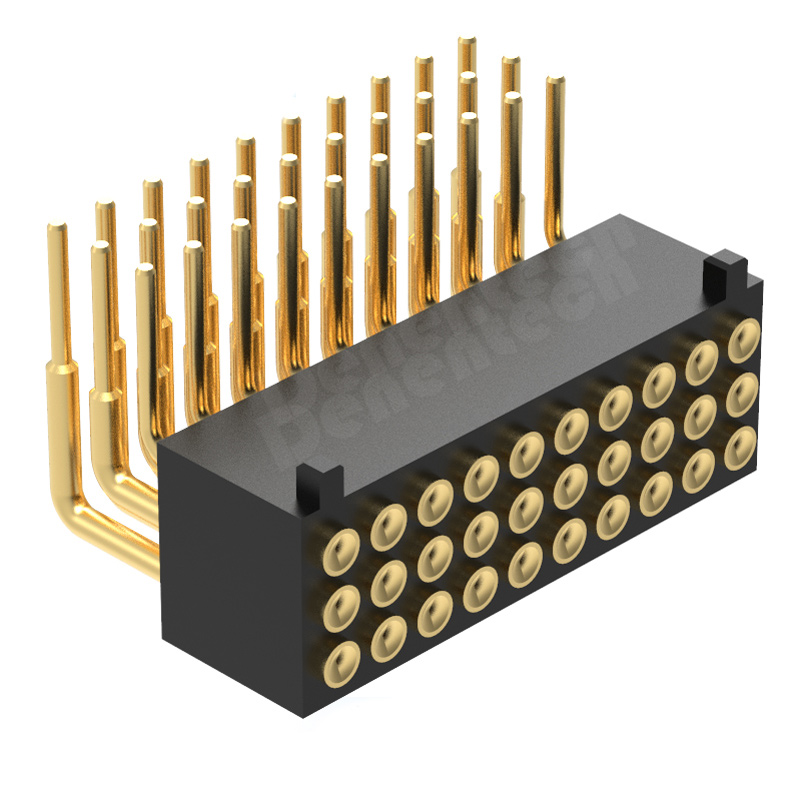

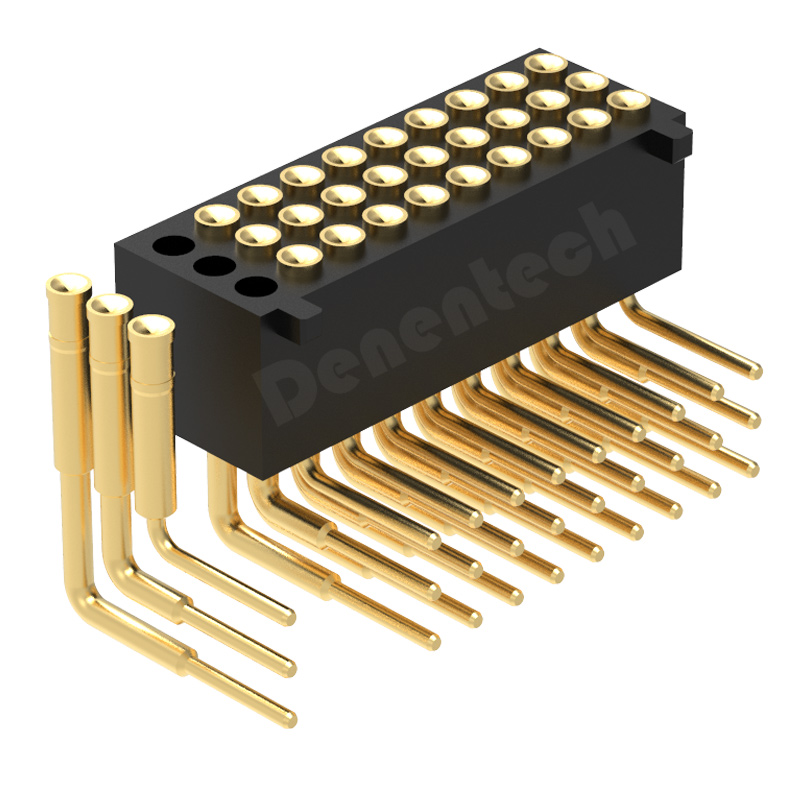

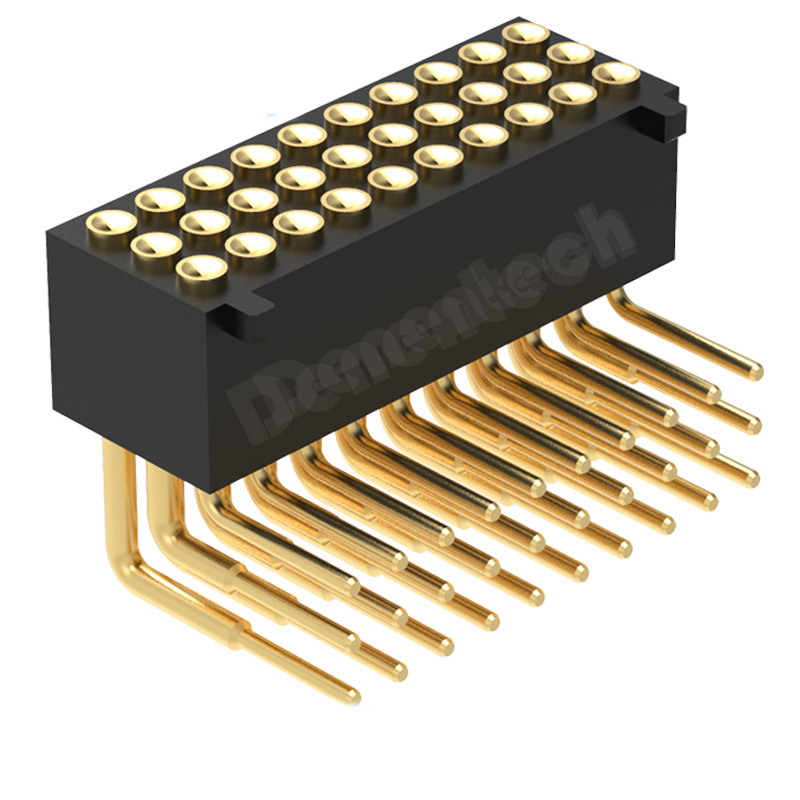

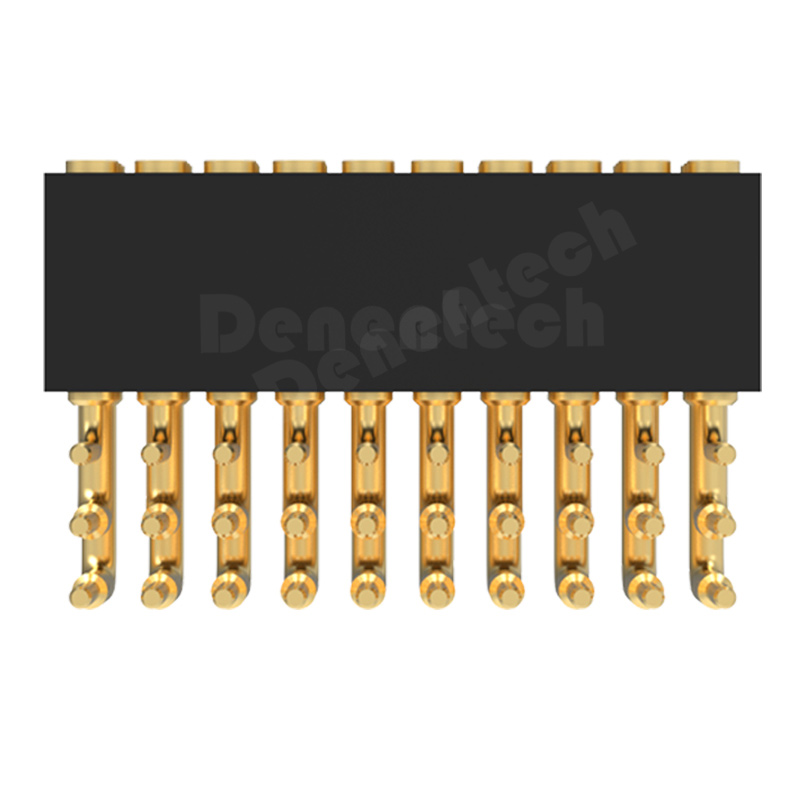

Denentech Factory wholesale 1.27MM pogo pin H4.0 triple row female right angle concave with column gold-plated connector

Serial Code : Product Code : HPF1-XXT41XXXCYX

额定电流 :

1AMP

接触电阻 :

20mΩ Max

耐点压值 :

500VAC/1分钟

绝缘电阻 :

1000mMin

温度范围 :

-40~105℃

端子材质 :

铜合金

触点电镀 :

镀金

绝缘材料 :

UL94V-0

标准 :

PA6TorLCP+30%GF

包装 :

管装/袋装(标准)

交期 :

7-10天

环保 :

ROHS
产品详细信息
Product DetailsFeaturesDrawingAccessory ProductsRelated ProductsKnowledgeRelated videosContact us

Pogo Pin Uses High Quality Raw Materials

The Denentech 1.27mm female pogo pin connector is composed of pin and plastic. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.

Pogo Pin Uses High Quality Raw Materials
High Quality Pogo Pin Products

High Quality Pogo Pin Products

The diverse structural design of the 1.27mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.

Application Of Pogo Pin Connector

Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.

Application Of Pogo Pin Connector
Product name

1.27MM pogo pin H4.0 triple row female right angle concave with column gold-plated connector

Pitch

1.27mm

Plastic height

H4.0mm

Row number

triple row

Rated current

2A

Pin number

3-80pin

Connection type

Right Angle DIP

Pin material

Brass

Surface treatment

Au 1-3u"

Plastic materials

PPS, PA6T, LCP, etc.

Board height

2.50mm, 4.50mm, 3.60mm, ect. (length can be customized)

Contact surface

concave contact

Elasticity life

more than 10000 times

Product features

high temperature resistance/flame retardant

Application

smart wearables, mobile communications, digital cameras, automobiles, and medical devices, etc.
