Rated current :
0.75AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
Gold Or Nickel-PlatedInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag/Blister Tray (standard)Delivery time :
7-10 daysEnvironmental protection :
ROHSThe Danentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.
The surface of the Denentech 1.00mm pin header is treated with multiple layers of electroplating to ensure that the 1.00mm pin header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 1.00mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors.
Denentech customized 1.0mm Single row straight DIP pin header connector for PCB
Denentech Promotional products 1.0mm single row dual plastic straight DIP pin header connector

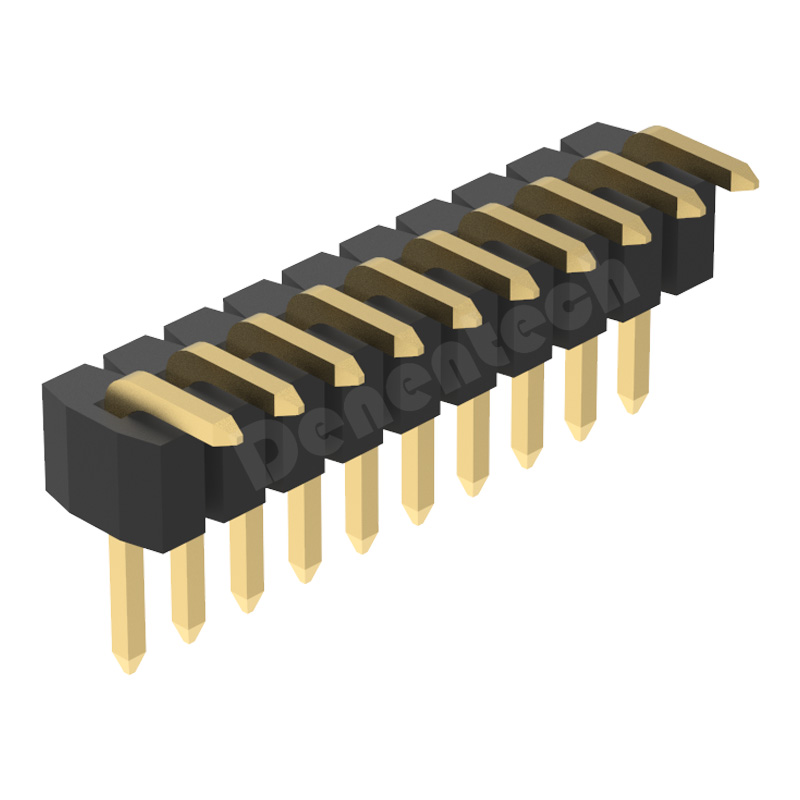

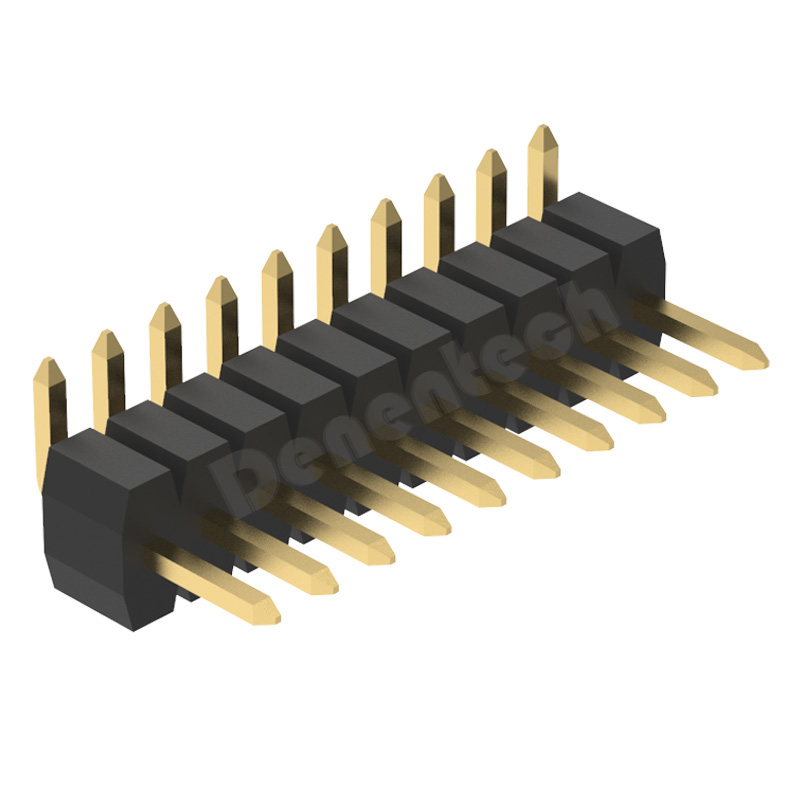

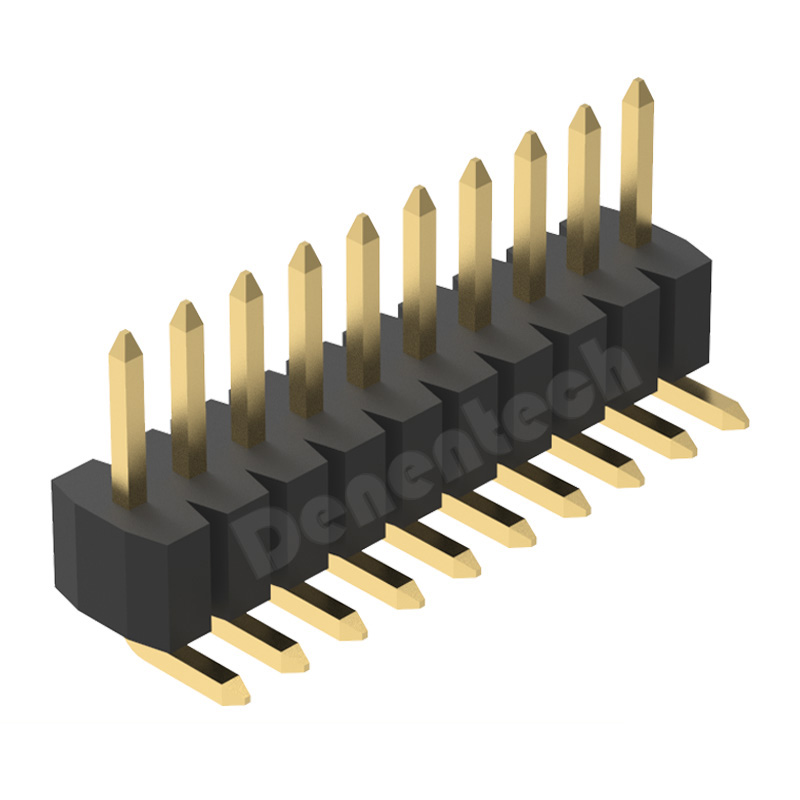

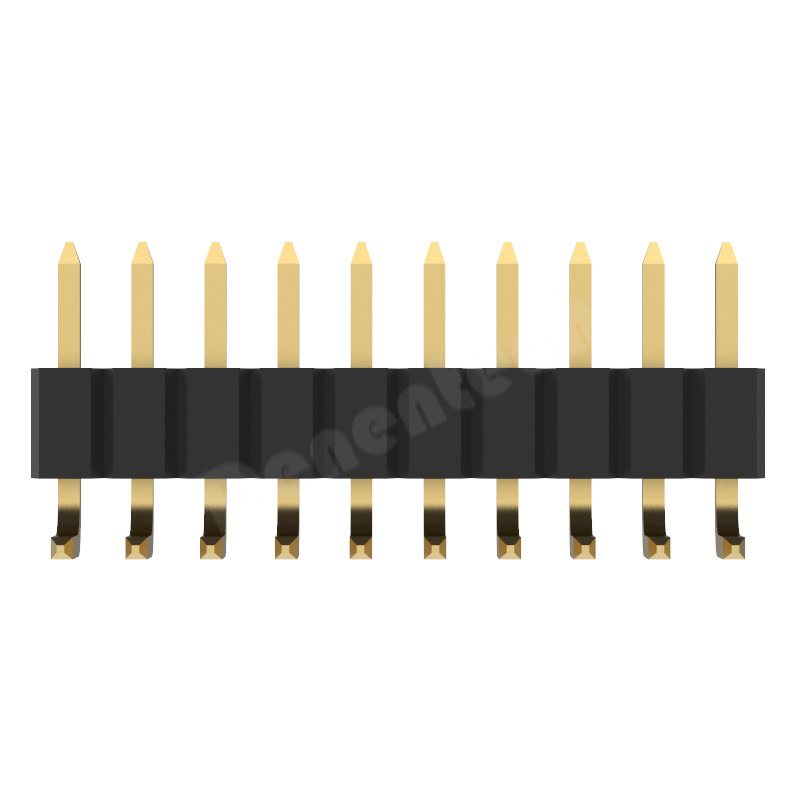

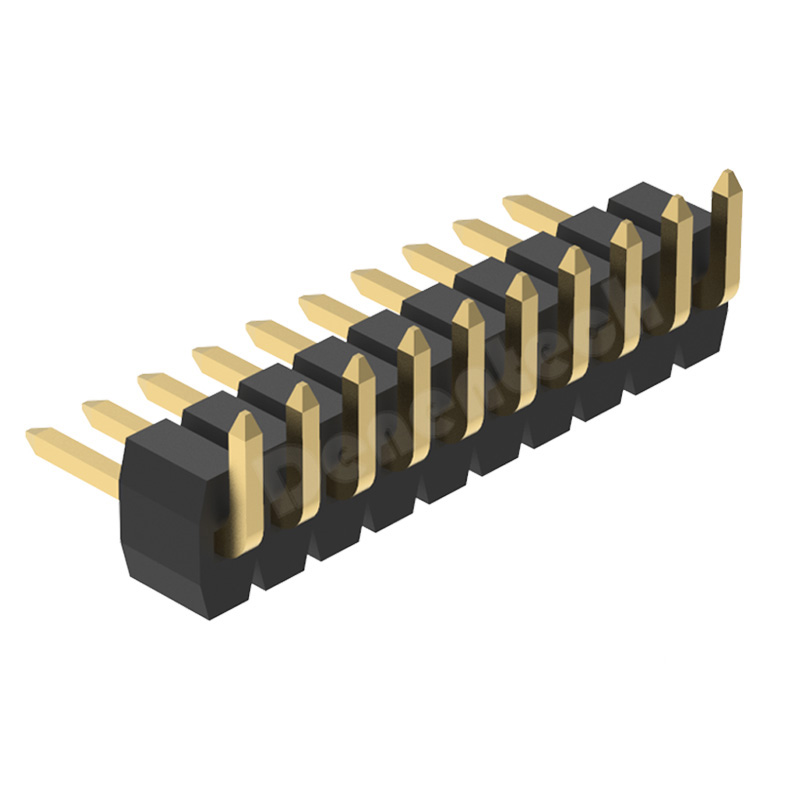

Denentech high quality 1.0mm pin header single row right angle
Denentech pin header 1.0mm single row dual plasric right angle
