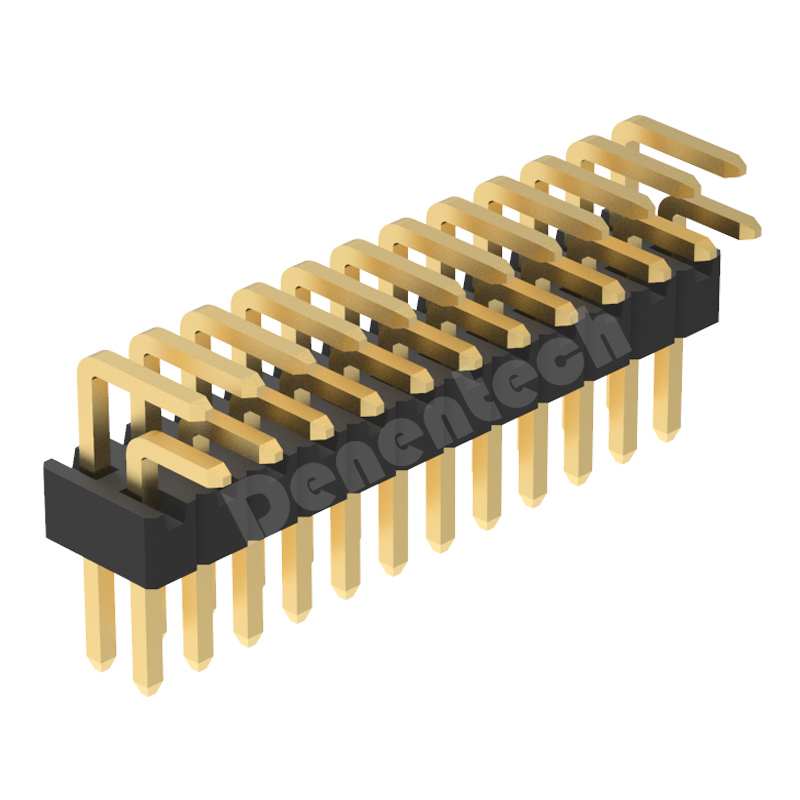

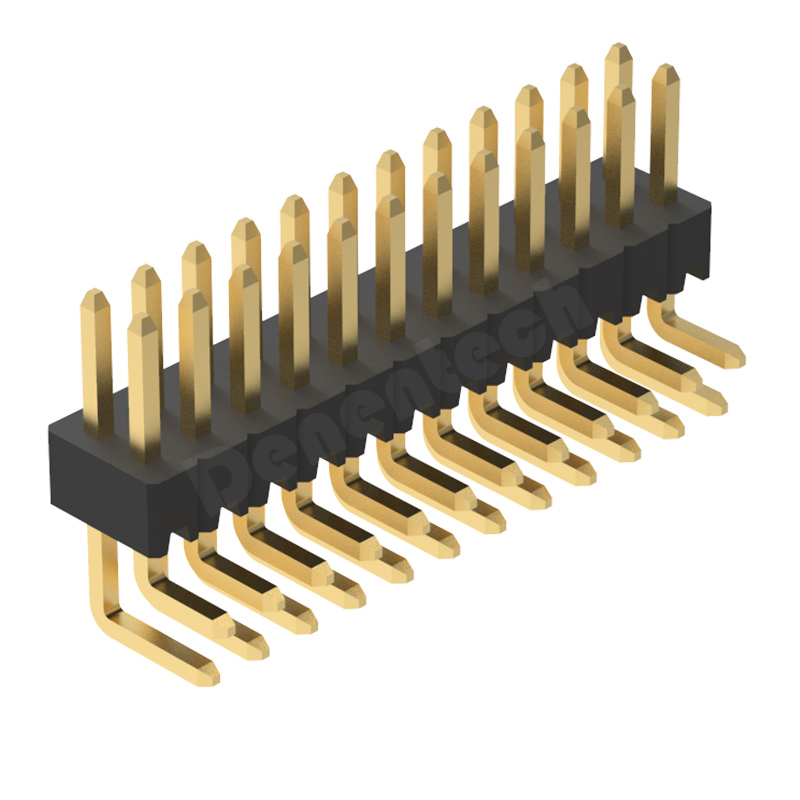

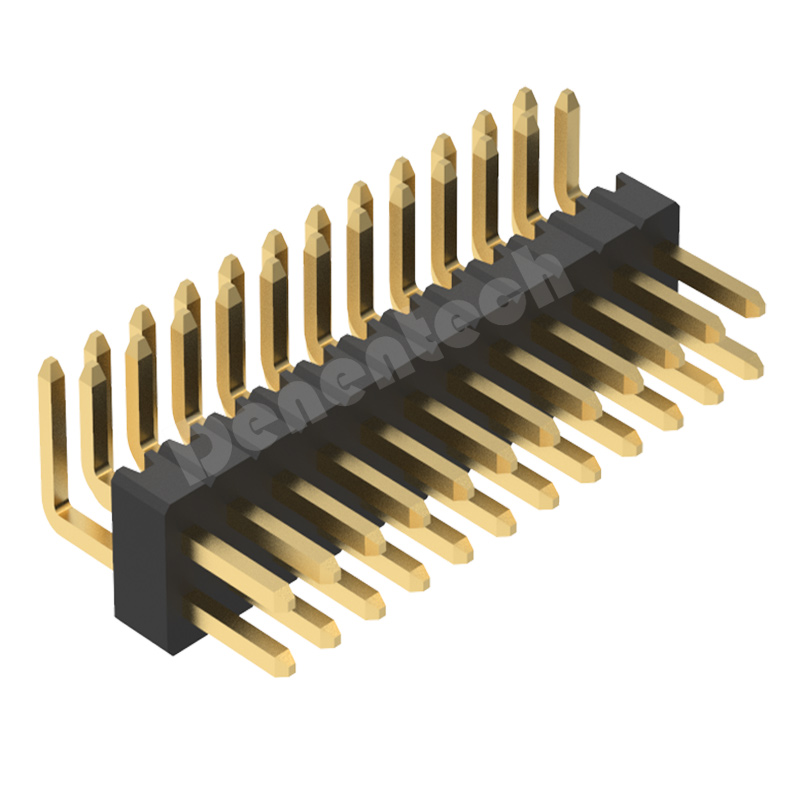

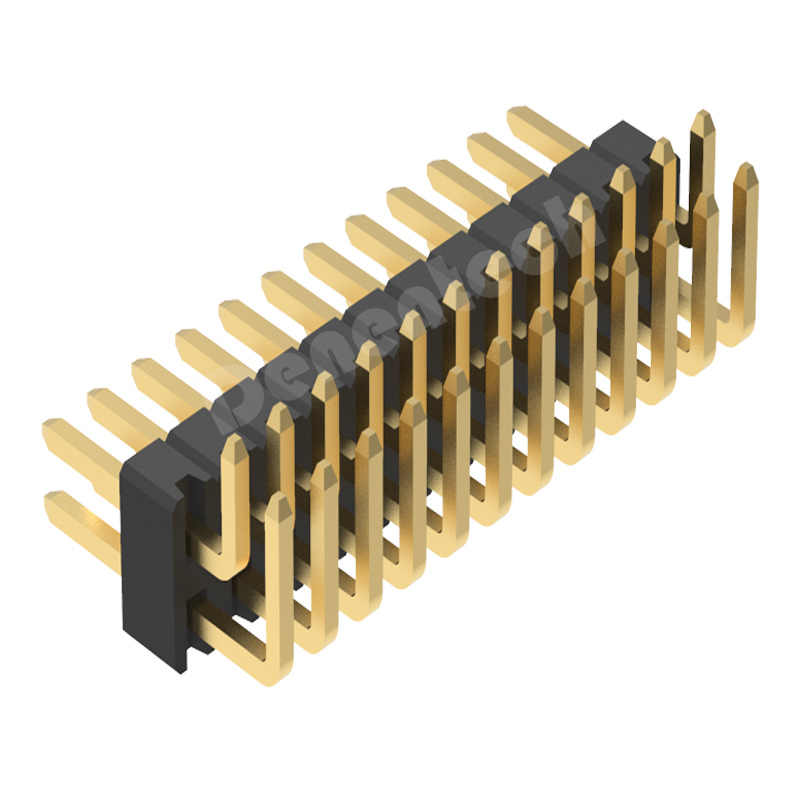

Denentech 1.27mm pin header dual row single plastic right angle DIP with peg

Serial Code : Product Code : P3XX-XXDG01RAXXX

额定电流 :

0.75AMP

接触电阻 :

20mΩ Max

耐点压值 :

500VAC/1分钟

绝缘电阻 :

1000mMin

温度范围 :

-40~105℃

端子材质 :

铜合金

触点电镀 :

镀金/镀镍

绝缘材料 :

UL94V-0

标准 :

PA6TorLCP+30%GF

包装 :

管装/袋装/盒装(标准)

交期 :

7-10天

环保 :

ROHS
产品详细信息
Product detailsFeaturesDrawingAccessory productsRelated productsKnowledgeRelated videosContact us

pin header uses high quality raw materials

The Danentech pin header connector is made of high quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

pin header uses high quality raw materials
Pin Header electroplating process

Pin Header electroplating process

The surface of the Denentech 1.27mm pin header is treated with multiple layers of electroplating to ensure that the 1.27mm pin header passes strict ROHS verification and 24H salt spray testing.

Denentech Pin Header automated production

Denentech adopts fully automated production of 1.27mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

Denentech Pin Header automated production
pitch

1.27mm

pin spec

0.40*0.40mm

Plastic height

H2.0mm

H1.0mm

H1.5mm

H4.0mm

Rated current

3A

Row number

dual row

connection type

Right Angle DIP

Pin number

1-40Pin

2-80Pin

3-120Pin

Pin material

brass

Surface treatment

gold flash

1µ",3µ",5µ",10µ",15µ",30µ

Plastic materials

PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.

Pin length

6.0mm、6.2mm、10.0mm、12.5mm (pin length can be customized)

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc

Product features

high temperature resistance/flame retardant

Product name

1.27mm pin header dual row single plastic right angle DIP with peg

post

Part of SATA connector
