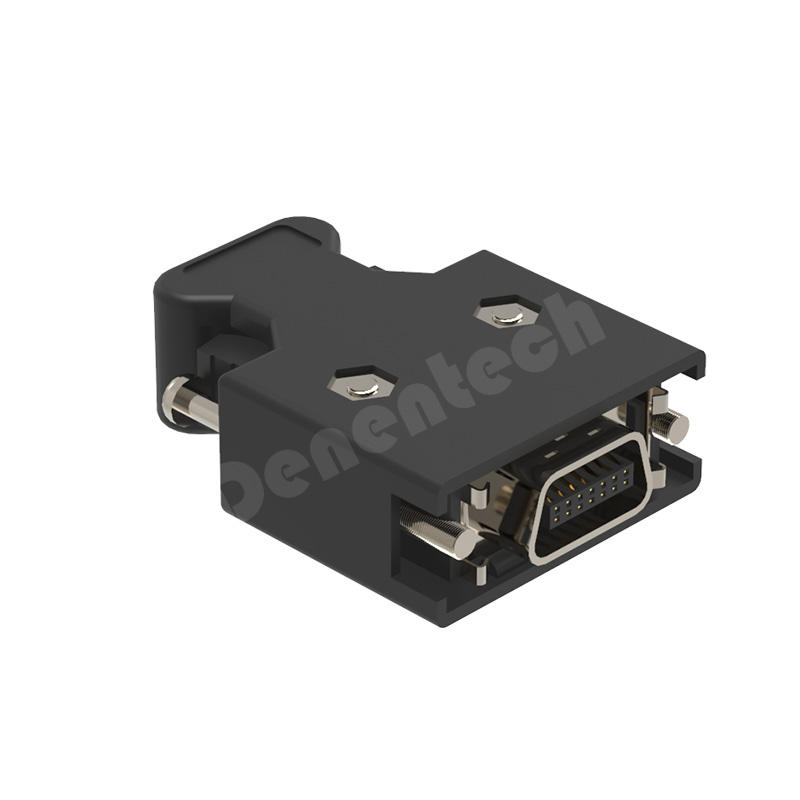

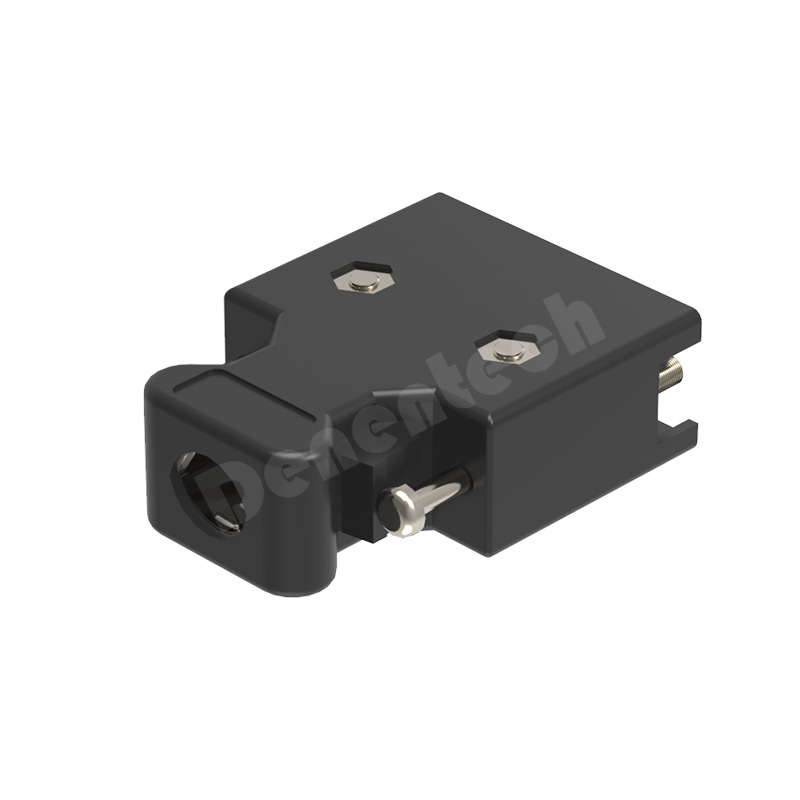

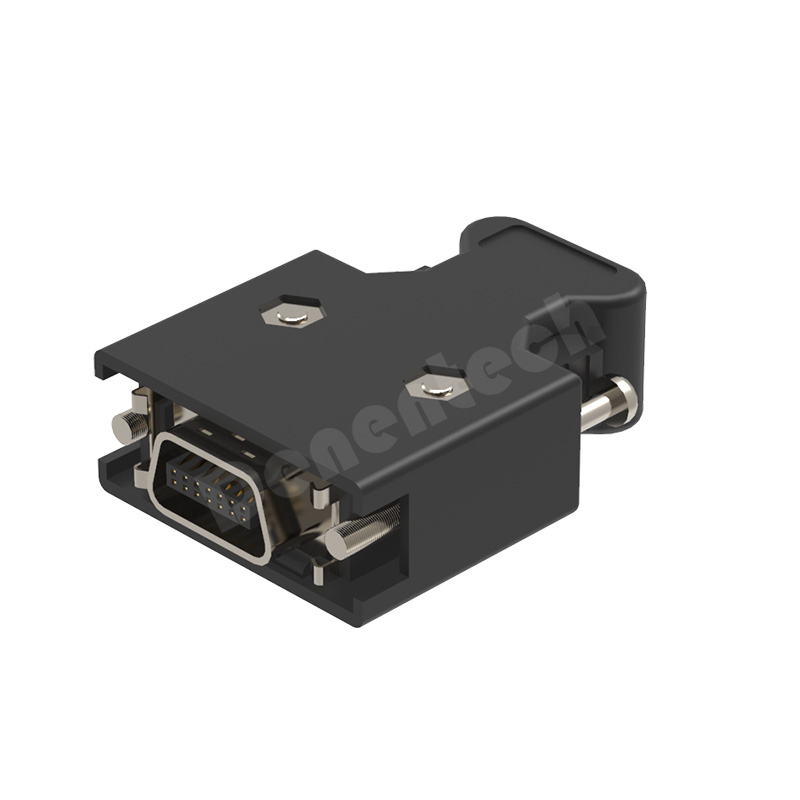

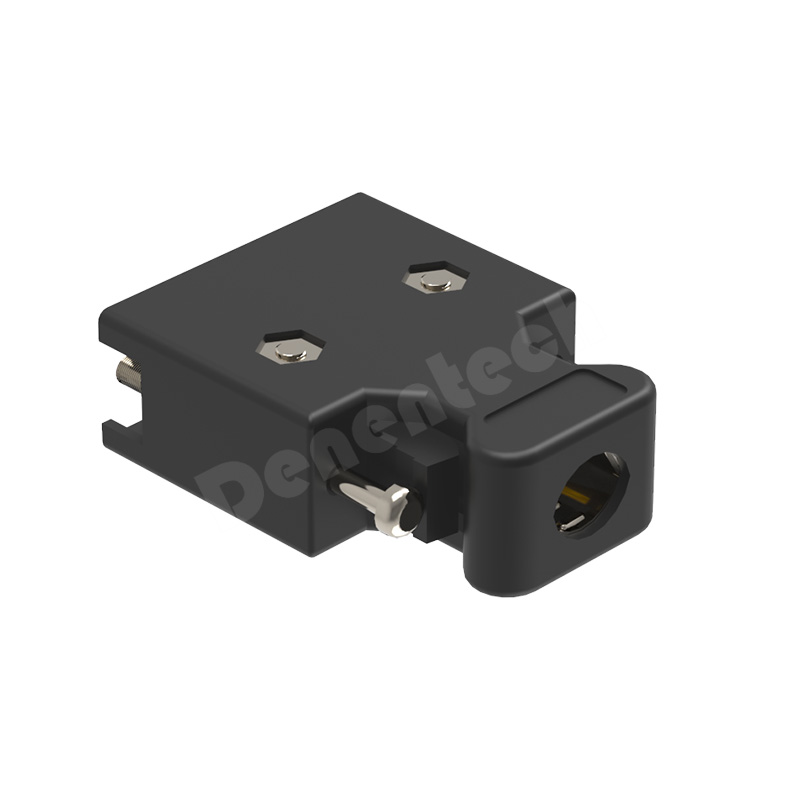

Denentech hot selling 1.27mm 14P male SCSI connector

Serial Code : Product Code : SC3M-142G0SH1101

Rated current :

1AMP

Contact resistance :

35MΩ Max

Point pressure resistance :

500VAC/1 minute

Insulation resistance :

500MΩ Min

Temperature range :

-40~105℃

Terminal material :

copper alloy

Contact electroplating :

gold plating

Insulation material :

UL94V-0

Packing :

Boxed (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product detailsFeaturesRelated productsKnowledgeRelated videosContact us

Denentech servo Connector Uses High Quality Raw Materials

The Denentech servo connector is made of international standard high-quality copper material, heat-resistant plastic, housing and protective components, and locking and fixing components. It has high strength and durability, which can effectively protect the internal contact points from external environmental influences and extend the service life of the connector.

Denentech servo Connector Uses High Quality Raw Materials
Electroplating Process

Electroplating Process

The terminals of Denentech servo connectors are surface plated with gold,achieving reliable electrical contact and ensuring the stability and accuracy of signaltransmission.

Wide Range of Applications

Denentech servo connectors have the characteristics of high reliability, good electrical and mechanical performance, which can meet the needs of different devices and application scenarios. They can stably transmit signals and power in complex environments, and their high protection level can resist dust and water vapor.

Wide Range of Applications
Product Name

1.27mm 14P male SCSI connector

pin数

14P

Current Rating

1.0AMP

Operation Temperature

-40"C to+105'C

Contact Resistance

35mΩ Max

Insulation Resistance

500MΩMin

Withstanding Voltage

AC 500V

Insulator Material

UL94V-0

Contact Material

Brass

Contact plating

Au or Sn over Nickel
