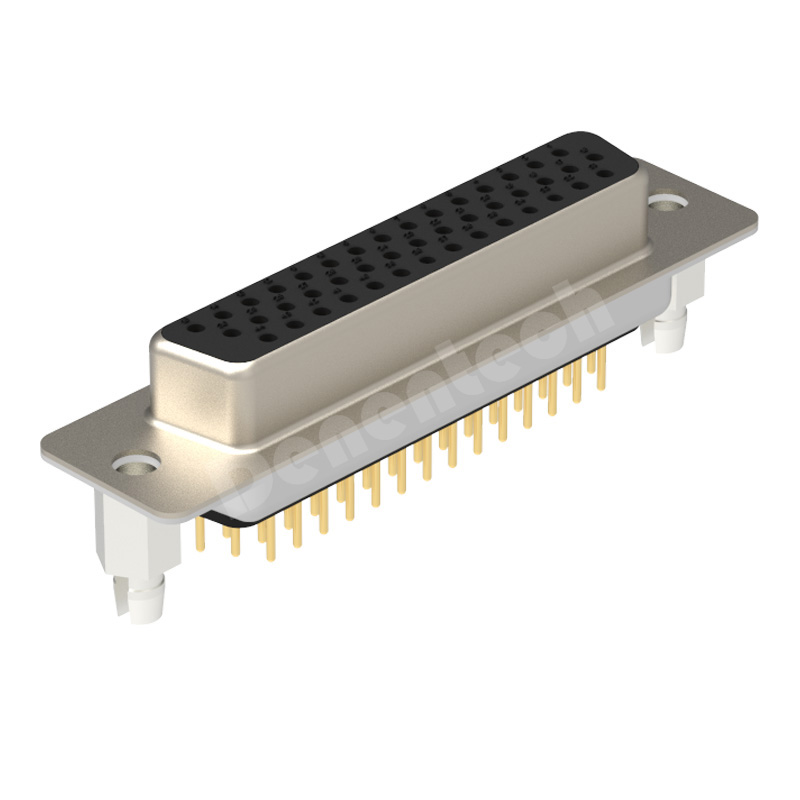

Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors
Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors
Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors
Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors
Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors
Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors

Denentech gold-plated DR 44P female straight DIP d-sub 44 pin connector 3 rows high density d-sub connectors

Product Code : DF22-4460G00X51X Product Info :

Production status: in mass production

If you want to know more about this product, please contact us.

Product Properties

Rated current :

5 AMP

Contact Resistance :

30mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request
