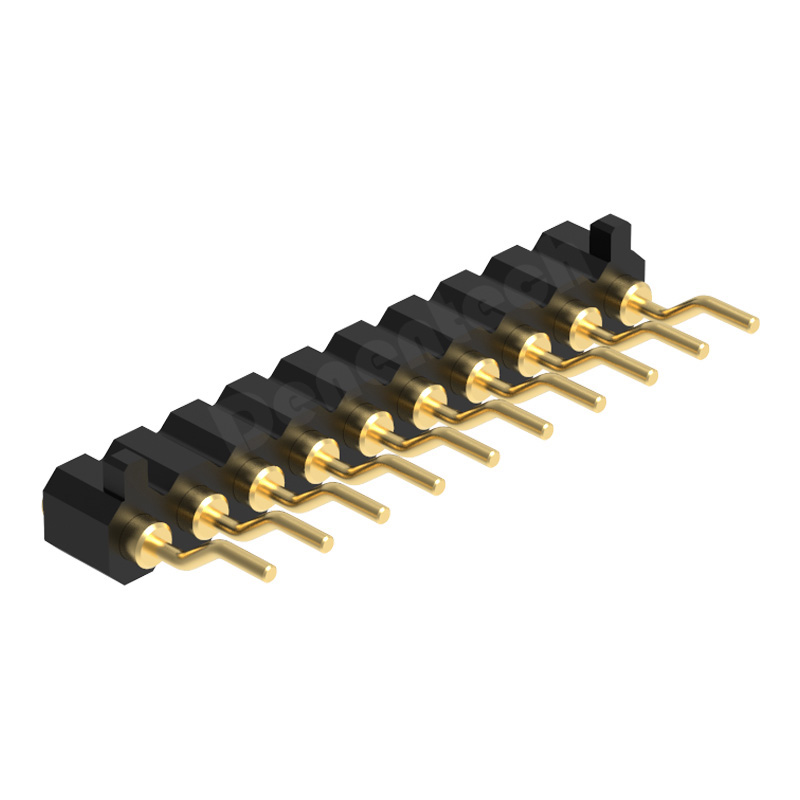

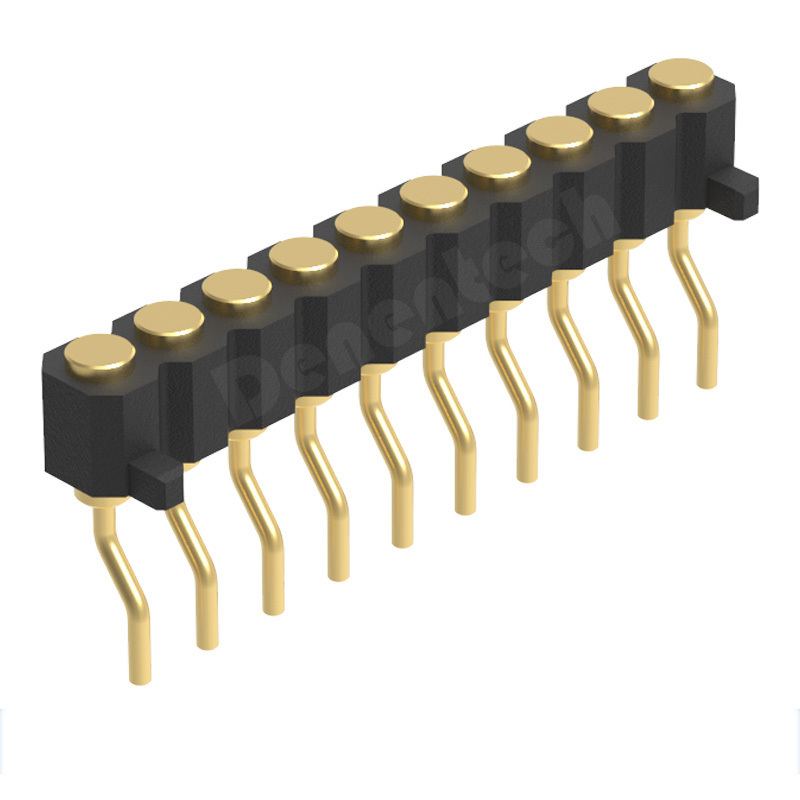

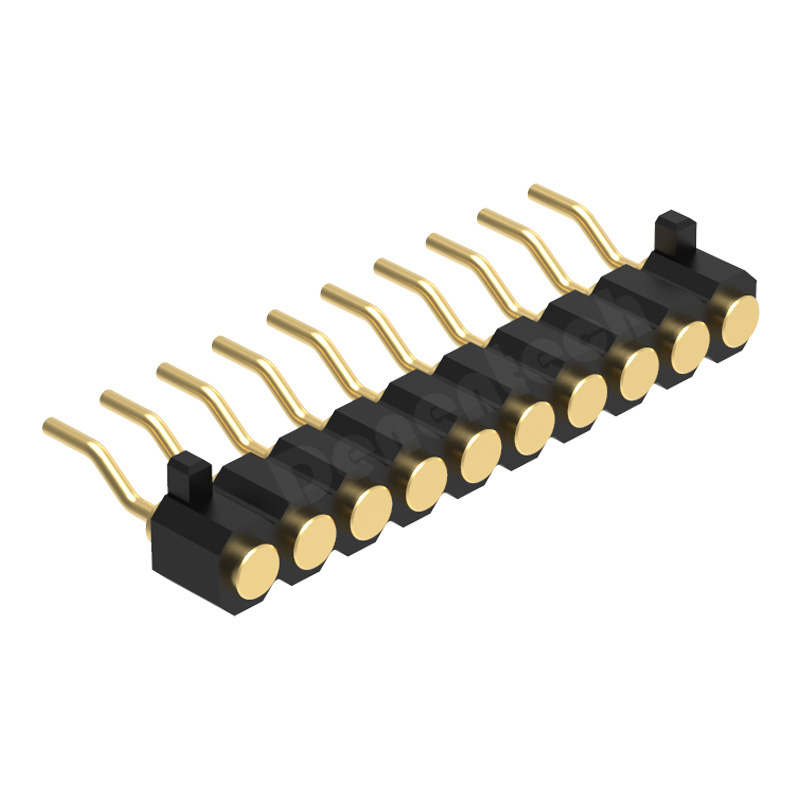

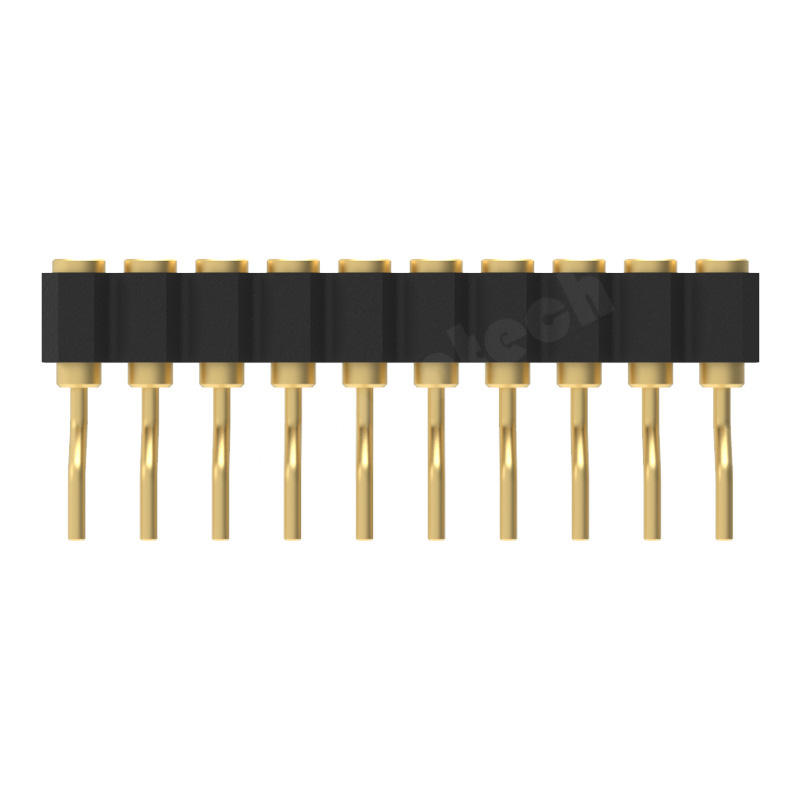

Denentech customized 2.00MM H2.5MM single row female right angle SMT pogo pin connector with peg

Serial Code : Product Code : HPF2-XXS31XXXPYX

Rated current :

1.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product DetailsDrawingDrawingAccessory ProductsRelated ProductsRelated ProductsRelated videosContact us

Pogo Pin Uses High Quality Raw Materials

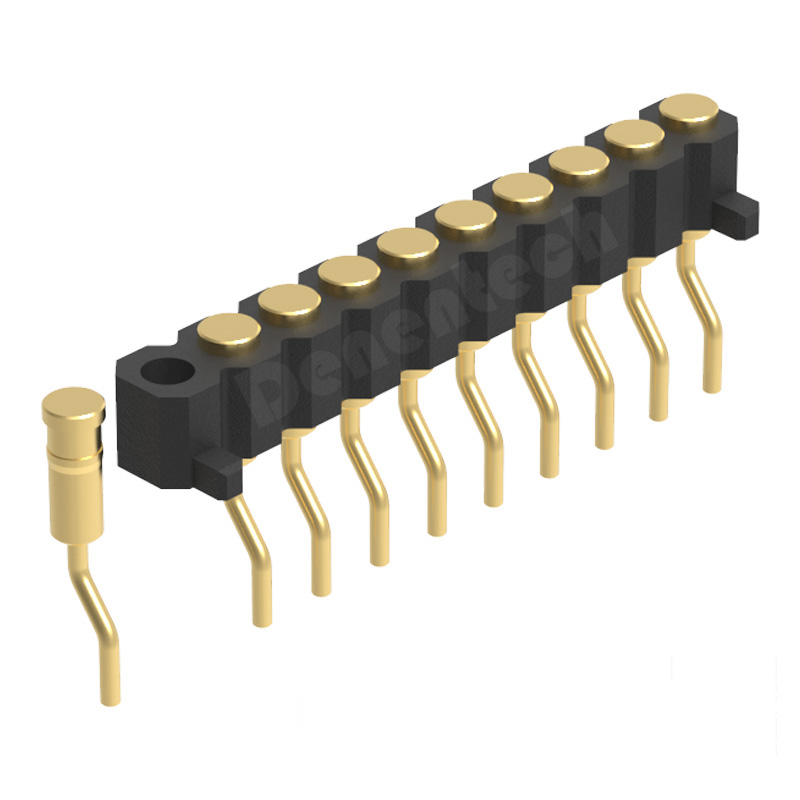

The Denentech 2.00mm female pogo pin connector is composed of pin and plastic. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.

Pogo Pin Uses High Quality Raw Materials
High Quality Pogo Pin Products

High Quality Pogo Pin Products

The diverse structural design of the 2.00mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.

Application Of Pogo Pin Connector

Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.

Application Of Pogo Pin Connector
Product name

2.00MM H2.5MM single row female right angle SMT pogo pin connector with peg

Pitch

2.00mm

Plastic height

H2.5mm

Row number

single row

Rated current

2A

Pin number

1-80pin

Connection type

Right Angle DIP

Pin material

Brass

Surface treatment

Au 1-3u"

Plastic materials

PPS, PA6T, LCP, etc.

Board height

4.3mm(length can be customized)

Contact surface

plane contact

Elasticity life

more than 10000 times

Product features

high temperature resistance/flame retardant

Application

smart wearables, mobile communications, digital cameras, automobiles, and medical devices, etc.
