Rated current :
0.75AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
Gold Or Nickel-PlatedInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag/Blister Tray (standard)Delivery time :
7-10 daysEnvironmental protection :

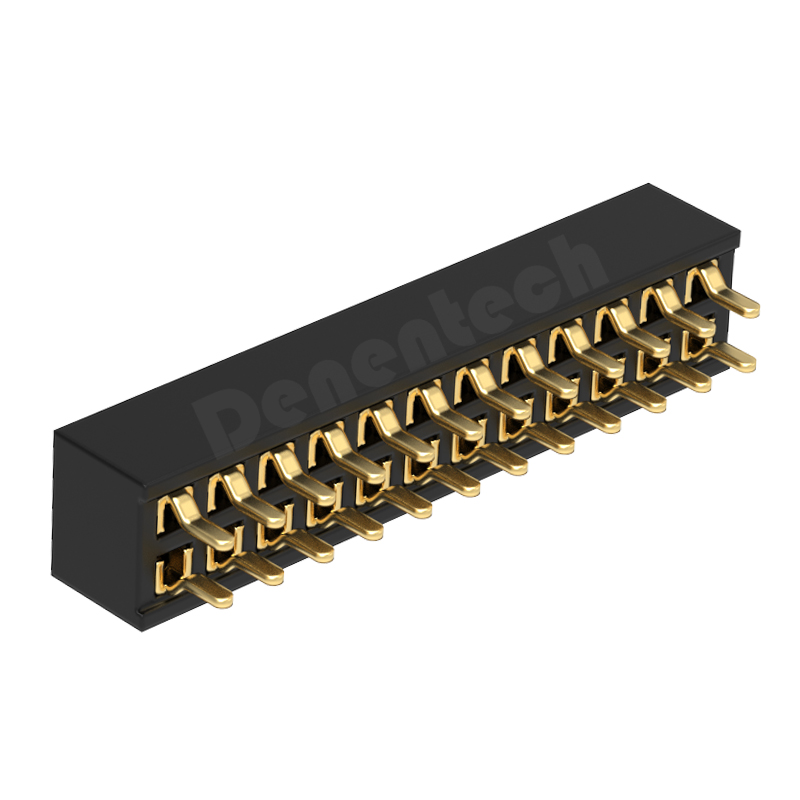

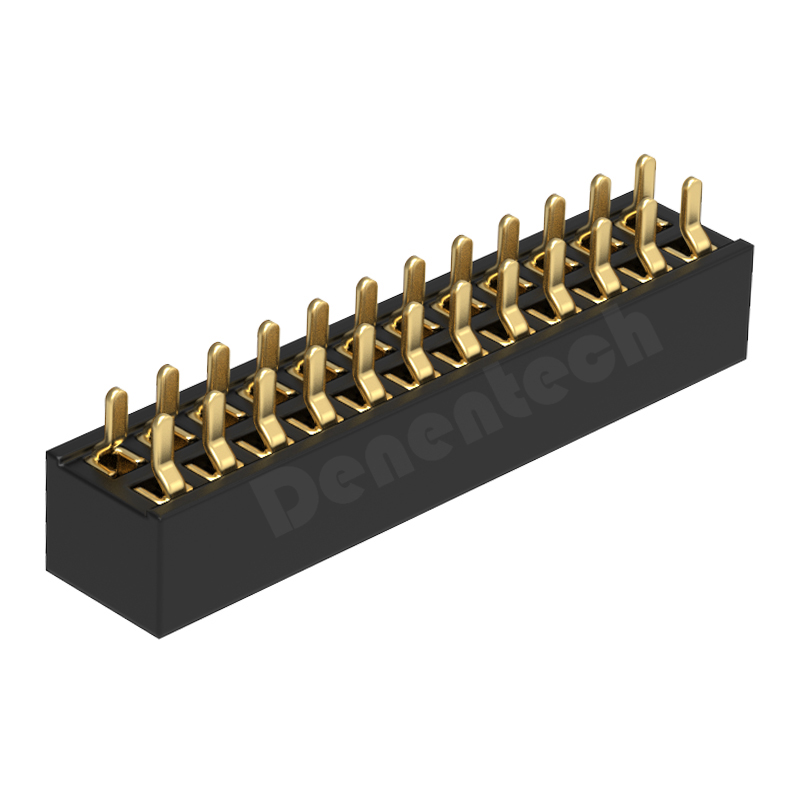

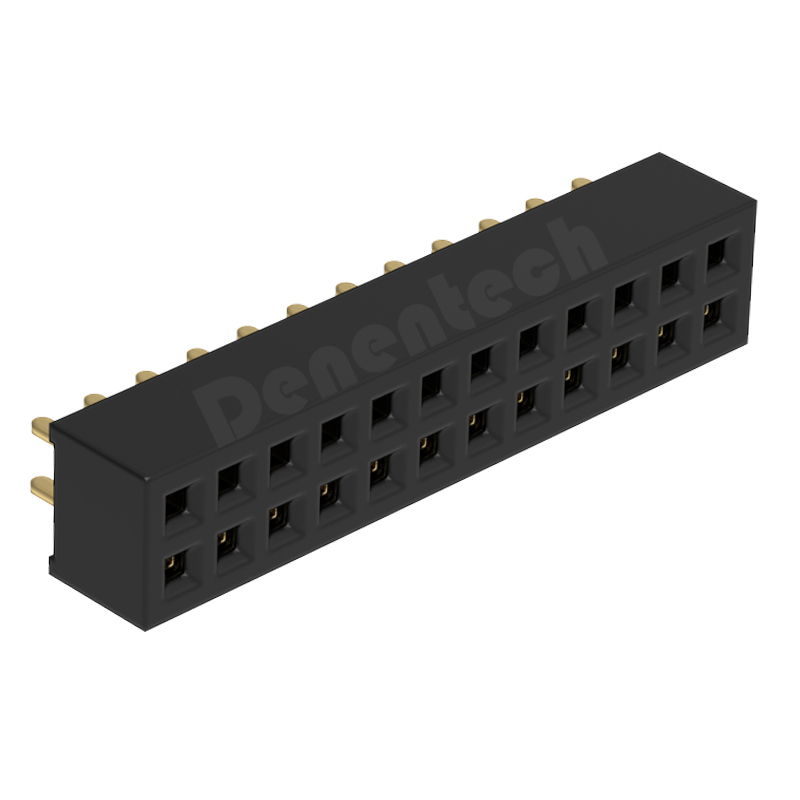

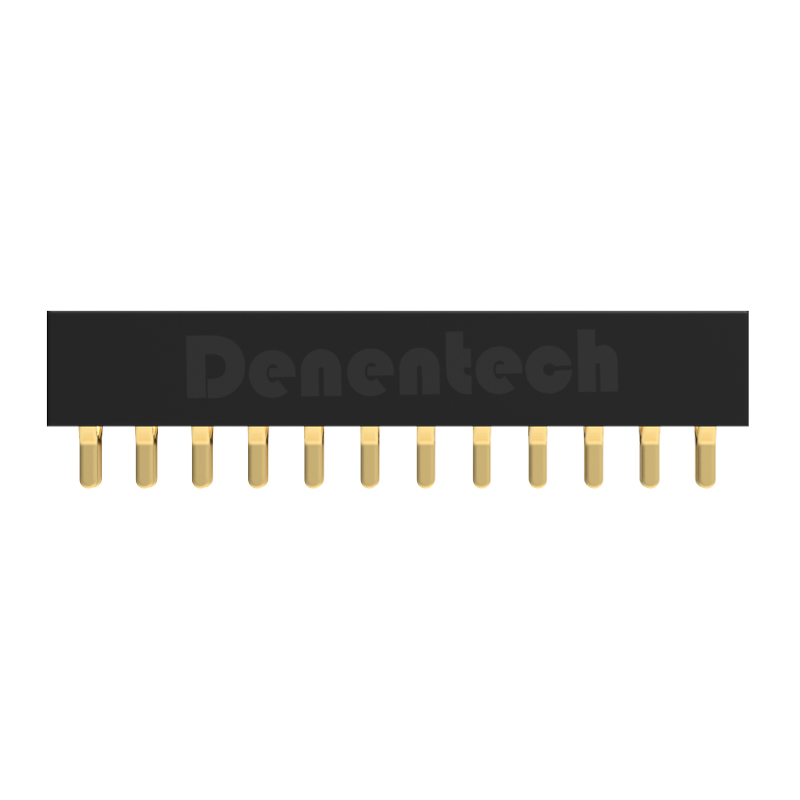

ROHSThe Denentech 1.00pitch female header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.
The surface of the Denentech female header is treated with multiple layers of electroplating to ensure that the 1.00mm female header connector passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 1.00mm pitch female header connectors, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!
