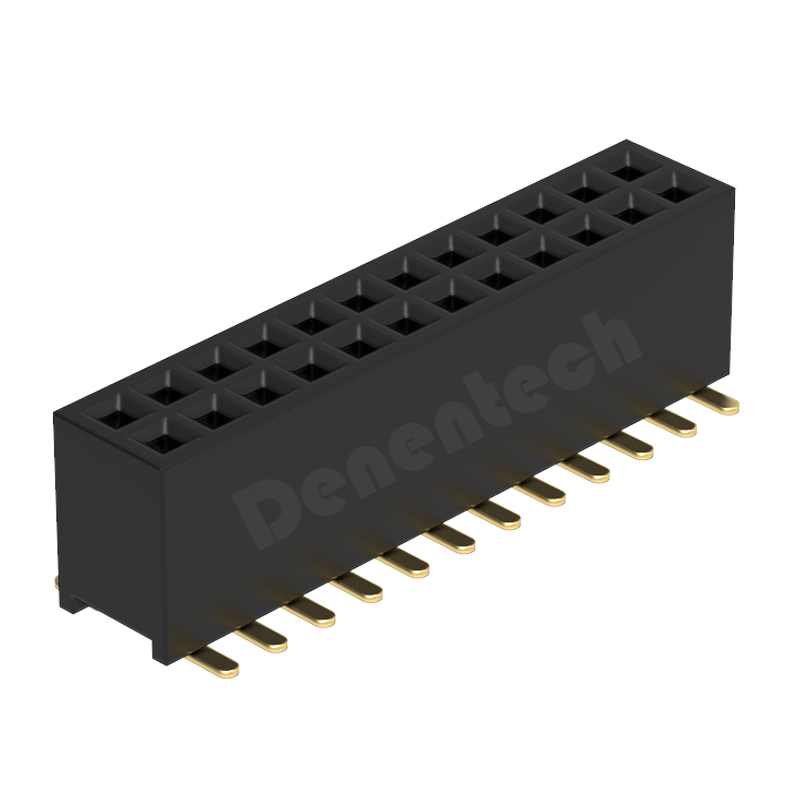

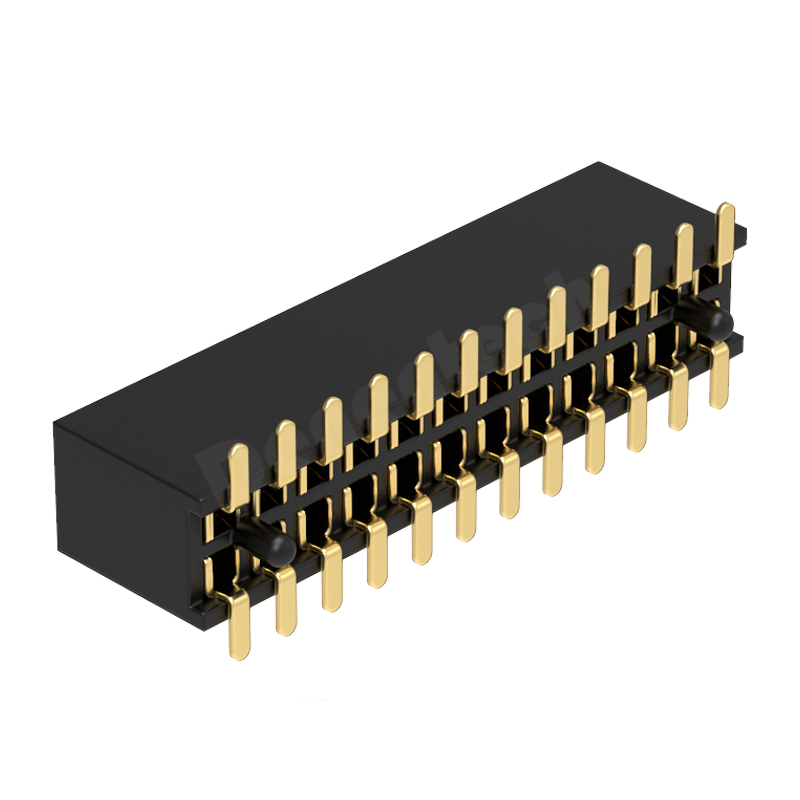

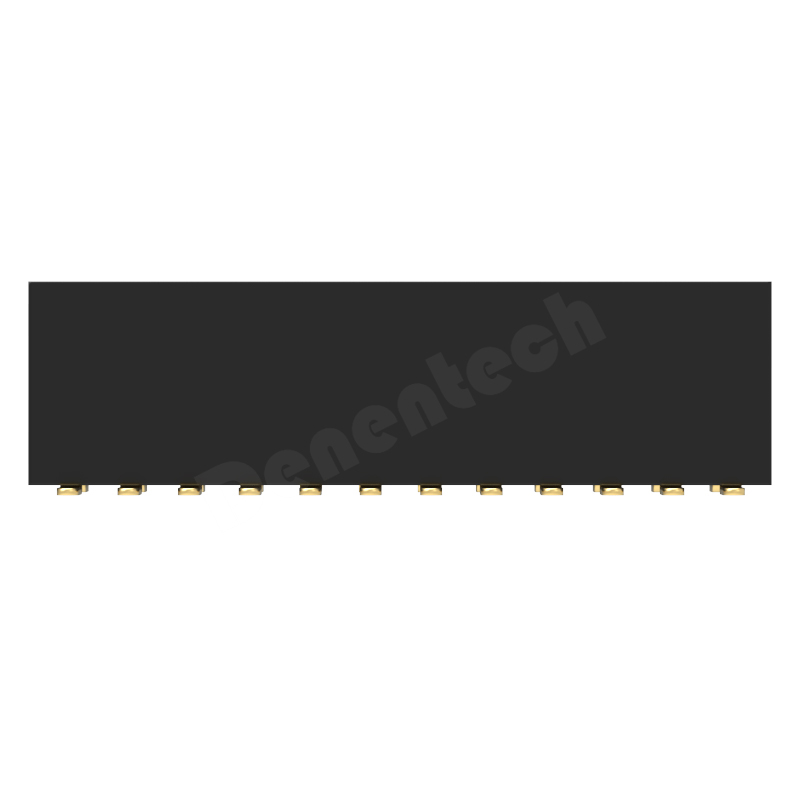

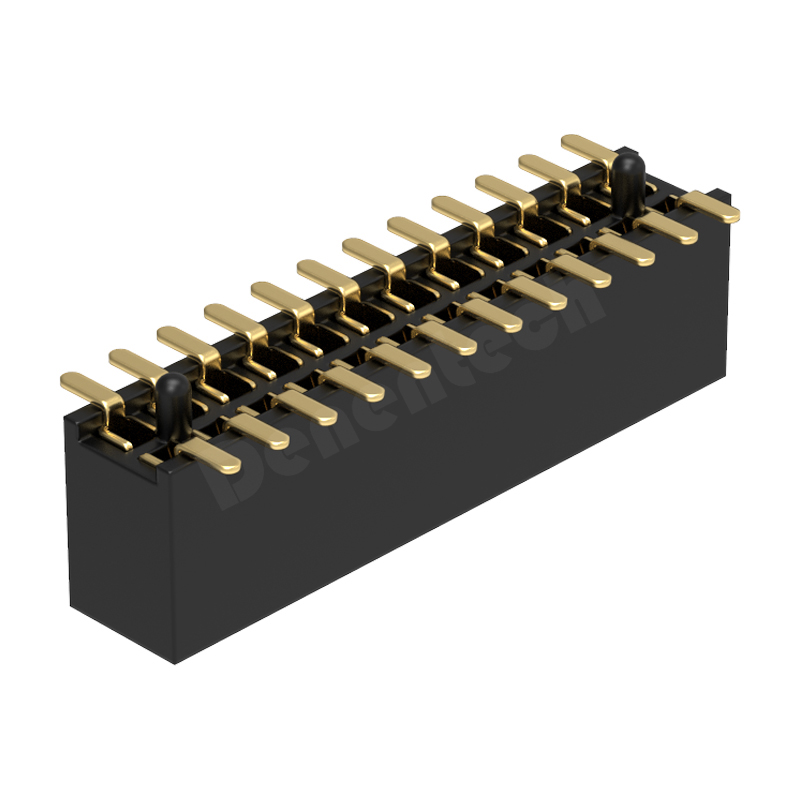

Denentech low price 1.27mm pitch H4.3mm dual row straight SMT female header connector

Serial Code : Product Code : F343-XXDG0SMXXX

Rated current :

1.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product Details Features Drawing Accessory Products Related Products Knowledge Related videos Contact us

Female Header uses high quality raw materials

The Denentech 1.27mm female connector uses high-quality brass and high-temperature plastic according to international standards, ensuring faster signal current transmission speed and lower signal loss rate, thereby improving the stability and reliability of the connection.

Female Header uses high quality raw materials
Female Header electroplating process

Female Header electroplating process

The surface of the Denentech 1.27mm female header is treated with multiple layers of electroplating to ensure that the 1.27mm female header passes strict ROHS verification and 24H salt spray testing.

Denentech Female Header automated production

Denentech adopts fully automated production of 1.27mm pitch female header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality female header connectors!

Denentech Female Header automated production
Product name :

1.27mm pitch H4.3mm dual row straight SMT female header connector

Pitch

1.27mm

Plastic height

H4.3mm

Pin length

2.8mm,2.4mm

Row number

dual row

Pin number

4-100pin

Connection type

Straight SMT

Rated current

1A

Pin material

Brass

Surface treatment

gold flash

Plastic materials

PBT,PA6T,LCP,etc.

Product features

high temperature resistance/flame retardant

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc
