Rated current :
3AMPContact Resistance :
30mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
Gold Or Nickel-PlatedInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag/Blister Tray (standard)Delivery time :
7-10 daysEnvironmental protection :
ROHSThe Denentech DIN41612 connector is composed of terminal + plastic, using high-quality brass and high-performance plastic, which improves the reliability and stability of the connector.

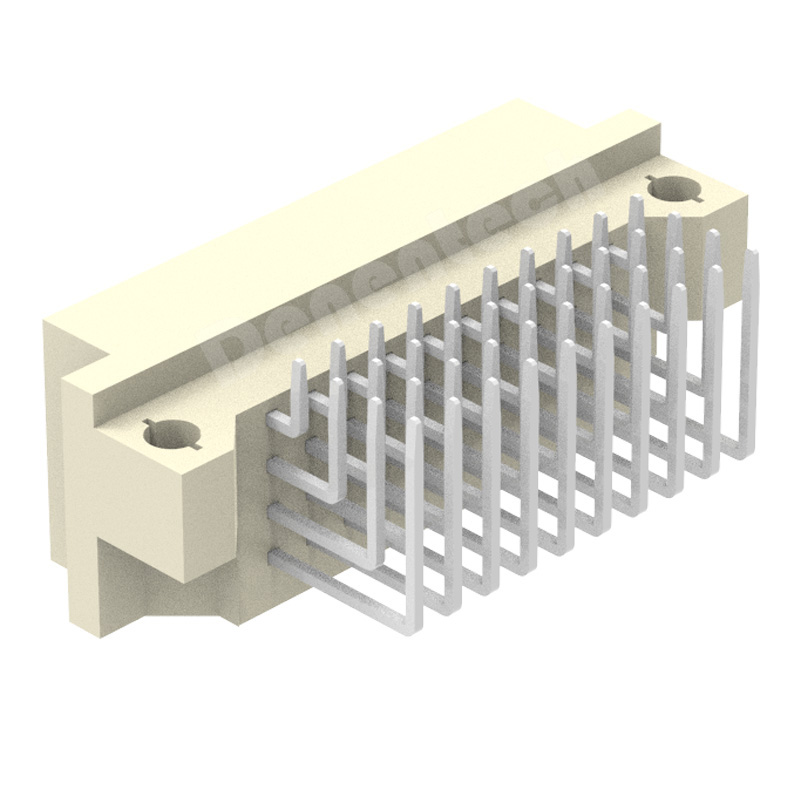

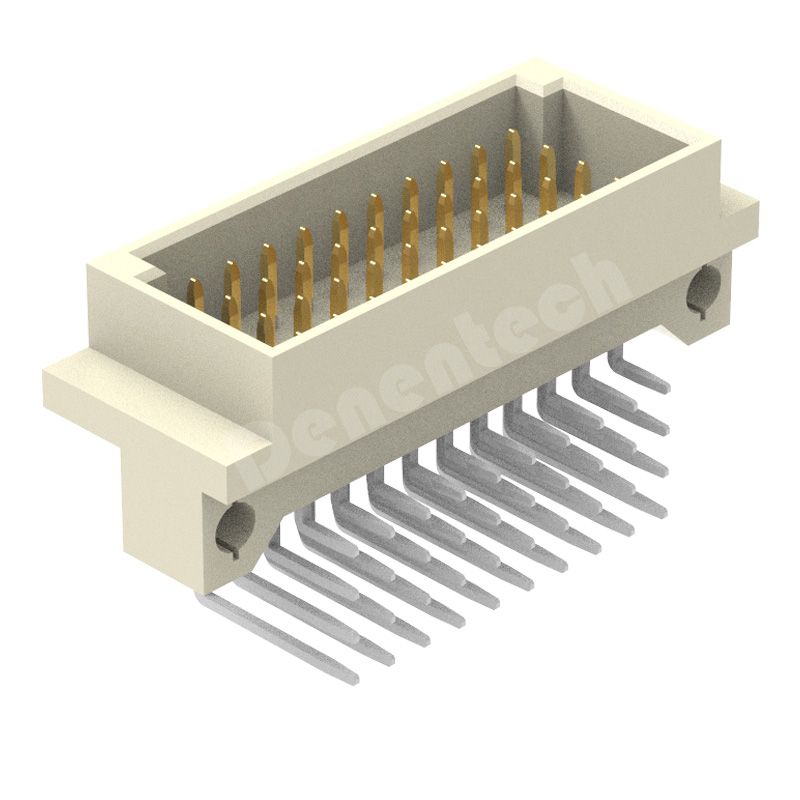

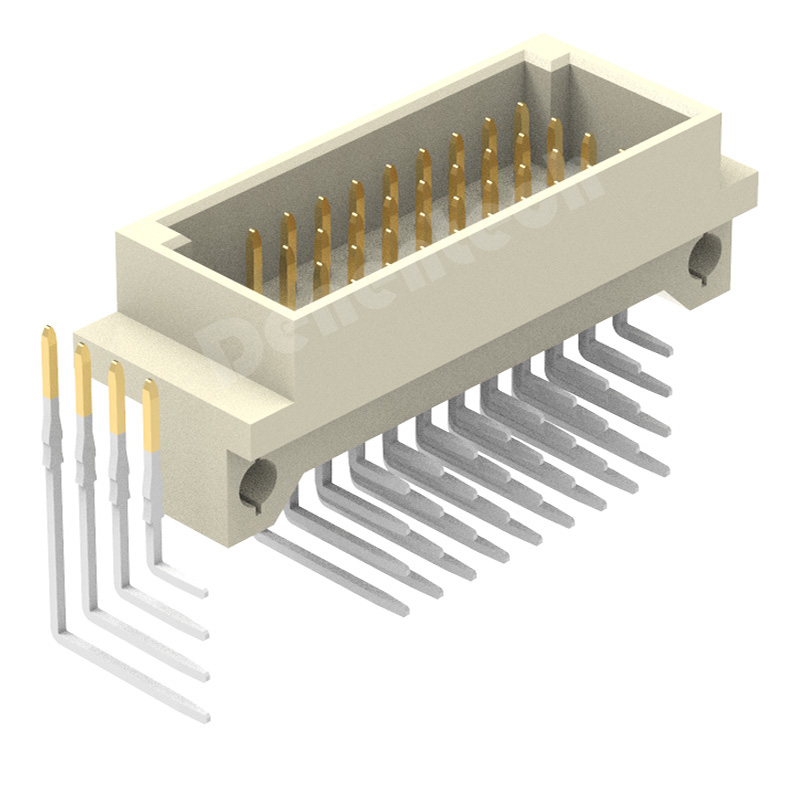

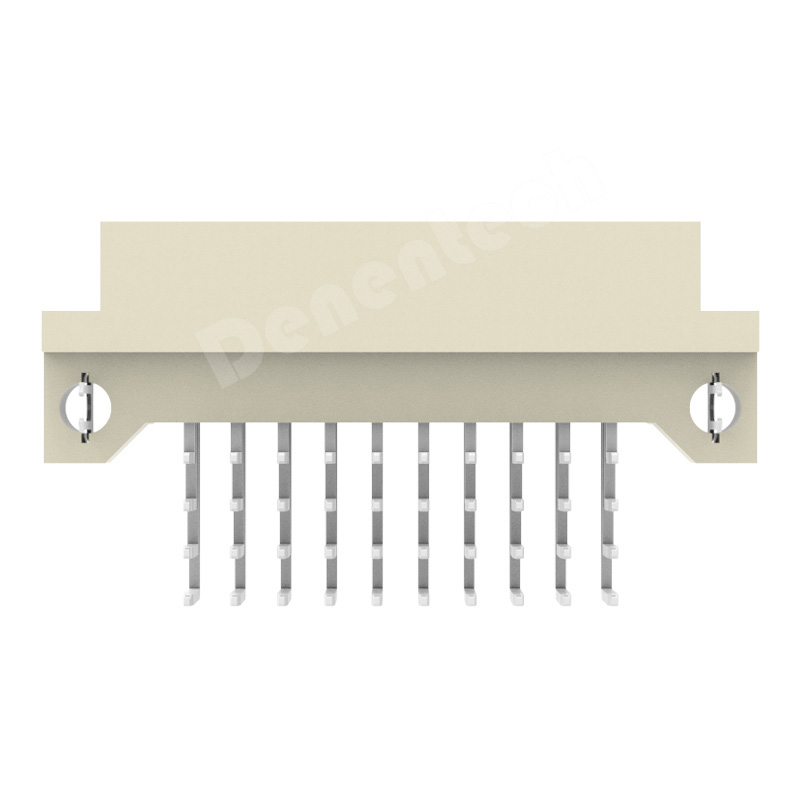

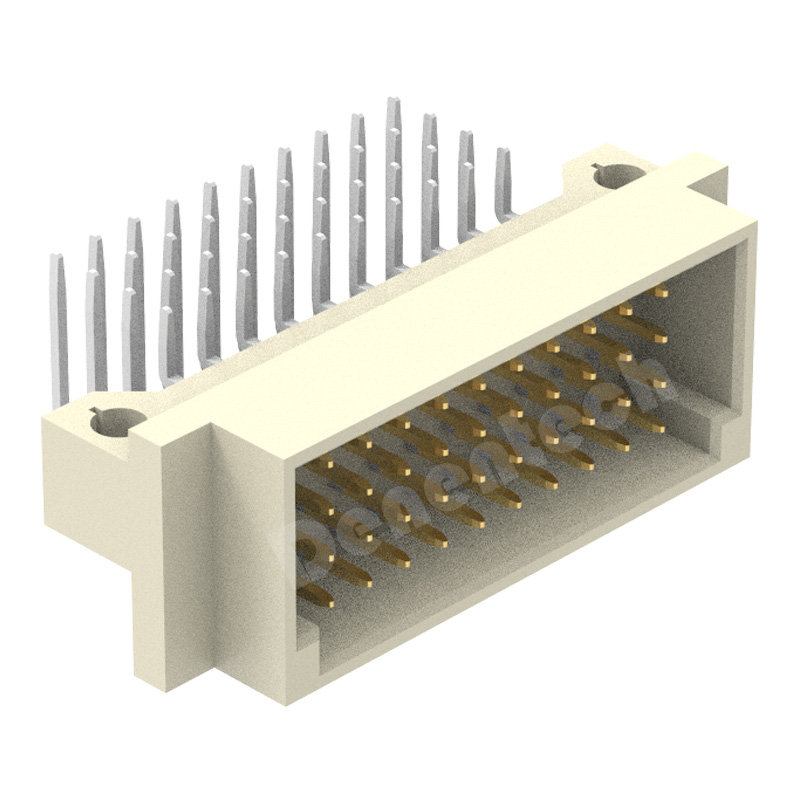

The diverse positioning and locking designs of the DIN41612 triple row 90-degree European-style socket connectors ensure the accurate mating of sockets and plugs, increase a certain fastening force, and guarantee the mechanical stability of the electrical connection.
The multi-row and multi-column design as well as various installation methods of DIN41612 connectors form high-density connections to meet different circuit connection requirements and enable multiple signal and power connections, thus being widely used in various different fields.
Denentech hot sale 2.54MM dual row male straight DIP DIN41612 Connector
Denentech high quality product 2.54MM dual row male right angle DIP DIN41612 Connector for sale
Denentech high quality 2.54mm triple row male straight DIP DIN41612 Connector
Denentech factory outlet 2.54MM triple row male right angle DIP DIN41612 Connector
Denentech Professional manufacturer 2.54MM four row male straight DIP DIN41612 connector
