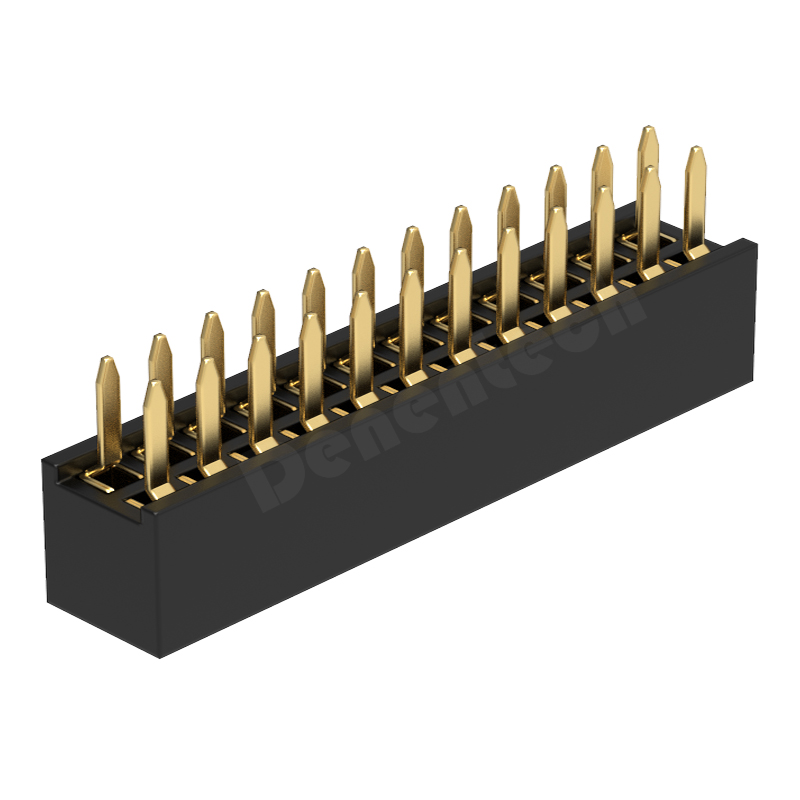

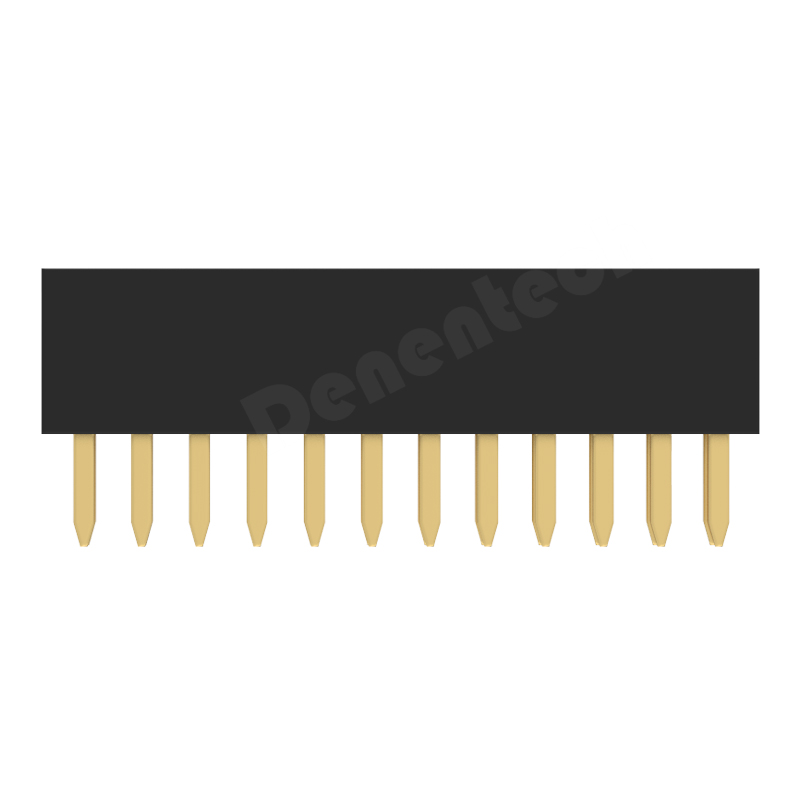

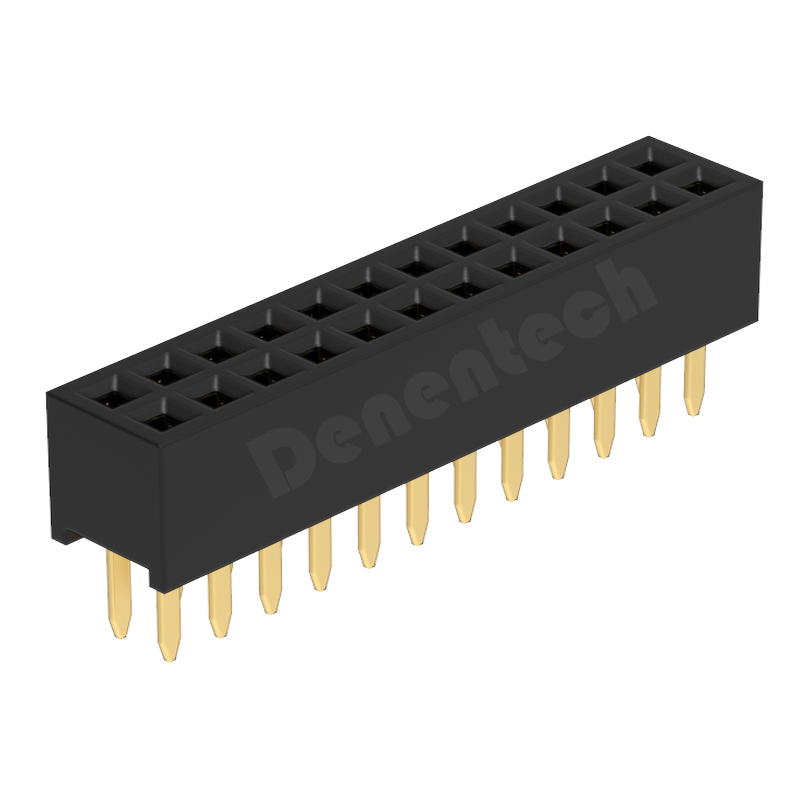

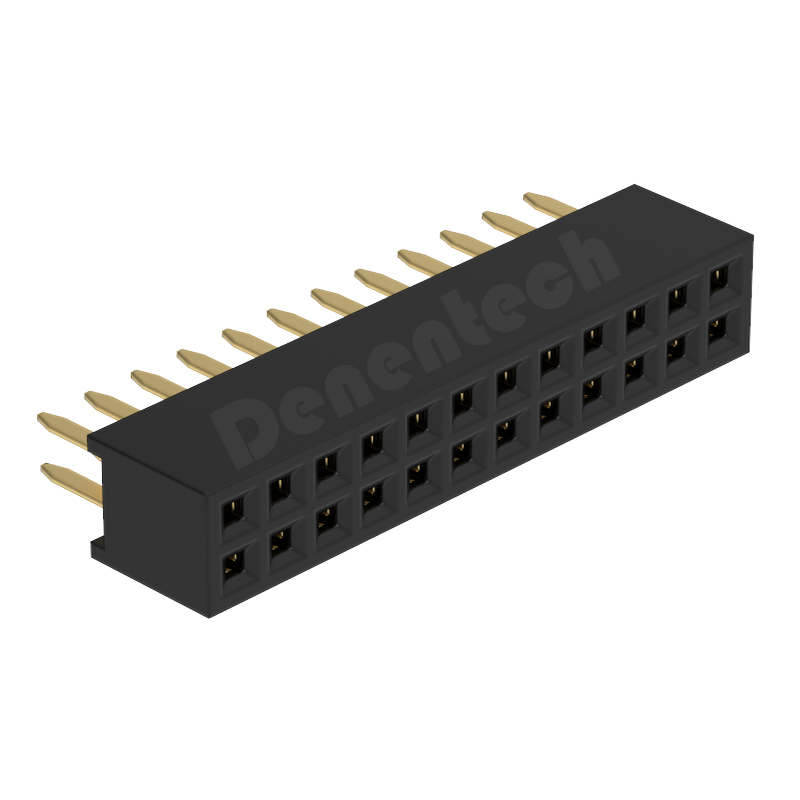

Denentech hot sale 1.27MM female header H3.4MM dual row straight pin header female connector

Serial Code : Product Code : F334-XXDG0STXXX

Rated current :

1.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product detailsFeaturesDrawingAccessory ProductsRelated ProductsKnowledgeRelated videosContact us

Female Header Uses High Quality Raw Materials

The Denentech 1.27female header is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

Female Header Uses High Quality Raw Materials
Female Header Electroplating Process

Female Header Electroplating Process

The surface of the Denentech 1.27mm pin header female is treated with multiple layers of electroplating to ensure that the female header passes strict ROHS verification and 24H salt spray testing.

Denentech Female Header Automated Production

Denentech adopts fully automated production of female header connectors, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

Denentech Female Header Automated Production
Product name :

1.27MM H3.4MM dual row straight female header connector

Pitch

1.27mm

Plastic height

H3.4mm

Pin length

2.40mm、2.80mm

Row number

dual row

Pin number

4-100pin

Connection type

Straight DIP

Rated current

1A

Pin material

Brass

Surface treatment

gold flash

Plastic materials

PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.

Product features

high temperature resistance/flame retardant

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc
