Rated current :
1AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/1 minuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper alloyContact Plating :
gold platingInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/Bag (Standard)Delivery time :
7-10 daysEnvironmental protection :

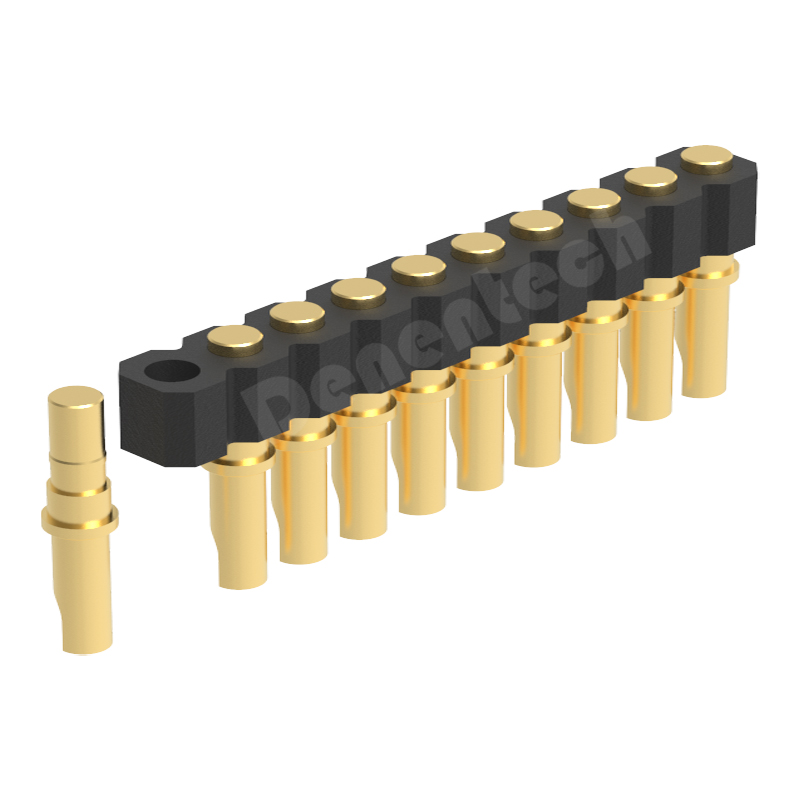

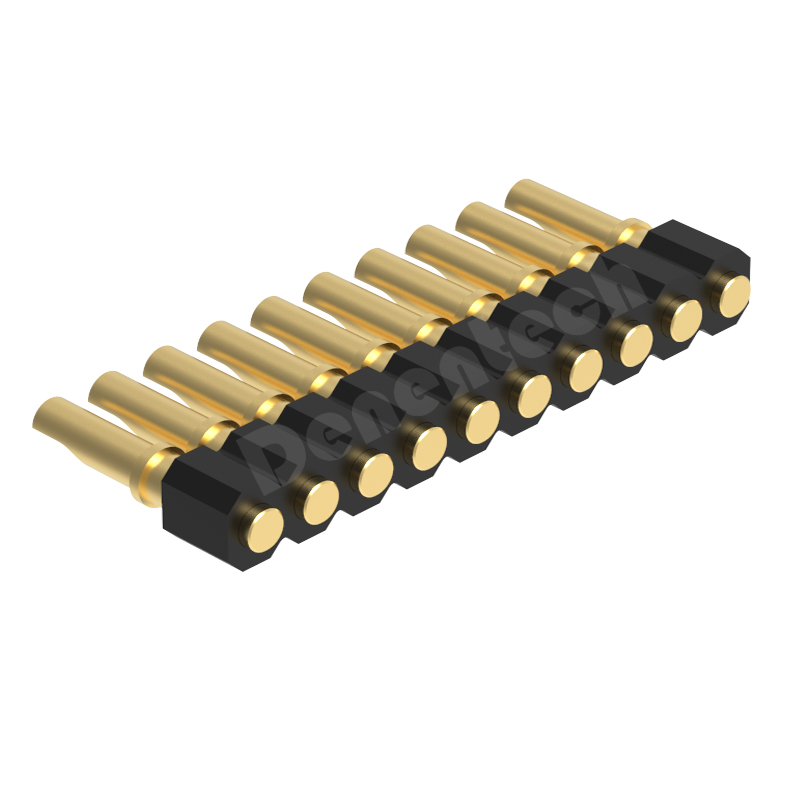

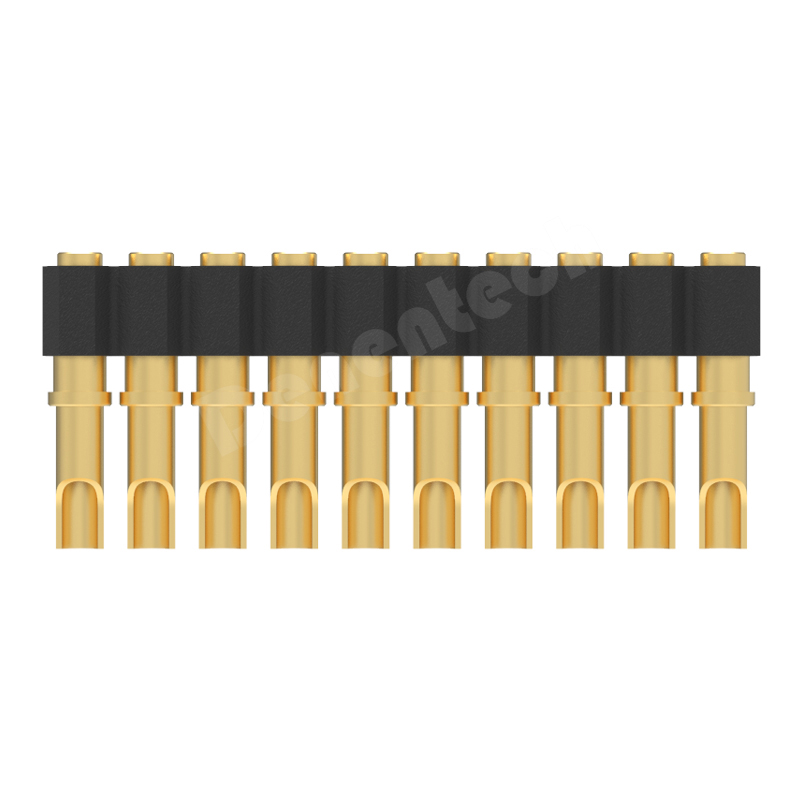

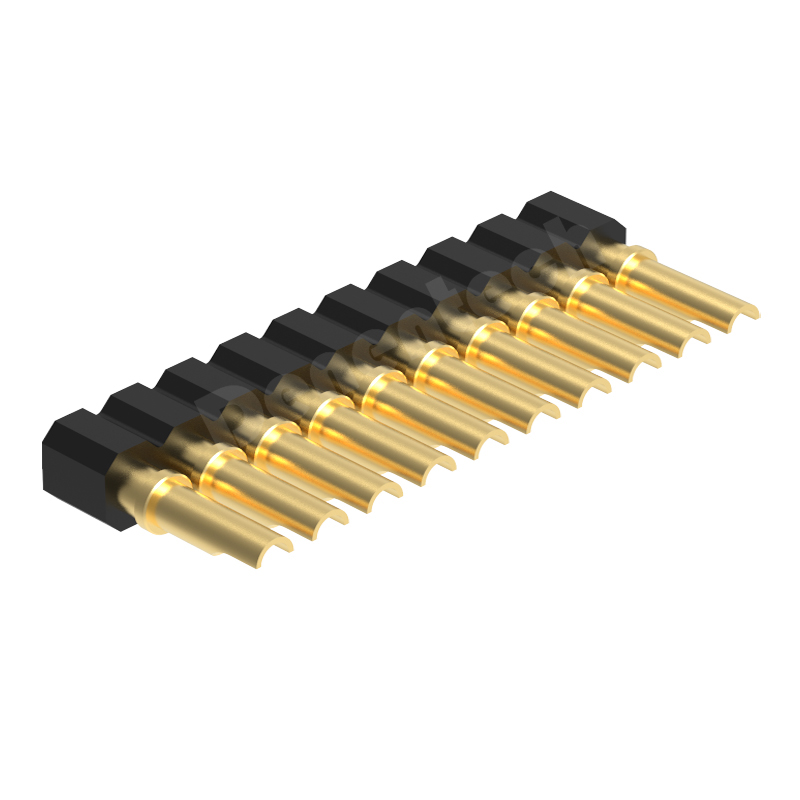

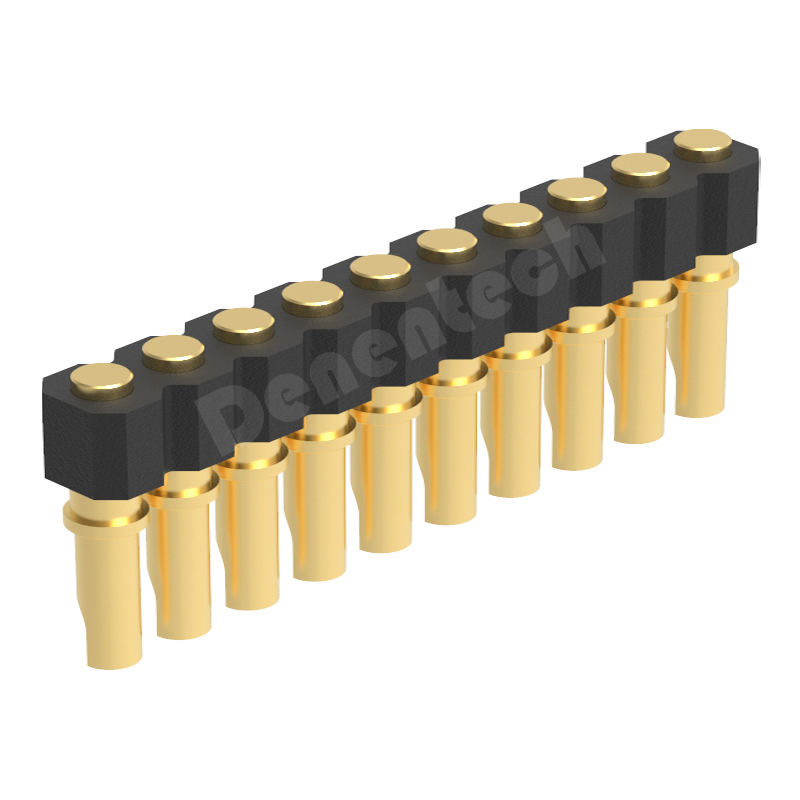

ROHSThe Denentech 2.00mm female pogo pin connector is composed of pin and plastic. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.
The diverse structural design of the 2.00mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.
Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.
