Rated current :
1.0AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
GoldInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag (standard)Delivery time :
7-10 daysEnvironmental protection :
ROHSThe Denentech 2.00mm pitch pogo pin connector consists of plunger, pin tubes, and springs. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.
The diverse structural design of the 2.00mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.
Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.

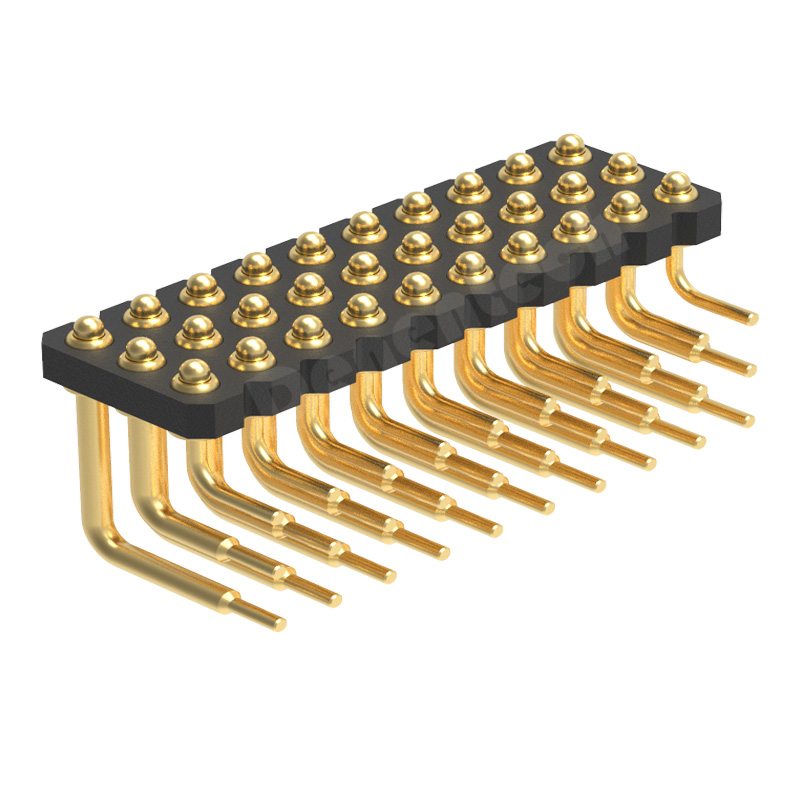

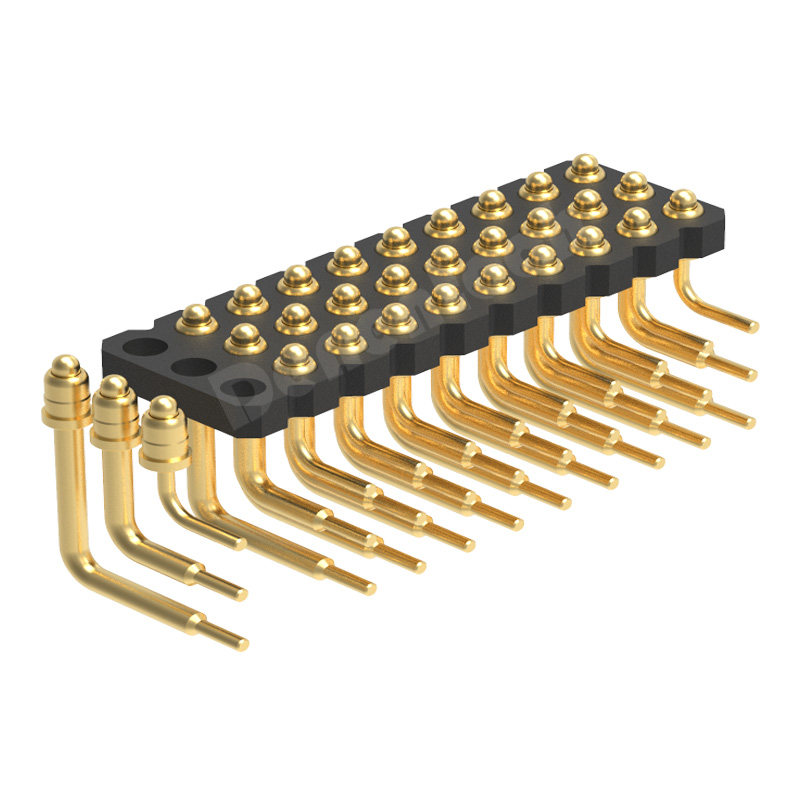

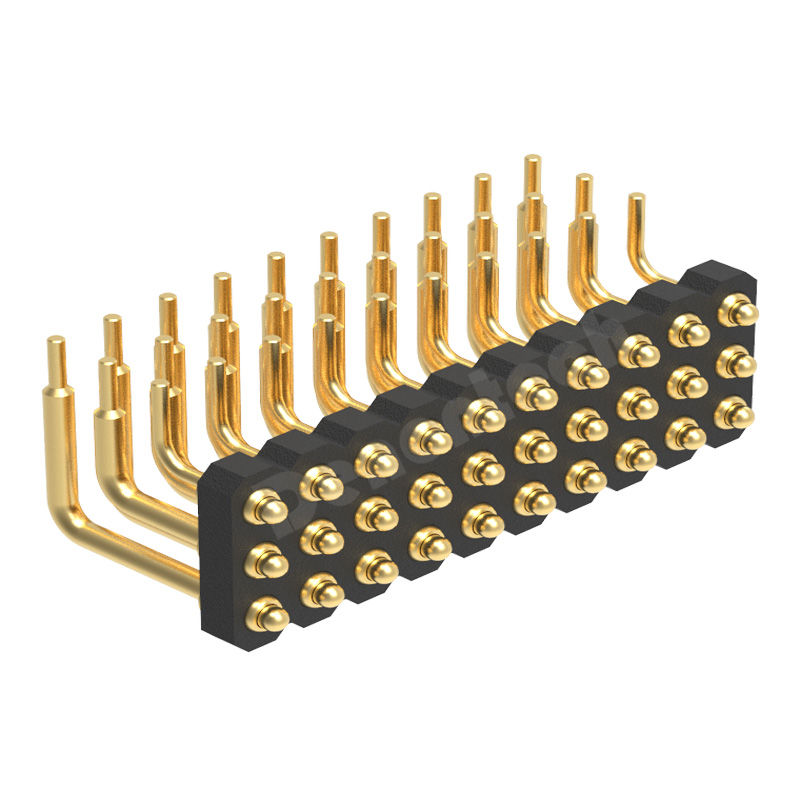

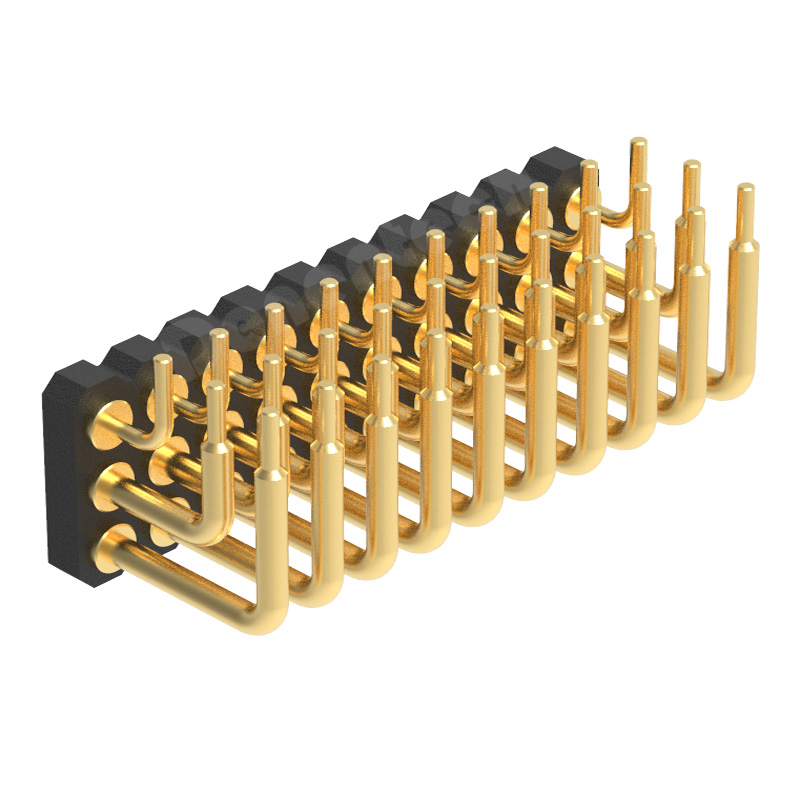

Denentech 2.00MM H1.27MM triple row female right angle SMYconcave pogo pin connector
Denentech gold plated 2.00MM H1.27MM triple row female right angle SMT pogo pin
Denentech high quality2.00MM H2.5MM triple row female straight SMT pogo pin connector
Denentech gold plated 2.00MM H2.5MM triple row female straight concave pogo pin connector
Denentech 2.00MM pogo pin H4.0MM triple row female straight concave pogo pin connector
Denentech hogh quality 2.00MM H4.0MM triple row female straight SMT concave pogo pin
Denentech hot sale 2.0MM H1.27MM triple row male straight SMT pogo pin connector
Denentech Manufacturer supply 2.0MM H4.0MM triple row male straight pogo pin connector
Denentech gold plkated 2.0MM H1.27MM triple row male straight pogo pin connector

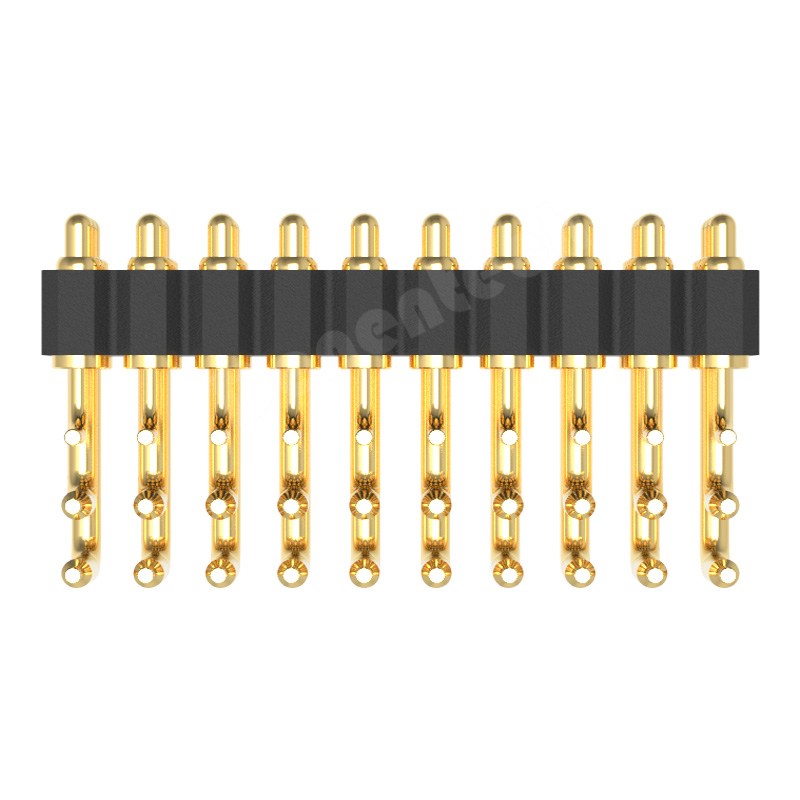

Denentech spot supplies 2.0MM H4.0MM single row male straight pogo pin
