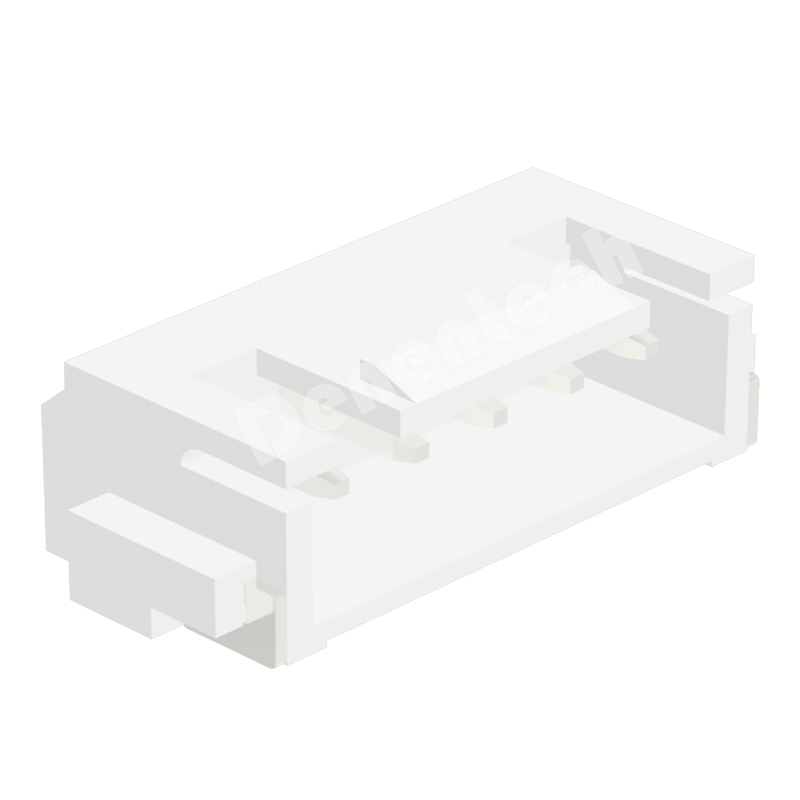

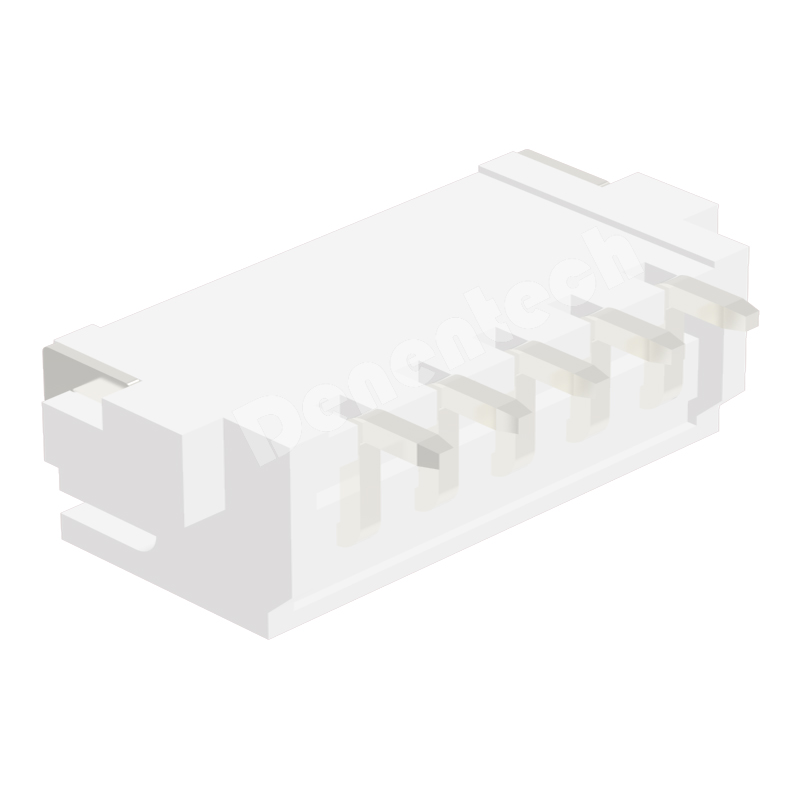

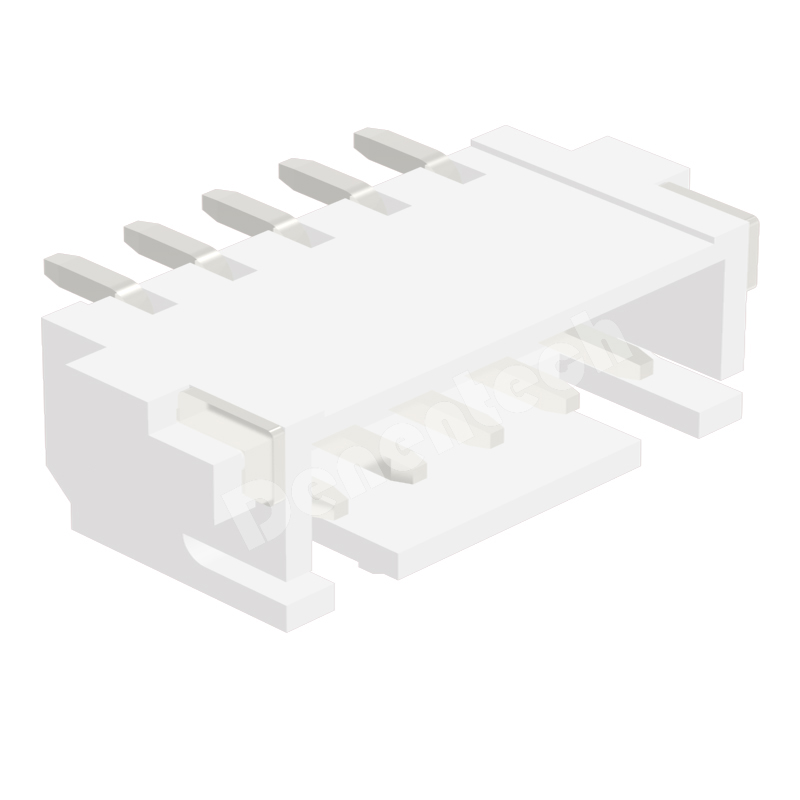

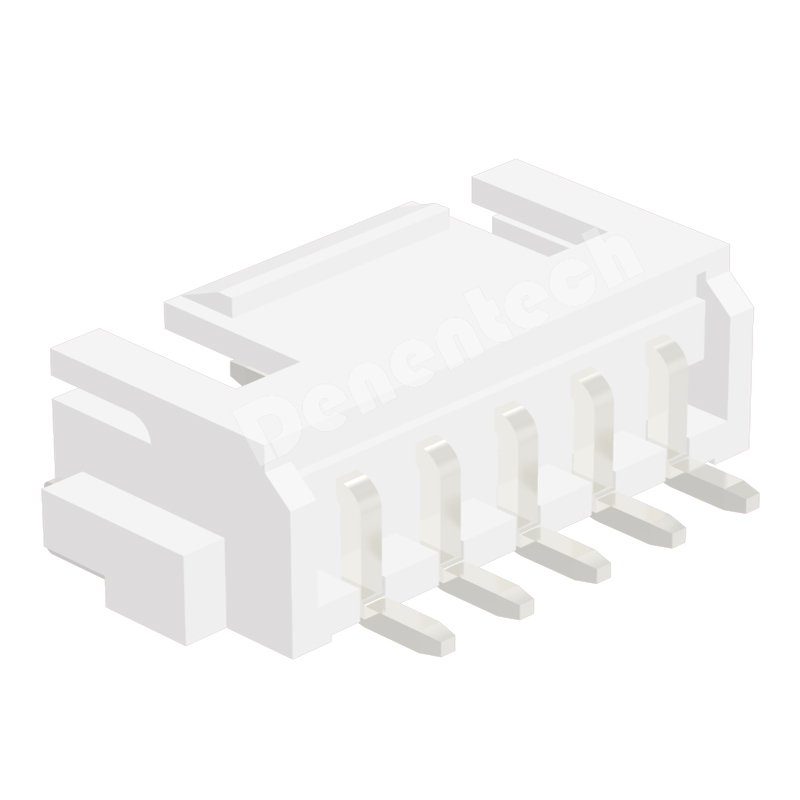

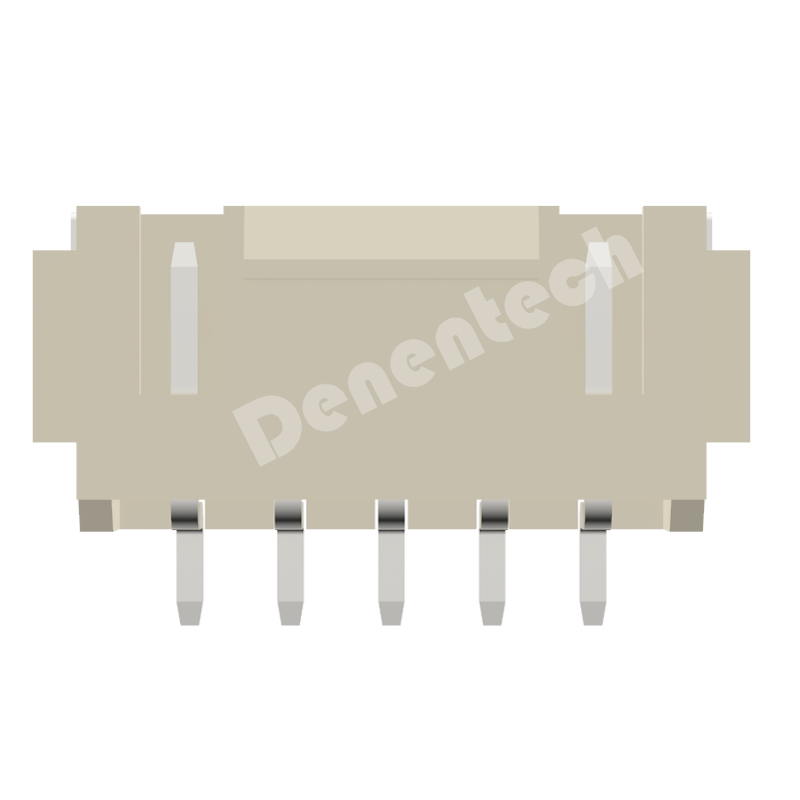

Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt
Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt
Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt
Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt
Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt
Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt

Denentech factory direct sales 2.5MM wafer HA single row right angle SMT connector wafer smt

Serial Code : Product Code : W25M-XXSRM32SNXX

Rated current :

3.0 AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Tin-Plate

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

PE Bag/Blister Tray/Tape&Reel

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request
产品详情产品规格产品文档关联产品相关视频相关新闻联系我们
产品详情

精选优质原材

Denentech wafer连接器选用国际标准的优质铜材，硬度高，不易变形，具有良好的导电性和耐腐蚀性，能够提供可靠的电气连接。

精选优质原材
电镀工艺

电镀工艺

Denentech wafer连接器采用端子表面镀锡等电镀处理，在长期使用中表现出较高的稳定性。

卓越品质

Denentech wafer贴片连接器采用全自动化生产+超薄结构设计，在有限的空间内实现更多的连接，应用范围更广。

卓越品质
产品规格
Product name

2.5MM wafer HA single row right angle SMT

Pitch

2.50mm

Rated current

2A

Row number

singel row

Connection type

Right Angle SMT

Pin number

4-24pin

Pin material

Brass

Surface treatment

Tin plating

Plastic material

PA66

Product features

high temperature resistance/flame retardant

Application

consumer electronics.automotive electronics, industrial automation, communication electronics.etc
