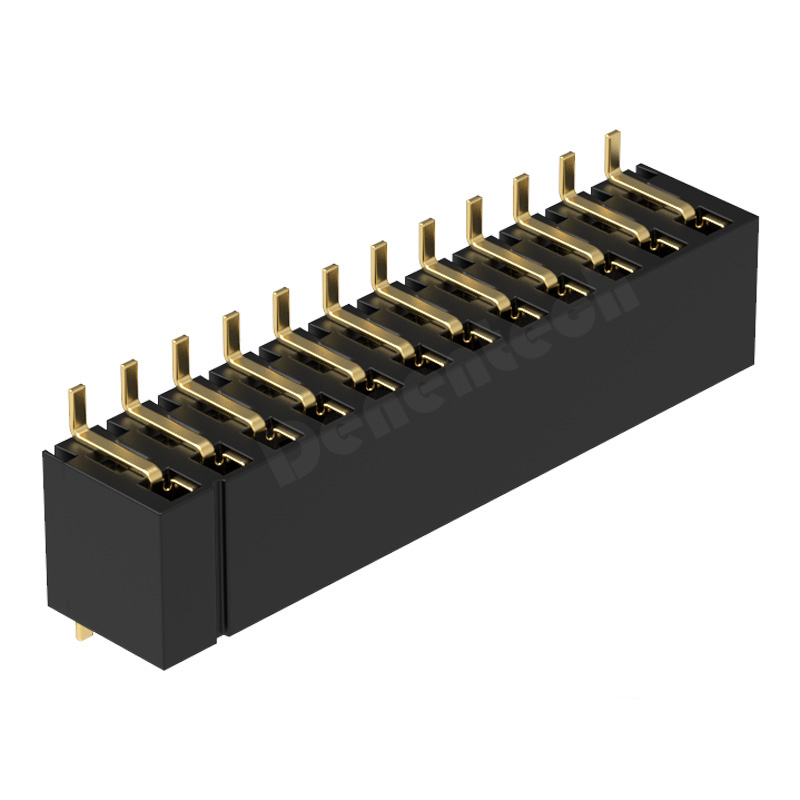

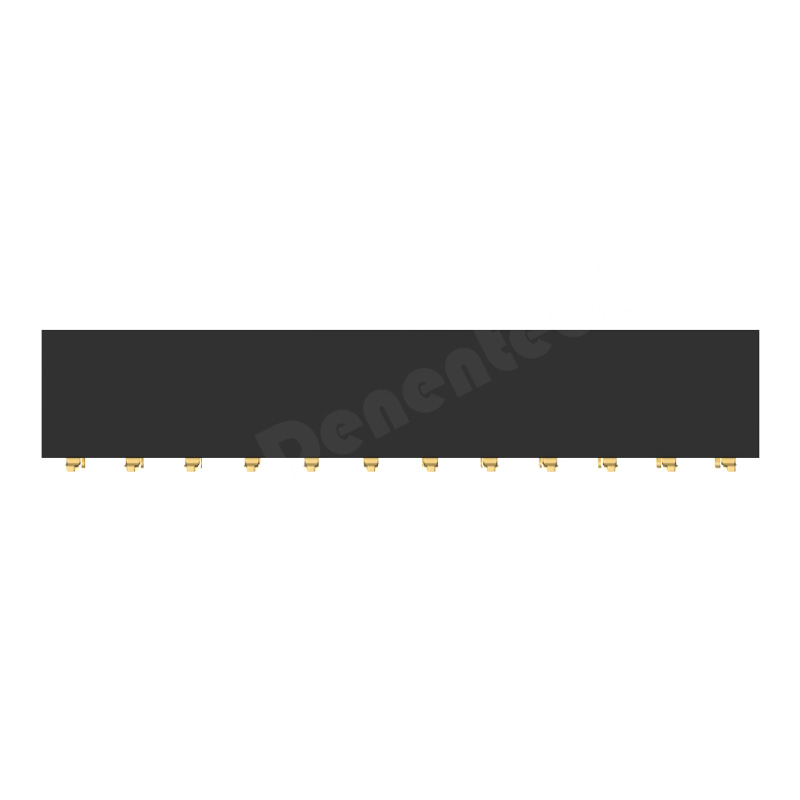

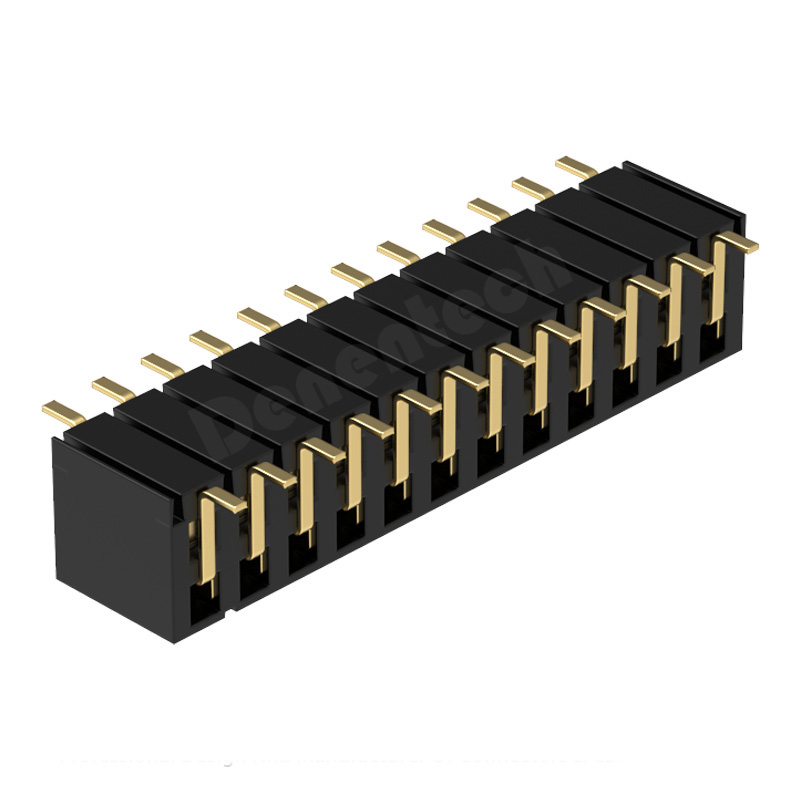

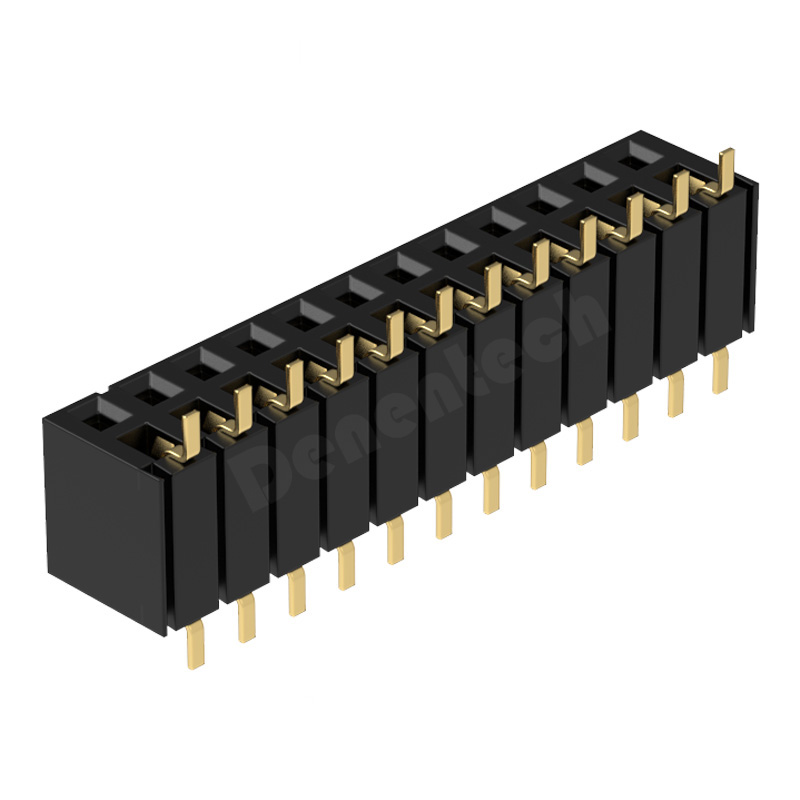

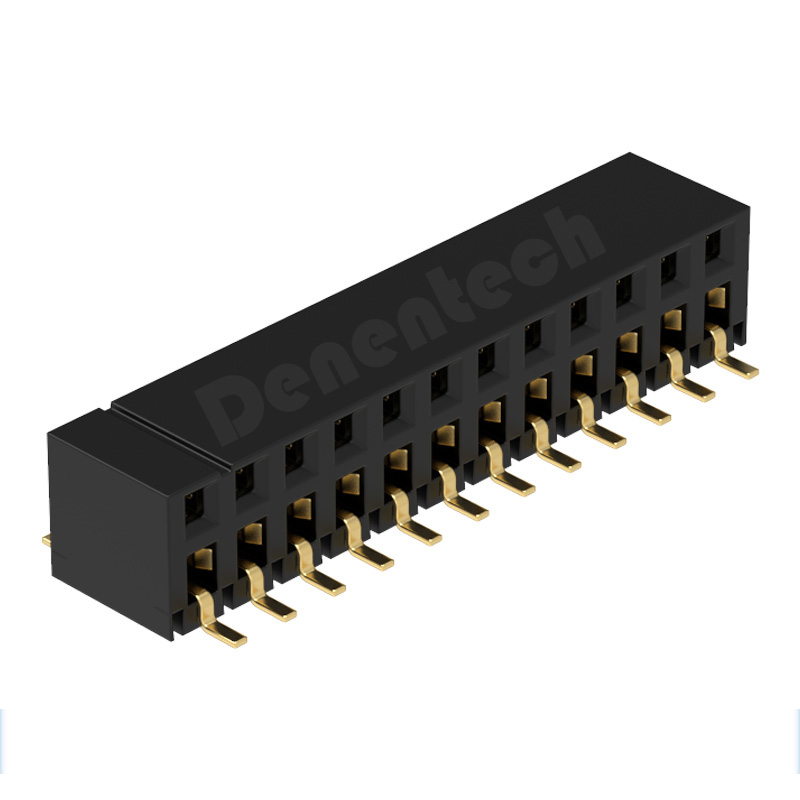

Denentech factory custom 2.00MM H4.90MM dual row side entry straight SMT female header

Serial Code : Product Code : F449-XXDG0SMXXX

Rated current :

2.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product DetailsFeaturesDrawingAccessory ProductsRelated ProductsKnowledgeRelated videosContact us

female header uses high quality raw materials

The Danentech female header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

female header uses high quality raw materials
female  Header electroplating process

female Header electroplating process

The surface of the Denentech 2.00mm female header is treated with multiple layers of electroplating to ensure that the 2.00mm female header passes strict ROHS verification and 24H salt spray testing.

Denentech female Header automated production

Denentech adopts fully automated production of 2.00mm pitch female header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

Denentech female Header automated production
Product name :

2.00MM H4.90MM dual row side entry straight SMT

Pitch

2.0mm

Plastic height

H4.9mm

Pin length

3.2mm

Row number

dual row

Pin number

4-80pin

Connection type

Straight DIP

Rated current

2A

Pin material

Brass

Surface treatment

gold flash

Plastic materials

PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.

Product features

high temperature resistance/flame retardant

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc
