Rated current :
2.0AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
Gold Or Nickel-PlatedInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag/Blister Tray (standard)Delivery time :
7-10 daysEnvironmental protection :

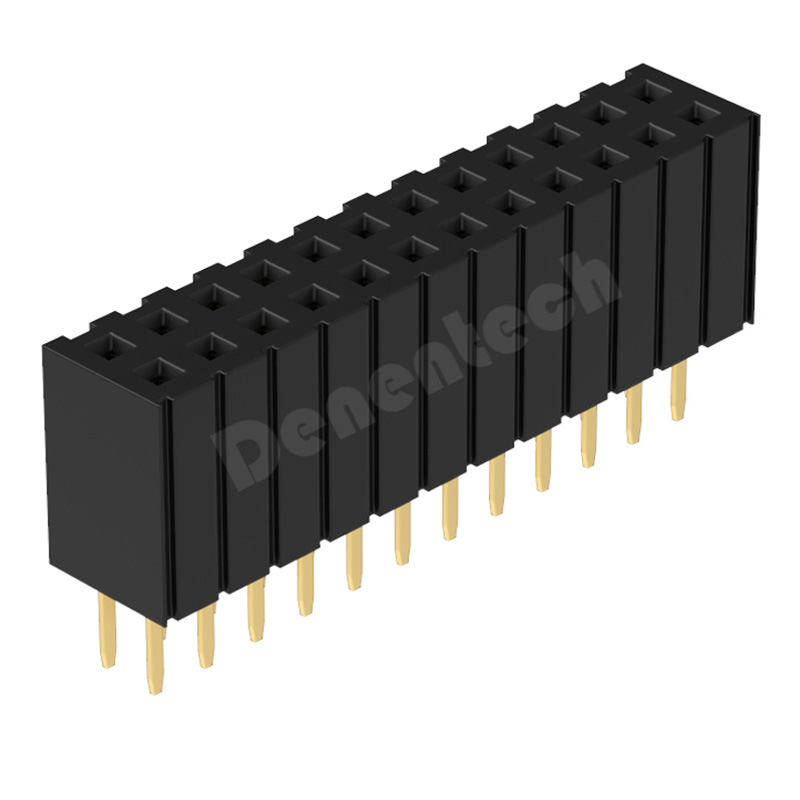

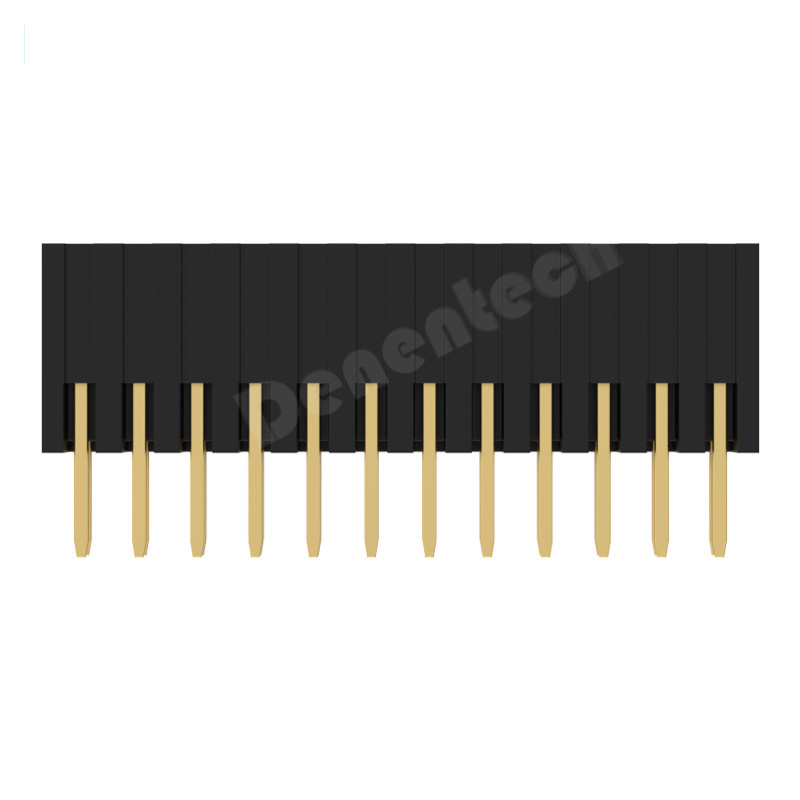

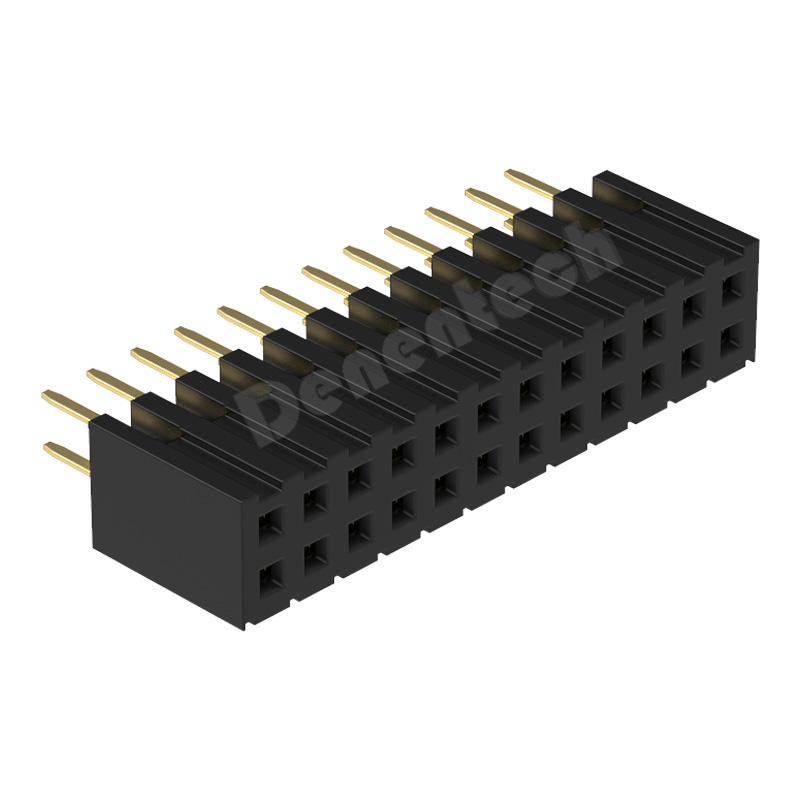

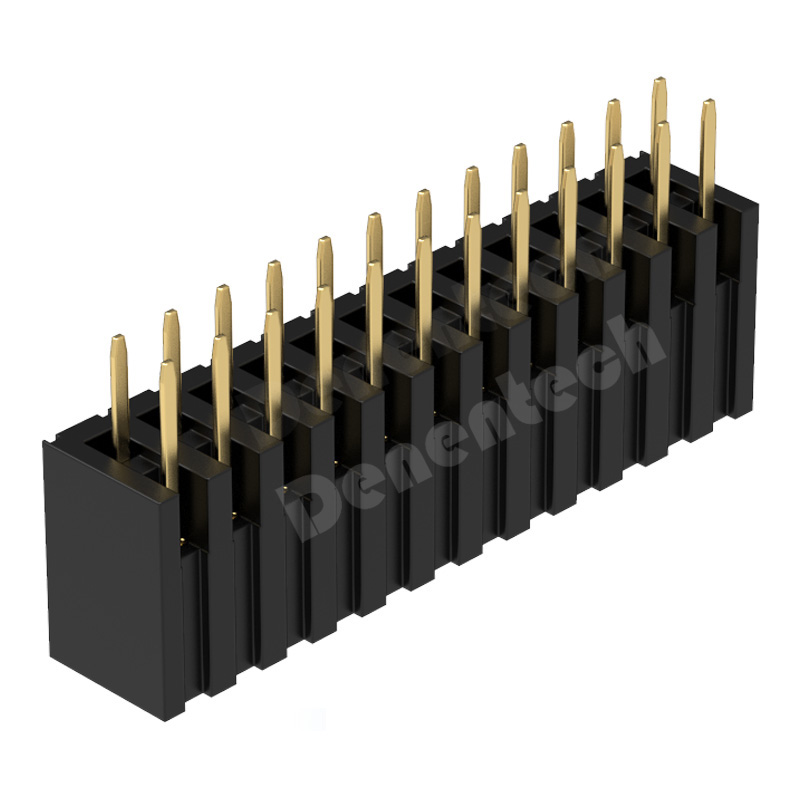

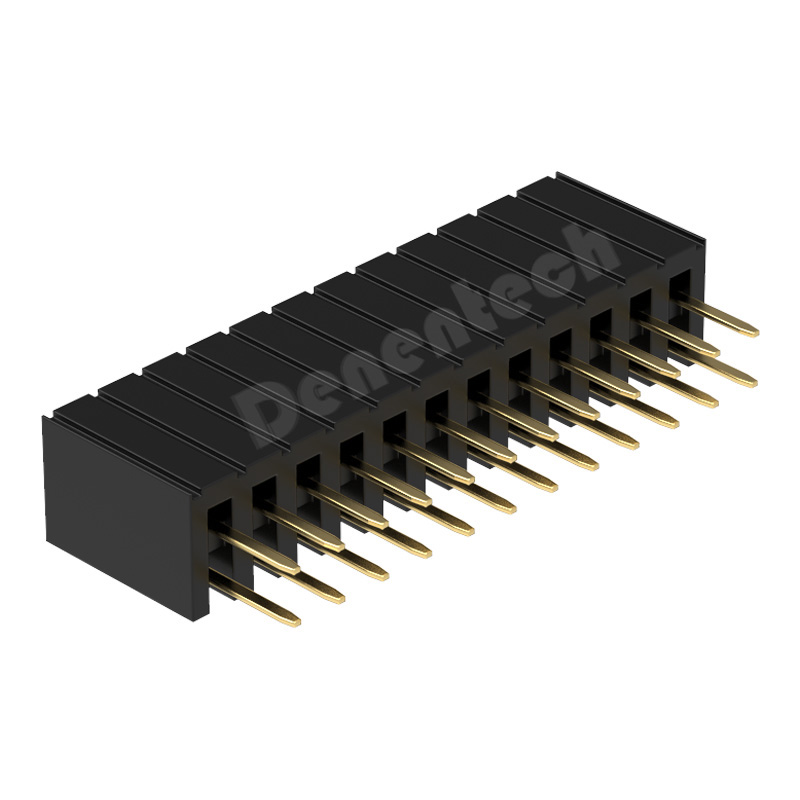

ROHSThe Denentech 2.00mm female connector uses high-quality brass and high-temperature plastic according to international standards, ensuring faster signal current transmission speed and lower signal loss rate, thereby improving the stability and reliability of the connection.
The surface of the Denentech 2.00mm female header is treated with multiple layers of electroplating to ensure that the 2.00mm female header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 2.00mm pitch female header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality female header connectors.
