Rated current :
0.75AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
GoldInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag (standard)Delivery time :
7-10daysEnvironmental protection :
ROHSThe Danentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.
The surface of the Denentech 1.0mm pin header is treated with multiple layers of electroplating to ensure that the 1.0mm pin header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 1.0mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

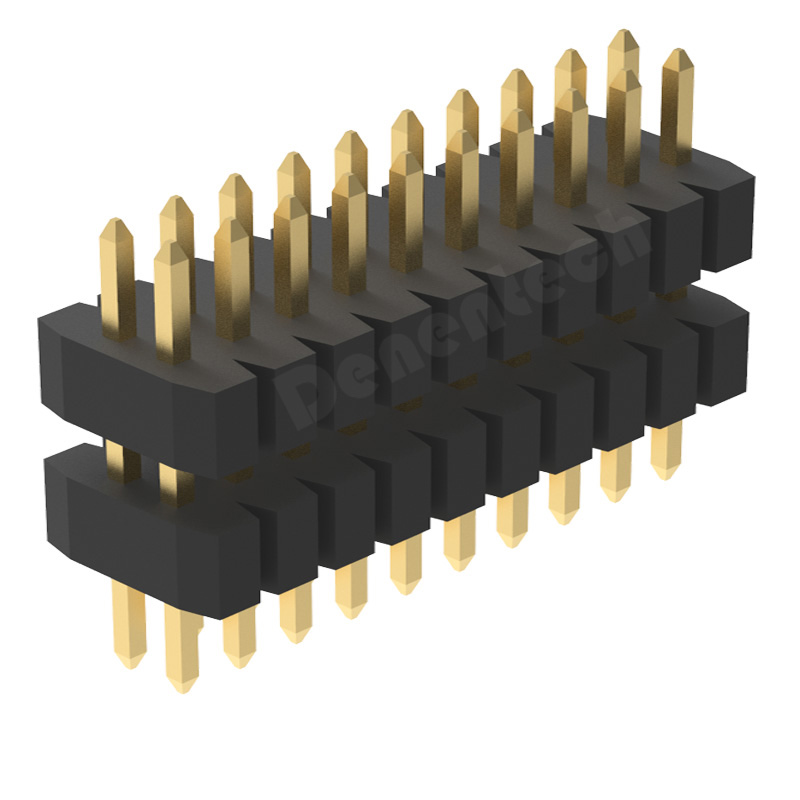

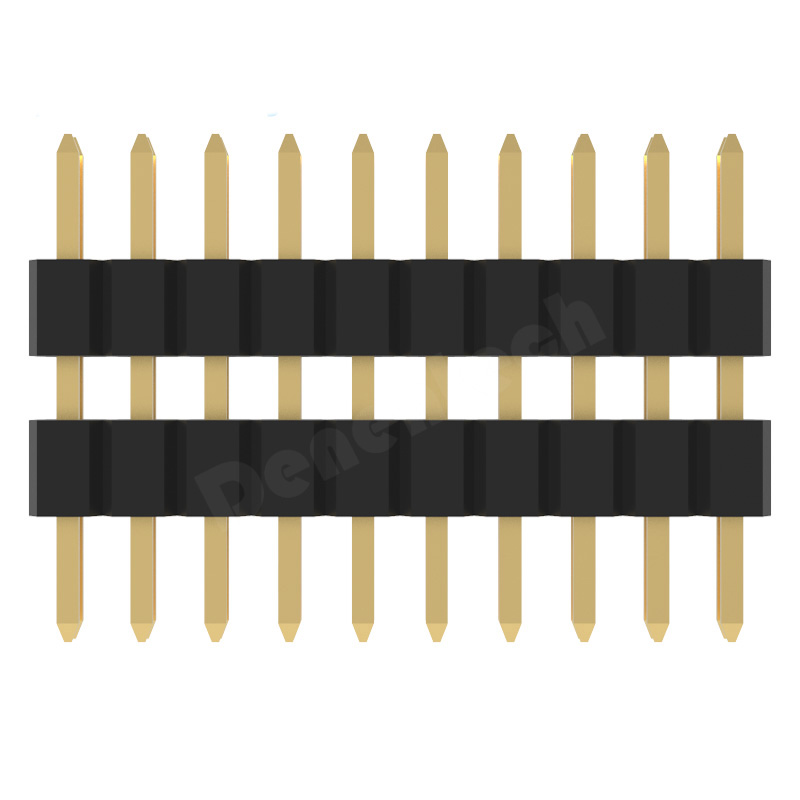

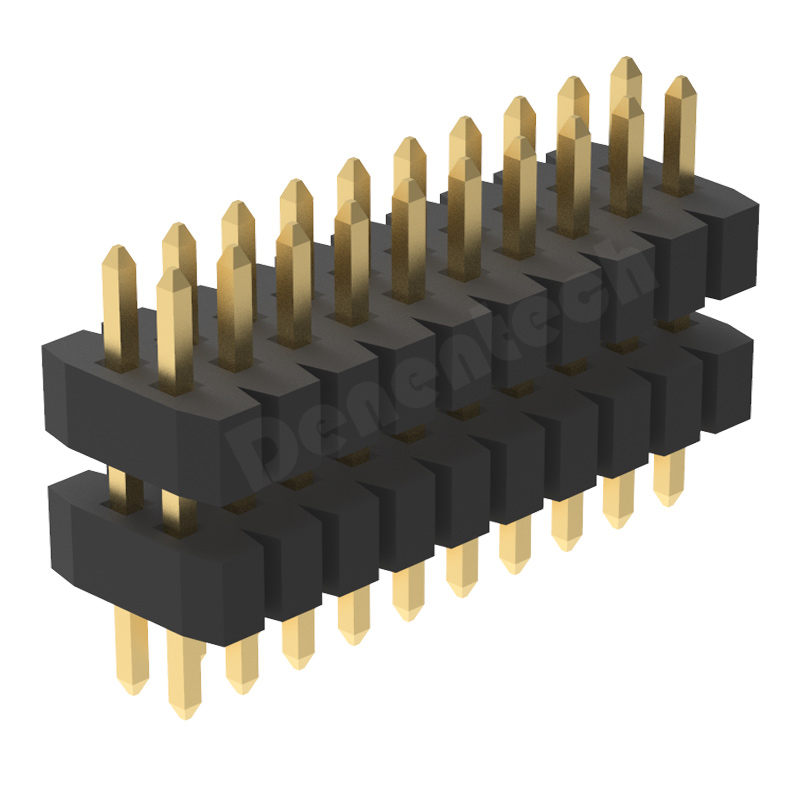

Denentech Gold Plating 1.0mm pitch dual row Straight DIP pin header connector
1.0mm pin header dual row dual plastic straight 1.0 mm pin header connector 1.0mm pin header, 180 degrees.

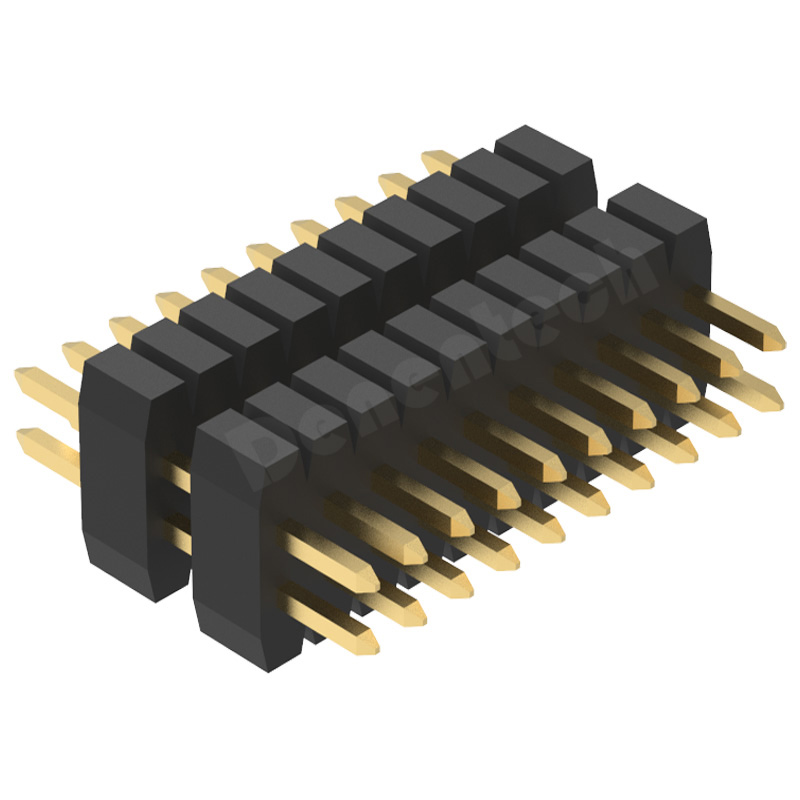

Denentech Gold Plating 1.0mm pitch dual row right angle DIP pin header connector
Denentech 1.0mm pin header dual row dual plastic right angle DIP pin header connector
Denentech 1.0mm pin header dual row straight SMT pin header connector with peg
Denentech 1.0mm pin header dual row dual plastic straight SMT pin header connector with peg
