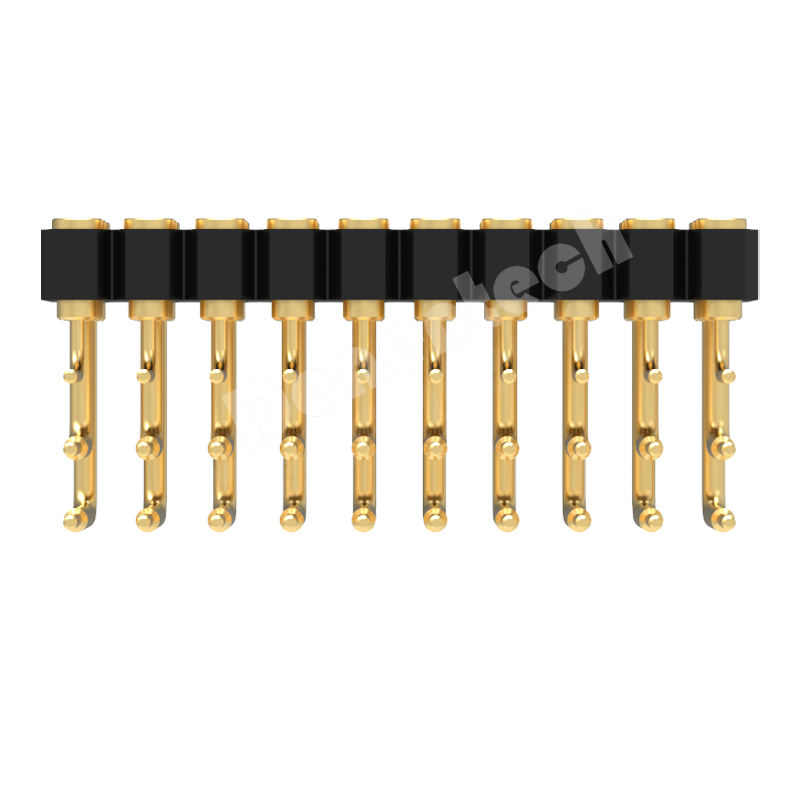

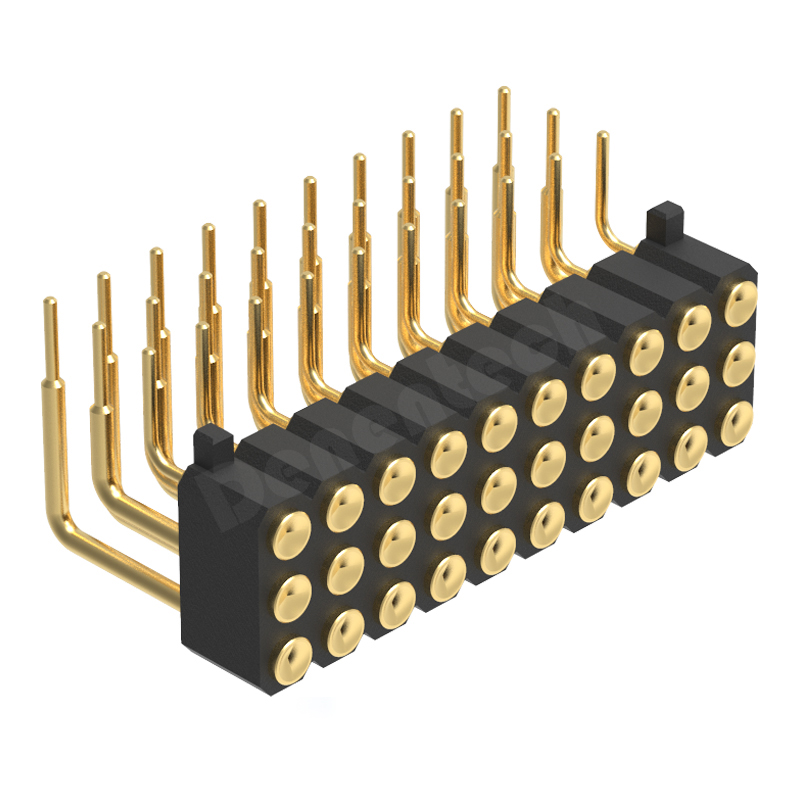

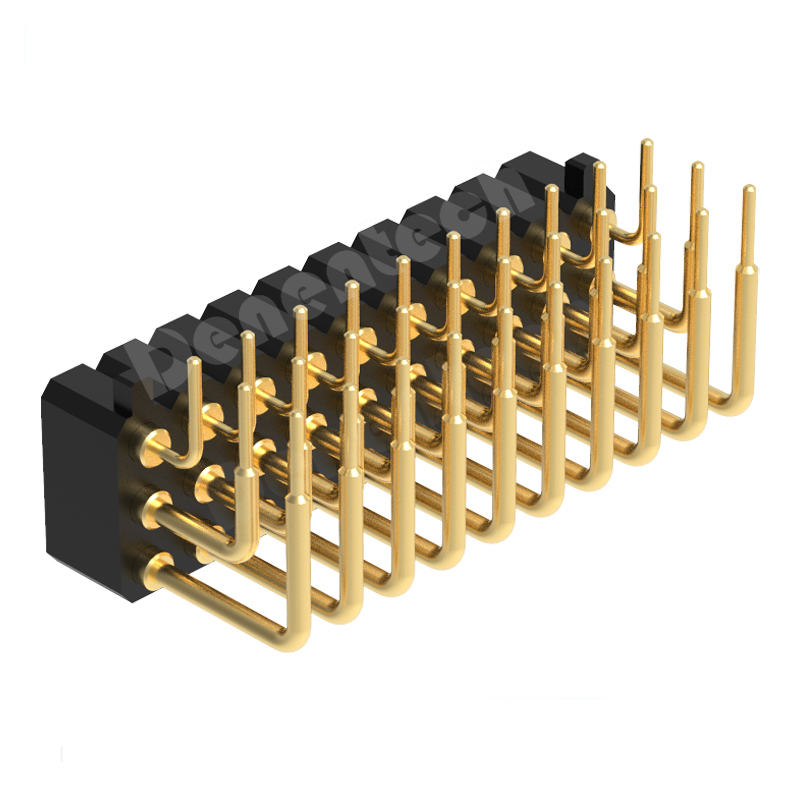

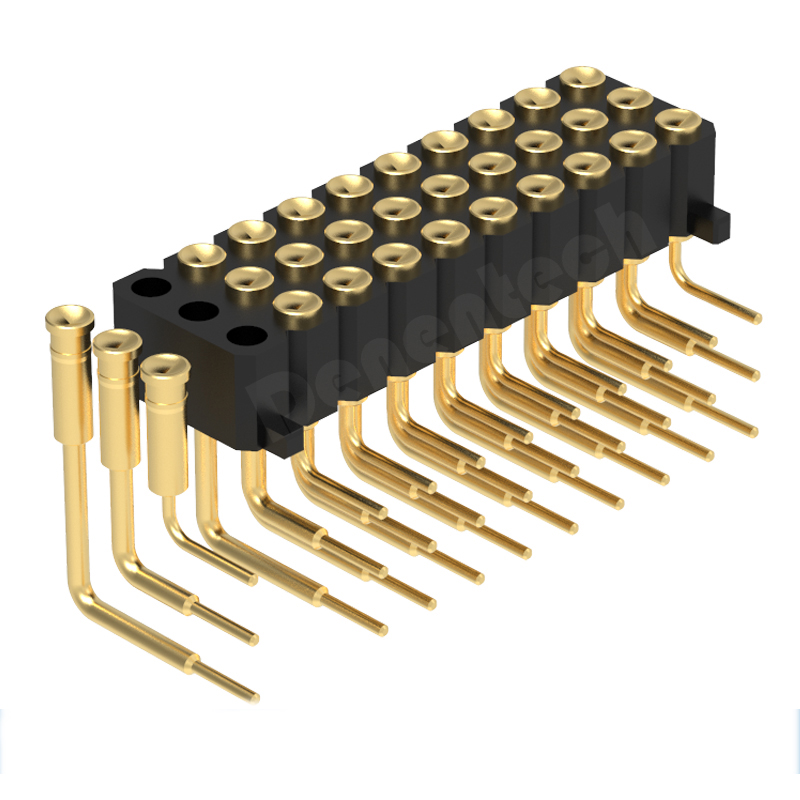

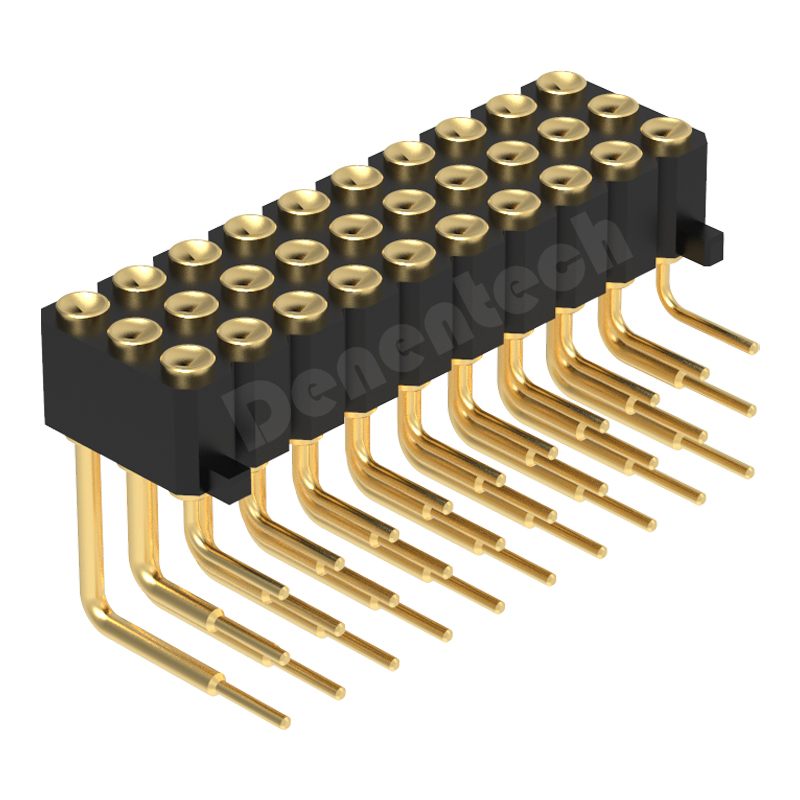

  • Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg
Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg
Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg
Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg
Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg
Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg
Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg

Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg

Serial Code : Product Code : HPF3-XXT41XXXCYX

Rated current :

1AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating materia :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request
产品详情产品规格产品文档配套产品关联产品相关视频相关新闻联系我们
产品详情

精选优质原材

Denentech2.54母座弹簧针连接器由pin针+塑胶组成，采用了国际标准的优质黄铜和耐高温塑胶，以建立安全、高可靠性的连接。

精选优质原材
卓越品质

卓越品质

2.54mm平面接触弹簧针多样结构设计+稳定的接触面积+多种镀层厚度和全自动化生产保证了pogo pin连接及使用寿命更长

应用领域广

Denentech弹簧针连接器支持高度定制，以满足特定的行程、高度和电气等性能；并且无限的成型设计为特定应用创建许多不同的形状和样式能被广泛应用于多行业的各种领域中

应用领域广
产品规格
Product name

Denentech 2.54MM pogo pin H4.0MM triple row female right angle high current concave contact test pin connector with peg

Pitch

2.54mm

Plastic height

H4.0mm

Row number

triple row

Rated current

3A

Pin number

4-160pin

Connection type

Right Angle DIP

Pin material

Brass

Surface treatment

Au 1-3u"

Plastic materials

PPS, PA6T, LCP, etc.

Board height

4.3mm(length can be customized)

Contact surface

concave contact

Elasticity life

more than 10000 times

Product features

high temperature resistance/flame retardant

Application

smart wearables, mobile communications, digital cameras, automobiles, and medical devices, etc.
