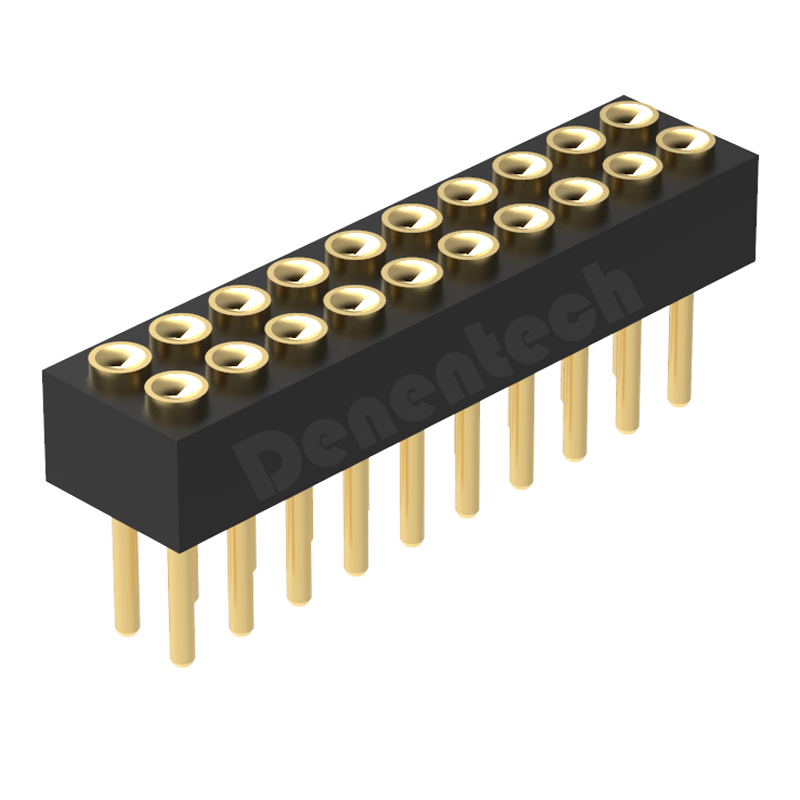

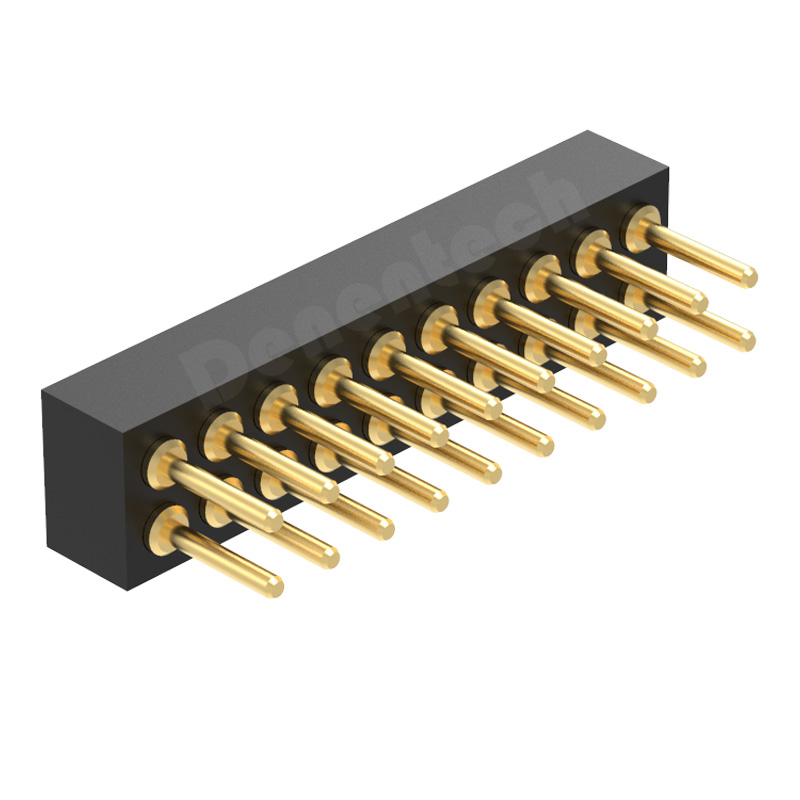

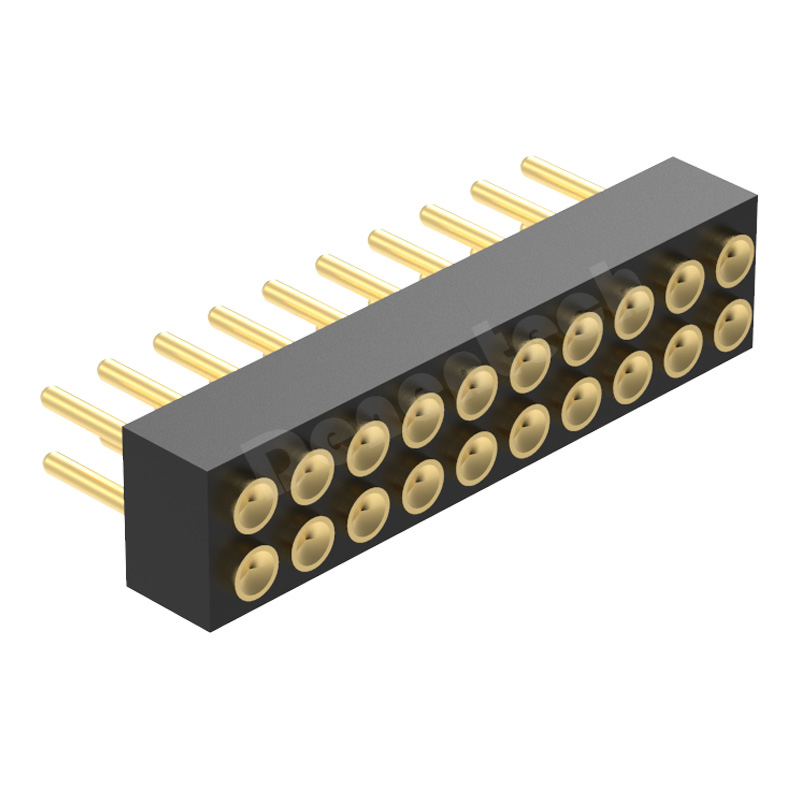

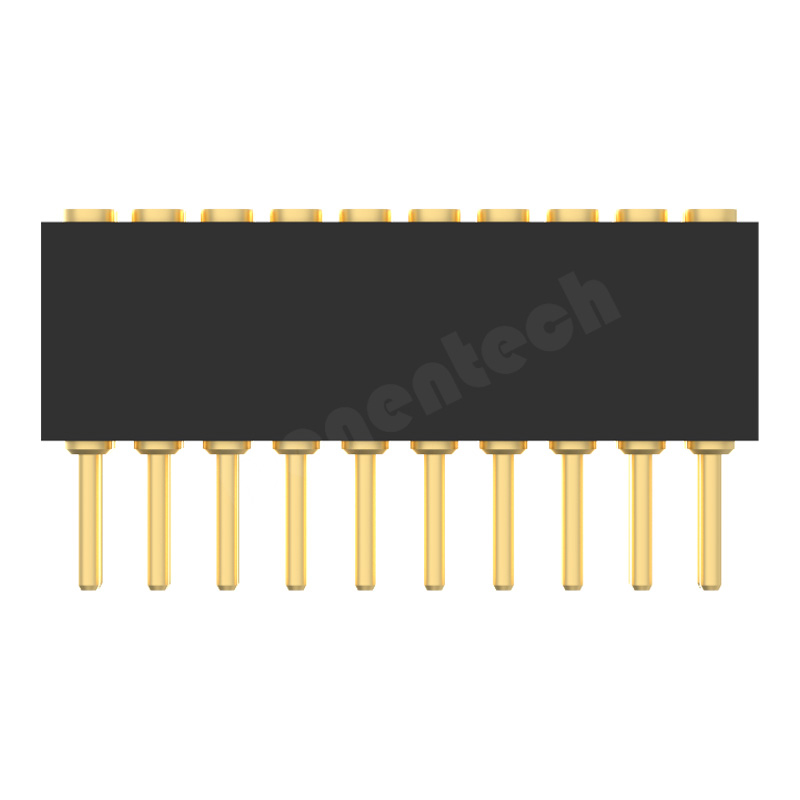

Denentech 1.27mm pitch H2.0 Dual row female Straight DIP concave pogo pin connector

Serial Code : Product Code : VPF1-XXD21XXXCNX

Rated current :

1AMP

Contact resistance :

20mΩ Max

Pressure resistance :

500VAC/1 minute

Insulation resistance :

1000mMin

Temperature range :

-40~105℃

Terminal material :

Copper alloy

Contact electroplating :

gold plating

Insulation material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Packaging :

Tube/Bag (Standard)

Delivery time :

7-10 days

Environmental Protection :

ROHS
Product Details Features Drawing Accessory Products Related Products Knowledge Related videos Contact us

Pogo Pin Uses High Quality Raw Materials

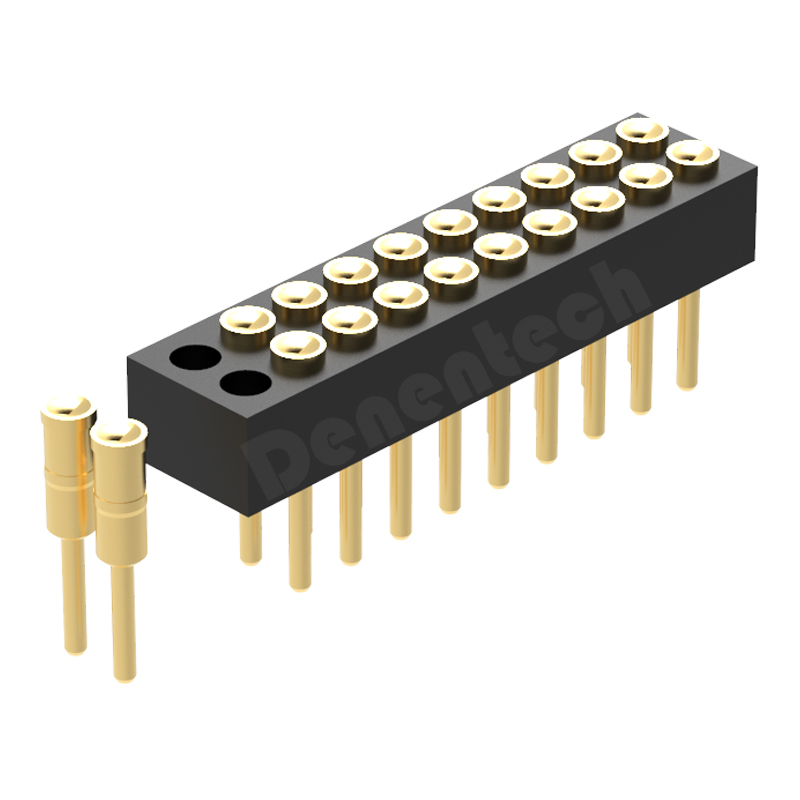

The Denentech 1.27mm female pogo pin connector is composed of pin and plastic. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.

Pogo Pin Uses High Quality Raw Materials
High Quality Pogo Pin Products

High Quality Pogo Pin Products

The diverse structural design of the 1.27mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.

Application Of Pogo Pin Connector

Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.

Application Of Pogo Pin Connector
Product name

1.27mm pitch H2.0 Dual row female Straight DIP concave pogo pin connector

Pitch

1.27mm

Plastic height

H2.0mm

Row number

dual row

Rated current

1A

Pin number

6-160pin

Connection type

Straight DIP

Pin material

Brass

Surface treatment

Au 1-3u"

Plastic materials

PPS, PA6T, LCP, etc.

Board height

2.50mm, 4.50mm, 3.60mm, ect. (length can be customized)

Contact surface

concave contact

Elasticity life

more than 10000 times

Product features

high temperature resistance/flame retardant

Application

smart wearables, mobile communications, digital cameras, automobiles, and medical devices, etc.
