Rated current :
1.0AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
GoldInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag (standard)Delivery time :
7-10 daysEnvironmental protection :

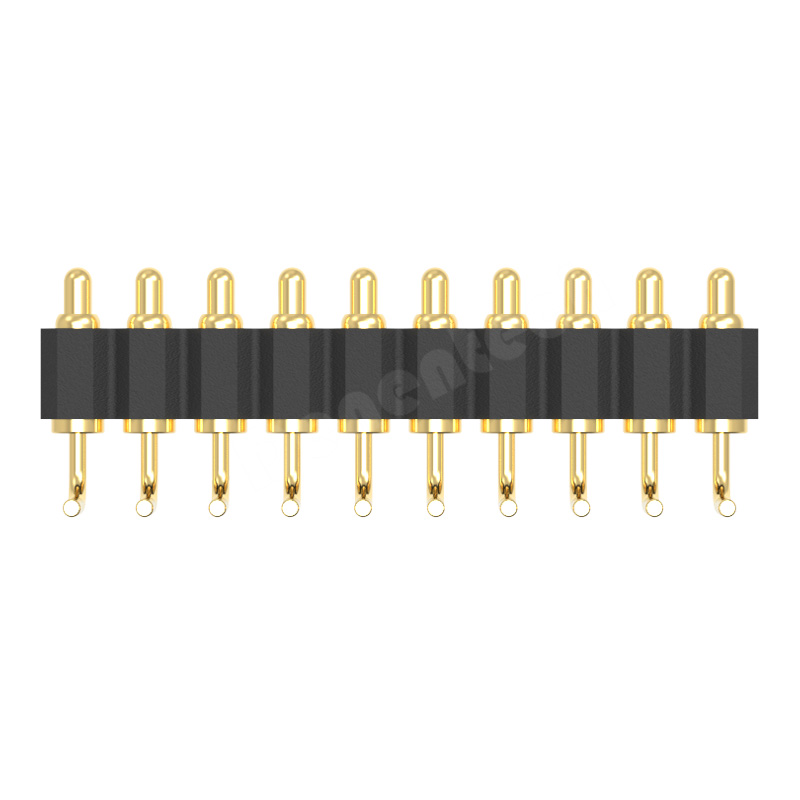

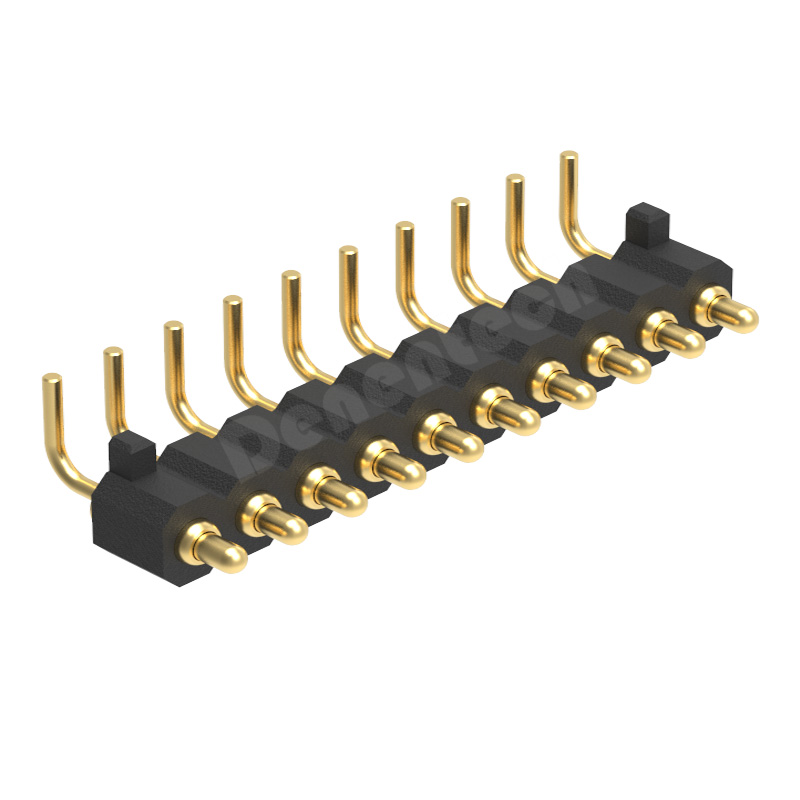

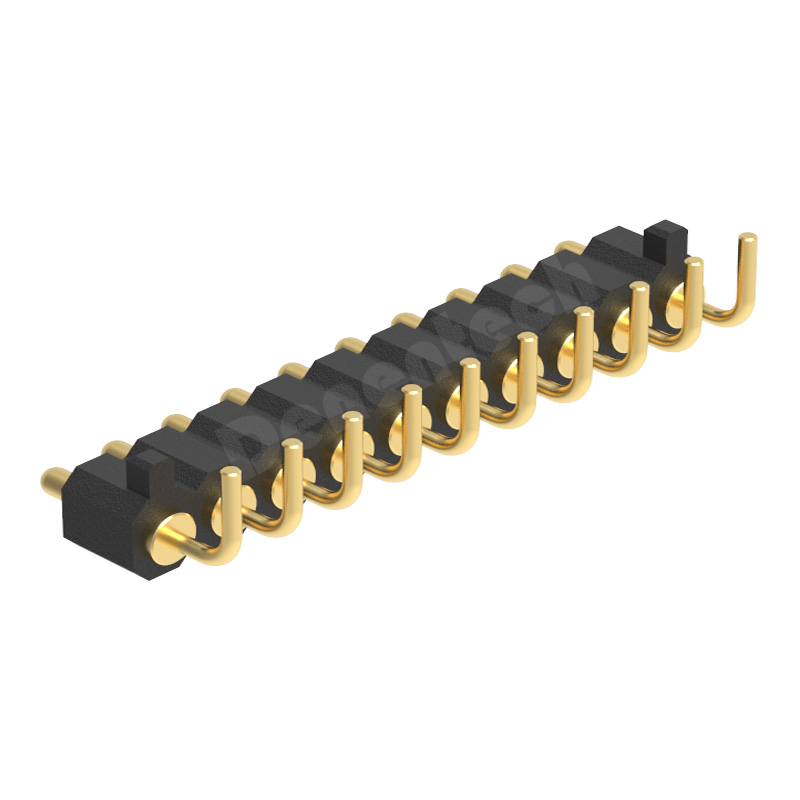

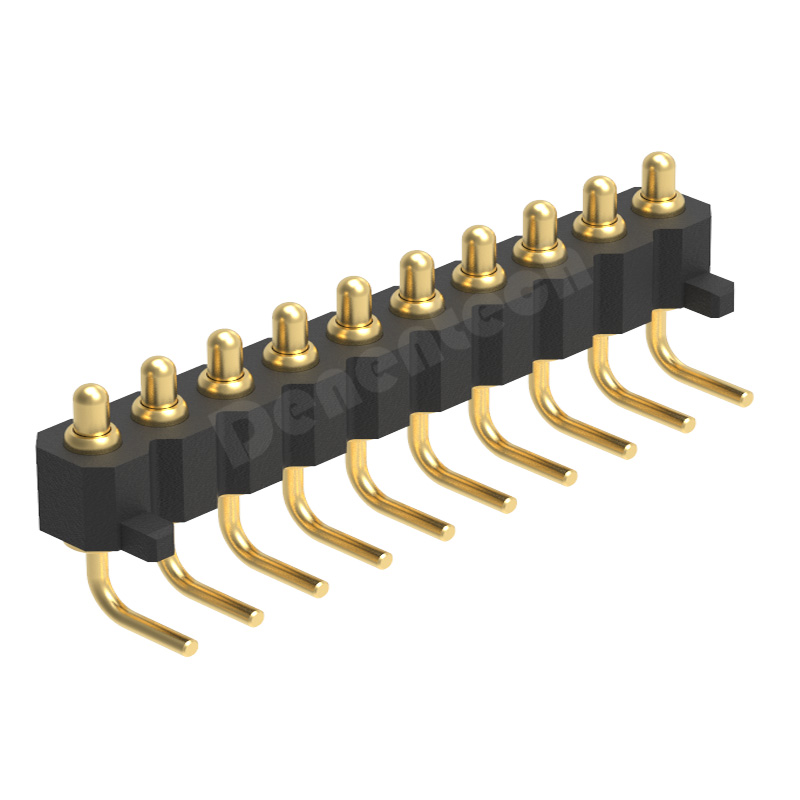

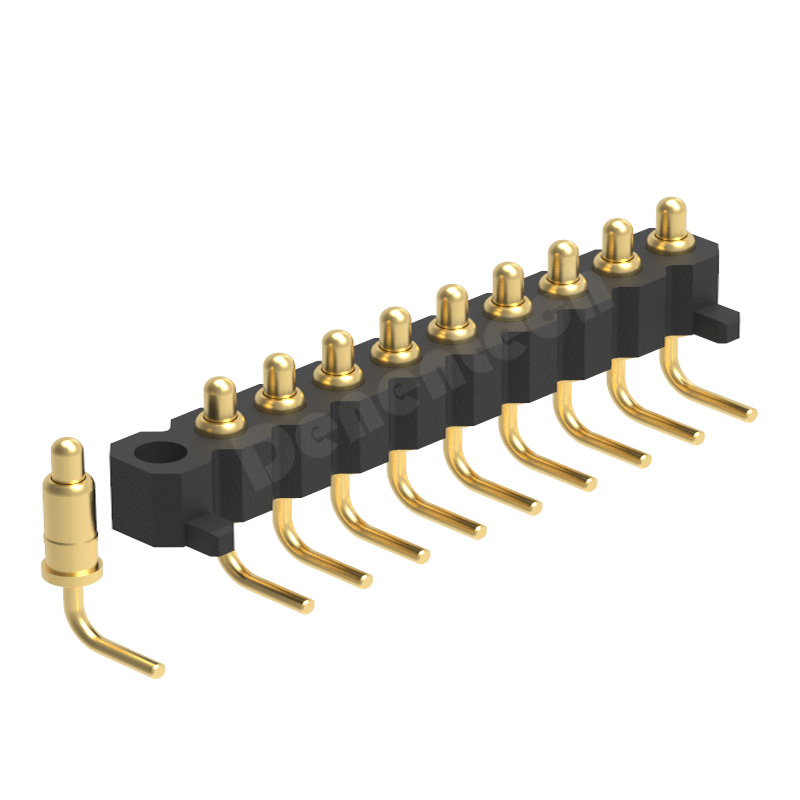

ROHSThe Denentech 2.00mm male pogo pin connector consists of plunger, pin tubes, and springs. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.
The diverse structural design of the 2.00mm pogo pin, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin connector
Denentech pogo pin support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.
