Rated current :
1AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteOperation Tempererature :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
GoldInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFStandard :
Tube/PE Bag (standard)Delivery time :
7-10 daysEnvironmental protection :

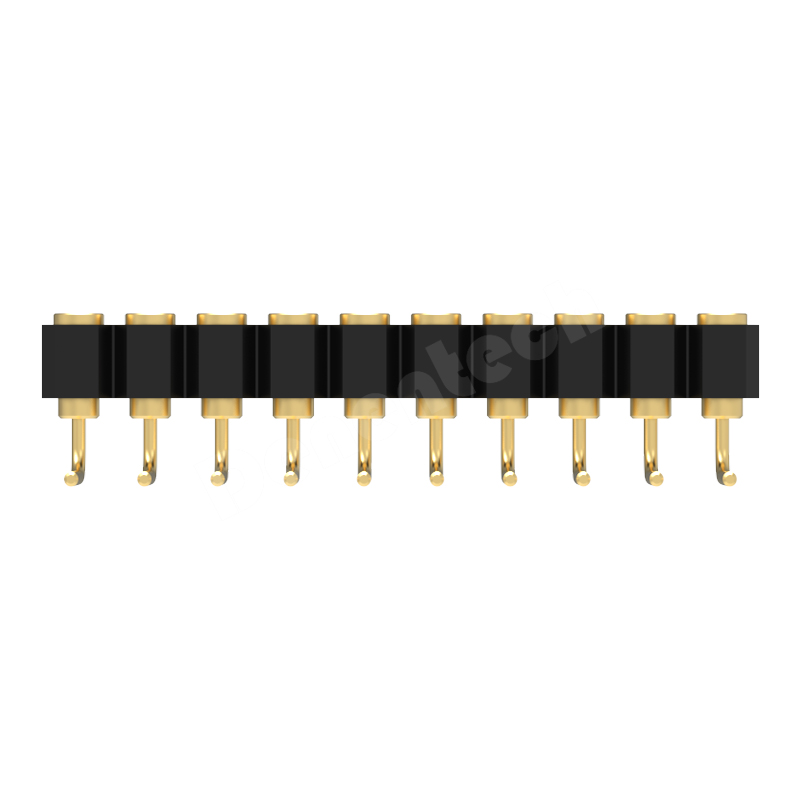

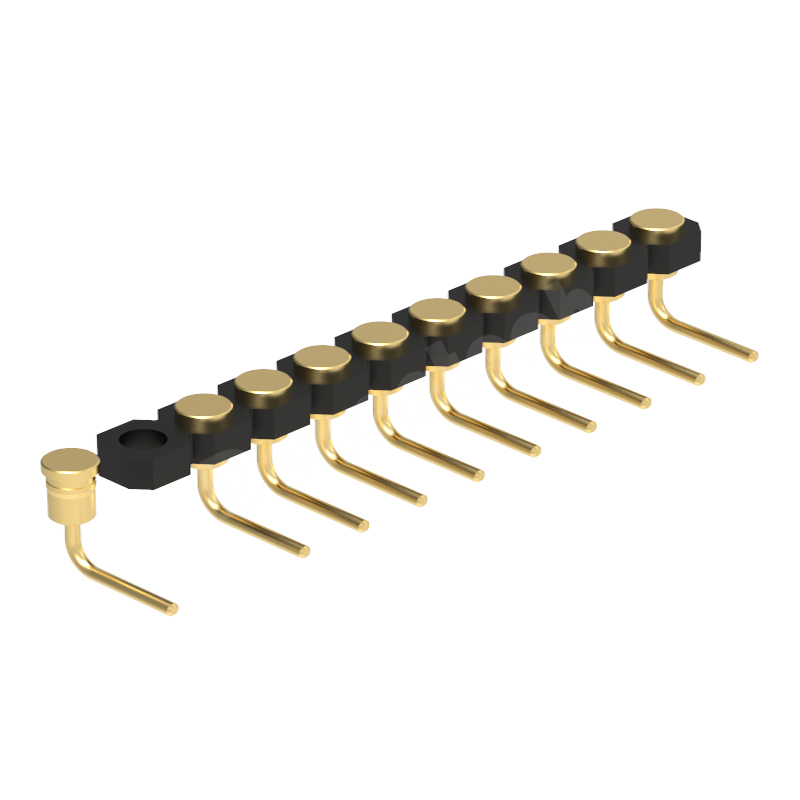

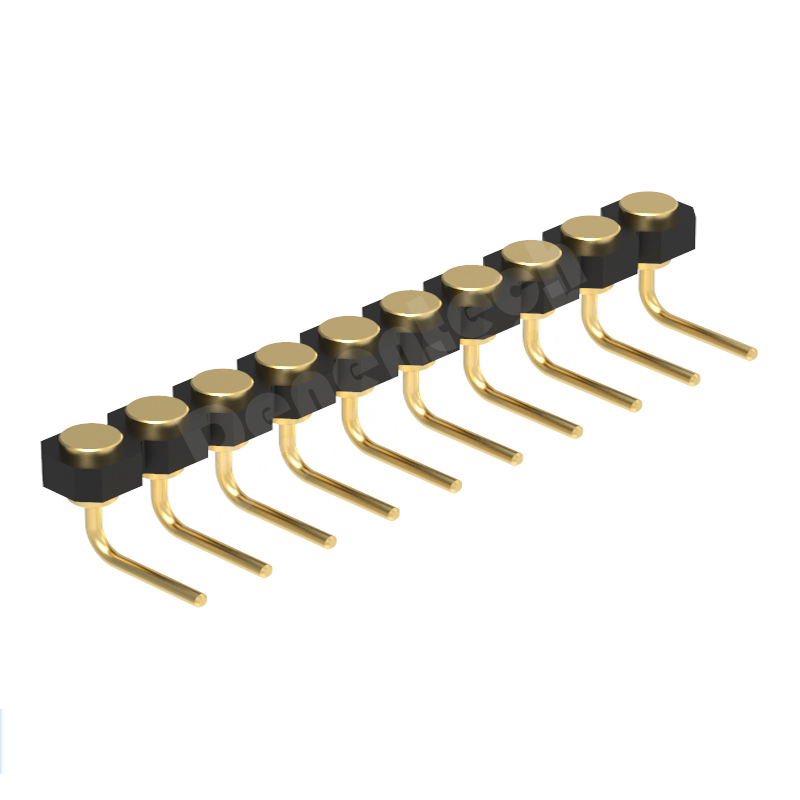

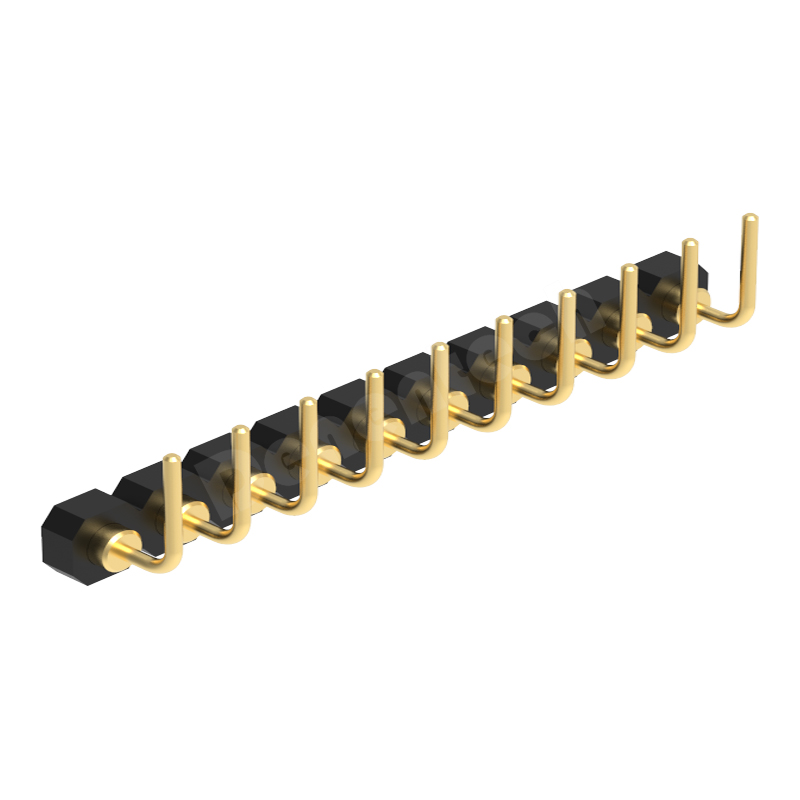

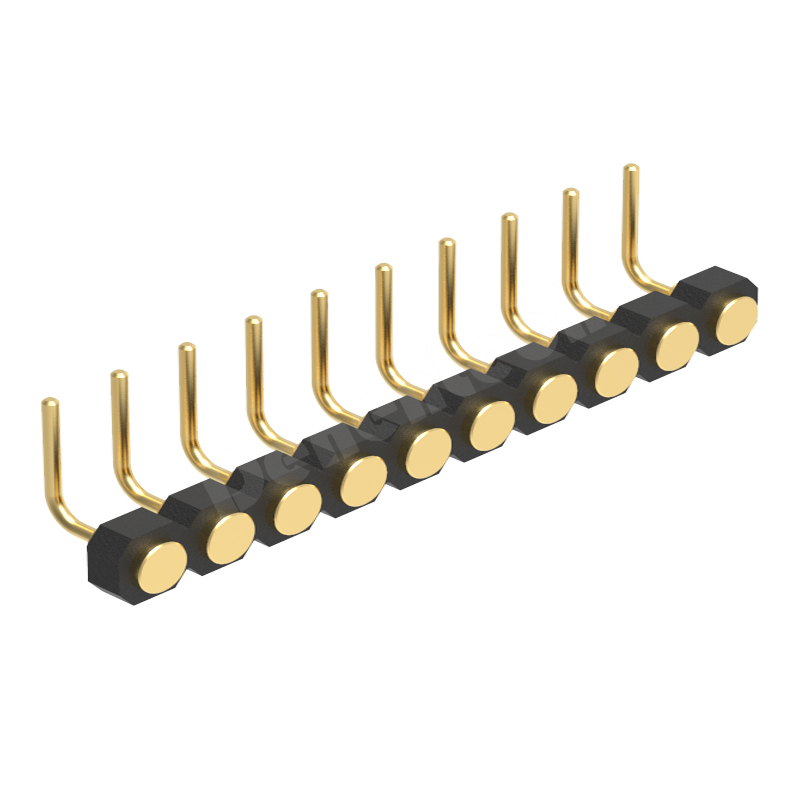

ROHSThe Denentech 2.54mm female pogo pin connector is composed of pin and plastic. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.
The diverse structural design of the 2.54mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.
Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.
Denentech Customized 2.54mm pitch H1.27 single row male right angle SMT pogo pin connector with peg
Denentech 2.54MM pogo pin H1.27MM single row male right angle gold plated pogo pins 6 pin pogo waterproof connector
Denentech 2.54MM pogo pin H1.27MM single row male straight SMT spring loaded test probe pogo pin connector
Denentech 2.54MM pogo pin H2.5MM single row male straight spring loaded pogo pin 6 pin pogo waterproof connector
Denentech 2.54MM pogo pin H2.5MM solder single row male spring test probe pogo pin connector
Denentech Customized 2.54mm pitch H2.5 single row female straight DIP plane pogo pin connector
Denentech 2.54MM pogo pin H1.27MM single row female right angle concave 8 pin magnetic pogo pin connector with peg
Denentech 2.54mm pitch H1.27 dual row female straight SMT concave pogo pin connector
Denentech Factory Direct Sale 2.54mm Pogo Pin H1.27 Concave Female Single Row Right Angle SMT Peg
Denentech 2.54MM pogo pin H4.0MM single row female right angle concave spring test probe pogo pin connector with peg
