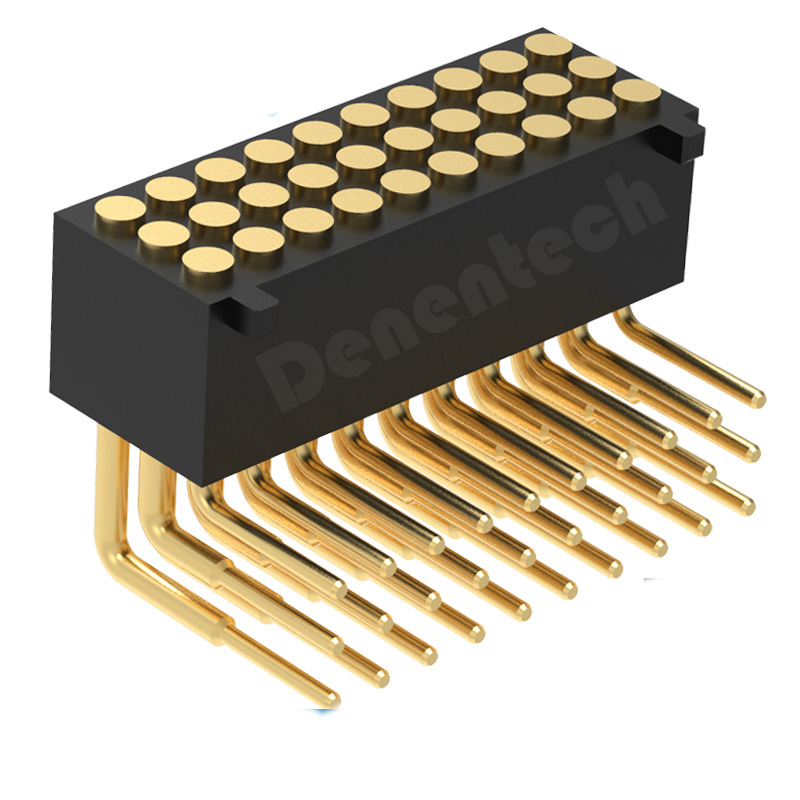

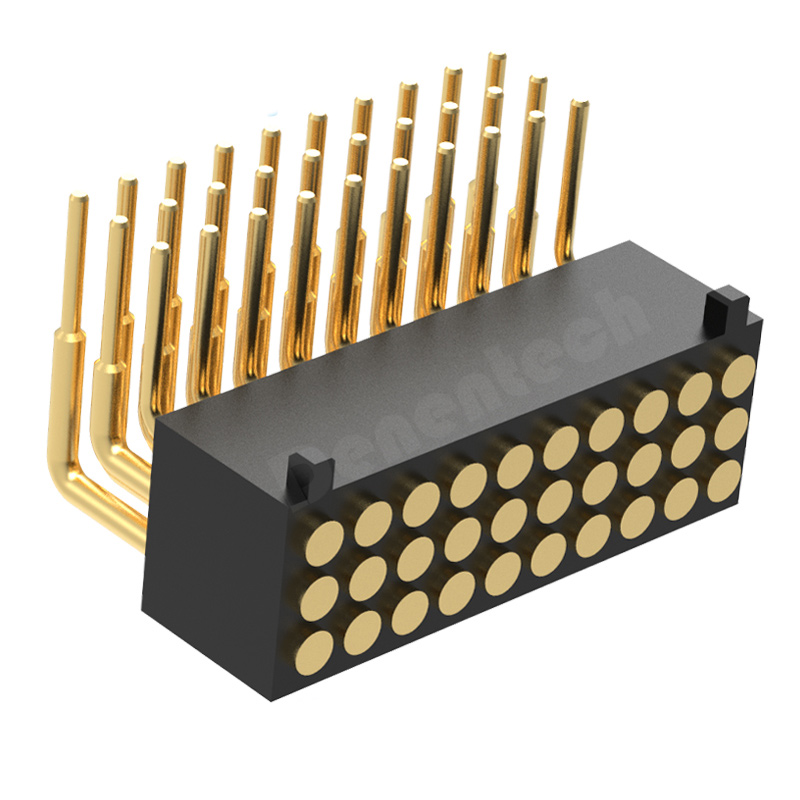

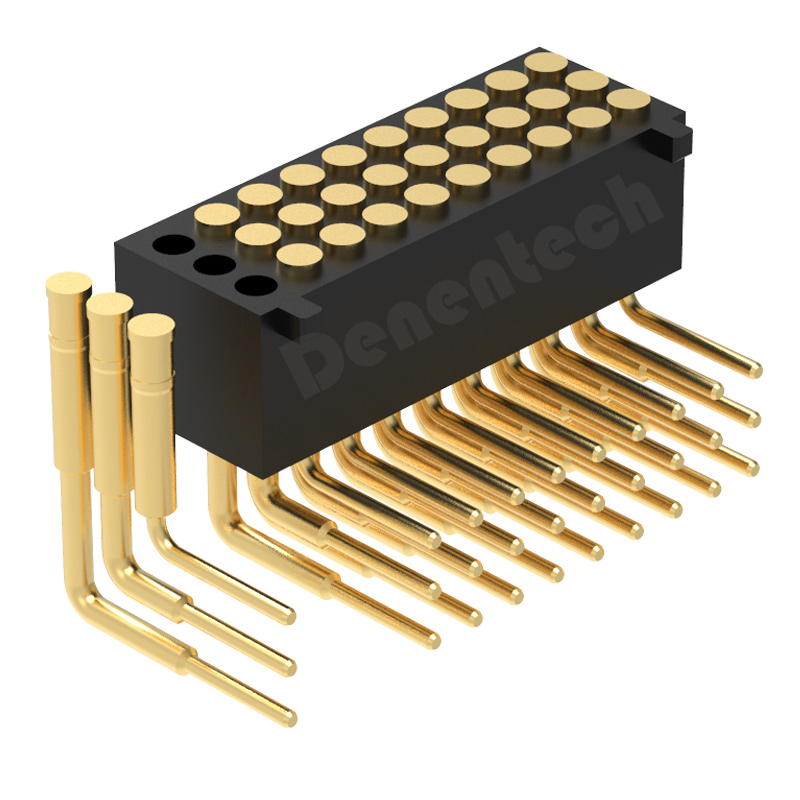

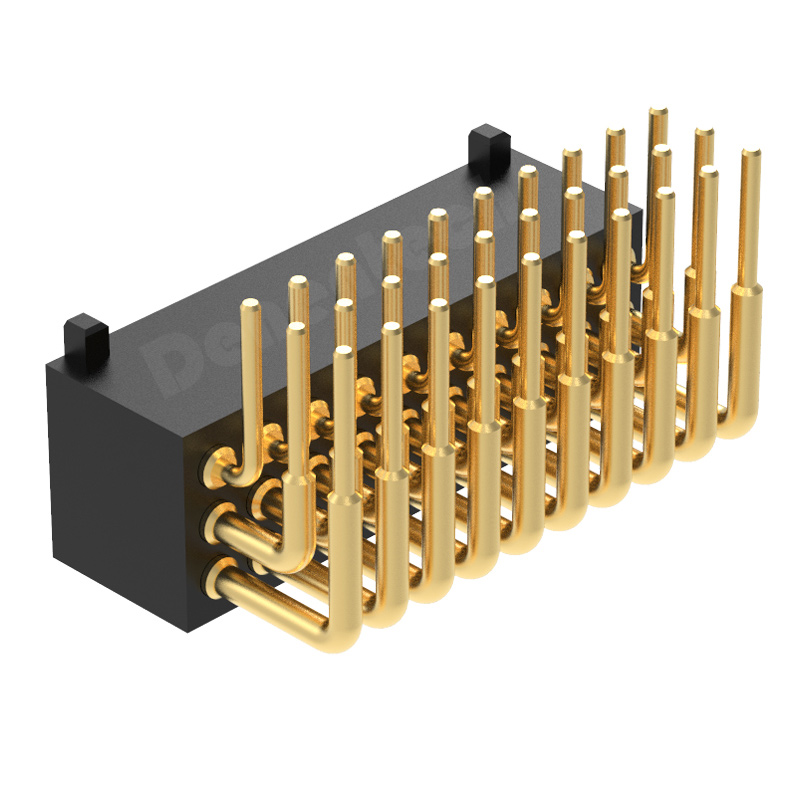

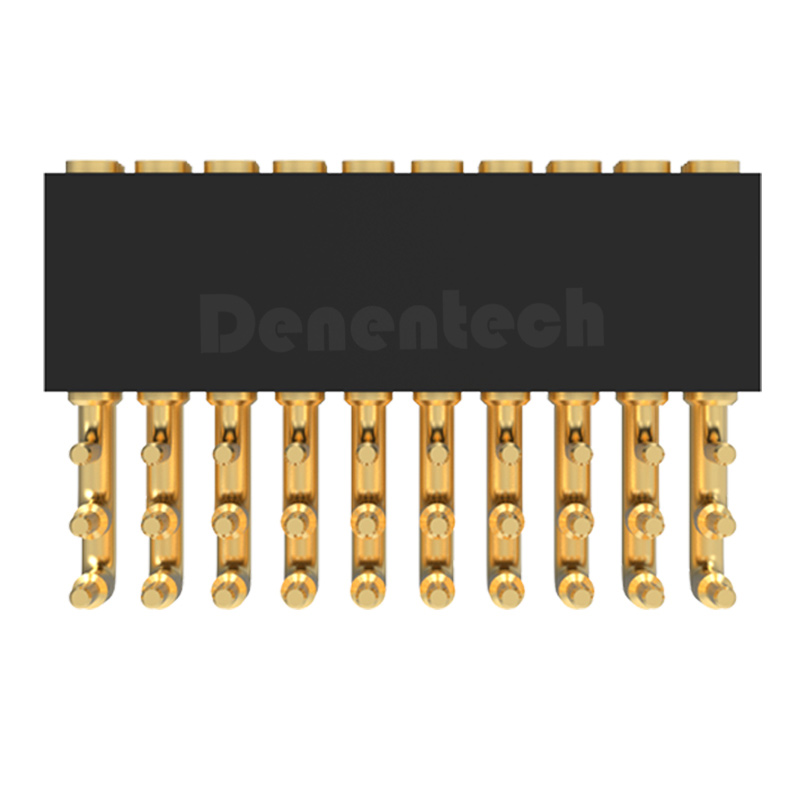

Denentech Large amount discount 1.27MMpogopin H4.0 triple row female right angle plane with column high current spring thimble

Serial Code : Product Code : HPF1-XXT41XXXPYX

Rated current :

1AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/1分钟

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag (standard)

Delivery time :

7-10days

Environmental protection :

ROHS
产品详细信息
Product DetailsFeaturesDrawingAccessory ProductsRelated ProductsKnowledgeRelated videosContact us

Pogo Pin Uses High Quality Raw Materials

The Denentech 1.27mm female pogo pin connector is composed of pin and plastic. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.

Pogo Pin Uses High Quality Raw Materials
High Quality Pogo Pin Products

High Quality Pogo Pin Products

The diverse structural design of the 1.27mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.

Application Of Pogo Pin Connector

Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.

Application Of Pogo Pin Connector
Product name

1.27MMpogopin H4.0 triple row female right angle plane with column high current spring thimble

Pitch

1.27mm

Plastic height

H4.0mm

Row number

triple row

Rated current

1A

Pin number

3-80pin

Connection type

Right Angle DIP

Pin material

Brass

Surface treatment

Au 1-3u"

Plastic materials

PPS, PA6T, LCP, etc.

Board height

2.50mm, 4.50mm, 3.60mm, ect. (length can be customized)

Contact surface

plane contact

Elasticity life

more than 1000 times

Product features

high temperature resistance/flame retardant

Application

smart wearables, mobile communications, digital cameras, automobiles, and medical devices, etc.
