Rated current :
3.0AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
Gold Or Nickel-PlatedInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag/Blister Tray (standard)Delivery time :
7-10 daysEnvironmental protection :

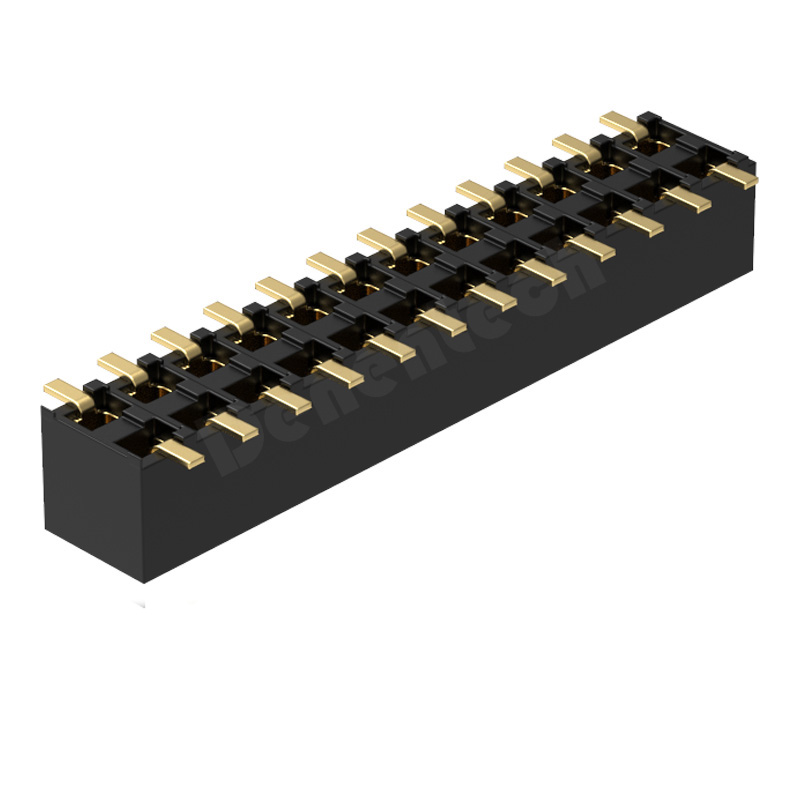

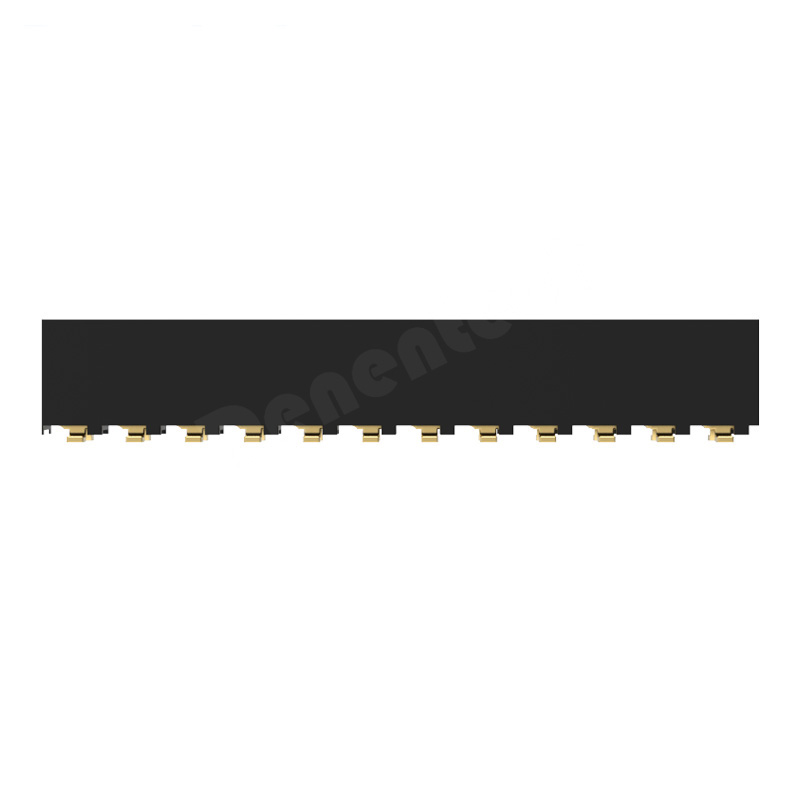

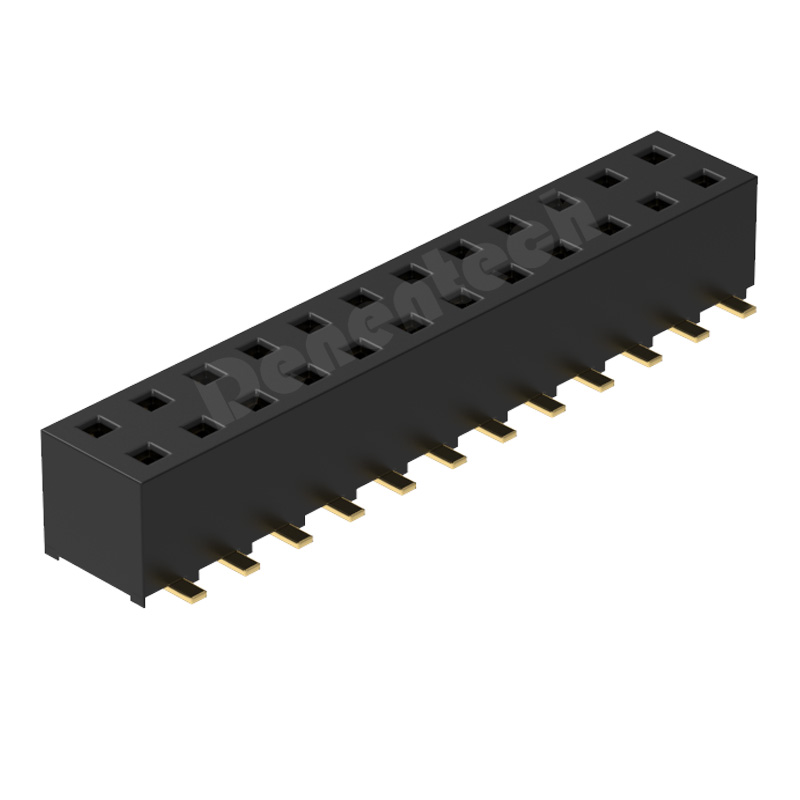

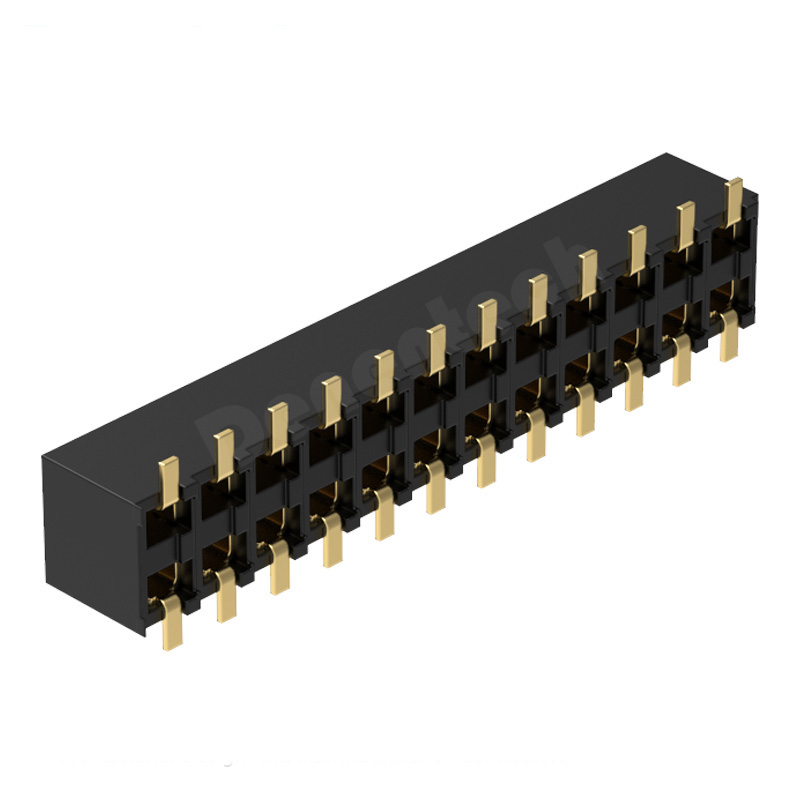

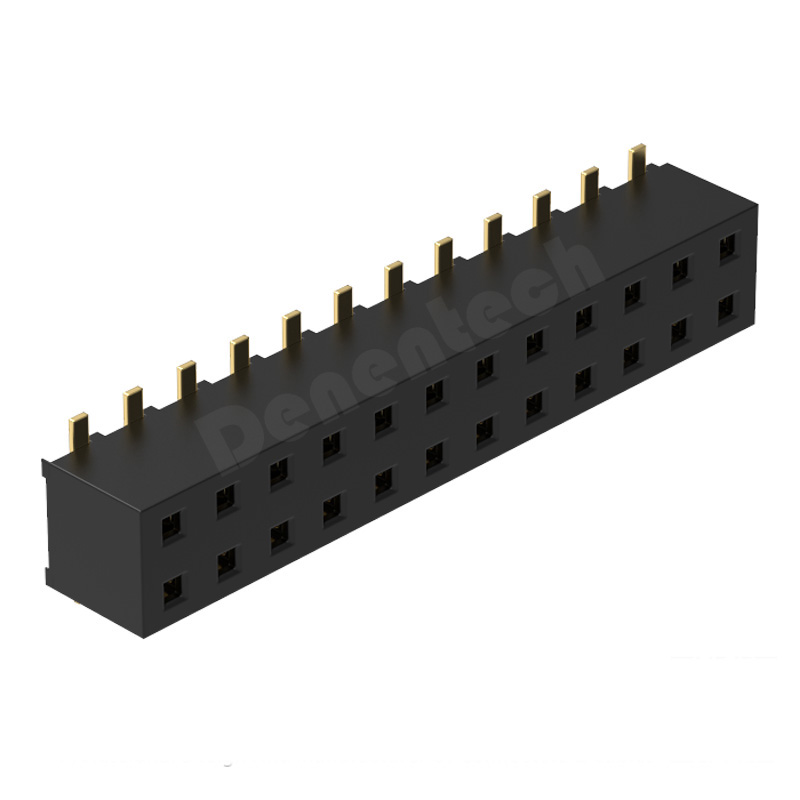

ROHSThe Danentech female header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.
The surface of the Denentech 2.54mm female header is treated with multiple layers of electroplating to ensure that the 2.54mm female header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 2.54mm pitch female header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!
Denentech Gold Plating 2.54mm pitch dual row Straight DIP pin header connector
2.54mm pin header dual row dual plastic straight 2.54 mm pin header connector 2.54mm pin header
Denentech Gold Plating 2.54mm pitch dual row right angle DIP pin header connector
Denentech 2.54mm pin header dual row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°
Denentech 2.54mm dual row male straight SMT pin header connector with peg
Denentech low price 2.54MM female header H8.5MM dual row straight DIP female header 12pin
Denentech top quality 2.54MM female header H8.5MM dual row straight female connector female header pins
Denentech good quality 2.54MM H8.5mm dual row straight SMT female header 2.54
Denentech factory custom 2.54MM female header H8.5MM dual row straight+plastic heighten female header 2.54
Denentech hot selling 2.54MM female header H5.7MM dual row straight splint female header connector
