Rated current :
1.5 AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
GoldInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/Tray (standard)Delivery time :
7-10 daysEnvironmental protection :

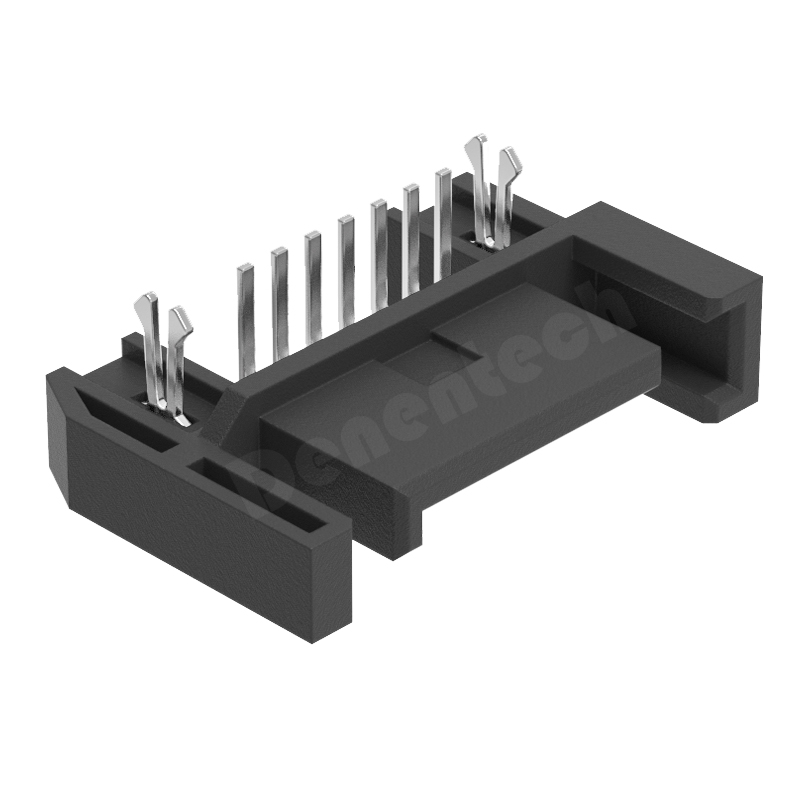

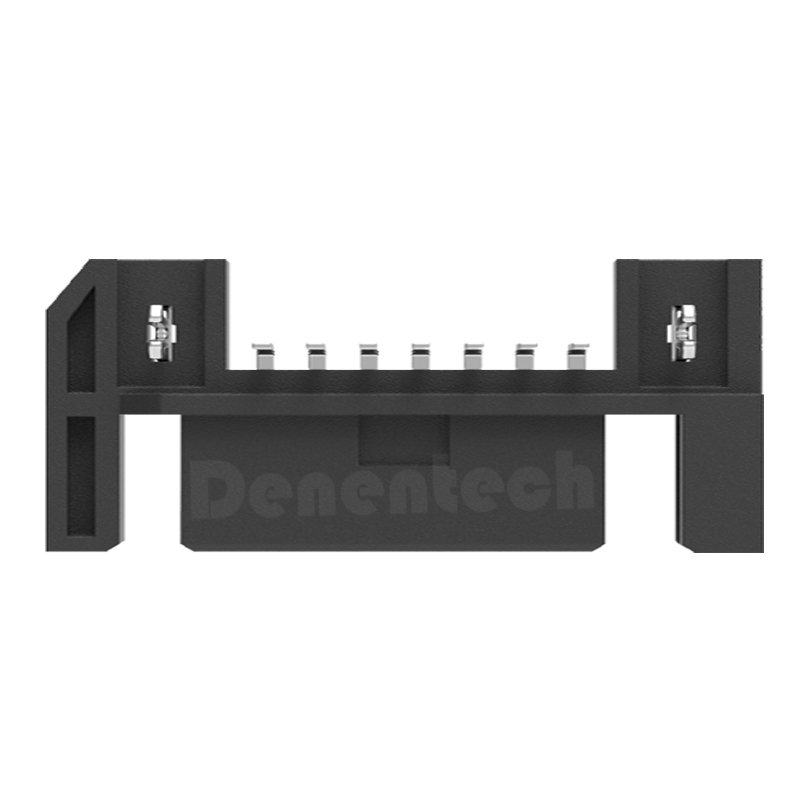

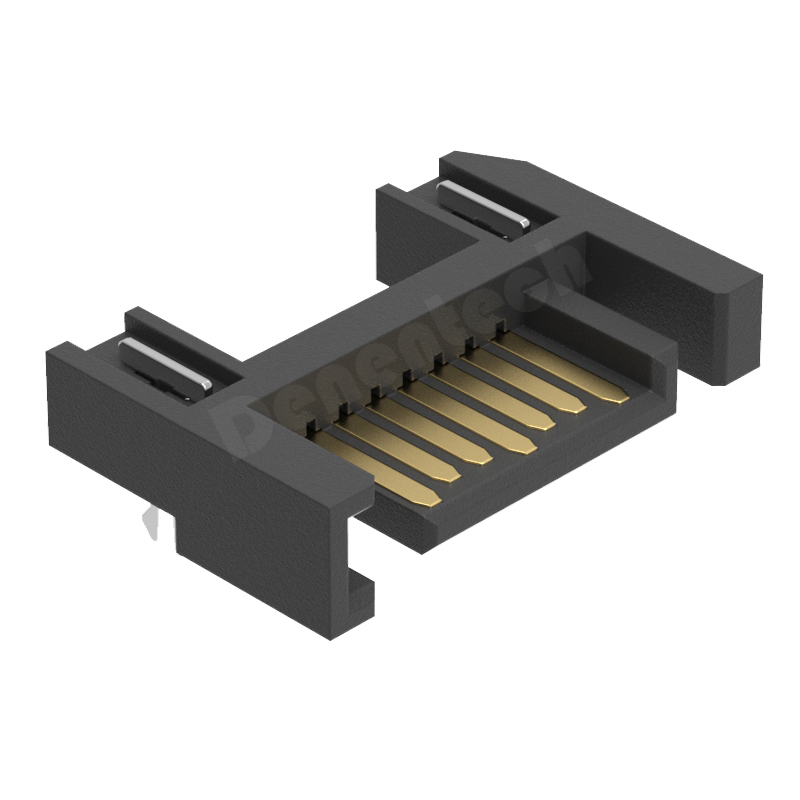

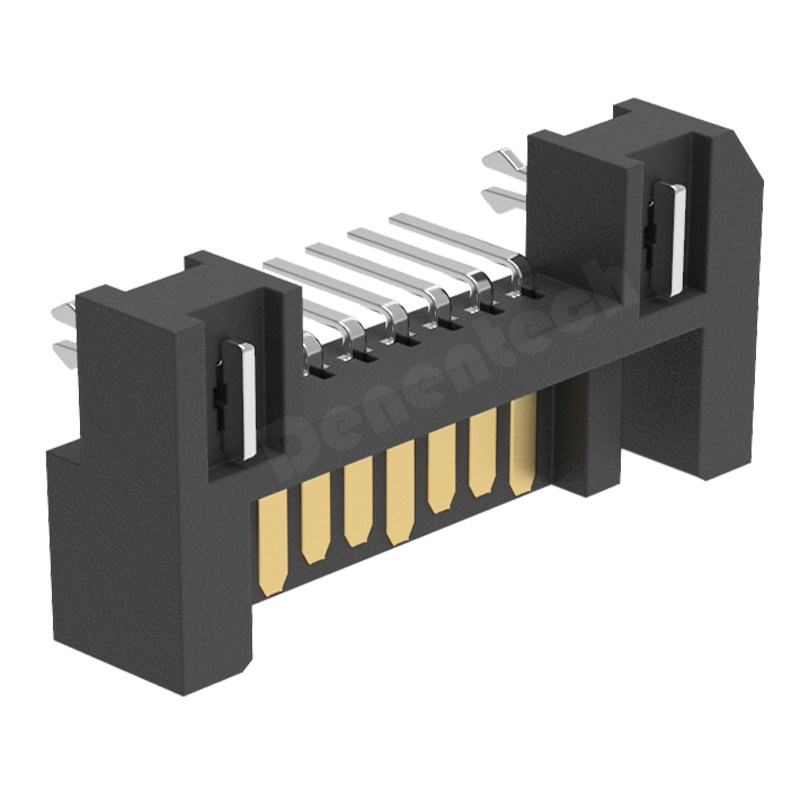

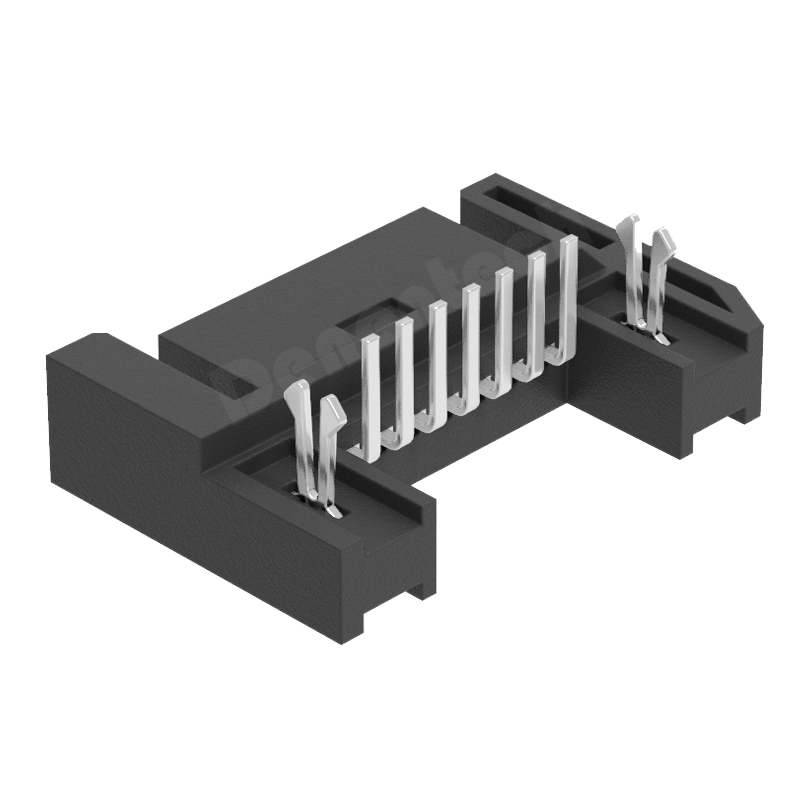

ROHSDenentech SATA 7pin interfaces use high quality copper materials that meet internationalstandards, making SATA interfaces more efficient in data transmission.
Denentech SATA 7pin connectors use terminals plated with semi-gold-tin, supportingmultiple hot plugging operations and providing higher speed and reliability for datatransmission.
SATA male connectors use serial transmission methods, have higher transmission speedssimpler cable structures, and better signal stability, which can greatly meet theneeds of different storage devices.
