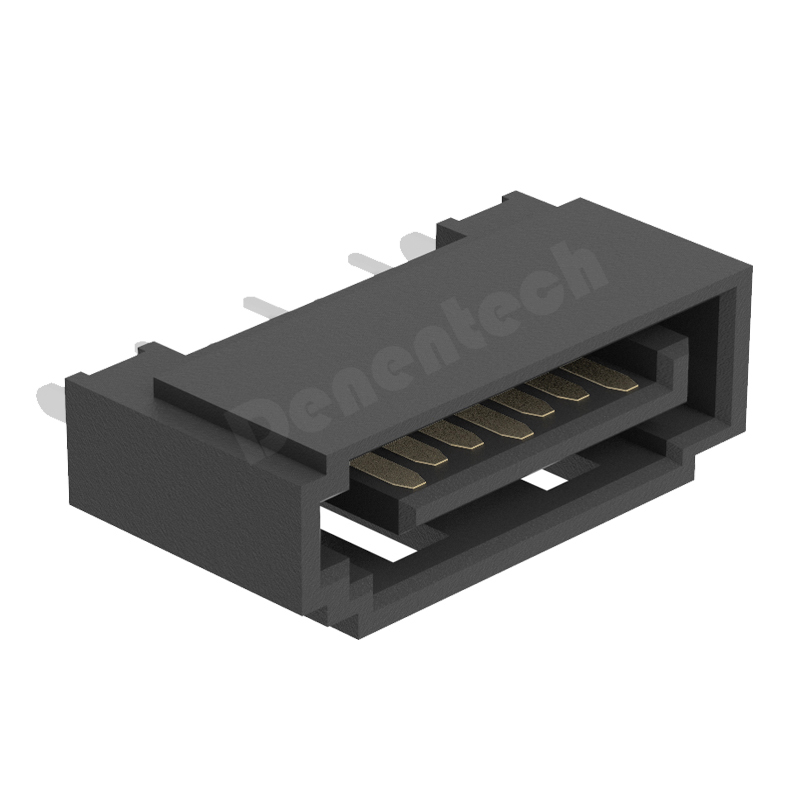

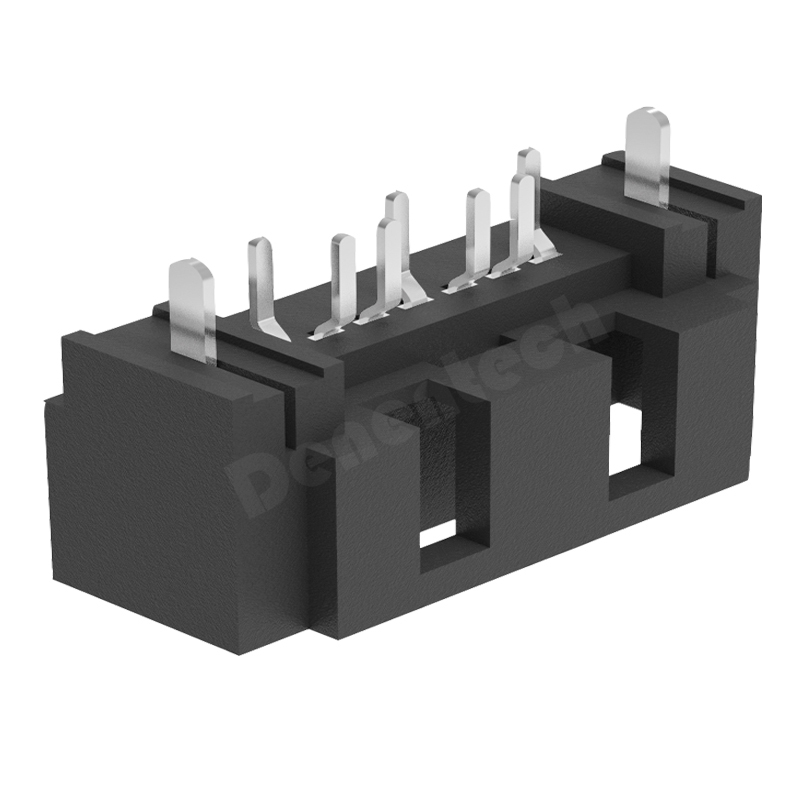

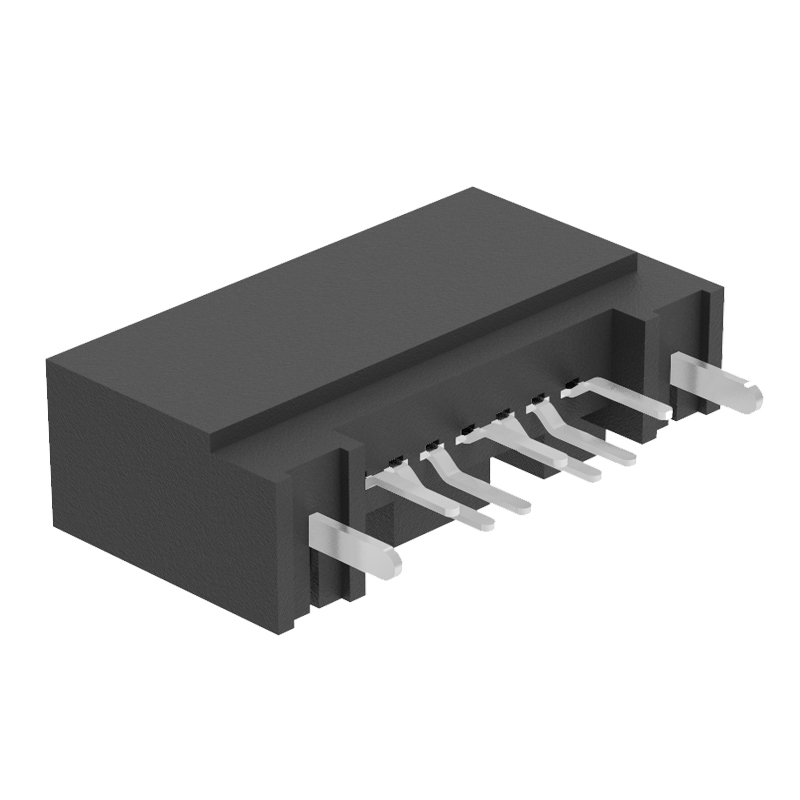

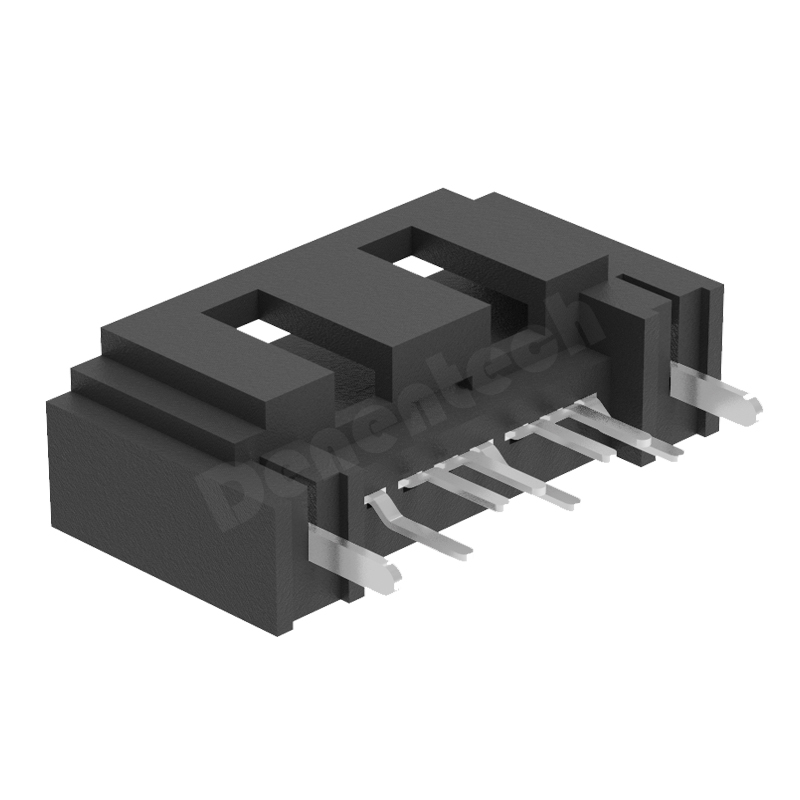

Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector
Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector
Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector
Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector
Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector
Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector

Denentech good quality factory directly SATA 7P Male Starigth DIP Type A sata hard disk connector

Serial Code : Product Code : SM63-07ST0ST610X

Rated current :

1.5 AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request
Product detailsFeaturesDrawingAccessory productsRelated productsKnowledgeRelated videosContact us
Product details

Denentech SATA Connector Uses High Quality Raw Materials

Denentech SATA 7pin interfaces use high quality copper materials that meet internationalstandards, making SATA interfaces more efficient in data transmission.

Denentech SATA Connector Uses High Quality Raw Materials
Electroplating process

Electroplating process

Denentech SATA 7pin connectors use terminals plated with semi-gold-tin, supportingmultiple hot plugging operations and providing higher speed and reliability for datatransmission.

Wide range of applications

SATA male connectors use serial transmission methods, have higher transmission speedssimpler cable structures, and better signal stability, which can greatly meet theneeds of different storage devices.

Wide range of applications
Features
Product name

SATA 7P Male Starigth DIP Type A

Pitch

1.27mm

Rated current

1.5A

Row number

single row

Connection type

Straight DIP

Pin number

7pin

Pin material

Brass

Surface treatment

Semi - Gold - Tin

Plastic material

LCP

Product features

high temperature resistanc e/flame retardant

Application

consumer electronics.automotiv e electronics, industrial automation, communication electronics.etc
