Rated current :
1AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/1分钟Insulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
GoldInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag (standard)Delivery time : :
7-10daysEnvironmental protection :
ROHSThe Denentech 2.00mm female pogo pin connector is composed of pin and plastic. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.
The diverse structural design of the 2.00mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.
Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.
Denentech Factory Direct Sale 2.00mm Pogo Pin H1.27 Concave Female Single Row Right Angle DIP
Denentech high quality 2.00MM H4.0MM single row female right angle SMT concave pogo pin with peg
Denentech high quality 2.0mm pitch H2.5mm single row male right angle SMT pogo pin connector with peg
Denentech high quality 2.00mm pitch H4.0mm dual row male right angle DIP pogo pin connector

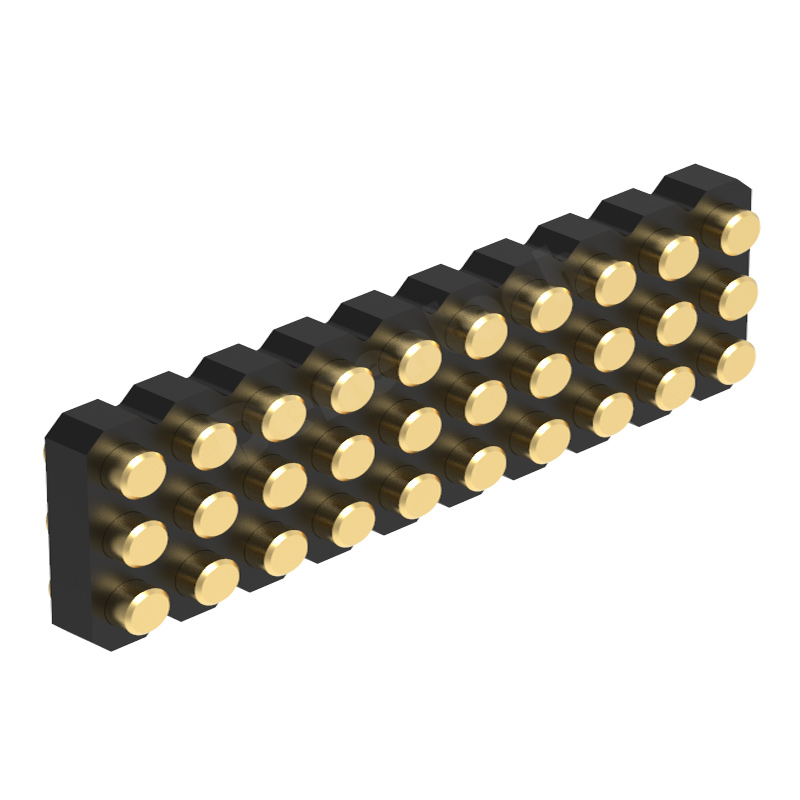

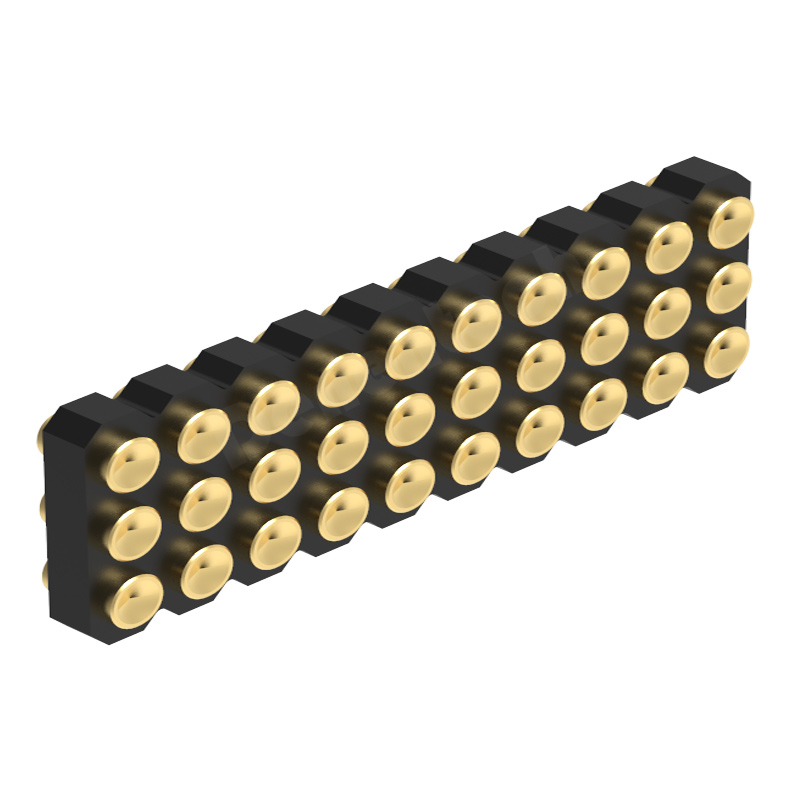

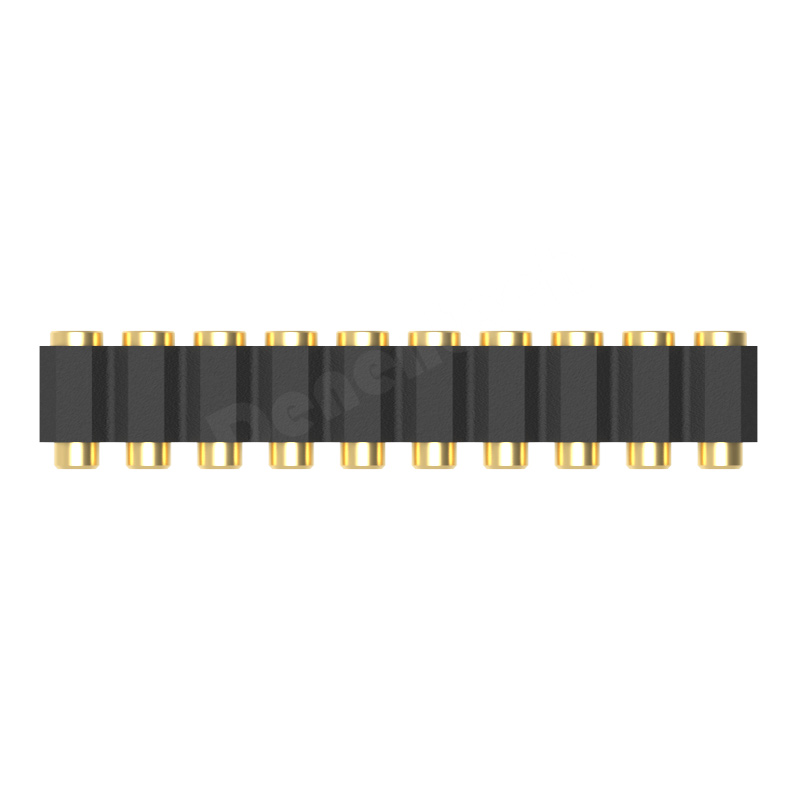

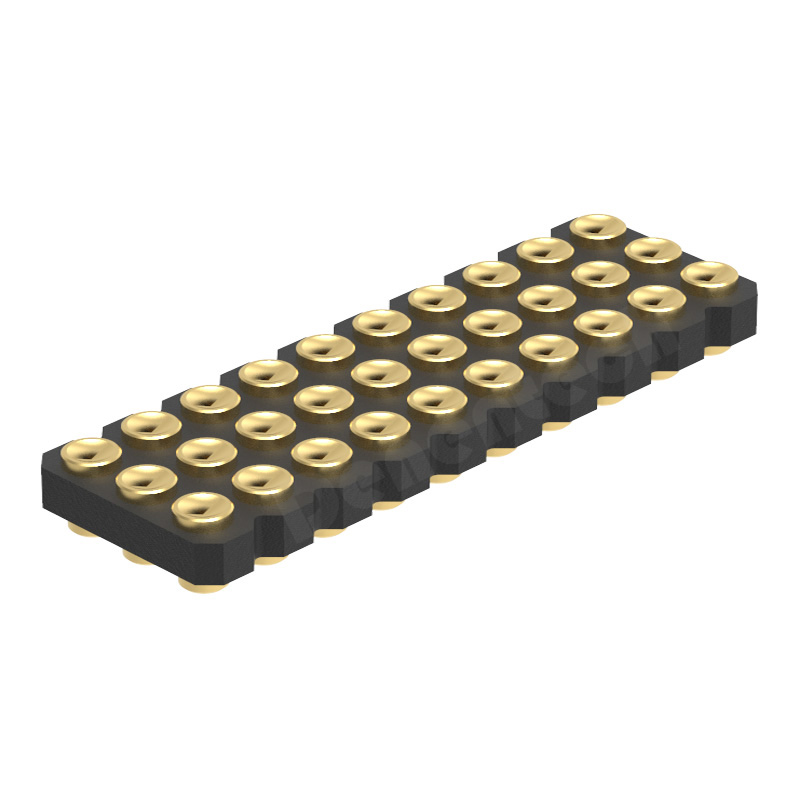

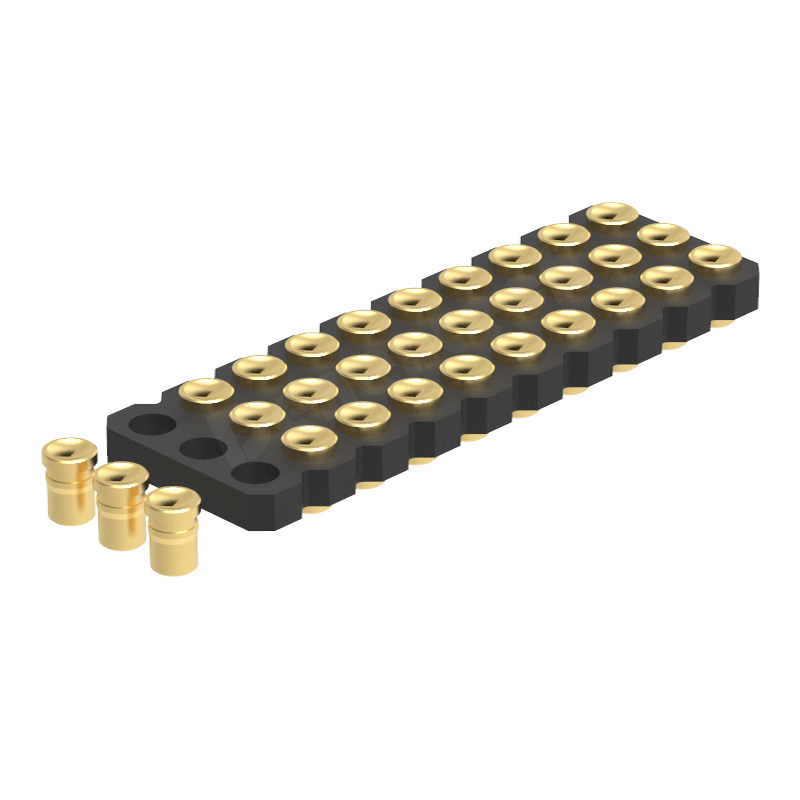

Denentech high-end custom2.00MM pogo pin H1.27MM triple row female right angle SMYconcave with peg
Denentech high quality 2.00mm pitch H1.27mm dual row male right angle DIP pogo pin connector
