Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector

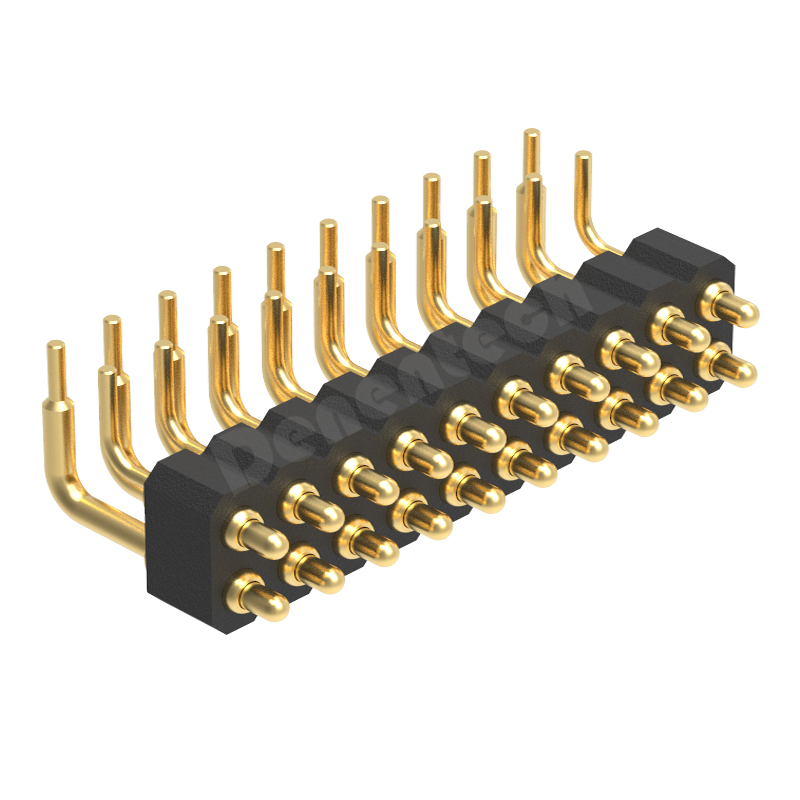

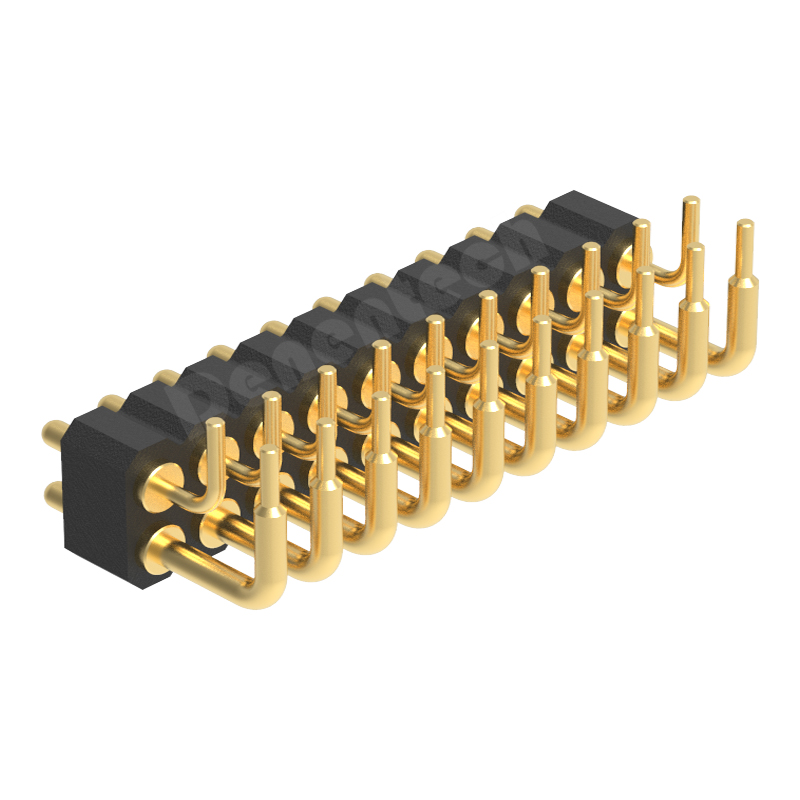

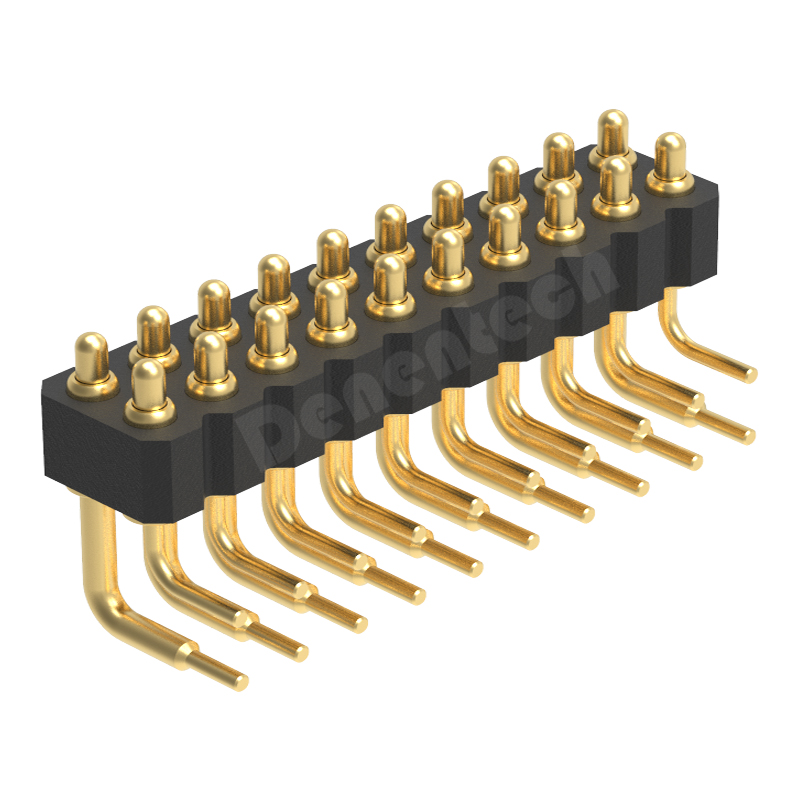

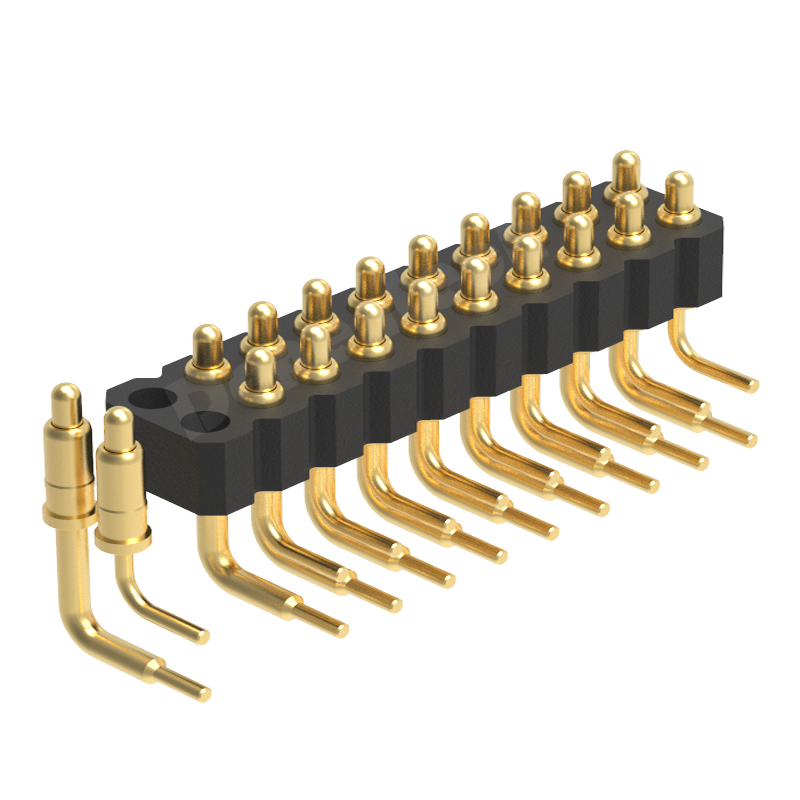

Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector
Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector
Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector
Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector
Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector

Denentech high quality 2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector

Serial Code : Product Code : HPM2-XXD31XXXXNX

Rated current :

1AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/1 minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper alloy

Contact Plating :

gold plating

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/Bag (Standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request
Product Details Features Drawing Accessory Products Related Products Knowledge Related videos Contact us
Product Details

Pogo Pin Uses High Quality Raw Materials

The Denentech male pogo pin connector consists of plunger, pin tubes, and springs. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.

Pogo Pin Uses High Quality Raw Materials
High Quality Pogo Pin Products

High Quality Pogo Pin Products

The diverse structural design of the 2.00mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.

Application Of Pogo Pin Connector

Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.

Application Of Pogo Pin Connector
Features
Product name

2.00mm pitch H2.5mm dual row male right angle DIP pogo pin connector

Pitch

2.00mm

Plastic height

H2.5mm

Row number

dual row

Rated current

2A

Pin number

4-160pin

Connection type

Right Angle DIP

Pin material

Brass

Surface treatment

Au 1-3u"

Plastic materials

PPS, PA6T, LCP, etc.

Board height

4.3mm(length can be customized)

Elasticity life

more than 10000 times

Product features

high temperature resistance/flame retardant

Application

smart wearables, mobile communications, digital cameras, automobiles, and medical devices, etc.
