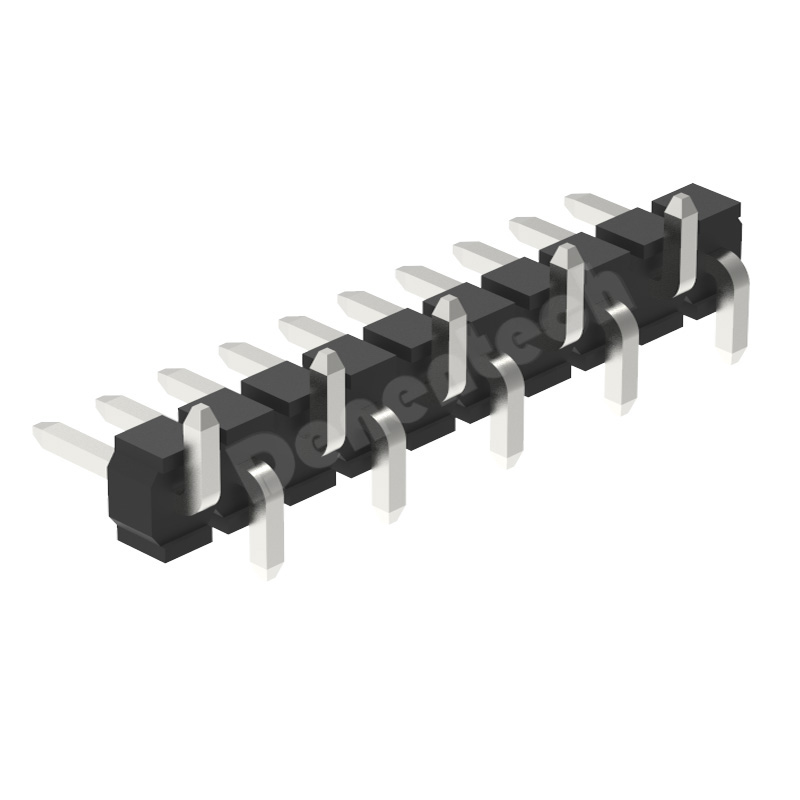

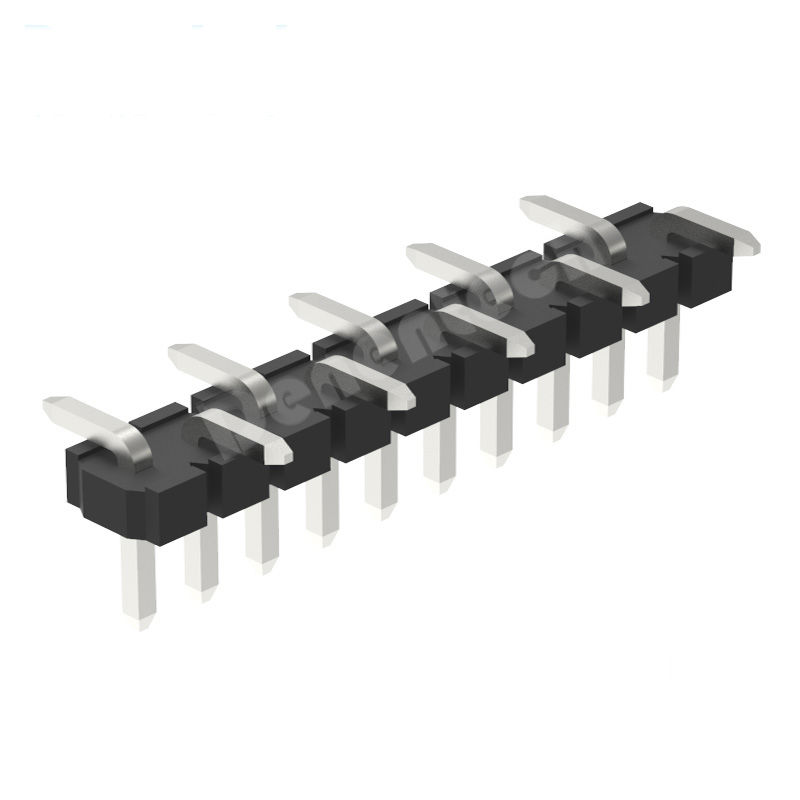

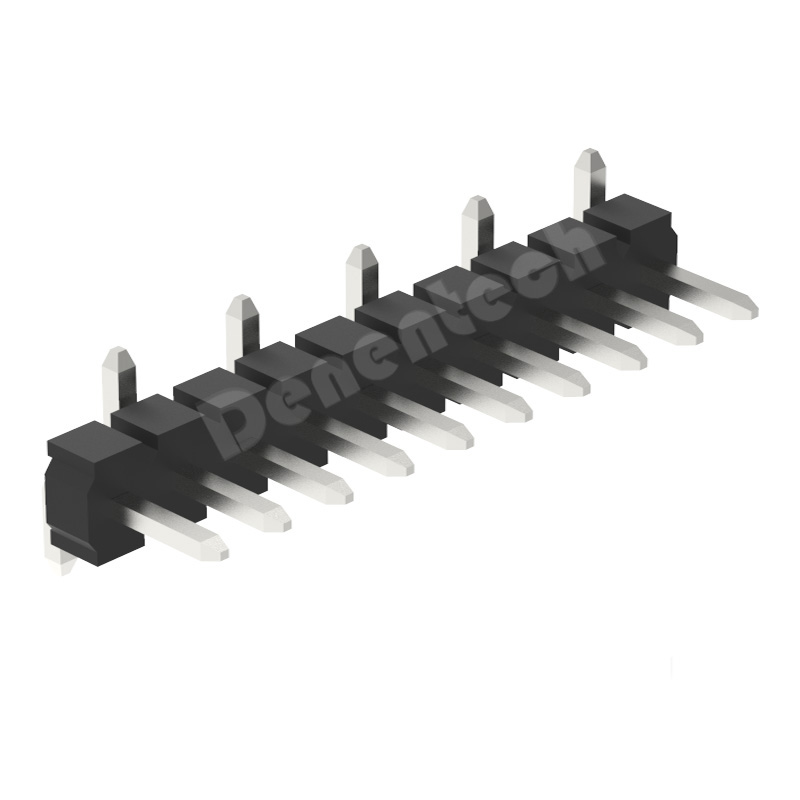

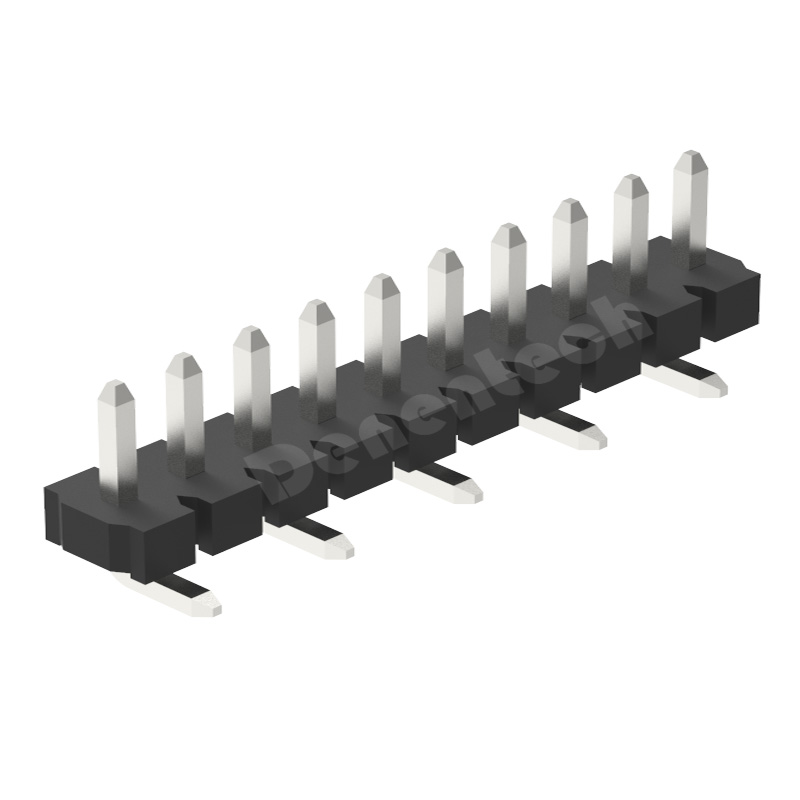

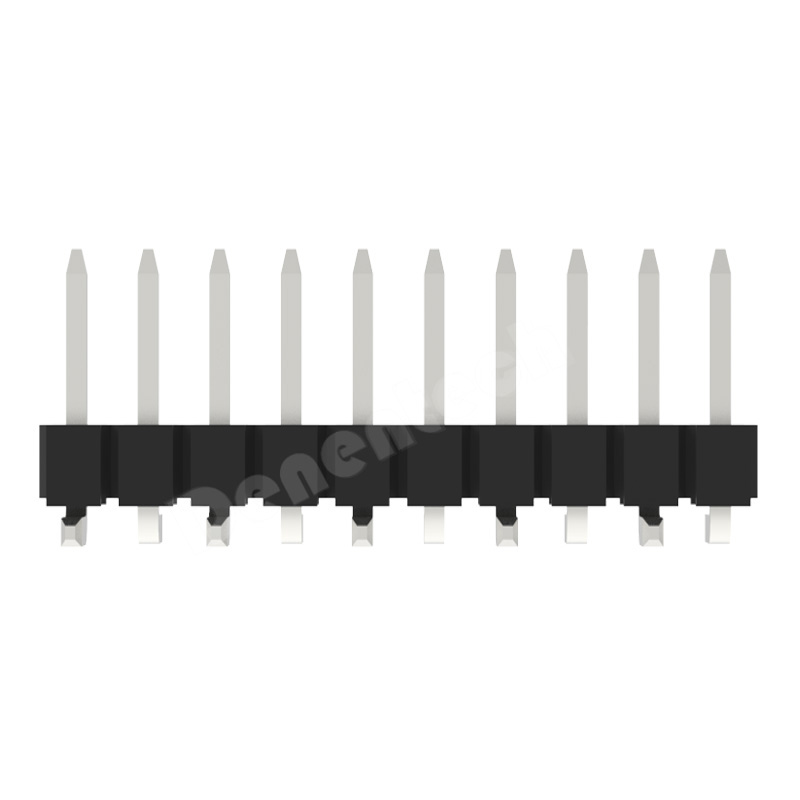

Denentech 3.96mm single row straight SMT male pin header connector with peg
Denentech 3.96mm single row straight SMT male pin header connector with peg
Denentech 3.96mm single row straight SMT male pin header connector with peg
Denentech 3.96mm single row straight SMT male pin header connector with peg
Denentech 3.96mm single row straight SMT male pin header connector with peg

Denentech 3.96mm single row straight SMT male pin header connector with peg

Product Code : P8XX-XXSSN1SMXXX Product Info :

Production status: in mass production

If you want to know more about this product, please contact us.

Product Properties

Rated current :

7.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS

Product Specification

pitch 3.96mm
pin spec 1.14*1.14mm
Plastic height H3.2mm
Rated current 7A
Row number single row
connection type Right Angle SMT
Pin number 1-40Pin
Pin material brass
Surface treatment gold flash 1µ",3µ",5µ",10µ",15µ",30µ
Plastic materials PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.
Pin length 17.5mm，21.3mm (pin length can be customized)
Application consumer electronics, automotive electronics, industrial automation, communication electronics, etc
Product features high temperature resistance/flame retardant
Product name 3.96mm single row straight SMT male pin header connector with peg
