Rated current :
7.0AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
GoldInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag (standard)Delivery time :
7-10daysEnvironmental protection :
ROHSThe Danentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.
The surface of the Denentech 3.96mm pin header is treated with multiple layers of electroplating to ensure that the 3.96mm pin header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 3.96mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

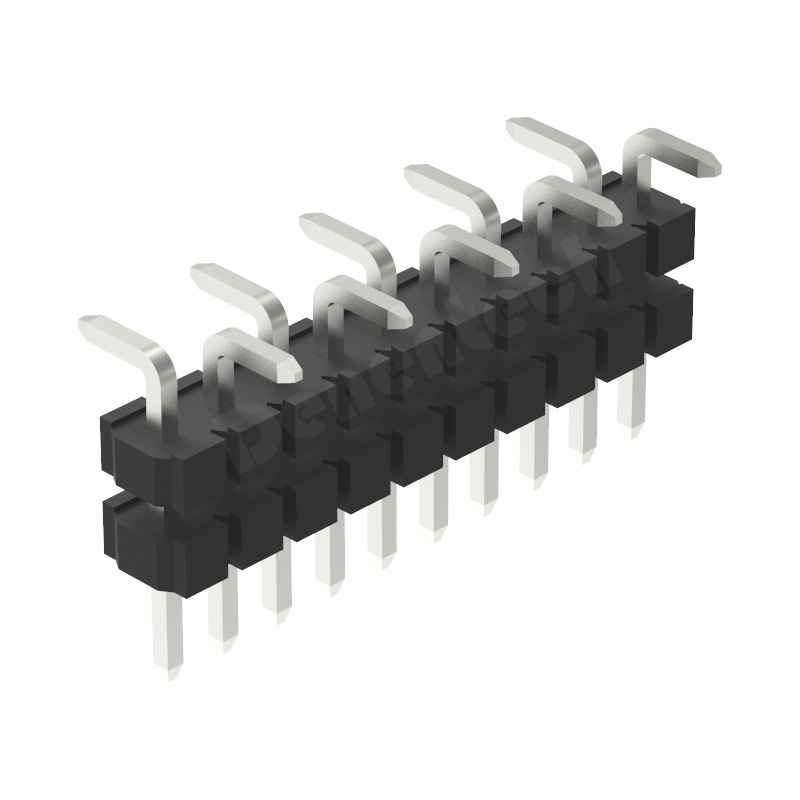

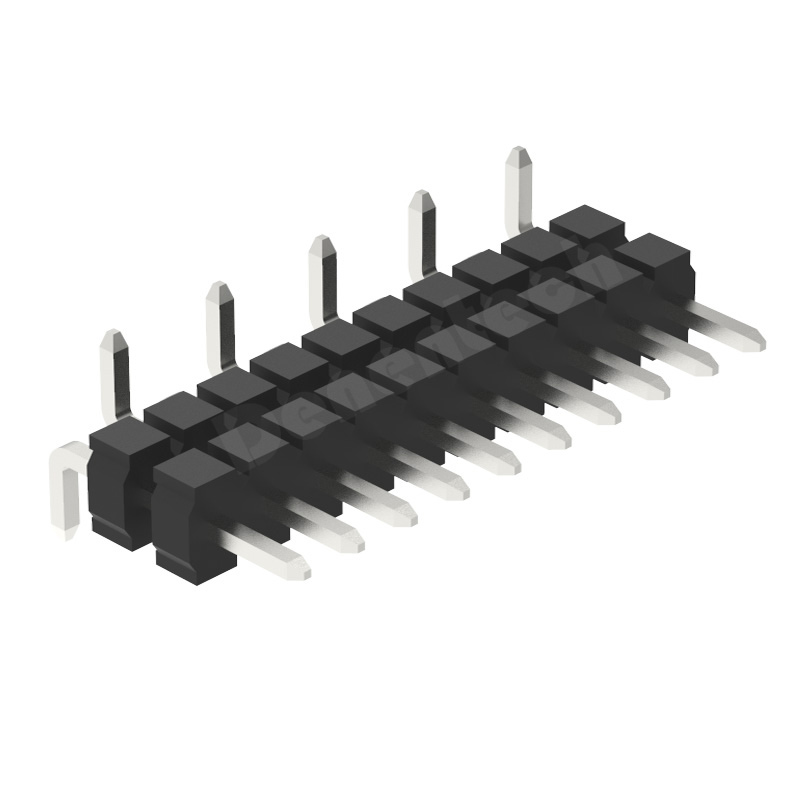

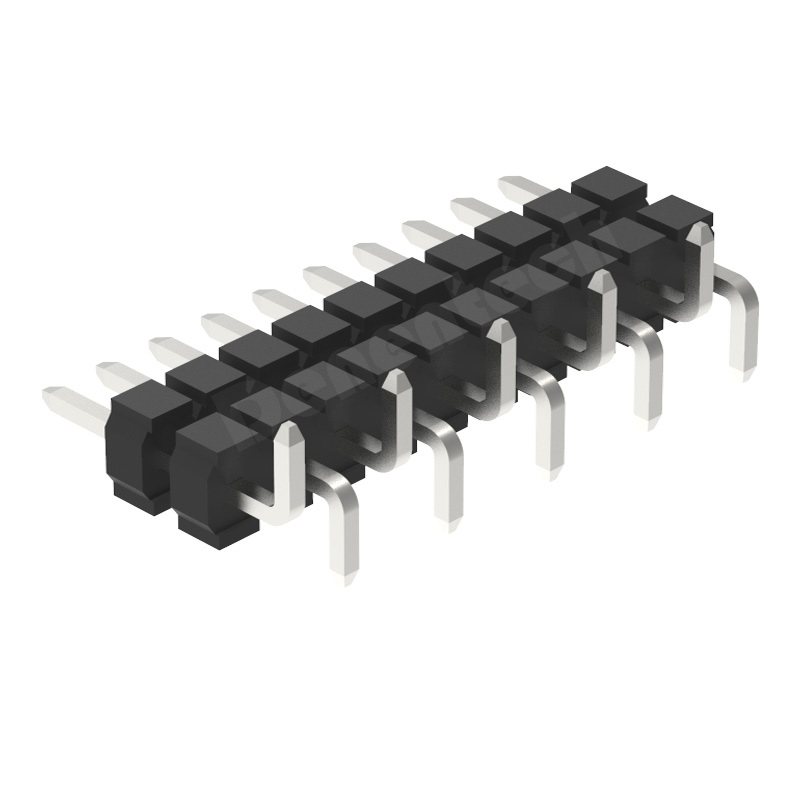

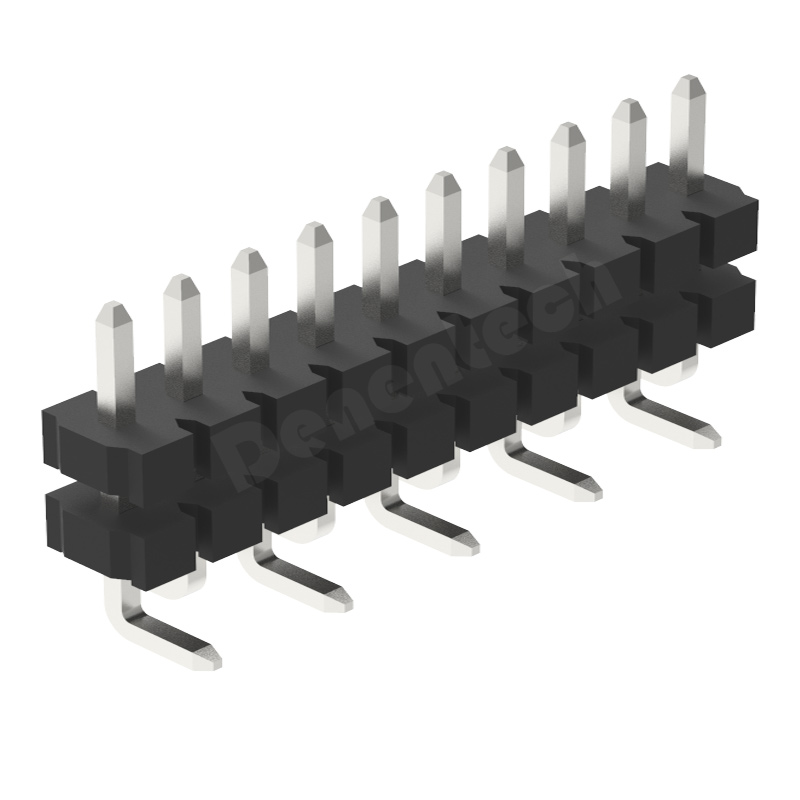

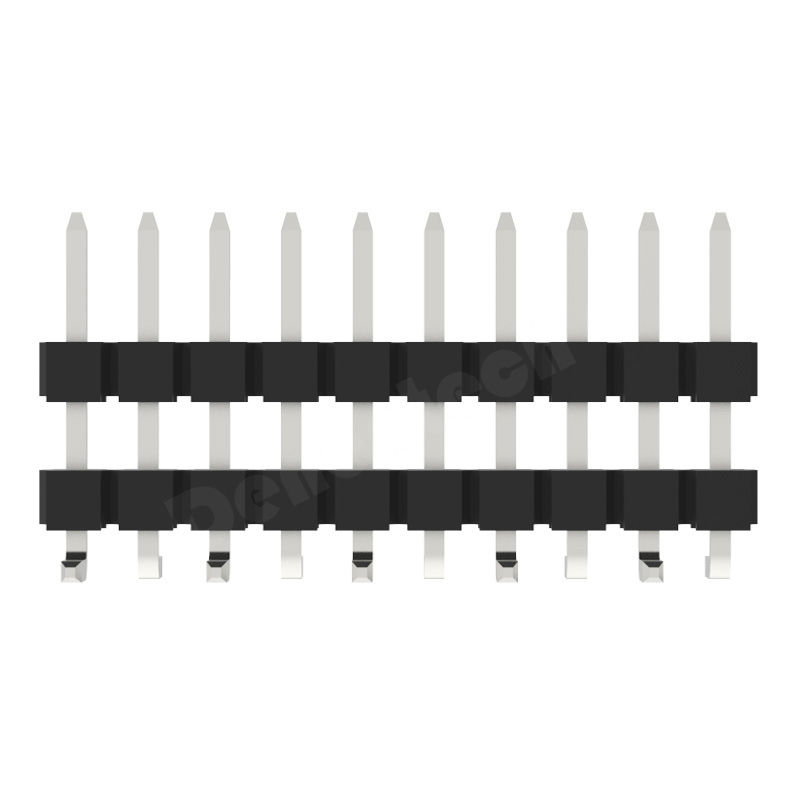

Denenetech 3.96mm pin header single row straight DIP pin header male
Denenetech 3.96mm pin header single row dual straight DIP 3 .96MM spacing inserted directly into the plastic
Denentech 3.96mm single row straight SMT male pin header connector with peg
Denentech 3.96mm pin header single row dual plastic straight SMT with peg pin header 3.96mm male header conector, smt type
