Rated current :
7.0AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
Gold Or Nickel-PlatedInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag/Blister Tray (standard)Delivery time :
7-10 daysEnvironmental protection :
ROHSThe Danentech 5.08mm pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.
The surface of the Denentech 5.08mm pin header is treated with multiple layers of electroplating to ensure that the male pin header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of dip header pin, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!
Denentech 5.08mm pin header single row straight pcb pin header connector pin header

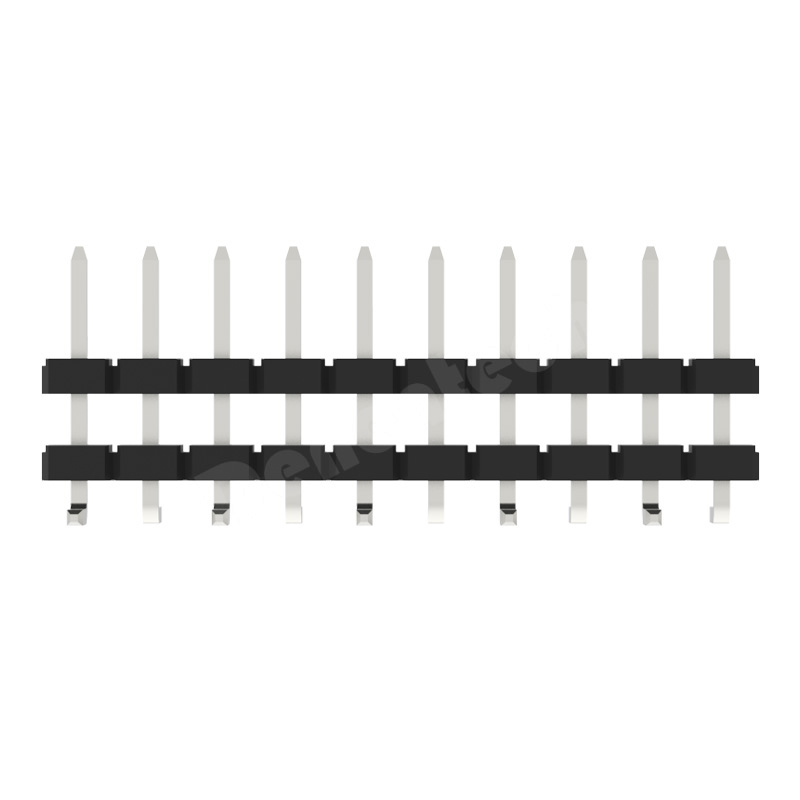

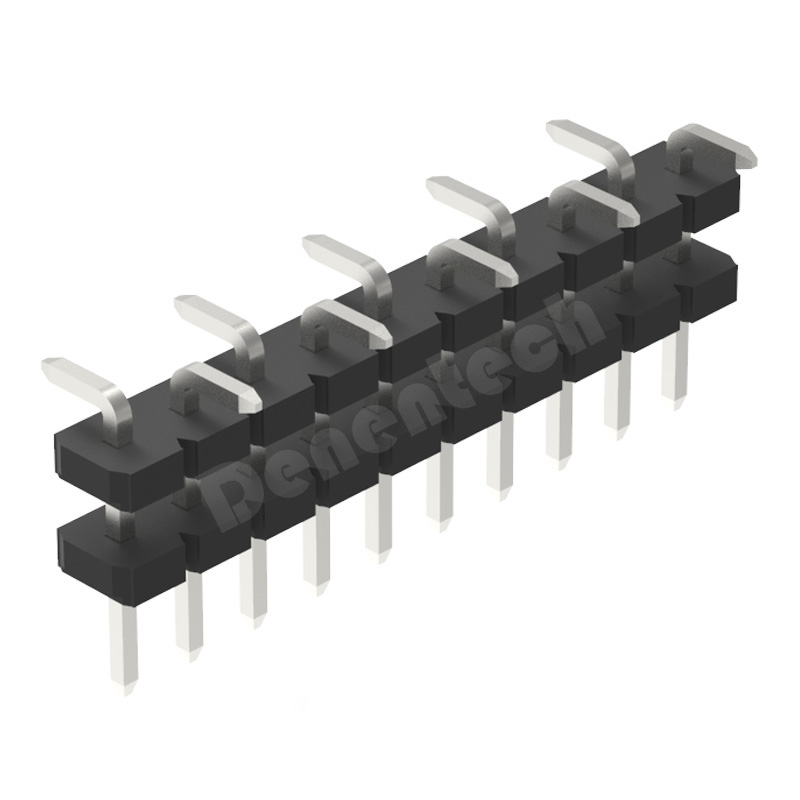

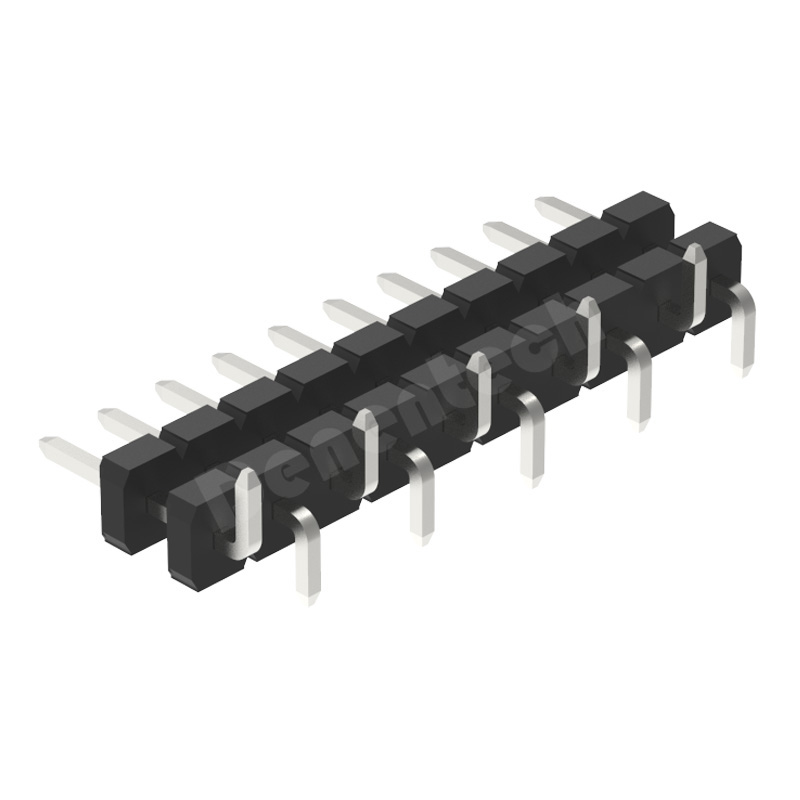

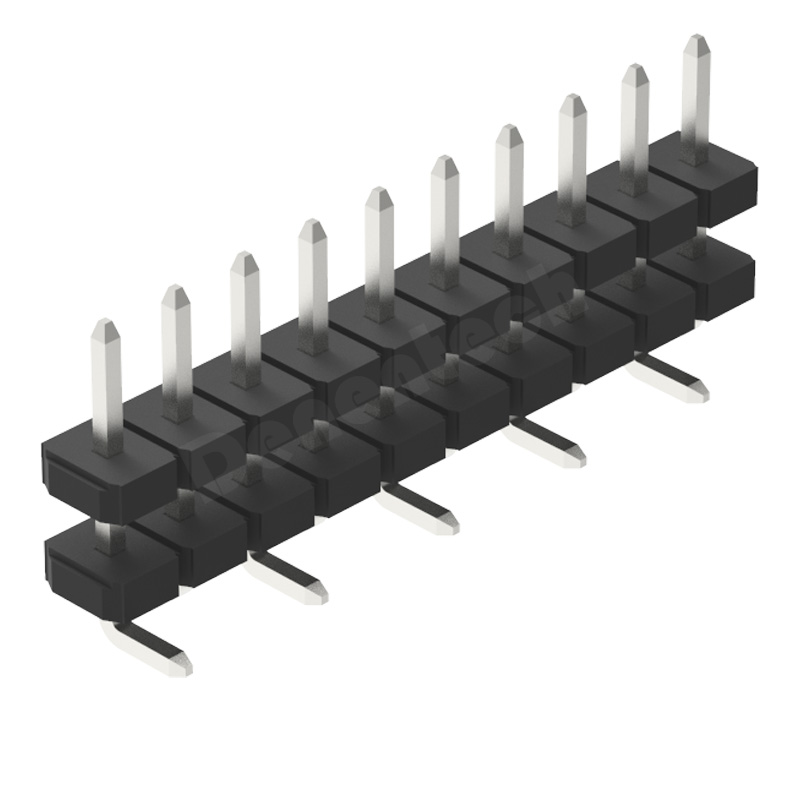

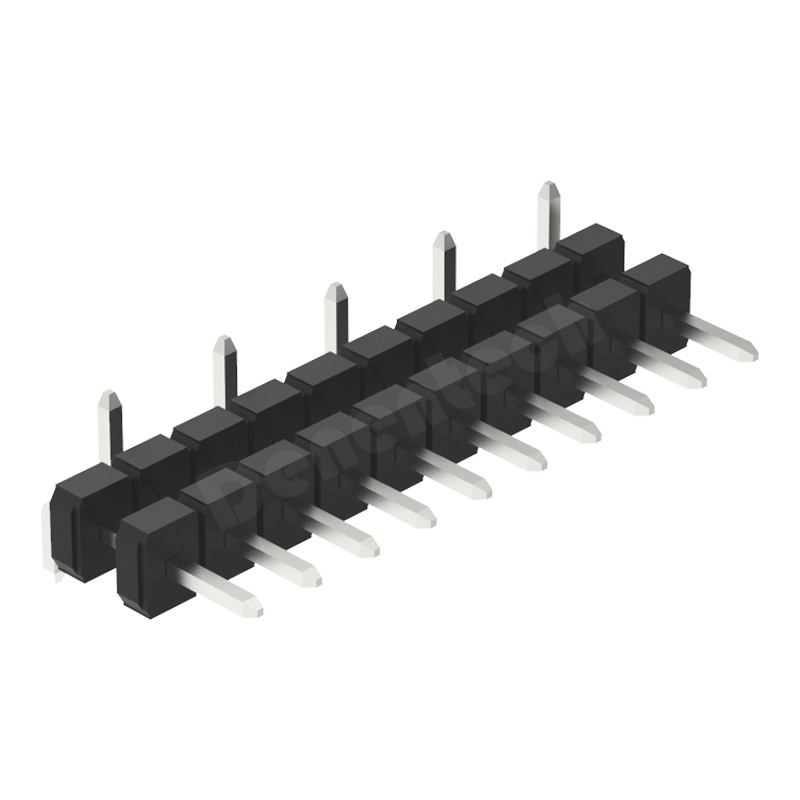

Denentech 5.08mm pin header single row dual plastic straight pcb pin header 5.08 mm pin header connectors
Denentech 5.08mm pin header single row straight SMT with peg smt female pin header low profile
