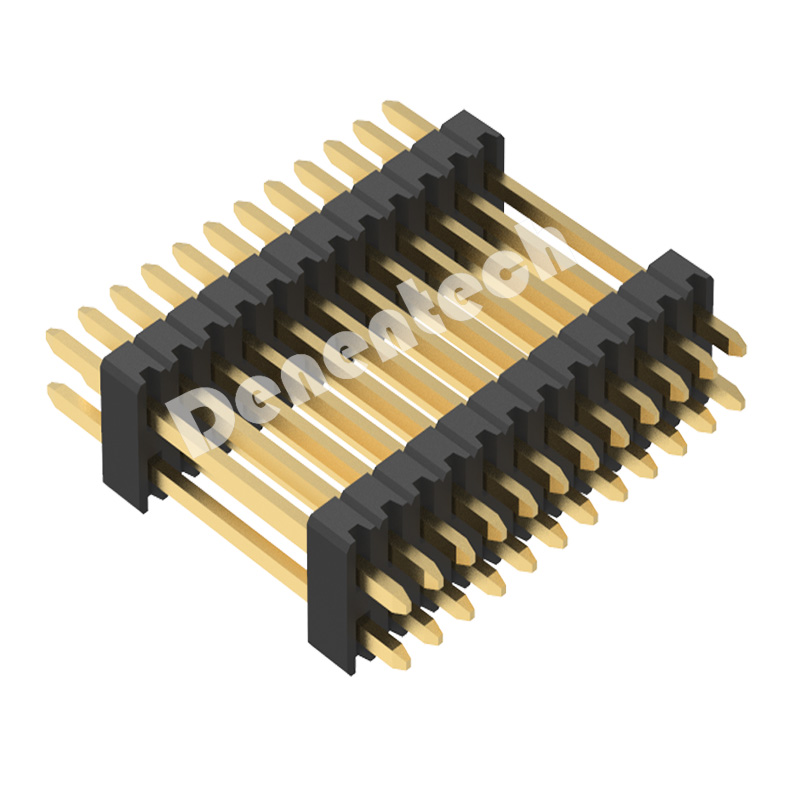

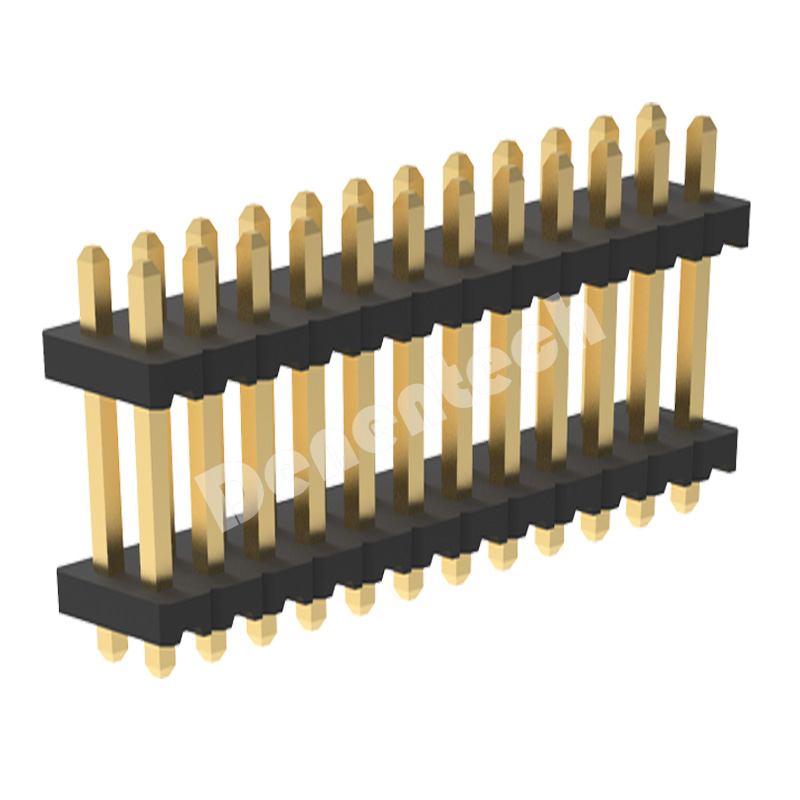

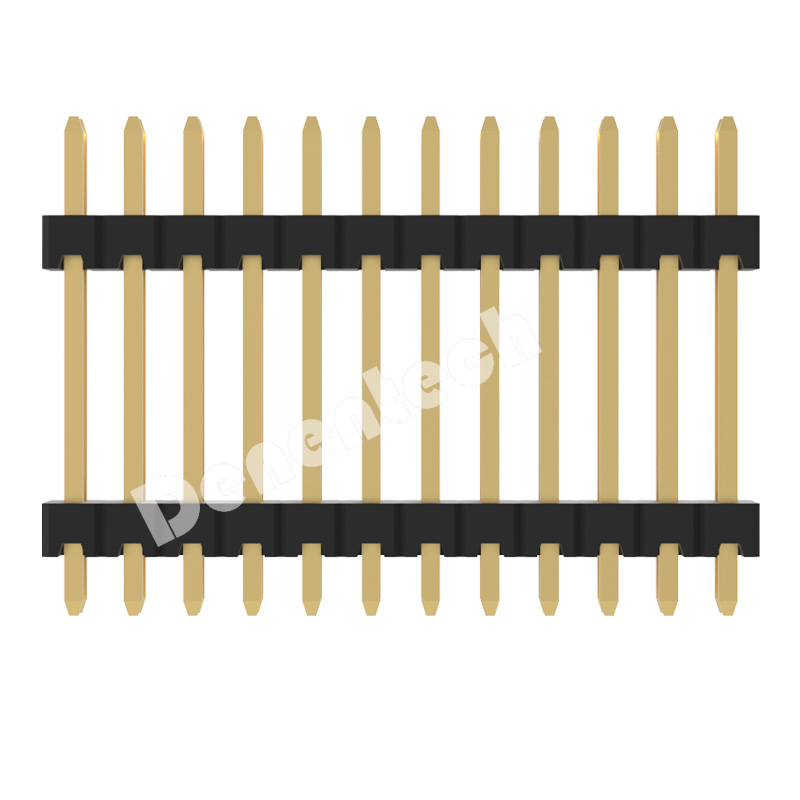

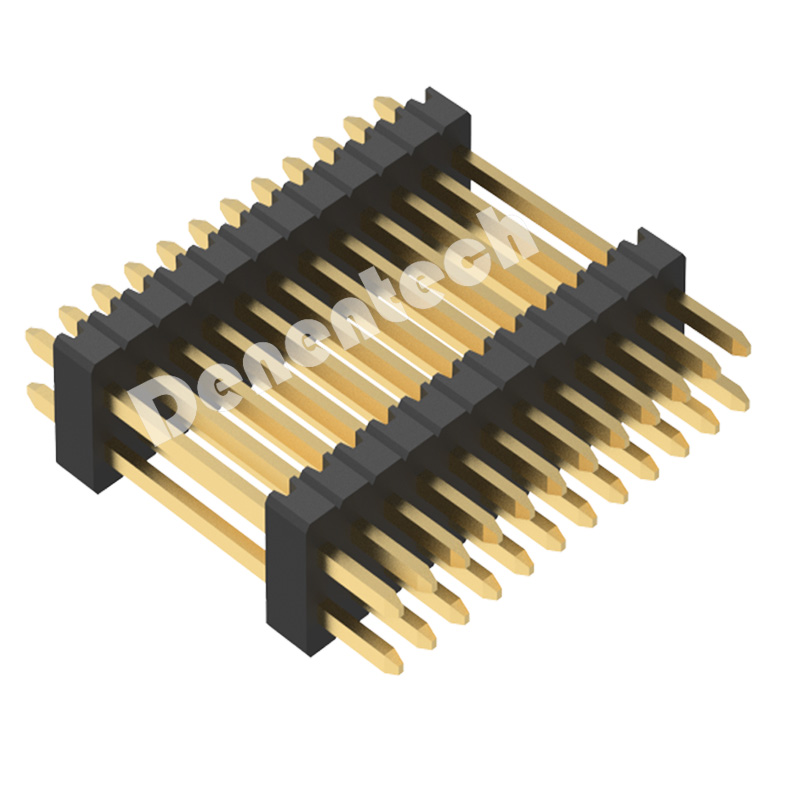

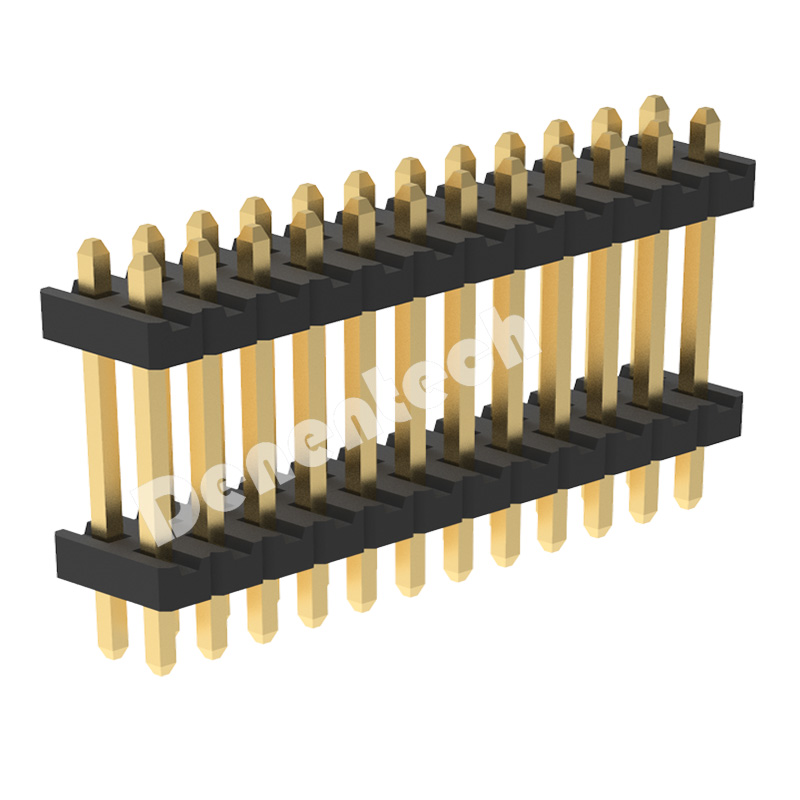

Denentech 1.27mm pin header dual row dual plastic straight round female pin header

Serial Code : Product Code : P3XX-XXDG02STXXX

Rated current :

0.75AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product DetailsFeaturesDrawingAccessory ProductsRelated ProductsKnowledgeRelated videosContact us

pin header uses high quality raw materials

The Danentech pin header connector is made of high quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

pin header uses high quality raw materials
Pin Header electroplating process

Pin Header electroplating process

The surface of the Denentech 1.27mm pin header is treated with multiple layers of electroplating to ensure that the 1.27mm pin header passes strict ROHS verification and 24H salt spray testing.

Denentech Pin Header automated production

Denentech adopts fully automated production of 1.27mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

Denentech Pin Header automated production
pitch

1.27mm

pin spec

0.40*0.40mm

Plastic height

H1.0mm

Rated current

1A

Row number

dual row

connection type

Straight DIP

Pin number

2-80Pin

Pin material

brass

Surface treatment

gold flash

1µ",3µ",5µ",10µ",15µ",30µ

Plastic materials

PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.

Pin length

6.0mm、6.2mm、10.0mm、12.5mm (pin length can be customized)

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc

Product features

high temperature resistance/flame retardant

Product name

1.27mm pin header dual row dual plastic straight round female pin header
