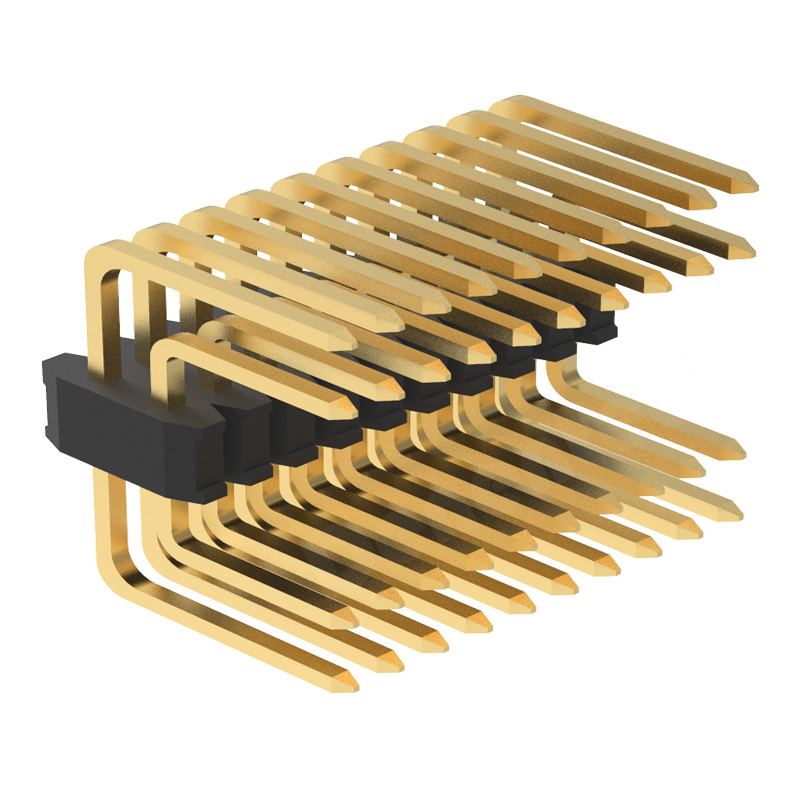

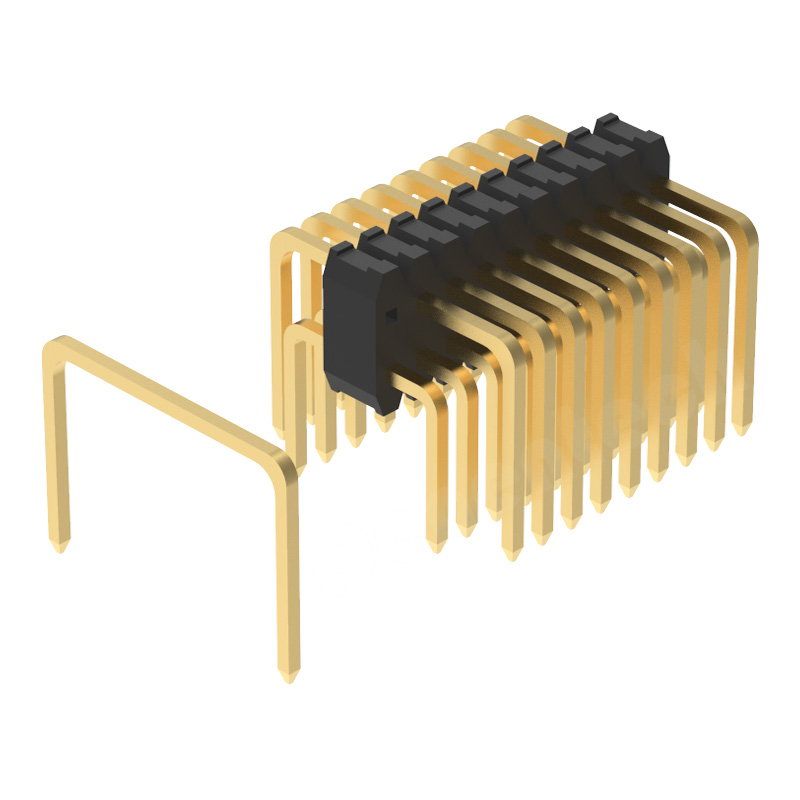

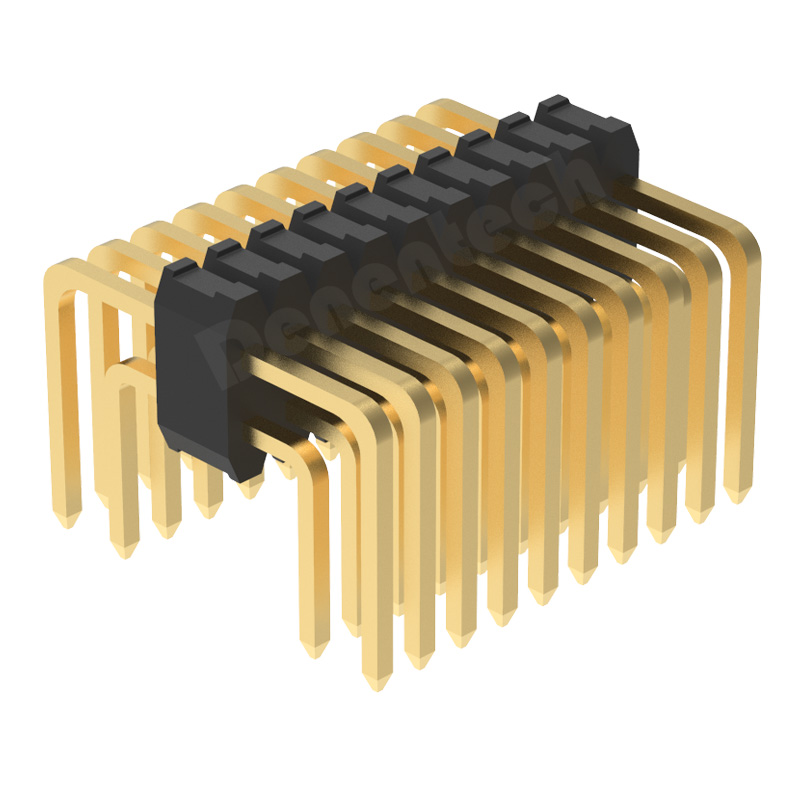

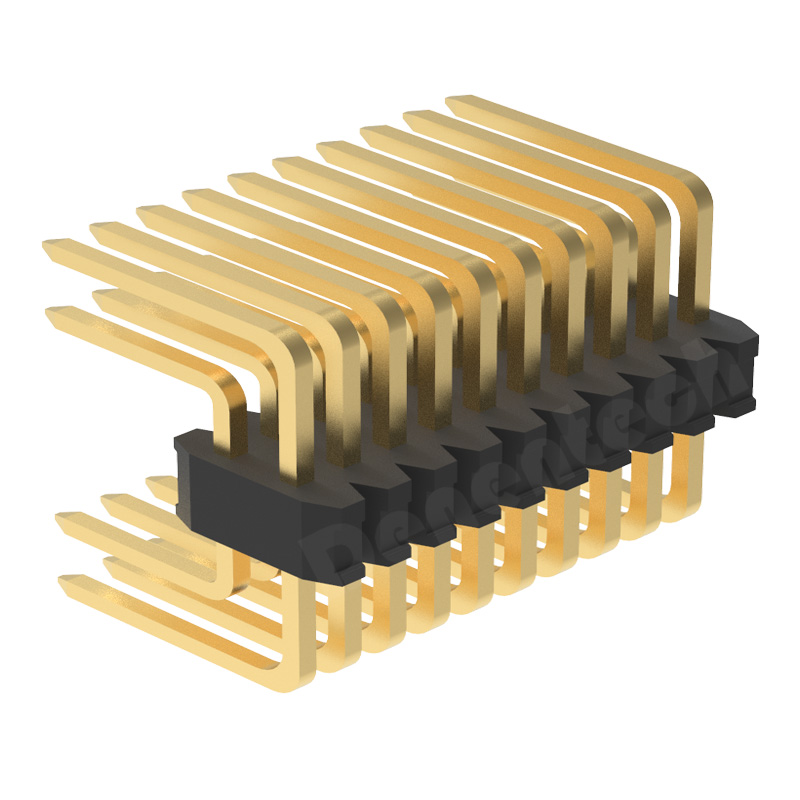

Denentech high quality 0.8mm dual row button entry U Type pin header connector for PCB Denentech high quality 0.8mm dual row button entry U Type pin header connector for PCB Denentech high quality 0.8mm dual row button entry U Type pin header connector for PCB Denentech high quality 0.8mm dual row button entry U Type pin header connector for PCB
Denentech high quality 0.8mm dual row button entry U Type pin header connector for PCB
Denentech high quality 0.8mm dual row button entry U Type pin header connector for PCB
Denentech high quality 0.8mm dual row button entry U Type pin header connector for PCB
Denentech high quality 0.8mm dual row button entry U Type pin header connector for PCB

Denentech high quality 0.8mm dual row button entry U Type pin header connector for PCB

Serial Code : Product Code : P114-XXDG01RAXXX

Rated current :

0.75AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
pitch 0.80mm
pin spec 0.30*0.30mm
Plastic height H1.4mm
Rated current 0.75A
Row number dual row
connection type U type DIP
Pin number 2-80Pin
Pin material brass
Surface treatment gold flash
Plastic materials PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.
Pin length 4.30mm、4.80mm、5.20mm、6.80mm (pin length can be customized)
Application consumer electronics, automotive electronics, industrial automation, communication electronics, etc
Product features high temperature resistance/flame retardant
Product name
Online Inquiry Sample Request
Product detailsFeaturesDrawingAccessory productsRelated productsKnowledgeRelated videosContact us
Product details

Pin Header Uses High Quality Raw Materials

The Danentech pcb pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

Pin Header Uses High Quality Raw Materials
Pin Header Electroplating Process

Pin Header Electroplating Process

The surface of the Denentech 0.8mm pin header is treated with multiple layers of electroplating to ensure that the 0.8mm pin header passes strict ROHS verification and 24H salt spray testing.

Denentech Pin Header Automated Production

Denentech adopts fully automated production of 0.8mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

Denentech Pin Header Automated Production
Features
pitch

0.80mm

pin spec

0.30*0.30mm

Plastic height

H1.4mm

Rated current

0.75A

Row number

dual row

connection type

U type DIP

Pin number

2-80Pin

Pin material

brass

Surface treatment

gold flash

Plastic materials

PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.

Pin length

4.30mm、4.80mm、5.20mm、6.80mm (pin length can be customized)

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc

Product features

high temperature resistance/flame retardant

Product name
