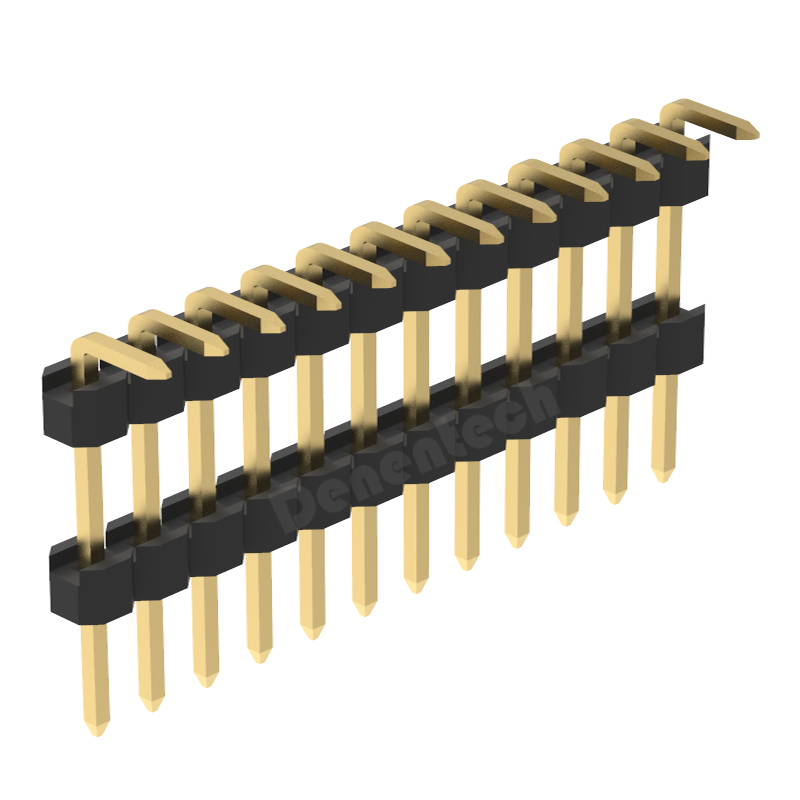

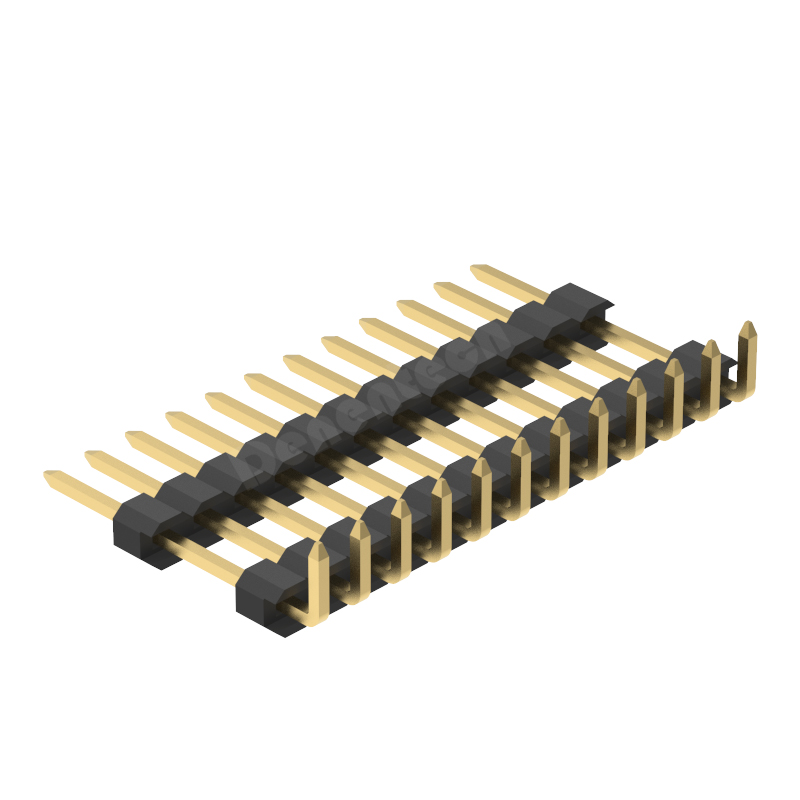

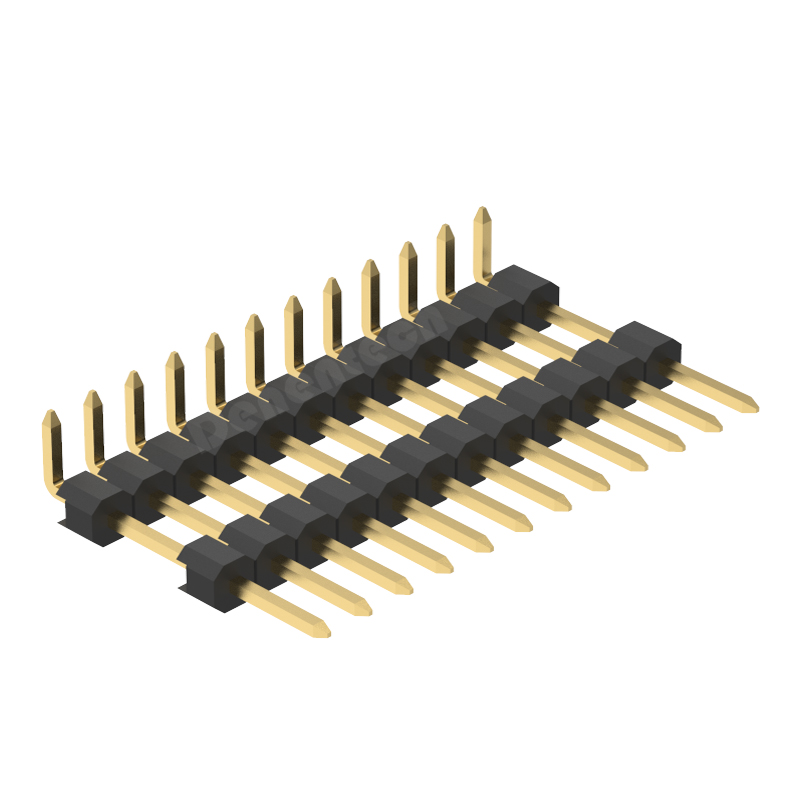

Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90° Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90° Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90° Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90° Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°
Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°
Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°
Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°
Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°
Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°

Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°

Serial Code : DN-PH2541RA Product Code : P525-XXSG02RAXXX

Rated current :

3AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Online Inquiry Sample Request
Product information
Product detailsFeaturesDrawingAccessory productsRelated productsKnowledge Related videosContact us
Product details

pin header uses high quality raw materials

The Danentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

pin header uses high quality raw materials
Pin Header electroplating process

Pin Header electroplating process

The surface of the Denentech 2.54mm pin header is treated with multiple layers of electroplating to ensure that the 2.54mm pin header passes strict ROHS verification and 24H salt spray testing.

Denentech Pin Header automated production

Denentech adopts fully automated production of 2.54mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors.

Denentech Pin Header automated production
Features
Product name

2.54mm Pin Header Single Row Board Spacer Right Angle DIP

pitch

2.54mm

pin spec

0.64*0.64mm

Plastic height

H2.5mm

Rated current

3A

Row number

single row

connection type

Right Angle DIP

Pin number

1-40Pin

Pin material

brass

Surface treatment

Gold Flash

Plastic materials

PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.

Pin length

Standard: 13.80 (length can be customized)

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc

Product features

high temperature resistance/flame retardant

Drawing
