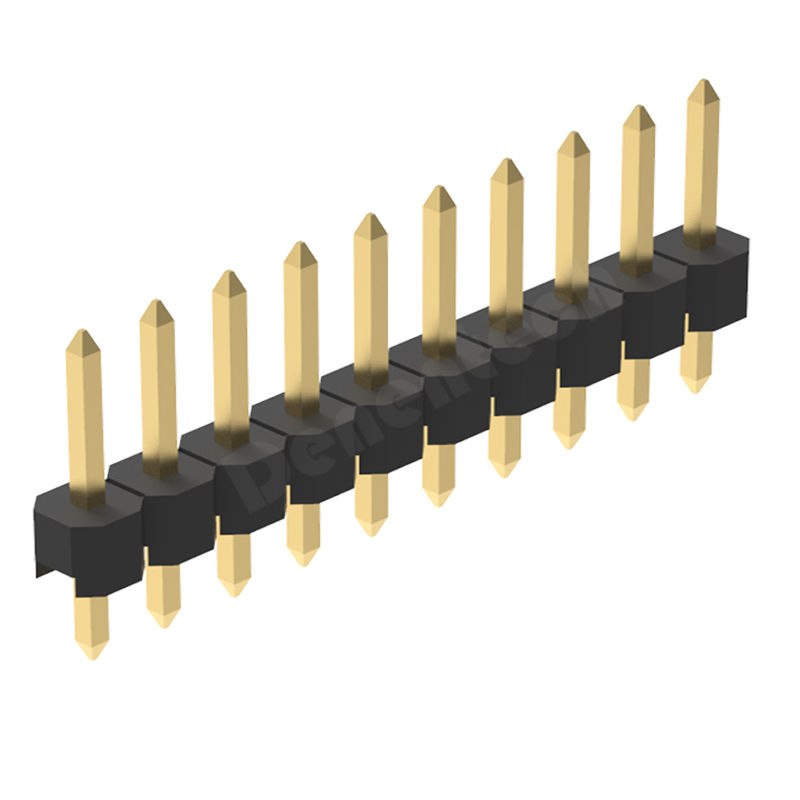

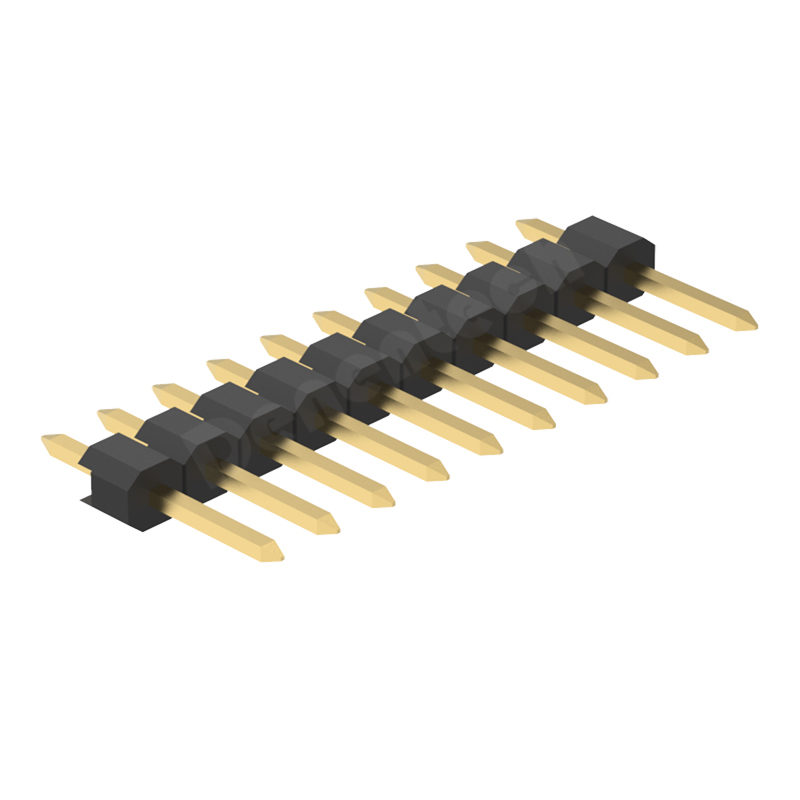

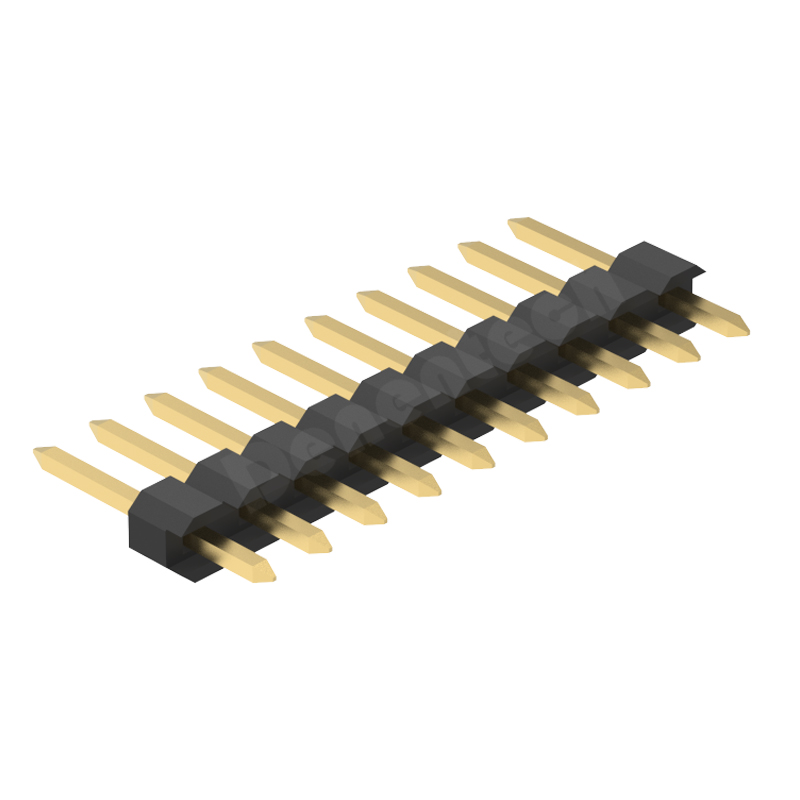

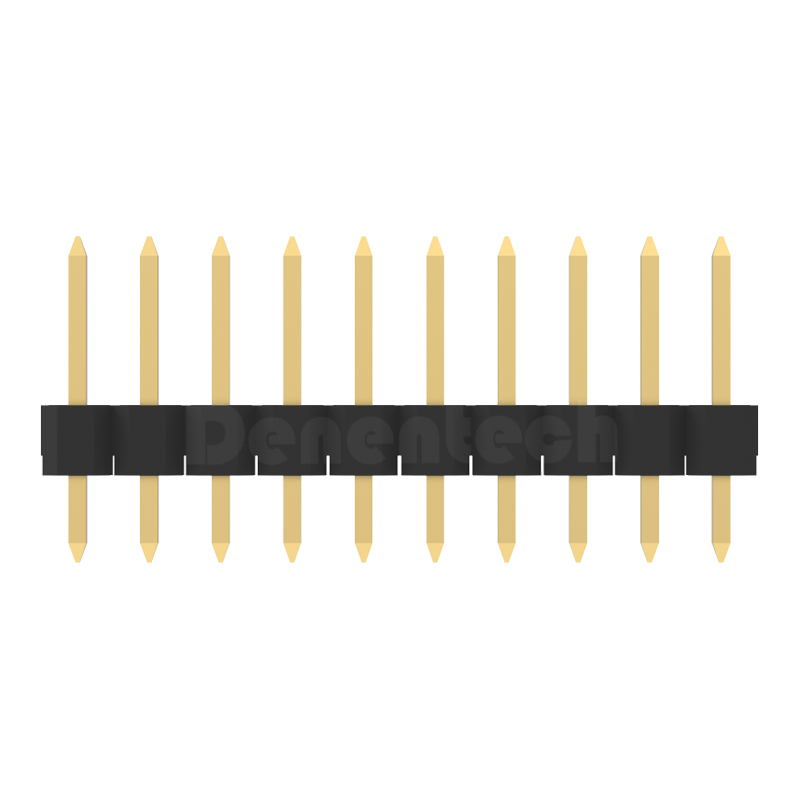

Denentech Gold Plating 2.54mm pitch single row Straight DIP pin header connector

Product Code : P525-XXSG01STXXX

Rated current :

3AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product information
Product detailsFeaturesDrawingAccessory productsRelated products KnowledgeRelated videosContact us

pin header uses high quality raw materials

The Danentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

pin header uses high quality raw materials
Pin Header electroplating process

Pin Header electroplating process

The surface of the Denentech 2.54mm pin header is treated with multiple layers of electroplating to ensure that the 2.54mm pin header passes strict ROHS verification and 24H salt spray testing.

Denentech Pin Header automated production

Denentech adopts fully automated production of 2.54mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

Denentech Pin Header automated production

Pitch
2.54mm
Pin gauge
0.64*0.64mm
Plastic height (H)
1.0mm,1.5mm,2.0mm,2.5mm
Rated current
3AMP
Row number
Single Row,Dual Row,Triple Row
Connector method
Straight DIP
Pin number
1~40pin
Pin material
brass
Plastic materials
PA66,PA46,PA6T,PA9T,PPS,LCP,etc
Pin length
11.6mm,13.8mm,18.8mm,etc.(can be customized according to needs)
Application area
consumer electronics, automotive electronics, industrial automation, communication electronics, etc
Product features
high temperature resistance/flame retardant
Product name
2.54mm single row straight DIP pin header connector
