Rated current :
3AMPContact Resistance :
20mΩ MaxWithstand Voltage :
500VAC/MinuteInsulation Resistance :
1000mMinOperation Tempererature :
-40~105℃Contact Material :
Copper AlloyContact Plating :
Gold Or Nickel-PlatedInsulating material :
UL94V-0Standard :
PA6TorLCP+30%GFPackage :
Tube/PE Bag/Blister Tray (standard)Delivery time :
7-10 daysEnvironmental protection :
ROHSThe Danentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.
The surface of the Denentech 2.54mm pin header is treated with multiple layers of electroplating to ensure that the 2.54mm pin header passes strict ROHS verification and 24H salt spray testing.
Denentech adopts fully automated production of 2.54mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!
Denentech 2.54MM female header H8.5MM single row straight 2.54mm male female pin header single row
Denentech high quality 2.54MM female header H8.5MM straight SMT female pin header connector
Denentech factory directly supply 2.54MM female header H8.5 single row rightangle curved needle row female connector
Denentech customized 2.54MM female header H8.5MM single row right angle SMT female connector
Denentech Gold Plating 2.54mm pitch single row Straight DIP pin header connector
Denentech 2.54mm pin header single row dual plastic straight 2.54mm pin header Single row double plastic gold-plate
Denentech 2.54mm pin header single row right angle 2.54mm 40 pin header connector 1x40 pin single row row pin header 2.54mm 80pin
Denentech 2.54mm pin header single row dual plastic right angle 2.54mm pitch 40 pin gold pin header 90°

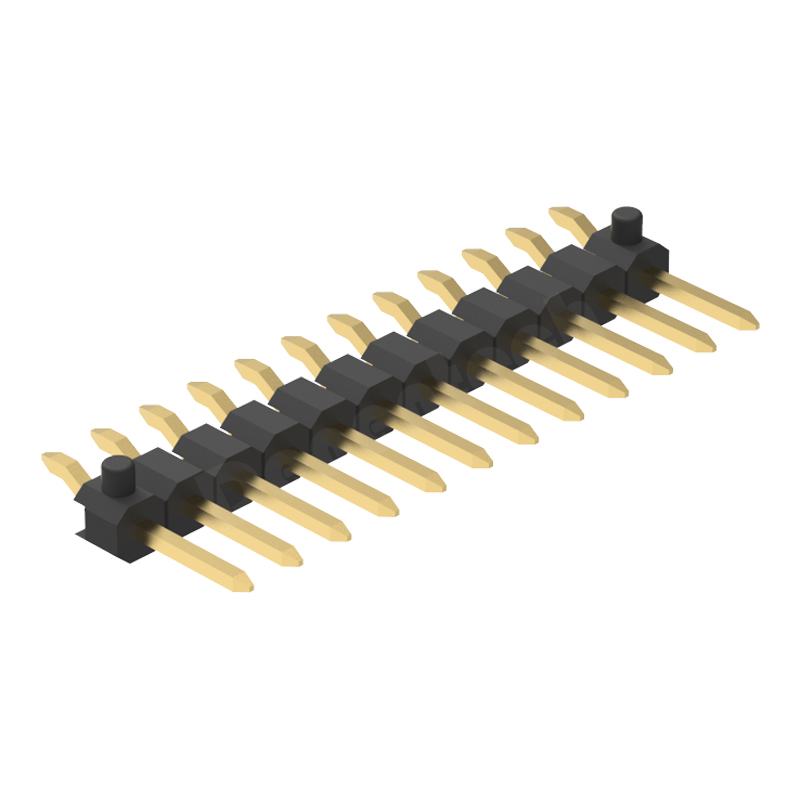

2.54mm pin header single row straight SMT with peg pin header 2.54mm male header conector, smt type
