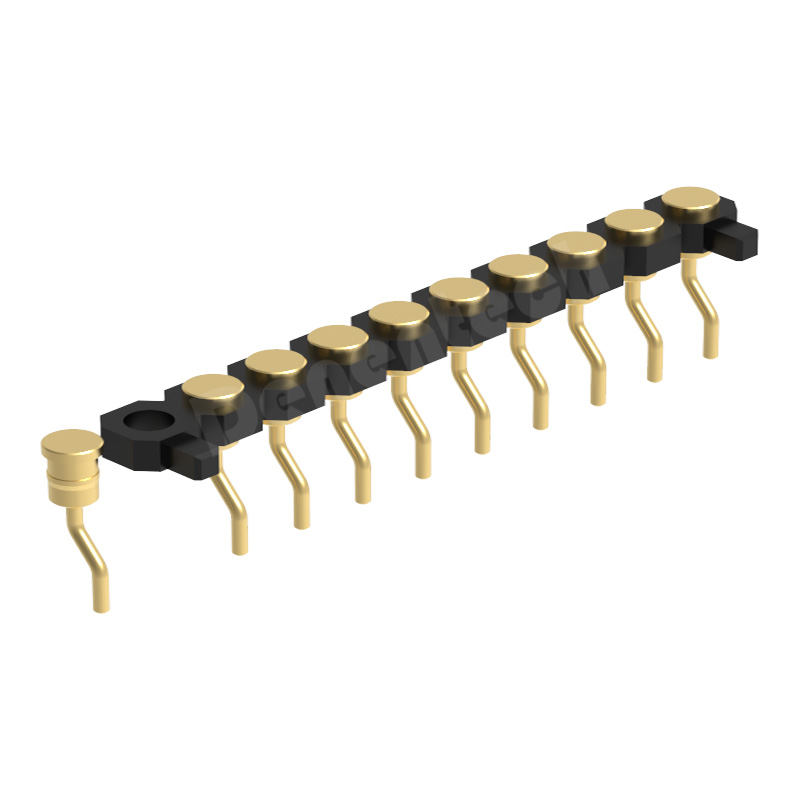

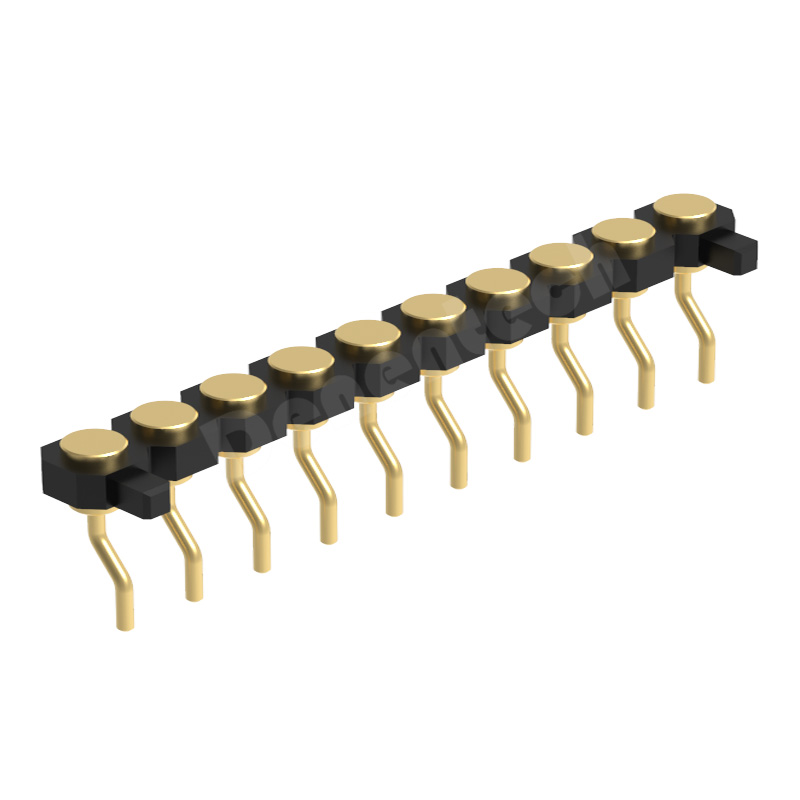

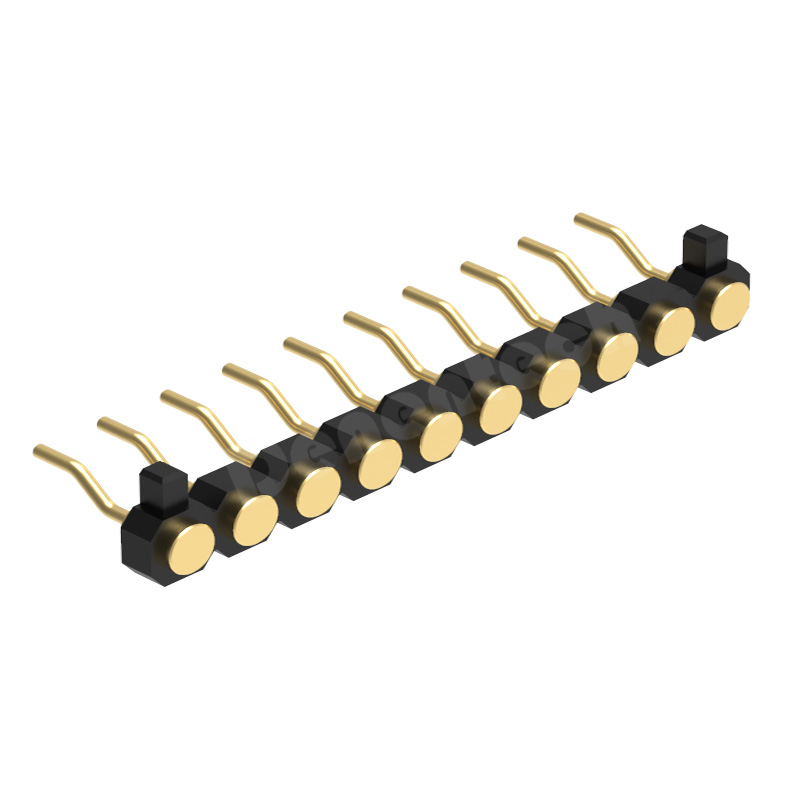

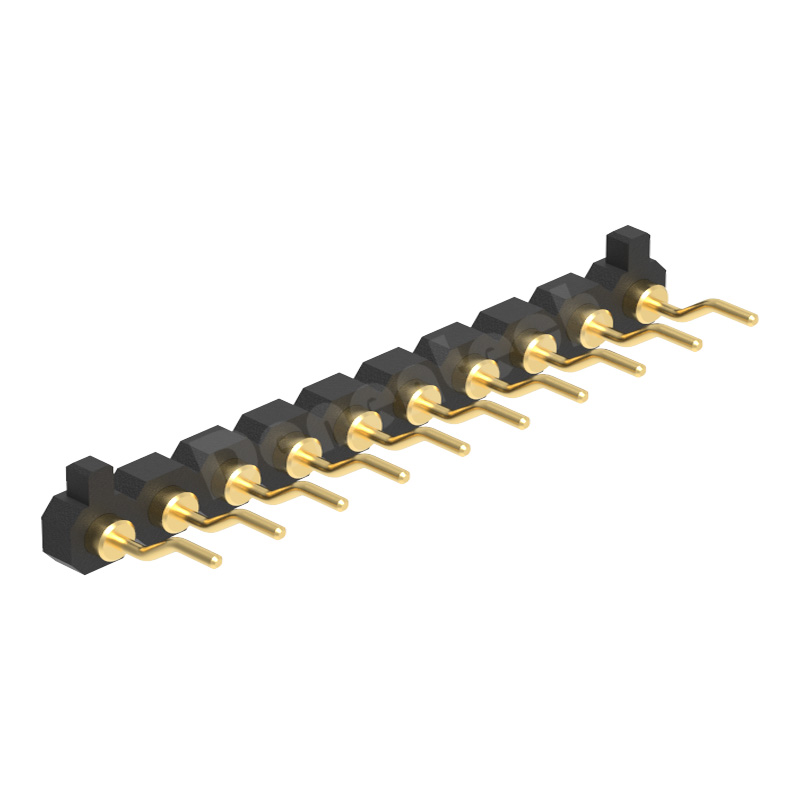

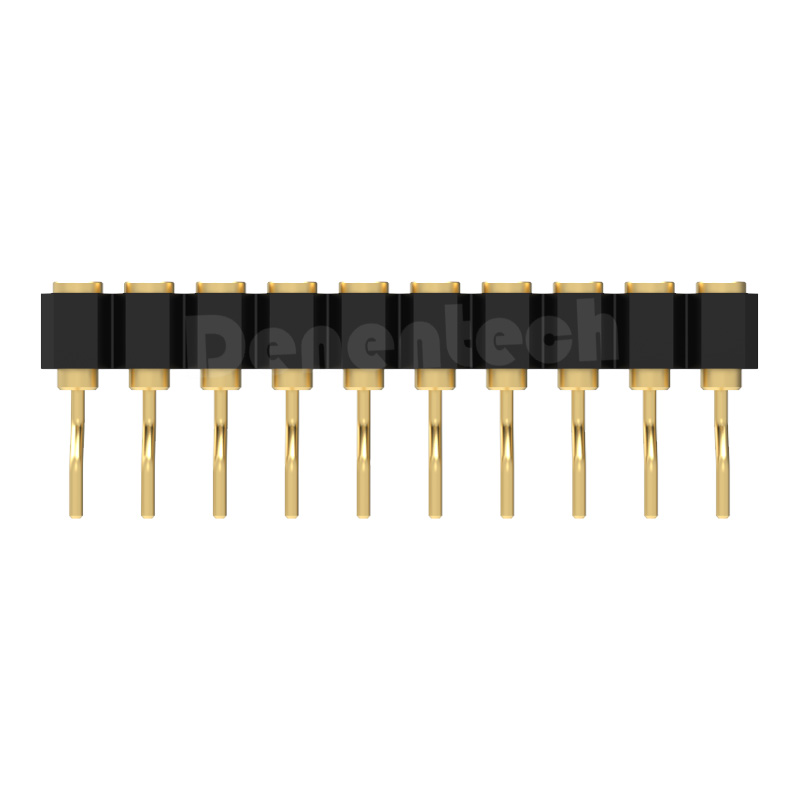

Denentech 2.54MM pogo pinH1.27MM single row female right angle spring loaded pogo pin connector with peg

Serial Code : Product Code : HFF3-XXS11XXXPYX

Rated current :

1AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag (standard)

Delivery time :

7-10days

Environmental protection :

ROHS
Product details Features Drawing Accessory products Related products Knowledge Related videos Contact us

Pogo Pin Uses High Quality Raw Material

The Denentech 2.54mm female pogo pin connector is composed of pin and plastic. It adopts high quality brass and thermostability plastic in line with international standards to establish a safe and highly reliable connection.

Pogo Pin Uses High Quality Raw Material
High Quality Pogo Pin Products

High Quality Pogo Pin Products

The diverse structural design of the 2.54mm pogo pin connector, stable contact area, various plating thicknesses, and fully automated production ensure longer connection and service life of the pogo pin.

Application Of Pogo Pin Connector

Denentech pogo pin connectors support highly customized designs to meet specific stroke, height, electrical and other performance requirements. Moreover, the unlimited molding design can create many different shapes and styles for specific applications, and can be widely used in various fields of multiple industries.

Application Of Pogo Pin Connector
产品名称

2.54mm Pogo Pin H1.27 Plane Female Single Row Right Angle SMT Peg

间距

2.54mm

塑胶高度

H1.27mm

额定电流

3A

排数

单排

连接方式

90度贴片(SMT)

针脚数

3-80pin

pin针材质

黄铜

表面处理

Au 1u"

塑胶材质

PPS、LCP、PA6T

板上高度

3.60mm(可按需定制针长)

接触面

平面接触

产品特性

耐温/阻燃

应用领域

广泛应用于智能穿戴、移动通讯、数码相机、汽车、医疗器械等领域
