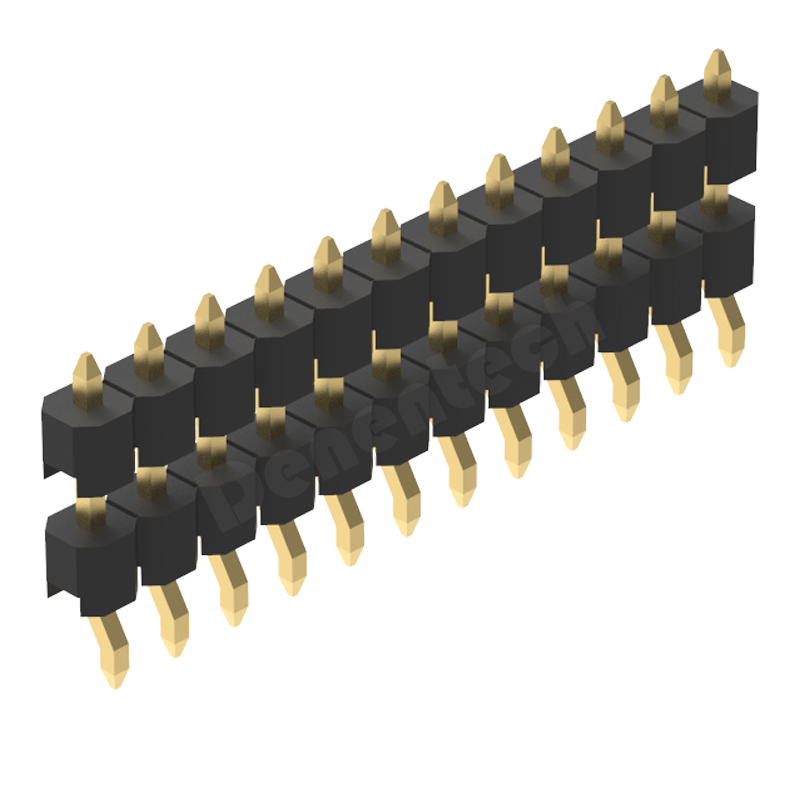

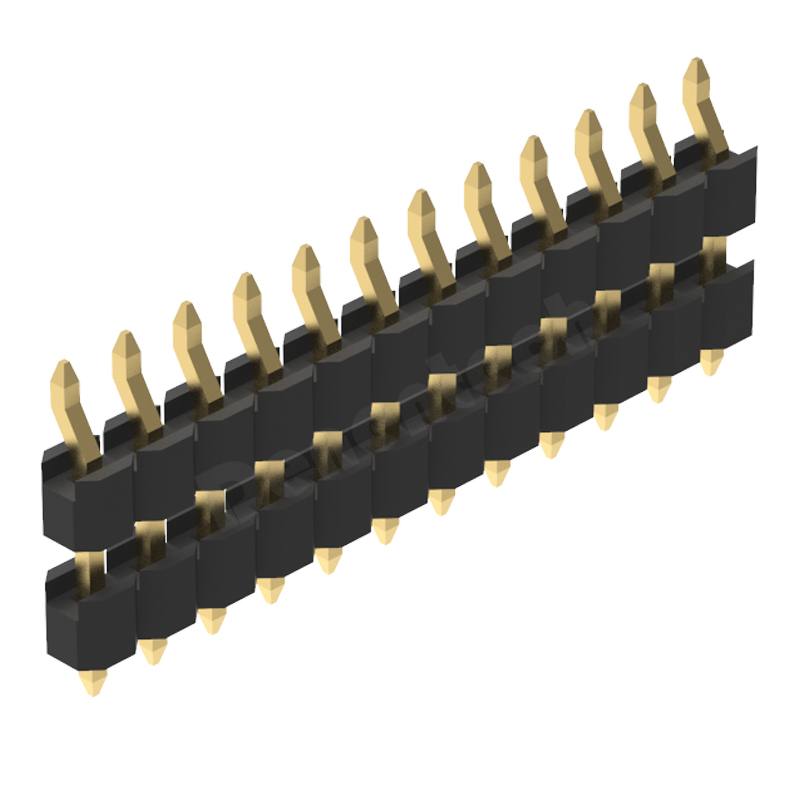

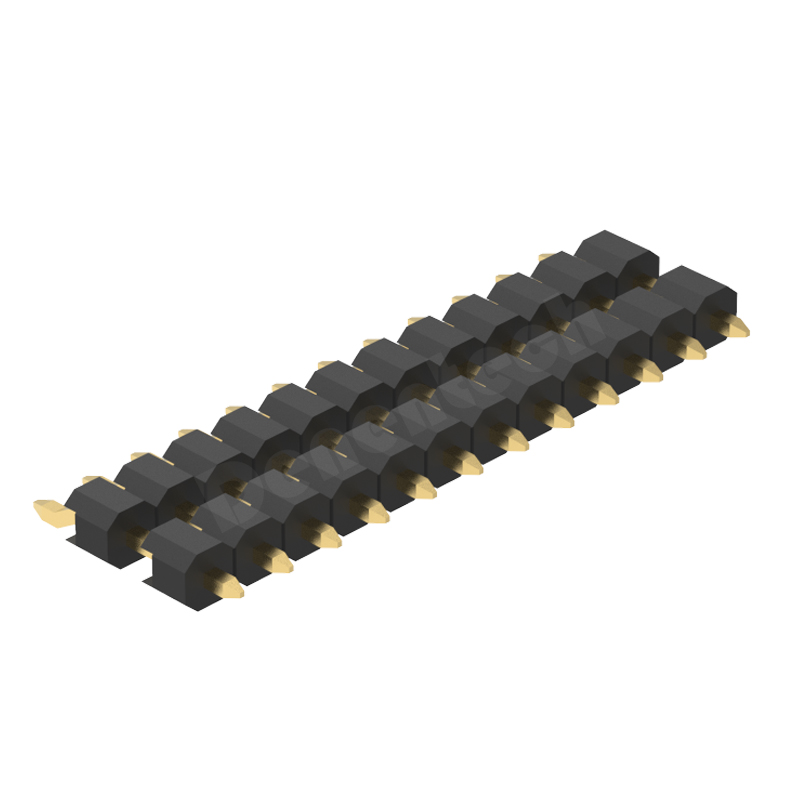

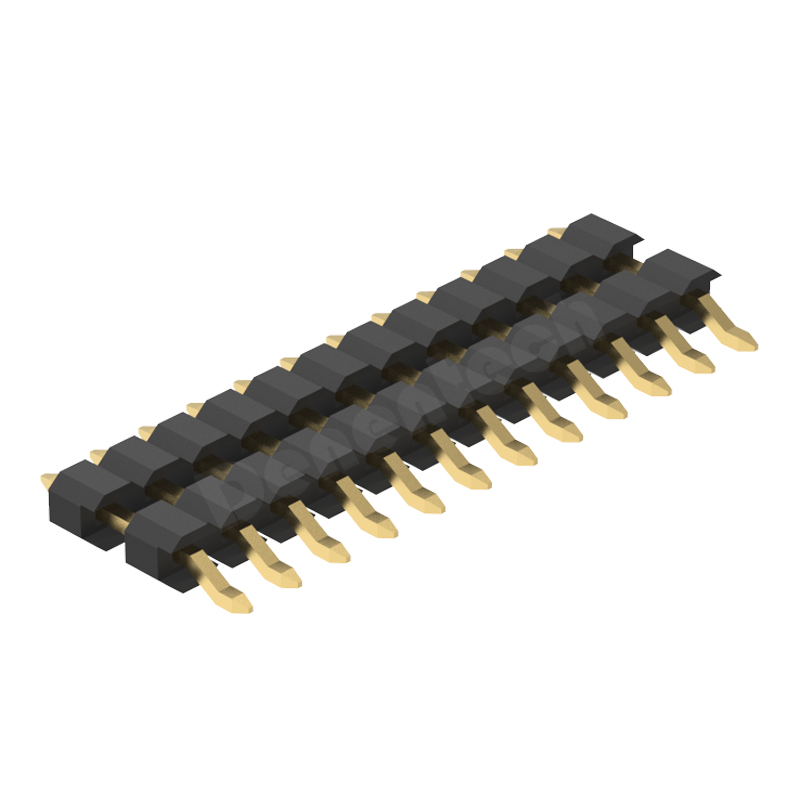

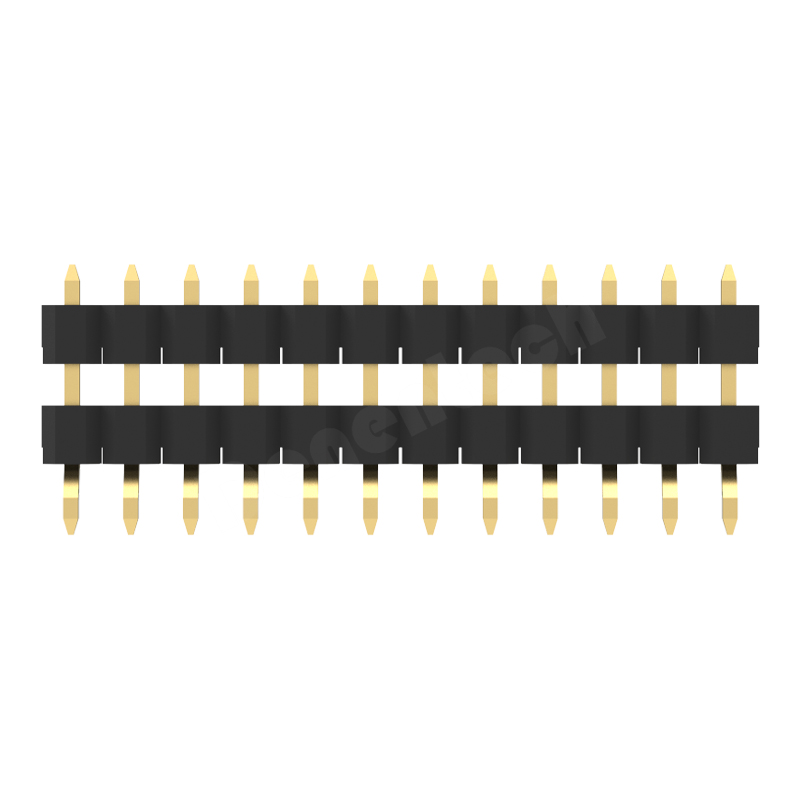

Denentech 2.54mm pin header single row dual plastic SMT right angle with peg pin header 2mm male header conector, smt type

Serial Code : DN-PH2541RM Product Code : P525-XXSG02RLXXX

Rated current :

3AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product DetailsFeaturesDrawingAccessory ProductsRelated ProductsKnowledgeRelated videosContact us

pin header uses high quality raw materials

The Danentech pin header connector is made of high-quality brass that meets international standards, with high hardness, resistance to deformation, faster signal current transmission speed, and lower signal loss rate.

pin header uses high quality raw materials
Pin Header electroplating process

Pin Header electroplating process

The surface of the Denentech 2.54mm pin header is treated with multiple layers of electroplating to ensure that the 2.54mm pin header passes strict ROHS verification and 24H salt spray testing.

Denentech Pin Header automated production

Denentech adopts fully automated production of 2.54mm pitch pin header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality pin header connectors!

Denentech Pin Header automated production

Rated current : 3AMP

Contact Resistance : 20mΩ Max

Withstand Voltage : 500VAC/Minute

Insulation Resistance : 1000mMin

Operation Tempererature : -40~105℃

Contact Material : Copper Alloy

Contact Plating : Gold Or Nickel-Plated

Insulating material : UL94V-0

Standard : PA6TorLCP+30%GF

Package : Tube/PE Bag/Blister Tray (standard)

Delivery time : 7-10 days

Environmental protection : ROHS
