Denentech factory custom 2.54MM female header H3.5MM single row straight button entry female header connector

Serial Code : Product Code : F535-XXSG0CFXXX

Rated current :

3.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product detailsFeatures DrawingAccessory productsRelated productsKnowledgeRelated videosContact us

精选优质原材

Denentech 2.54mm排母连接器采用国际标准的优质黄铜和高温塑料,确保信号电流传输速度更快,信号丢失率更低,从而提升连接的稳固性和可靠性。

精选优质原材
ROHS环保

ROHS环保

排母连接器端子采用优质铜材制成,并经过镀金等电镀处理,显著提升了导电性和抗腐蚀性。产品符合ROHS严格标准,并通过了24小时盐雾测试,确保其卓越的性能

卓越品质

Denentech采用全自动化生产2.54间距排母连接器,有全系列自动检测程序+质检人员抽检+先进的检测设备,确保产品卓越品质!

卓越品质
Product name :

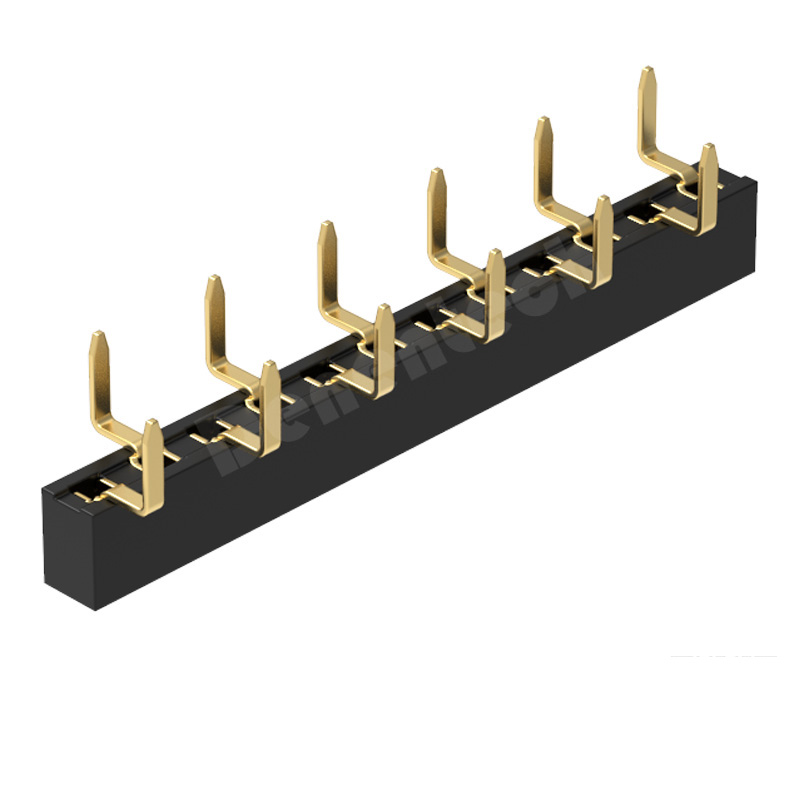

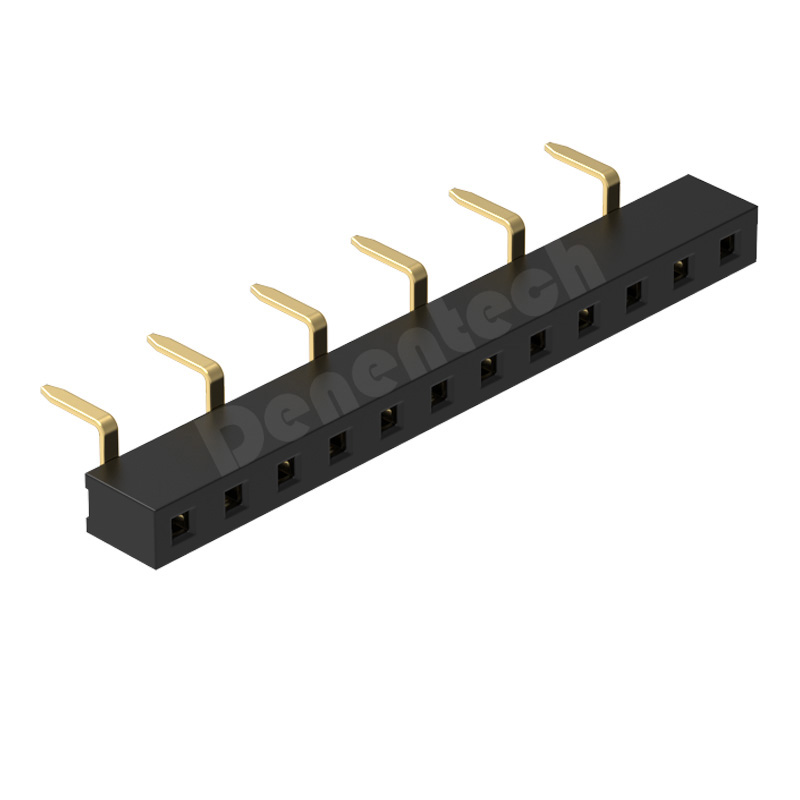

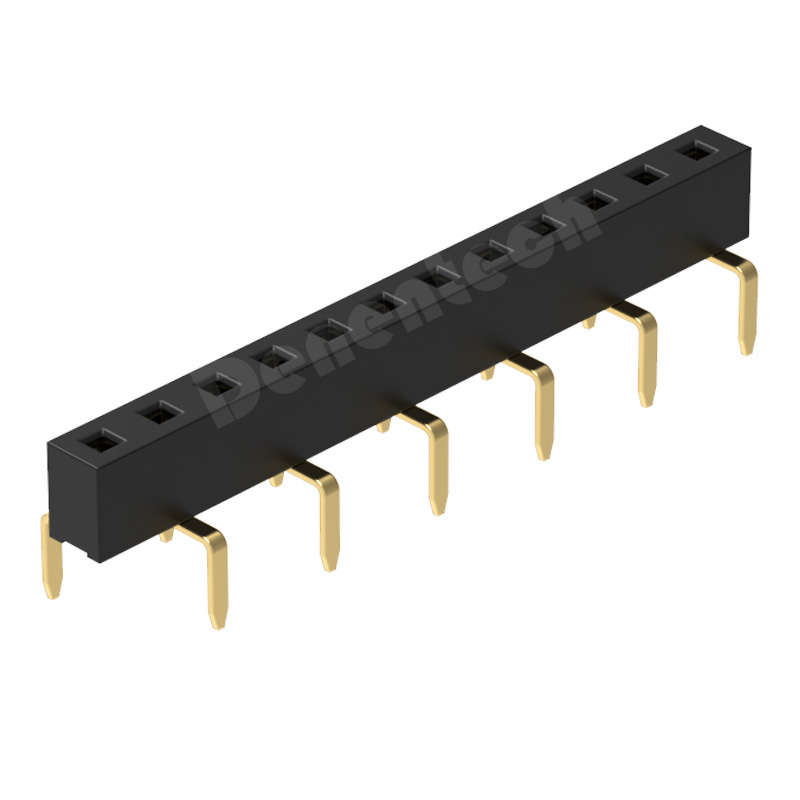

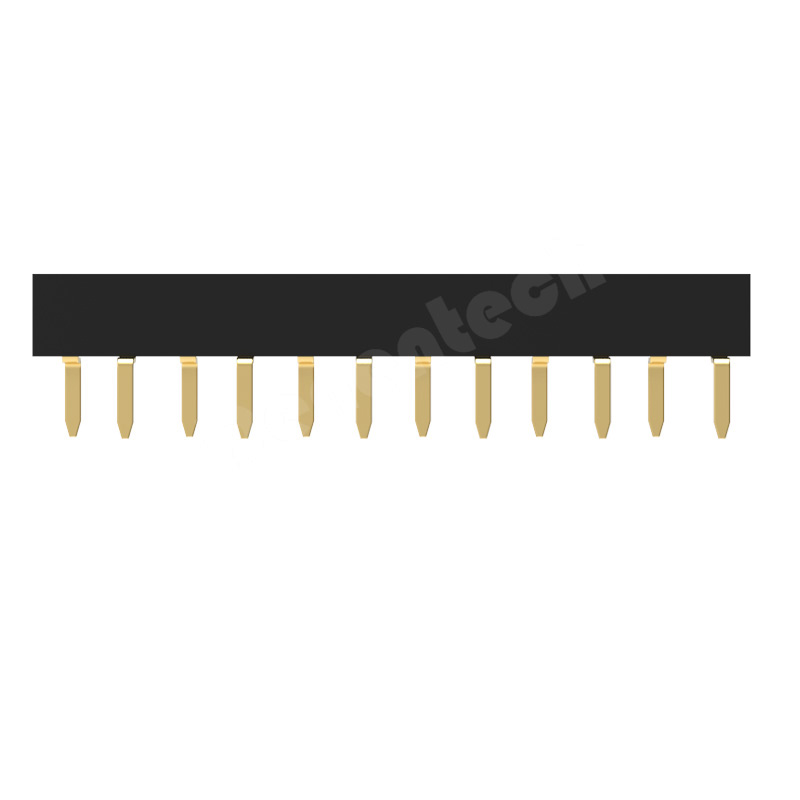

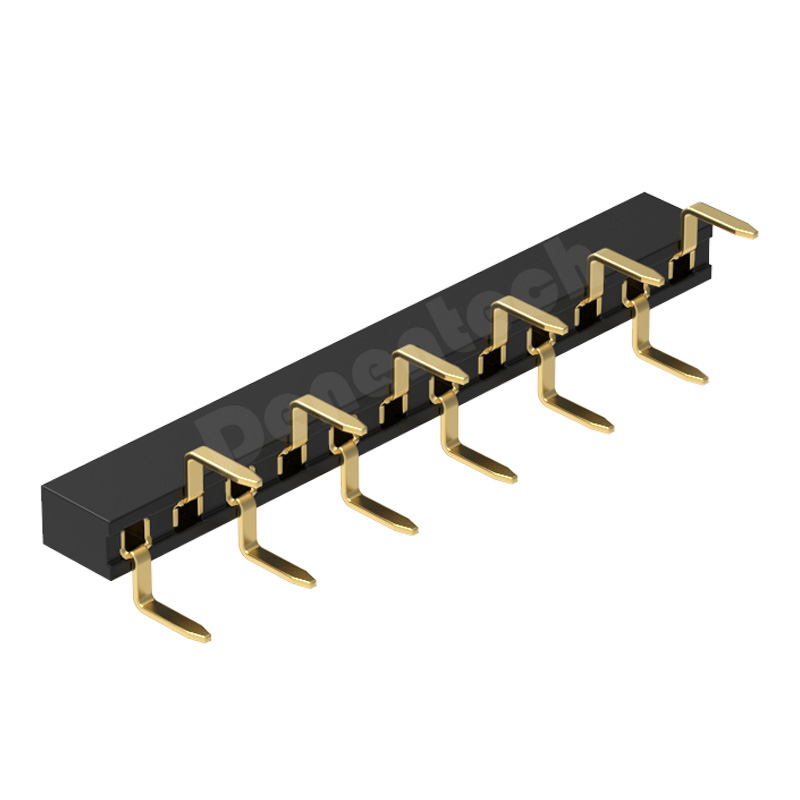

2.54mm Female Header H3.5 Single Row Bottom Entry DIP

Pitch

2.54mm

Plastic height

H3.5mm

Pin length

3.00mm,3.20mm,3.50mm,etc.

Row number

single row

Pin number

1-40pin

Connection type

Bottom Entry DIP

Rated current

3A

Pin material

Brass

Surface treatment

gold flash

Plastic materials

PBT,PA6T,LCP,etc.

Product features

high temperature resistance/flame retardant

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc
